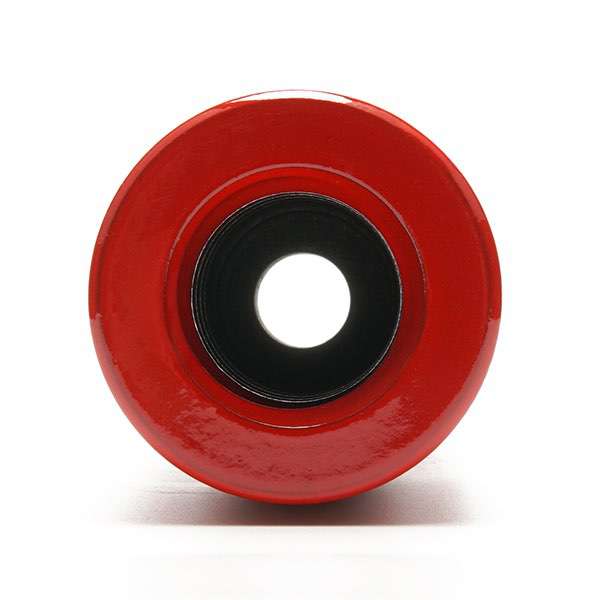

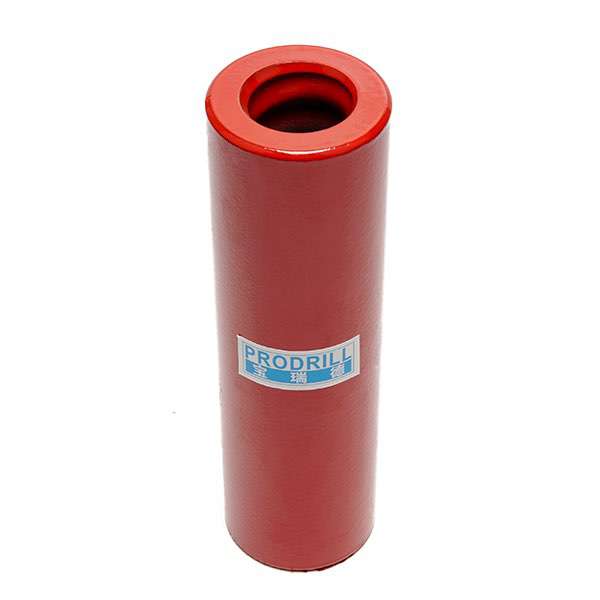

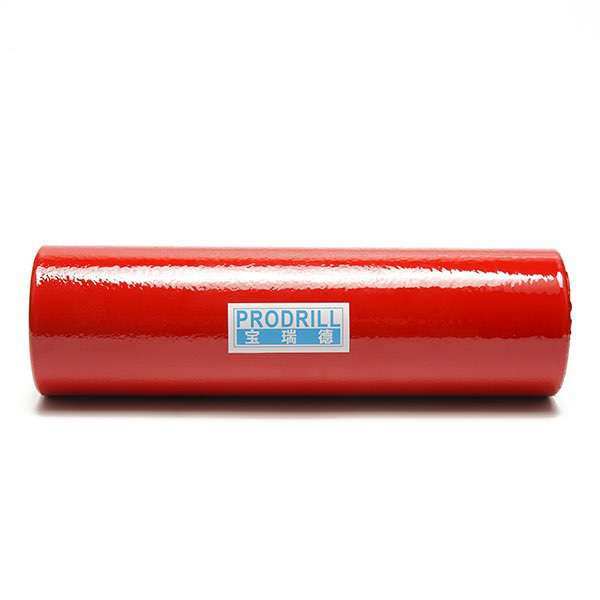

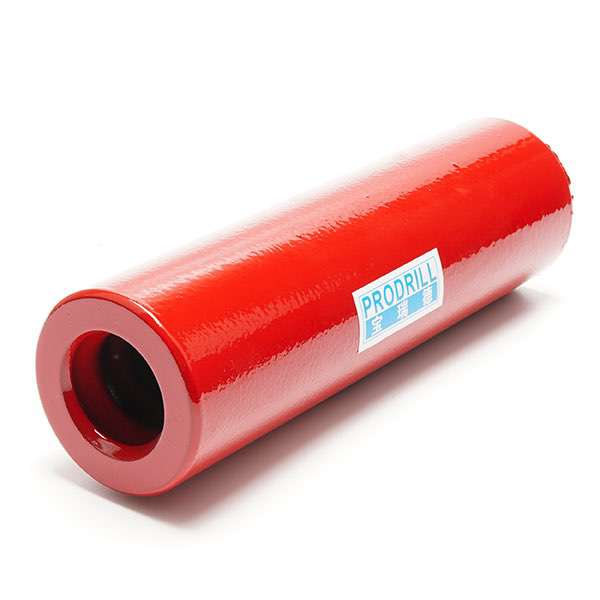

Coupling Sleeve full-bridge type R32T38-190MM

  • Code No.: FB-R32-T38-L190-D55
  • Model: R32 Series
  • Length: 190mm
  • Out. Diameter: 55mm
  • Thread: R32-T38
  • Type: Full Bridge

Coupling Sleeve full-bridge type R32T38-190MM

Product details

190mm Length Full Bridge Type Coupling Sleeve

Coupling sleeve is one of important component for top hammer drill string. There are 3 types of coupling components.

R32-T38 Thread Full Bridge Coupling SleeveFull Bridge Coupling Sleeve

Full-Bridge Coupling Sleeves

• Eliminates the potential for the coupling to creep along the threaded joints

• Typically used in surface applications

• Better uncoupling characteristics and tend to maintain tighter joints

• Less chance of jamming

• Best suited to machines equipped with independent rotation

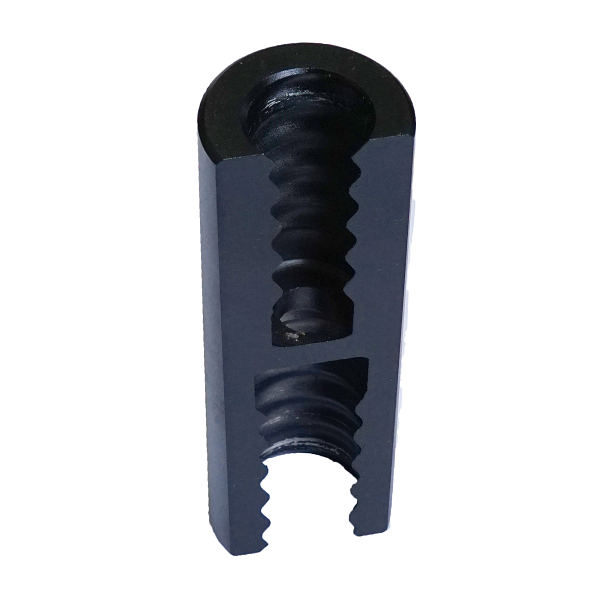

Closer look of Full Bridge Coupling Sleeve

 Full bridge coupling sleeve

Adapter Coupling, Cross over bit adapter

• Used when changing from one thread type, or size, to another and are typically required only in special circumstances


Cross over adapter,semi-bridge/full-bridge coupling sleeves

From left to right:  adapter couplingsemi bridge coupling sleeve, full bridge coupling sleeve

PDFFor more details please download PDF:  Coupling Sleeves Catalogue
