HC20 Excavator Drill Attchment Drill

HC20 Excavator Drill Attchment Drill

HC20 Excavator Drill Attchment Drill

Product details

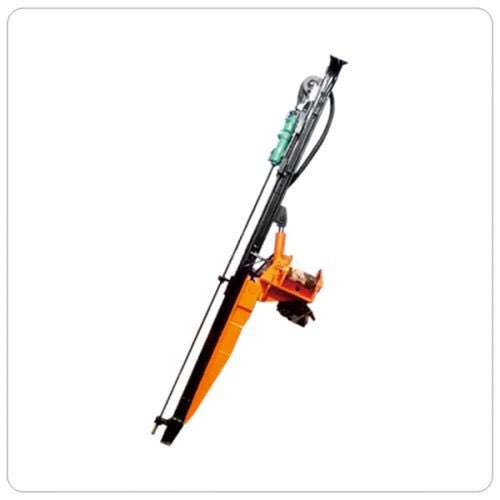

QL-HC20-500x500

Feature

  1.  Compared with hydraulic drilling platform, the drilling function is similar and cost-effective.
  2.  The drilling speed of pure rock drilling for hydraulic drilling machine is three times faster than that of the same magnitude pneumatic drill.
  3.  Low energy consumption, about 1/3-1/4 of the same magnitude pneumatic drill.
  4. The long service life of the drilling machine for the hydraulic drill and the less consumption of the drill parts, and the low cost of drilling operation.
  5. The hydraulic drill can adjust the impact energy according to the rock condition to obtain the best drilling effect.

Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concrete demolition,  construction works, etc. Pro Drill rock drills’ percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator’s boom.

Besides demanding conditions, Pro Drill Excavator Drill can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.

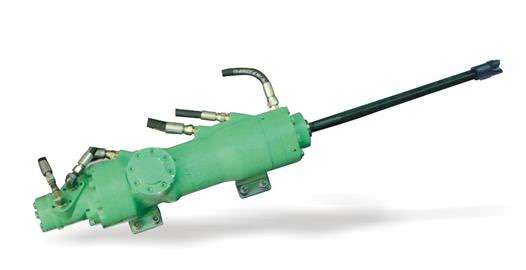

1. HC20 Hydraulic Drifter ( Montabert From France)



Technical Parameter for HC20 Hydraulic Driffer

Item

Description

Unite

 Parameter

1

Import Parameter

Import Oil Pressure

Mpa

12-16

2

Import Rate

L/min

30-60

3

Import Frequency

Hz

43

4

Import Energy

J

50-80

5

Rotation Parameter

Rotation Oil Pressure

Mpa

8-16

6

Rotation Rate

L/min

20-40

8

Maximum Torque

Nm

40-60

11

Net Weight

Kg

30

13

Drilling hole Dia

mm

32-45

14

Drilling depth

m

8

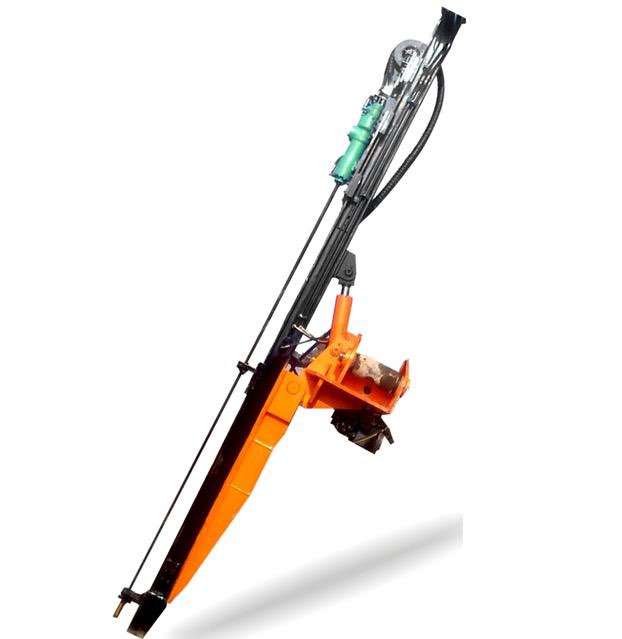

2. HC20 Rock Drill Set



HC20 Rock Drill Technical datesheet:

Drilling Diameter

30-50mm

Import Rate

≤45 L /min

Shank

Hex style and Thread style

Drilling depth

3m or 4m

Import Energy

≥90J

Import Frequency

≤45 L /min

Import Oil Pressure

12-14.5MPa

Rotation Oil Pressure

10MPa

Drilling depth

3m

Drill rod size

B25

Drilling speed

500-1000mm/min

Operation Oil Pressure

≤14.5 MPa

Rotation Speed

150-300r/min

Swing Torque

110N·M

Rotation Rate

30L/min

Application stratum

F=6-20

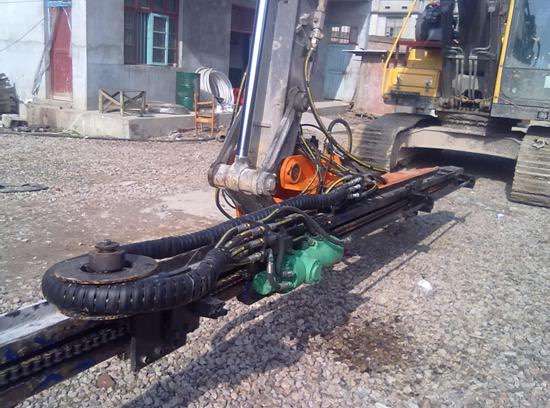

3.HC20 Excavator Mounted Rock Drill :






Feathers:



1 .HC20 Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.

2. The rate of the Pump can reach 200L/min, drilling diameter 30-50mm, 3m or 4m depth per time drilling.

3. Drilling speed: 3-5min/m for hard rock, 1min can drill 1m depth for soft rock.

4. Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker.



4. Remarks:

Excavator mounted drills can increase its function , one excavator can used for multi use , drilling and blasting
Excavator mounted is to use crawler moving, and stir hand function, for mining and construction,
Site is different, capacity of crawler moving is better than normal drill rig, installation and unlock is very easy, similar with hydraulic drifter fixing, and hydraulic rock drill drilling speed is 3-5times than pneumatic drill , one time drill depth is 3 meter, suitable for small –hole drilling blasting at rock hardness of 7.6HRC, drilling time is 6-7minutes, if by pneumatic drill need mini 30 minutes,
France Montabert HC20, there are two drill rod, one hex, and thread type,
(1) Hex. Taper drill rod cost cheaper, only disposal after use finish,
(2) Thread extension rod for extension use, T38 is a choose,



5.  Consignation of Excavated Mounted
(1) Multi function rail set
(2) Imported hydraulic drifter
(3) Moving System
(4) Dust collection
(5) Rock drilling tools
(6) Piston type air compressor
