Tapered Drill Bits

18 Apr 2018

DSC05600DSC05643DSC05652


General Introduction

Acedrills offers various cutting structures design configurations, include chisel bits, cross bits and button bits, for an extensive and diverse selection. These designs can be used in a variety of rock formations for maximum productivity, high penetration rate and long service life.

Specification Overview:



Chisel Bits

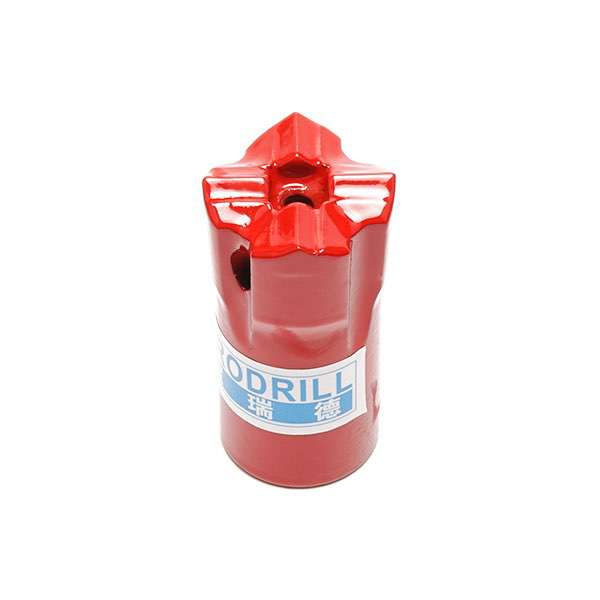

Cross Bits

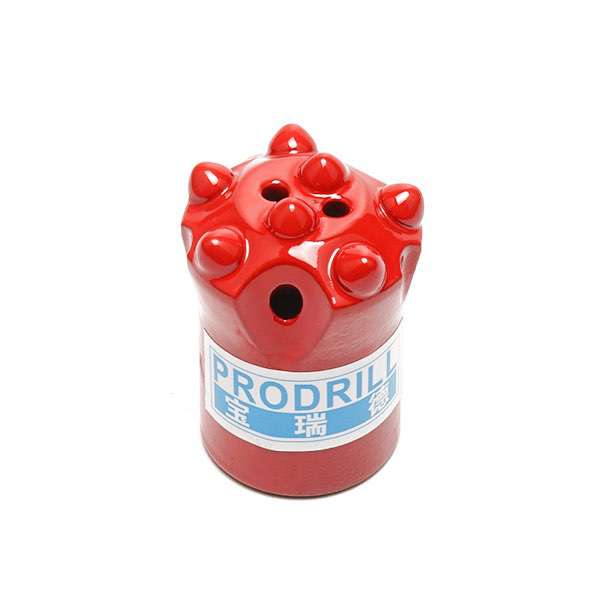

Button Bits

Taper Degree

7o

7o, 11o and 12o

7o, 11o and 12o

Bits Socket Diameter

mm

23

23

22

inch

27/32

27/32

7/8

Bit Diameter

mm

26 ~ 43

28 ~ 51

28 ~ 45

inch

1 1/32 ~ 1 45/64

1 7/64 ~ 2

1 7/64 ~ 1 25/32

Remark

There are horseshoe and oblique chipways designs;
To drill media hard, hard and crack not grown formation with rock hardness not above f15 and in place where the compacting power of the rock drill doesnt exceed 8Kg/MPa

To drill hard, very hard and crack grown formation

There are short skirt, average long skirt and enhanced long skirt;
with hemi-spherical or parabolic inserts configurations;
to drill all rock formations except very hard and abrasive formations





Note: 1. Special sizes may be available upon request;

2. Choose big and high carbide bits, when work with high impact rock drills, to improve anti-percussive capability of the inserts;

3. Work with soft formation, use extreme hard carbide inserts bits to get high penetration; while work with hard formation, use sub-hard carbide inserts bits to avoid inserts breaking; work with erosive formation, use anti-resistance alloy carbide inserts;

4. The taper degree of the bits must be the same as the taper rods that it is planned to work with.

How to order?

Chisel Bit: Bit Diameter + Taper Degree + Socket Diameter + Head Design

Cross Bit: Bit Diameter + Taper Degree + Socket Diameter

Button Bit: Bit Diameter + Taper Degree + Socket Diameter + Skirt length + Insert Configurations
