WJ-2 Underground LHD Loader

WJ-2 Underground LHD Loader

WJ-2 Underground LHD Loader

Product details

The best power system is matched to give full play to the system performance, and there is a certain reserve of power and strong power.

Low fuel consumption, low emissions of pollutants, low noise, environmental protection and energy conservation.

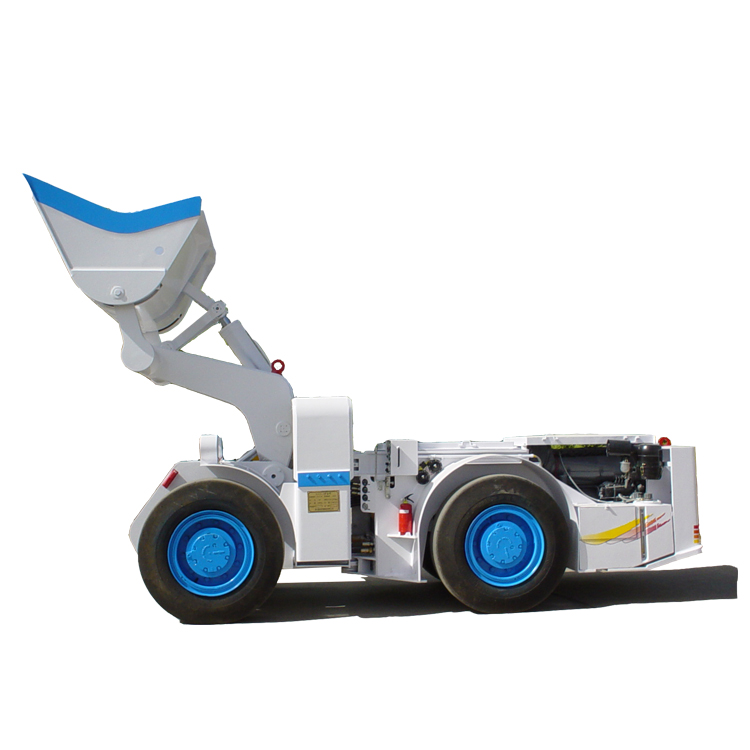

未标题-2

The components have strong versatility, low operation and maintenance costs, and good economy.

The chain protection function is complete. When the vehicle stops or the vehicle fails, the vehicle is automatically in braking state, which is safe and reliable.

Ergonomically designed, air-conditioned closed cab, cushioned seats, visual operator interface, comfortable ride, and maximum visibility.

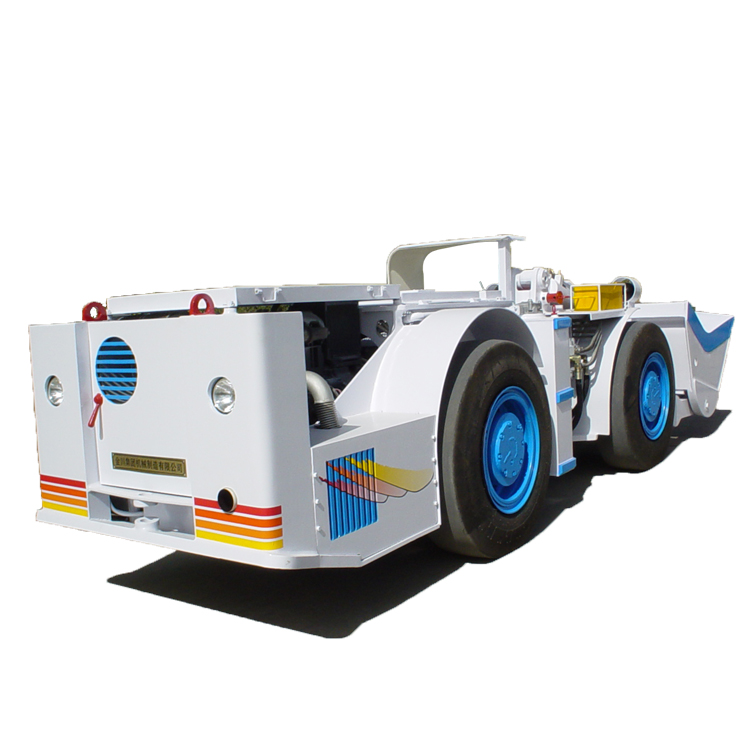

未标题-1

Central articulated body, power steering, good passability.

Swing body, to ensure full four-wheel landing, great traction.

The steel structure of the car body is made of high-quality carbon structural steel, CNC cutting, gas shielded welding, overall processing, surface shot peening and high mechanical strength.

Scraper buckets are specially designed for wear parts such as shovel blades and side blades. They are made of wear-resistant materials and have low scooping resistance.

According to customer needs, optional remote control operating system, automatic fire fighting system, active safety monitoring system, automatic weighing system.

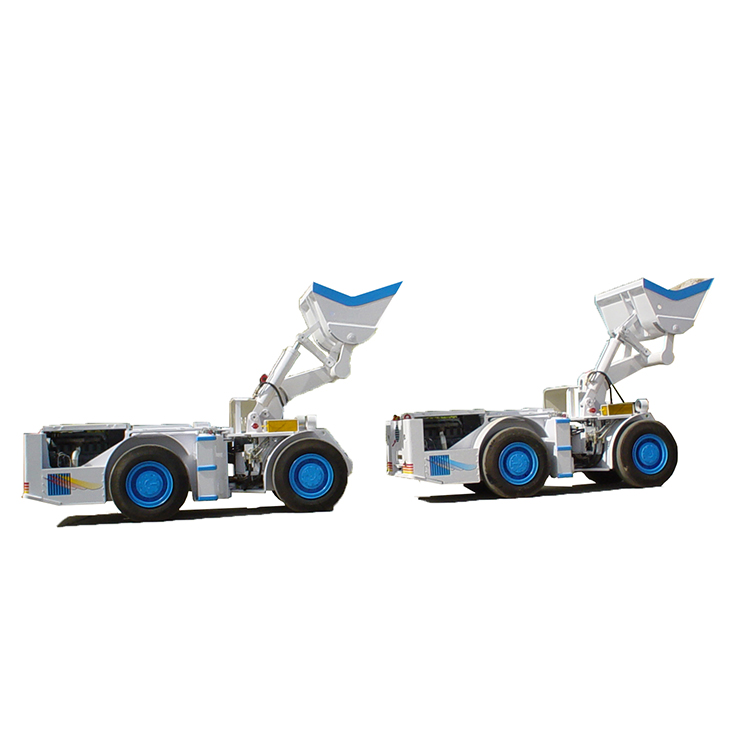

未标题-3


Specification of WJ-2 Diesel LHD Loader:



Heaped Bucket Capacity

2m³

Max. Traction

104KN

Running Speed

0-20km/h

Max. Rotation Angle

42°±2°

Diesel engine

DEUTZ F6L912W(as your requirement)

Dimensions

7060*1768*1880mm

Payload Capacity

4000kg

Max. Shovel Force

83.4KN

Grade ability

34%,1 Gear2.2 km

Min. Turning Radius

5100mm outside,2800mm inside

Min. Ground Clearance

290mm

Tire size

12.00-24

Weight(include hydraulic oil):

12.5T





PDF

For more details please watch PDF online: 内容附件: WJ-2 Diesel LHD Technical Data
