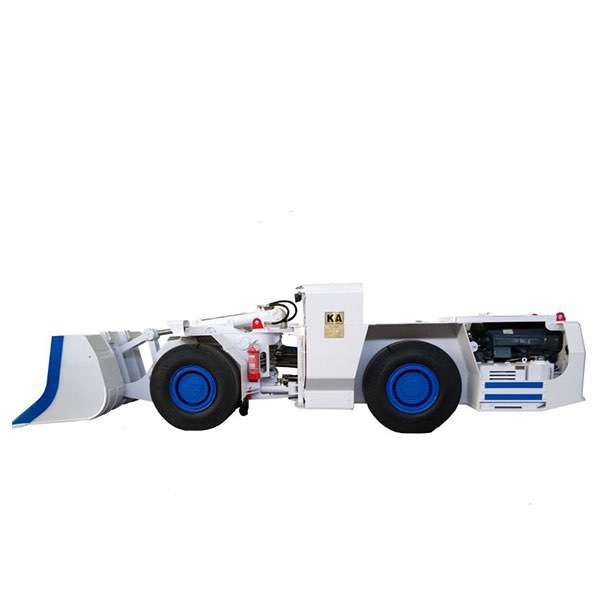

WJ-3 Underground LHD Loader

WJ-3 Underground LHD Loader

WJ-3 Underground LHD Loader

Product details


Product main features

The best power system is matched to give full play to the system performance, and there is a certain reserve of power and strong power.

Low fuel consumption, low emissions of pollutants, low noise, environmental protection and energy conservation.

The components have strong versatility, low operation and maintenance costs, and good economy.

The chain protection function is complete. When the vehicle stops or the vehicle fails, the vehicle is automatically in braking state, which is safe and reliable.

WJ-3网站用1

Ergonomically designed, air-conditioned closed cab, cushioned seats, visual operator interface, comfortable ride, and maximum visibility.

Central articulated body, power steering, good passability.

Swing body, to ensure full four-wheel landing, great traction.

The steel structure of the car body is made of high-quality carbon structural steel, CNC cutting, gas shielded welding, overall processing, surface shot peening and high mechanical strength.

Scraper buckets are specially designed for wear parts such as shovel blades and side blades. They are made of wear-resistant materials and have low scooping resistance.

According to customer needs, optional remote control operating system, automatic fire fighting system, active safety monitoring system, automatic weighing system.




Heaped Bucket Capacity

3m³

Max. Traction

104KN

Running Speed

0-20km/h

Max. Rotation Angle

42°±

Diesel engine

DEUTZ F6L413FW

Dimensions

8408*2040*1570mm

Payload Capacity

6000kg

Max. Shovel Force

135KN

Grade ability

25%

Min. Turning Radius

5943mm outside,3183mm inside

Min. Ground Clearance

290mm

Tire size

17.5-25

Weight(include hydraulic oil):

17T
