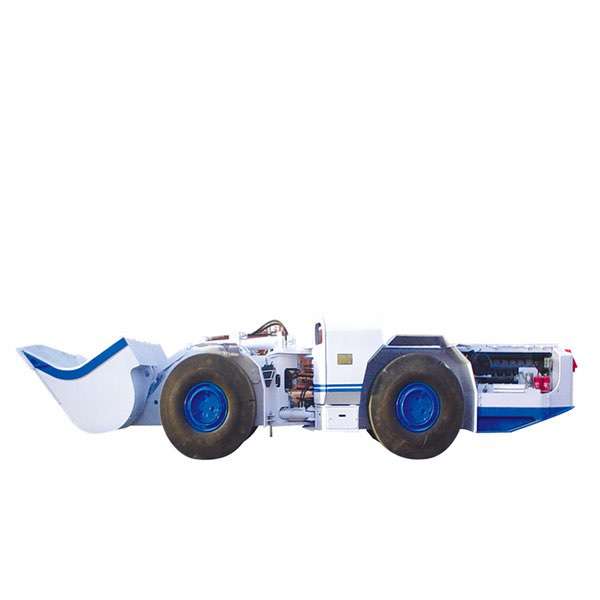

WJ-6 Underground LHD Loader

WJ-6 Underground LHD Loader

WJ-6 Underground LHD Loader

Product details

Product main features

The best power system is matched to give full play to the system performance, and there is a certain reserve of power and strong power.
Low fuel consumption, low emissions of pollutants, low noise, environmental protection and energy conservation.
The components have strong versatility, low operation and maintenance costs, and good economy.

The chain protection function is complete. When the vehicle stops or the vehicle fails, the vehicle is automatically in braking state, which is safe and reliable.

未标题-2

Ergonomically designed, air-conditioned closed cab, cushioned seats, visual operator interface, comfortable ride, and maximum visibility.
Central articulated body, power steering, good passability.
Swing body, to ensure full four-wheel landing, great traction.
The steel structure of the car body is made of high-quality carbon structural steel, CNC cutting, gas shielded welding, overall processing, surface shot peening and high mechanical strength.
Scraper buckets are specially designed for wear parts such as shovel blades and side blades. They are made of wear-resistant materials and have low scooping resistance.

According to customer needs, optional remote control operating system, automatic fire fighting system, active safety monitoring system, automatic weighing system.


specifications

Heaped Bucket Capacity

6m³

Max. Traction

354KN

Running Speed

0-27km/h

Max. Rotation Angle

42°±2°

Diesel engine

DEUTZ F12L413FW

Dimensions

10600*2795*1825mm

Payload Capacity

14000kg

Max. Shovel Force

135KN

Grade ability

25%

Min. Turning Radius

7220mm outside,3690mm inside

Min. Ground Clearance

290mm

Tire size

25-26.5

Weight(include hydraulic oil):

34.4T



specifications

Heaped Bucket Capacity

6m³

Max. Traction

354KN

Running Speed

0-27km/h

Max. Rotation Angle

42°±2°

Diesel engine

DEUTZ F12L413FW

Dimensions

10600*2795*1825mm

Payload Capacity

14000kg

Max. Shovel Force

135KN

Grade ability

25%

Min. Turning Radius

7220mm outside,3690mm inside

Min. Ground Clearance

290mm

Tire size

25-26.5

Weight(include hydraulic oil):

34.4T
