Q9-45-R32 Threaded Button Bit

  • Thread: R32
  • Diameter: 45mm
  • Gauge Buttons: 6*10mm
  • Front Buttons: 3*9mm
  • Skirt Design: Standard
  • Weight: 0.8KGS
  • Carbide Design: Dome/Semi-Ballistic

Q9-45-R32 Threaded Button Bit

Threaded Button Bit
Threaded Button Bit
Threaded Button Bit
Threaded Button Bit
Threaded Button Bit
Threaded Button Bit
Threaded Button Bit
Threaded Button Bit

Product details

Rock drilling tools manufacturer ProDrill offers rock drill bits: R32 Threaded Button Bits is the most important size for drifting and tunneling drilling job.

Threaded Button Bit

We will choose to use tungsten carbide of T6,featuring good wear-resistance and toughness.
This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.
Meanwhile,we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes.
In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide  if high speed is not a necessity.

Diameter: 43mm, 45mm, 48mm, 51mm, 57mm, 64mm

Skirt body: retrac, and normal,

Face: flat, uniface,

Carbide: Dome, ballistic

Used in drifting and tunneling, dimensional natural stone quarrying

To match shank rod, and MM and MF Hex drifter rod for light-duty top hammer.

R32 Thread Drill BitDome Button Threaded Drill Bit

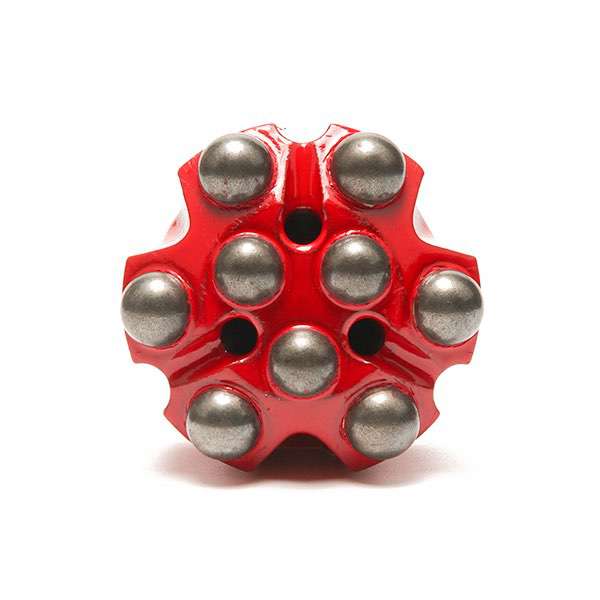

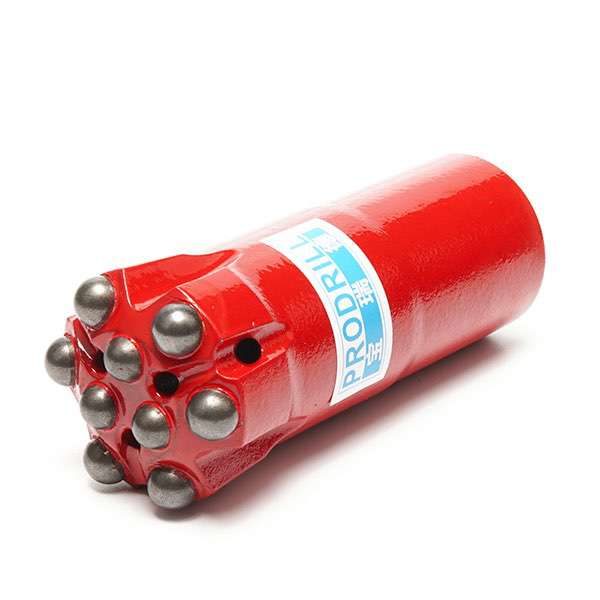

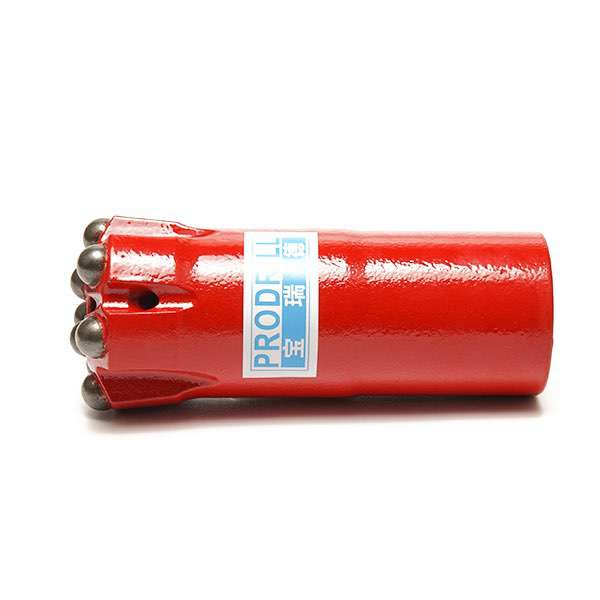

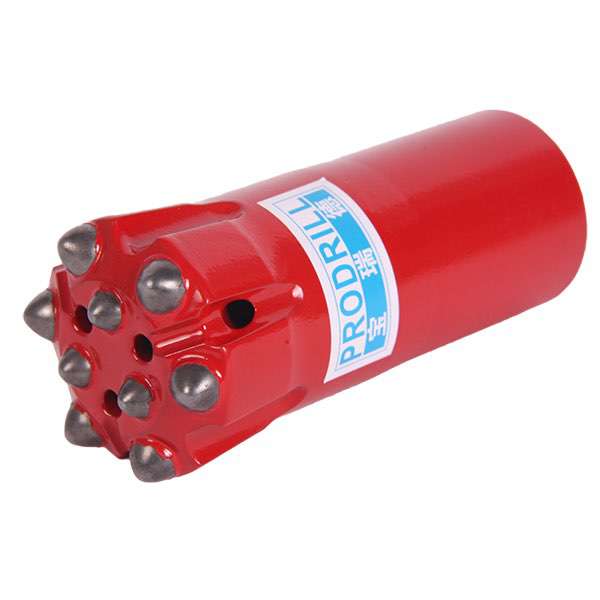

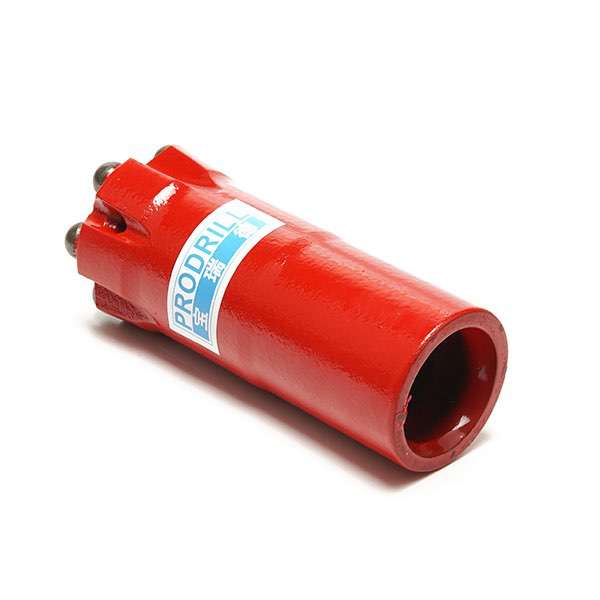

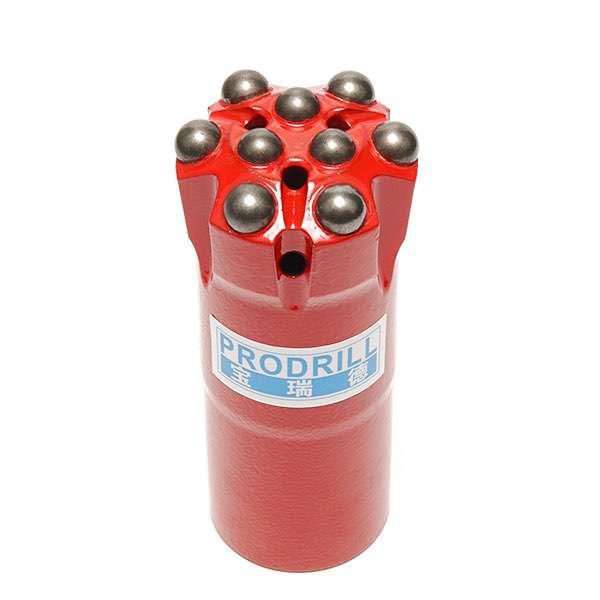

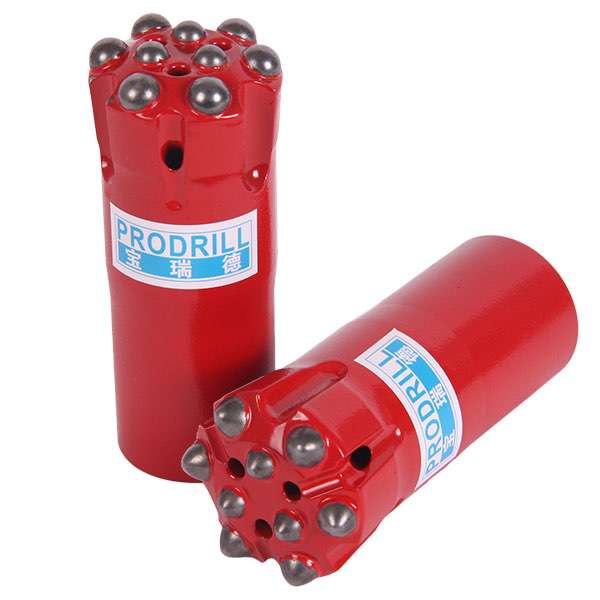

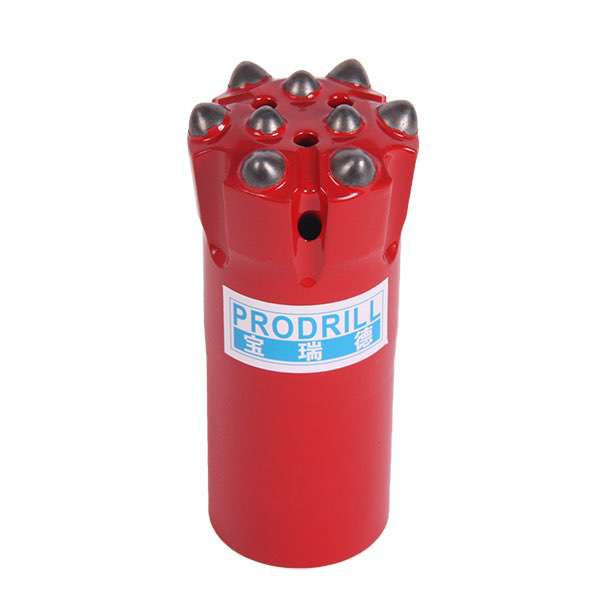

R32 Threaded Drill bit with 9 dome/semi-ballistic carbide inserts, diameter 45mm with standard skirt design


Q9-45-R32 Threaded Button Bit with R32 drifting rod


微信图片_20200309164440

微信图片_20200309164457


9 Buttons threaded drill bit with R32 drifting drill rod



PDFFor more details please watch PDF online: R32 Threaded Drill Bits for Drifting and Tunneling Catalogue
