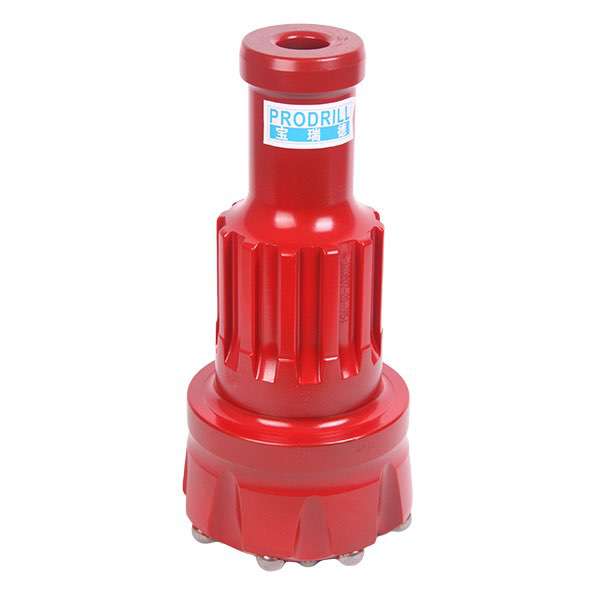

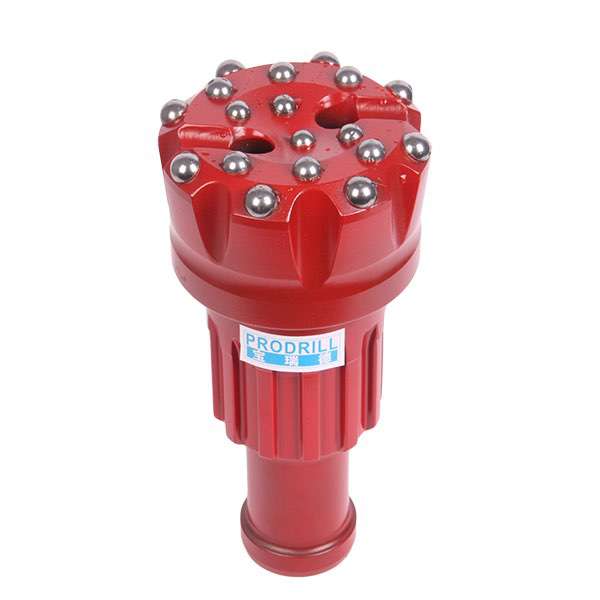

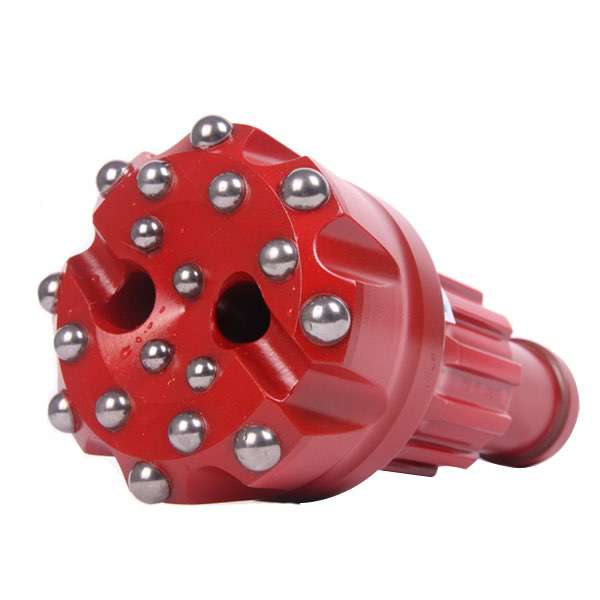

DTH Bit-M60-152

  • Diameter: 152mm
  • Air Holes No.: 2
  • Gauge Buttons: 8*17mm
  • Face Buttons: 8*14mm
  • Approx. Weight: 26.0KGS
  • Bit Face Type: Concave face
  • Carbide Design: Dome

DTH Bit-M60-152

Product details

Rock drilling tools manufacturer ProDrill has a comprehensive range of DTH hammer bits with M shanks type for a various range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.

Rock drill bits Shank types: M 30, M 40, M 50, M 60/65, M 380.

DTH drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-305mm)

M60-152 DTH Hammer Bit

Concave Face
The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.

M60-152 DTH Drill Bit
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

M60-152 DTH Hammer Bit

M shank DTH drill bit with concave face, 16 dome carbide buttons for blasting bore holes, water well drilling.

PDFFor more details please watch PDF online: DTH hammer bits with M shanks Catalogue
