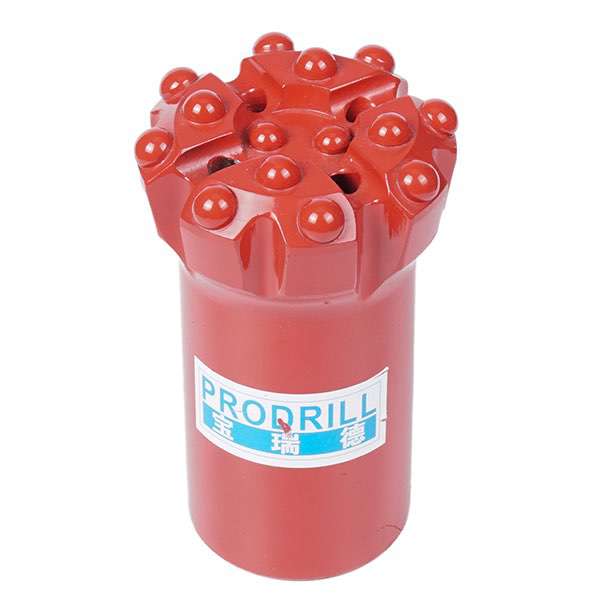

Q14-89-T38-DC Threaded Button Bit

  • Code No.: Q14-89-T38-DC
  • Thread: T38
  • Diameter: 89mm
  • Gauge Buttons: 8*13mm
  • Front Buttons: 6*13mm
  • Skirt Design: Standard
  • Carbide Design: Dome
  • Face Design: Drop Center
  • Weight: 3.3KGS

Q14-89-T38-DC Threaded Button Bit

Q14-89-T38-DC Threaded Button Bit

Product details

Rock drilling tools manufacturer ProDrill offers rock drill bits: T38 Threaded Button Bits is the most important size for benching and long-hole drilling underground

Diameter: 64mm 76mm, 89mm,

Skirt body: retrac, and normal,

Face design: flat, uniface, drop center

Carbide design:  Dome, ballistic

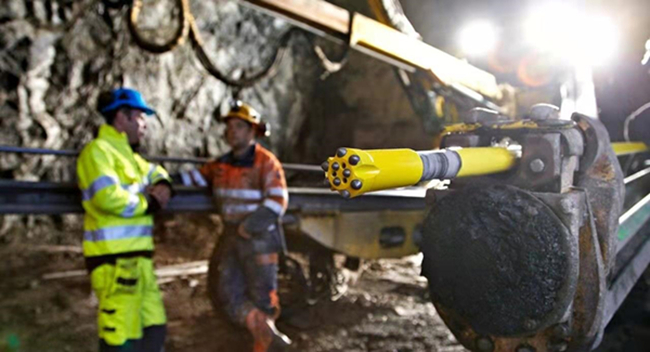

Used in bench drilling, underground long hole drilling

To match extension MF rod, MM rod heavy duty top hammer.

Q14-T38-89 Threaded Button Bit

We will choose to use tungsten carbide of T6,featuring good wear-resistance and toughness.
This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.
Meanwhile,we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes.
In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide  if high speed is not a necessity.

微信图片_20200309164440

微信图片_20200309164457

14 Dome carbide inserts with drop center face, 89mm diameter threaded drill bits with T38 thread for bench drill, underground long hole drilling to match extension drill rods.


PDFFor more details please watch PDF online: T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
