Q12-76-T38-RC Threaded Button Bit

  • Code No.: Q12-76-T38-RC
  • Diameter: 76mm
  • Length: 155mm
  • Gauge Buttons: 12mm*8
  • Front Buttons: 12mm*4
  • Skirt Design: Retrac
  • Carbide Design: Dome
  • Face Design: Flat
  • Water Holes: 2 on front
  • Weight: 3.50kg

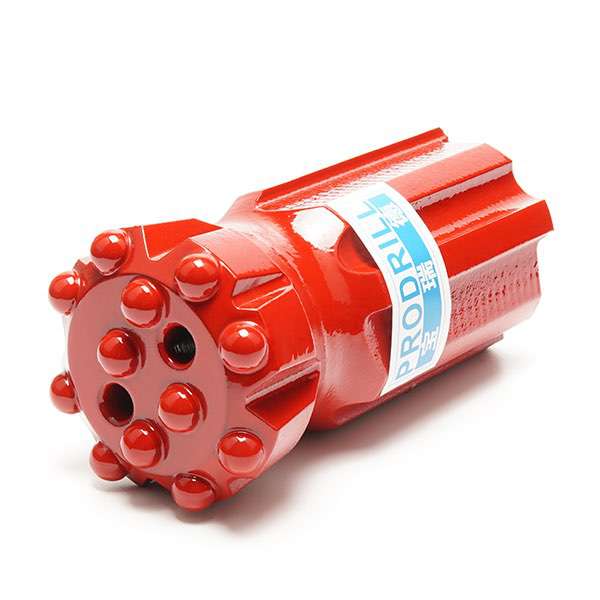

Q12-76-T38-RC Threaded Button Bit

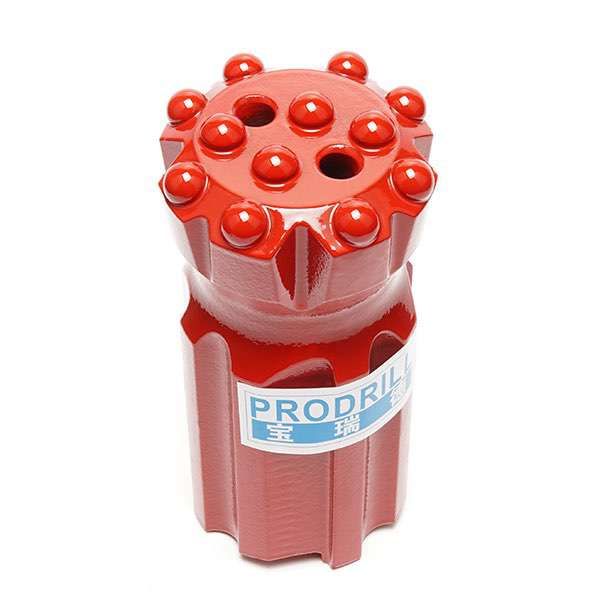

T38-76 Retrac Threaded Button Bit

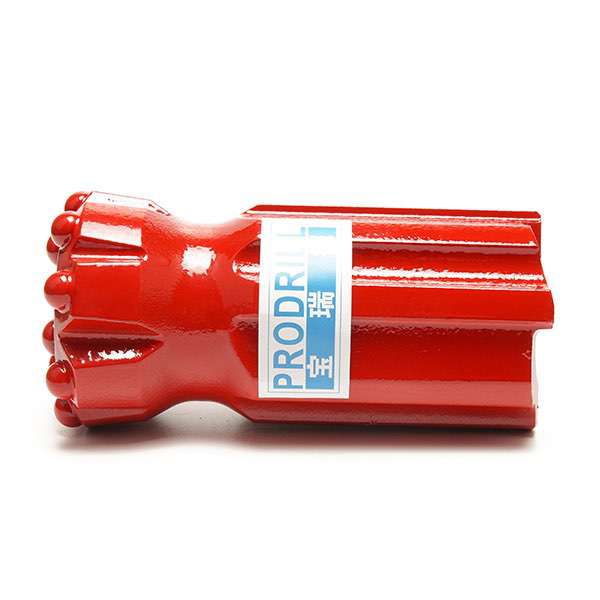

T38-76 Retrac Threaded Button Bit

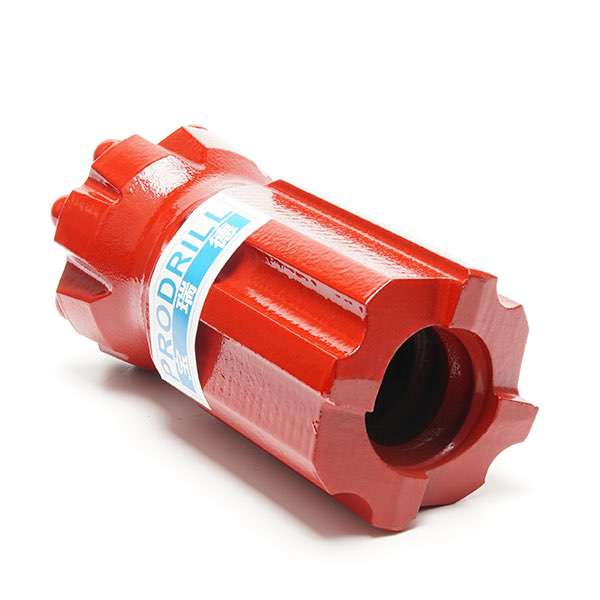

T38-76 Retrac Threaded Button Bit
T38-76 Retrac Threaded Button Bit
T38-76 Retrac Threaded Button Bit

Product details

Rock drilling tools factory ProDrill manufactures rock drill bits: T38 Threaded Button Bits is the most important size for benching and long-hole drilling underground.

T38-76 Retrac Threaded Button Bit

We will choose to use tungsten carbide of T6,featuring good wear-resistance and toughness.
This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.
Meanwhile,we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes.
In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide  if high speed is not a necessity.

Diameter 64mm 76mm, 89mm,

Skirt body: retrac, and normal,

Face type: flat, uniface, drop center

Carbide shape:  Dome, ballistic, semi-ballistic

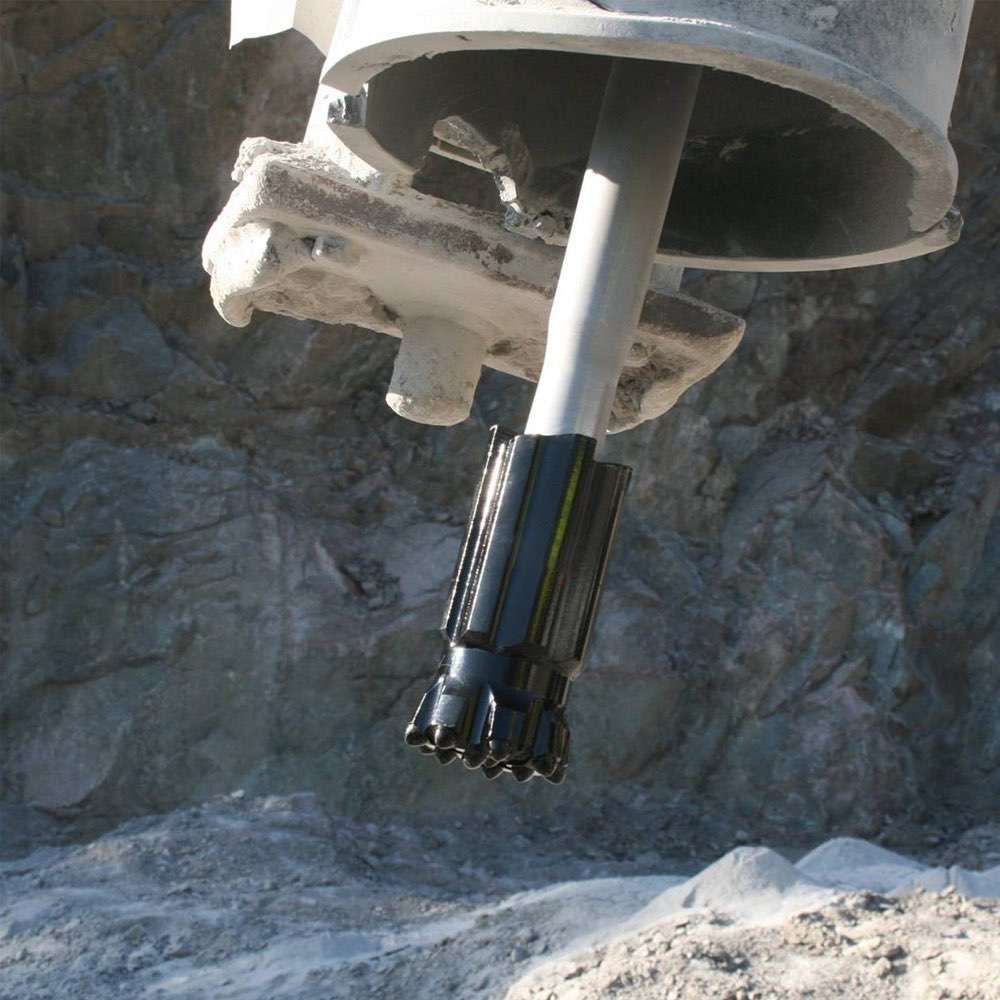

Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

T38-76 Retrac Threaded Button Bit

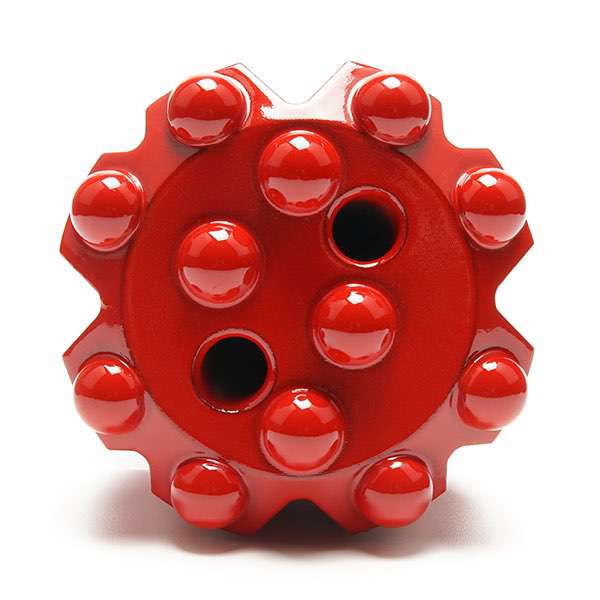

12 Dome carbide inserts T38 threaded drill bits with flat face design, 76mm diameter and retrac skirt body for bench drilling and underground long hole drilling.

T38-76 Retrac Threaded Button Bit

微信图片_20200309164440

微信图片_20200309164506

55a1711a0e24db90efad4a439db1003

Flat-face design detail of T38-64 threaded button bit with dome buttons, retrac skirt, to match with extension drill steels


PDFFor more details please view PDF online: T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
