Q14-89-T38-RC Threaded Button Bit

  • Code No.: Q14-89-T38-RC
  • Thread: T38
  • Diameter: 89mm
  • Gauge Buttons: 8*12mm
  • Front Buttons: 6*12mm
  • Skirt Design: Retrac
  • Face Design: Drop Center
  • Carbide Design: Dome
  • Weight: 5.4KG

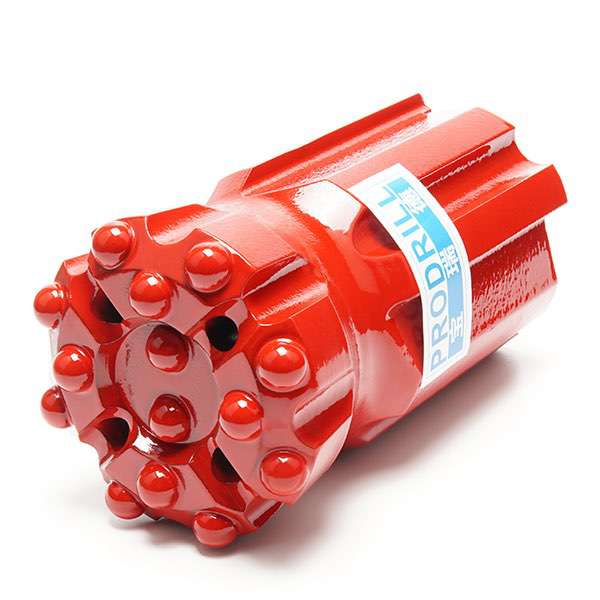

Q14-89-T38-RC Threaded Button Bit

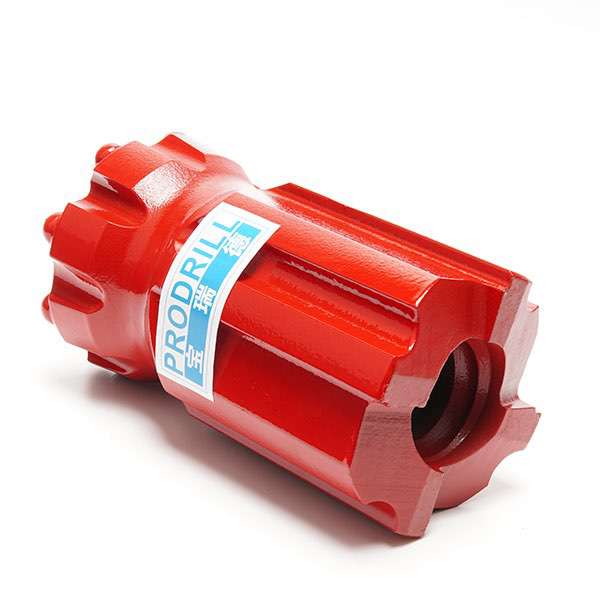

Drop Center Retrac Threaded Button Bit

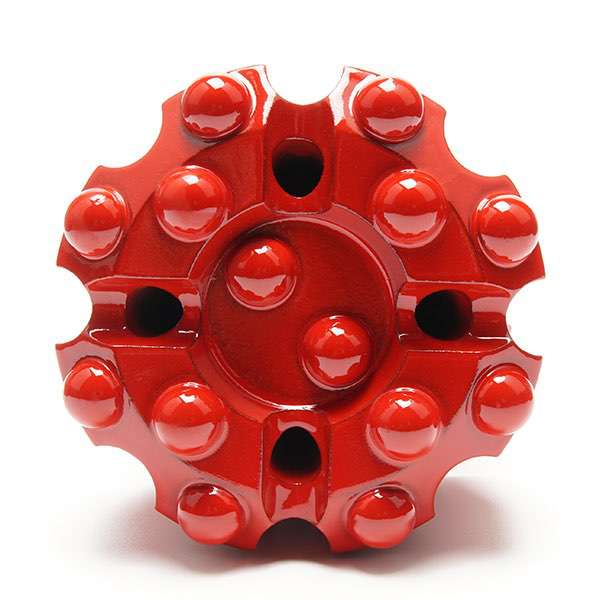

Drop Center Retrac Threaded Button Bit

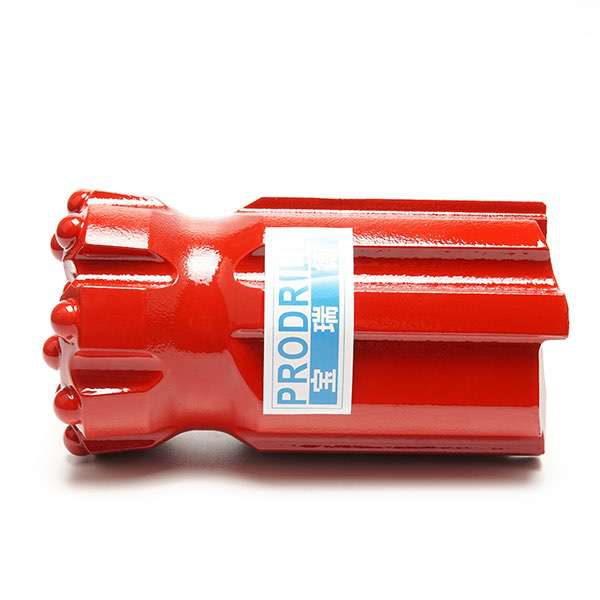

Drop Center Retrac Threaded Button Bit

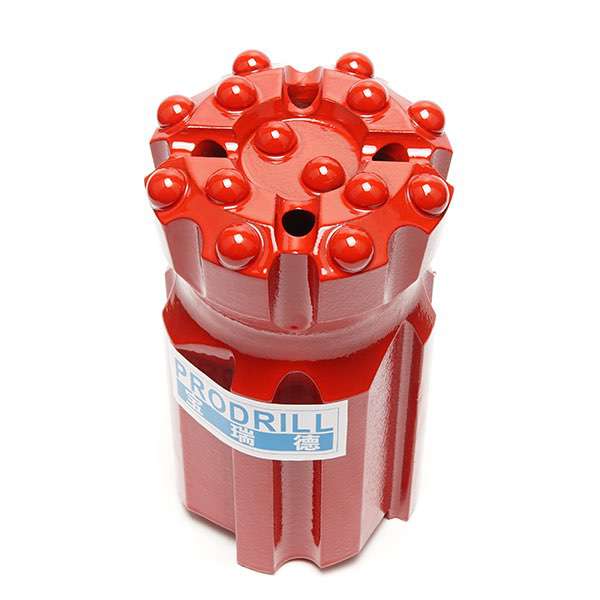

Drop Center Retrac Threaded Button Bit
Drop Center Retrac Threaded Button Bit

Product details

Rock drilling tools factory ProDrill manufactures rock drill bits: T38 Threaded Button Bits is the most important size for benching and long-hole drilling underground.

T38-89 Drop Center Retrac Threaded Button Bit


We will choose to use tungsten carbide of T6,featuring good wear-resistance and toughness.
This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.
Meanwhile,we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes.
In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide  if high speed is not a necessity.

Diameter 64mm 76mm, 89mm,

Skirt body: retrac, and normal,

Face type: flat, uniface, drop center

Carbide shape:  Dome, ballistic, semi-ballistic

Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

T38-89 Drop Center Retrac Threaded Button Bit

14 Dome carbide inserts T38 threaded drill bits with drop center face design, 89mm diameter and retrac skirt body for bench drilling and underground long hole drilling.

T38-89 Drop Center Retrac Threaded Button Bit

微信图片_20200309164440

微信图片_20200309164503


Drop center, retrac design details of T38-89 threaded button bit, to match with extension drill rods


PDFFor more details please view PDF online: T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
