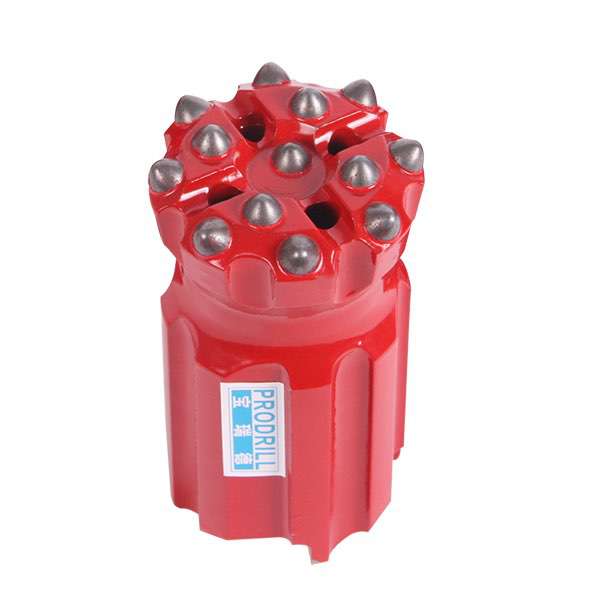

Q13-89-T45-RC Threaded Button Bit

  • Code No.: Q13-89-T45-RC
  • Thread: T45
  • Diameter: 89mm
  • Gauge Buttons: 8*12.7mm
  • Front Buttons: 5*12.7mm
  • Skirt Design: Retrac
  • Face Design: Drop Centre DC
  • Carbide Design: Semi-Ballistic
  • Weight: 4.9KGS

Q13-89-T45-RC Threaded Button Bit

Q13-89-T45-RC Threaded Button Bit

Product details

Rock drilling tools factory ProDrill manufactures rock drill bits: T45 Threaded Button Bit is the most important size for benching and long-hole drilling underground

Diameter: 76mm, 89mm, 102mm

Skirt body: retrac, and normal, straightrac

Face type: flat, uniface, drop Center

Carbide shape:  Dome, ballistic, semi-ballistic

Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

T45-89 Threaded Button Bit

13 Semi-ballistic carbide inserts T45 threaded button bits with drop center face, 89mm diameter and retrac skirt body match with extension drill steels for bench drilling and underground long hole drilling.

PDFFor more details please watch PDF online: T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
