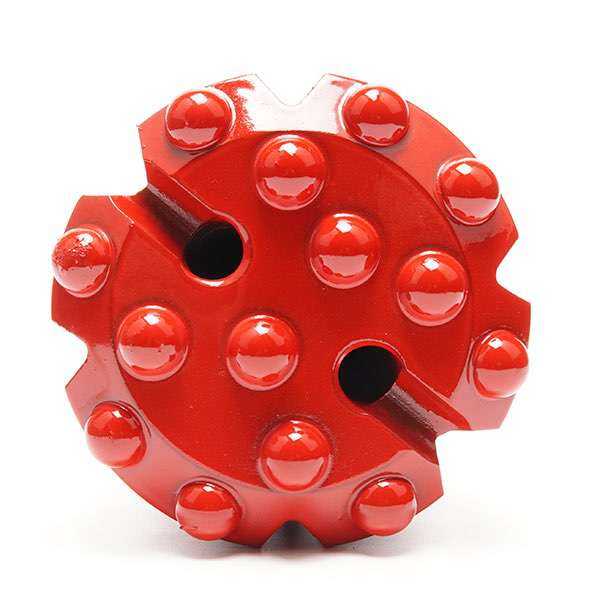

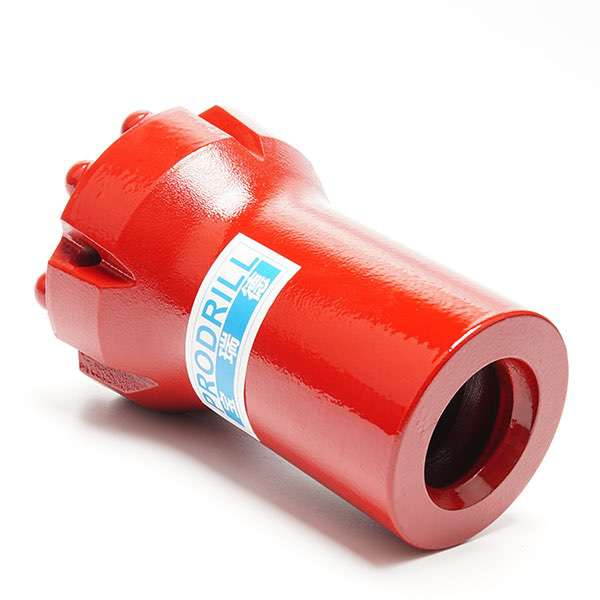

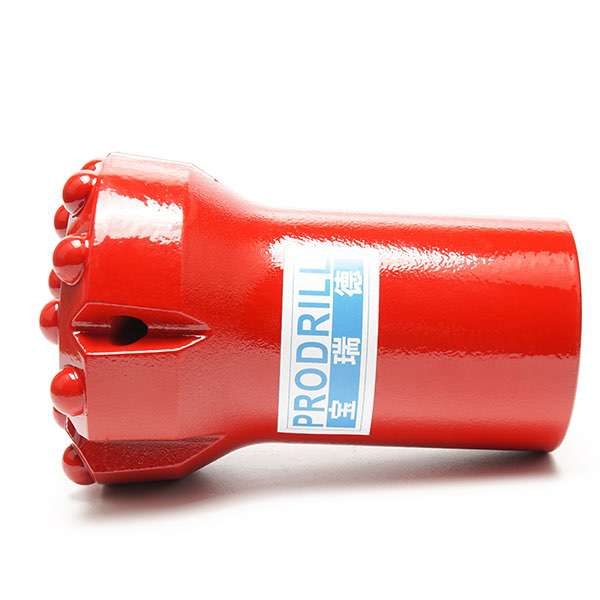

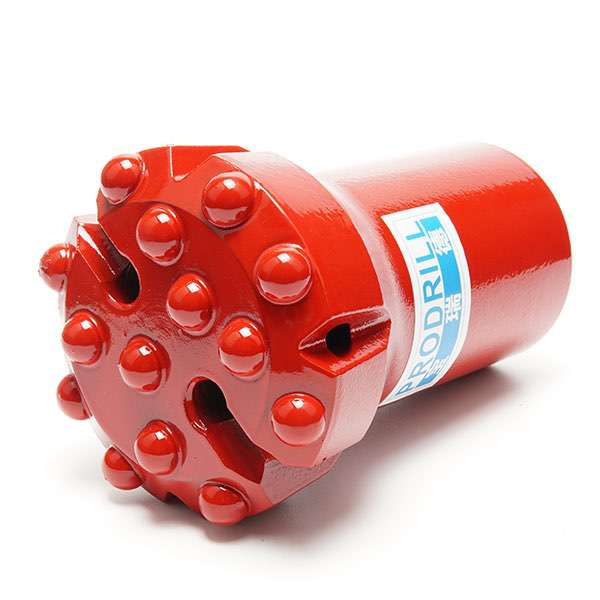

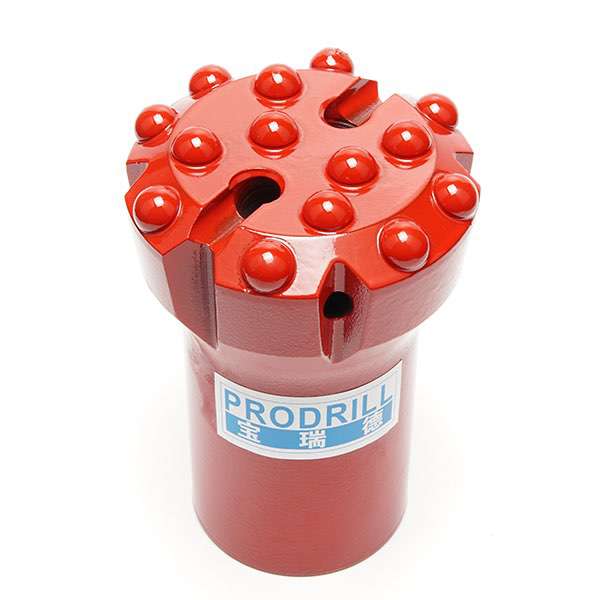

Q14-102-T45 Threaded Button Bit

  • Code No.: Q14-89-T45-RC
  • Thread: T45
  • Diameter: 102mm
  • Gauge Buttons: 8*14mm
  • Front Buttons: 6*14mm
  • Skirt Design: Standard
  • Face Design: Flat
  • Carbide Design: Dome

Q14-102-T45 Threaded Button Bit

T45-102 Threaded Button Bit
T45-102 Threaded Button Bit
T45-102 Threaded Button Bit
T45-102 Threaded Button Bit
T45-102 Threaded Button Bit

Product details

Rock drilling tools factory ProDrill manufactures rock drill bits: T45 Threaded Button Bit is the most important size for benching and long-hole drilling underground

T45-102mm Threaded Button Bita

Diameter: 76mm, 89mm, 102mm

Skirt body: retrac, and normal, straightrac

Face type: flat, uniface, drop center

Carbide shape:  Dome, ballistic, semi-ballistic

Used in bench drilling, underground long hole drilling to match extension drill roddrifting drill steel heavy duty top hammer.

T45-102mm Threaded Button Bit

T45 Threaded Drill Bit with flat face design.

T45-102mm Threaded Button BitT45-102mm Threaded Button Bit

T45-102mm Threaded Button Bit

14 Dome Buttons, 89mm Diamter, T45 Thread with Flat face, Standard body Top Hammer Bit to match with extension drill rods for bench drilling and underground long hole drilling.

PDFFor more details please watch PDF online: T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
