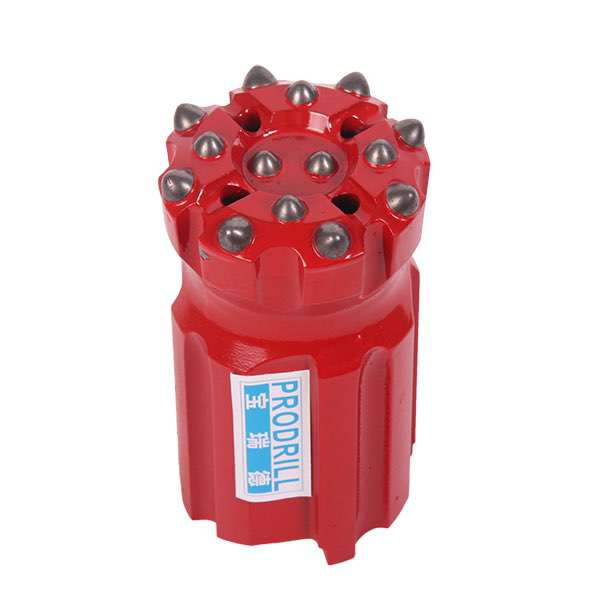

Q14-102-T51-RC Threaded Button Bit

  • Code No.: Q14-102-T51-RC
  • Thread: T51
  • Diameter: 102mm
  • Gauge Buttons: 8*14mm
  • Front Buttons: 6*14mm
  • Skirt Design: Retrac
  • Carbide Design: Semi-Ballistic
  • Face Design: Drop Center
  • Weight: 7.5KGS

Q14-102-T51-RC Threaded Button Bit

Q14-102-T51-RC Threaded Button Bit

Product details

Rock drilling tools manufacturer ProDrill offers rock drill bits: T51 Threaded Button Bits are the most important size for benching and long-hole drilling underground.

Diameter: 76mm, 89mm, 102mm

Skirt body: retrac, and normal, straightrac

Face type: flat, uniface, Drop Center

Carbide shape:  Dome, ballistic, semi-ballistic

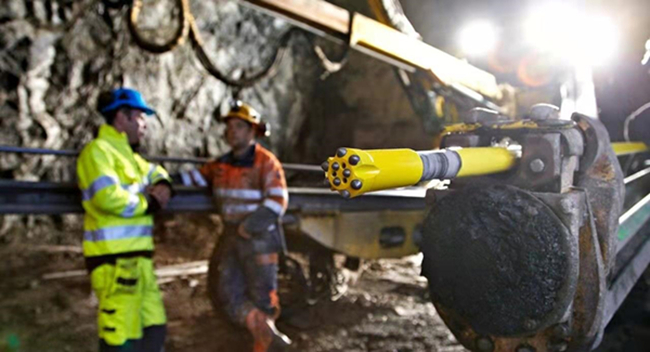

For bench drilling, underground long hole drilling

To match extension MF rod, MM rod heavy duty top hammer.

Q14-T51-102 Drop Center Threaded Button Bit

14 Semi-ballistic/parabolic carbide inserts T51 threaded drill bit with drop center face, 102mm diameter match with extension drill rod for bench drilling and long hole drilling underground.

PDFFor more details please download PDF: T51 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
