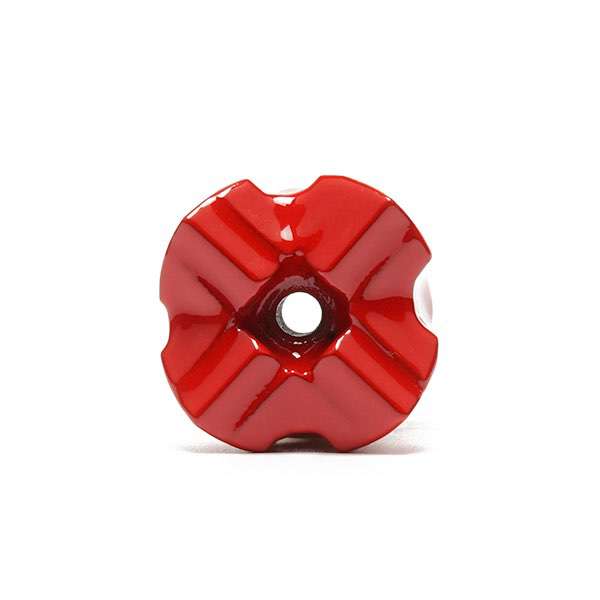

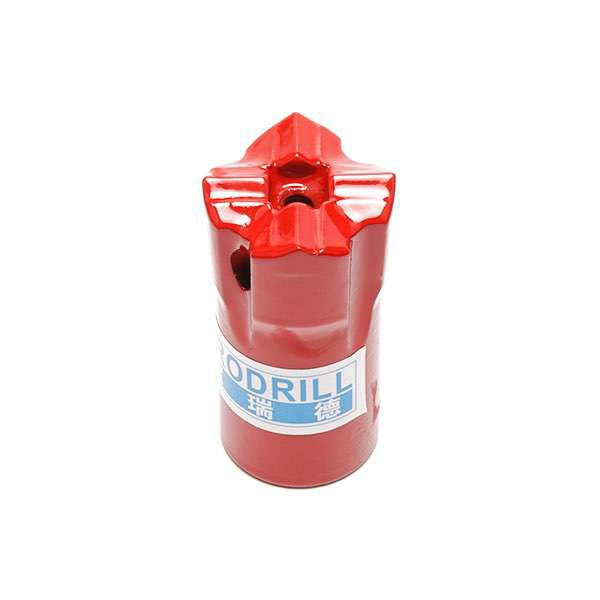

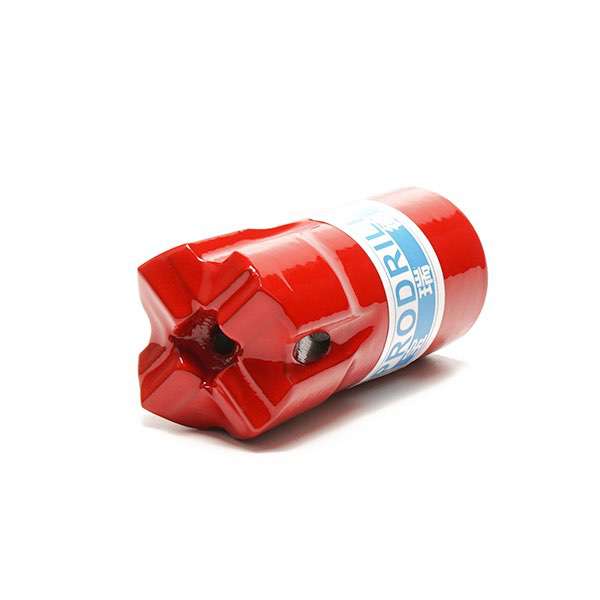

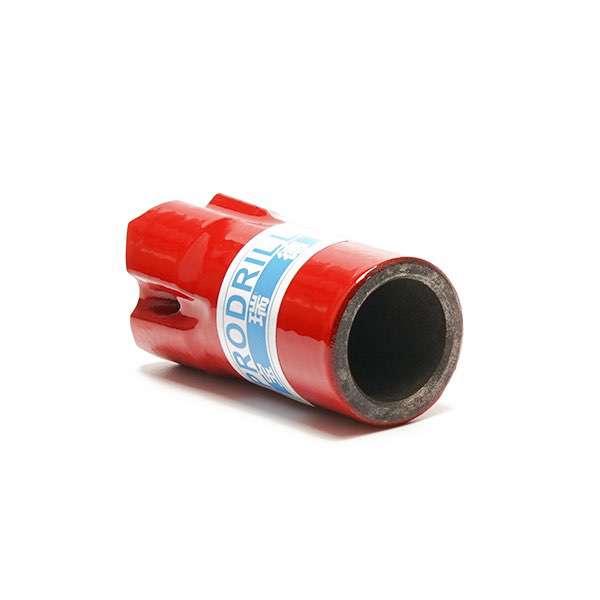

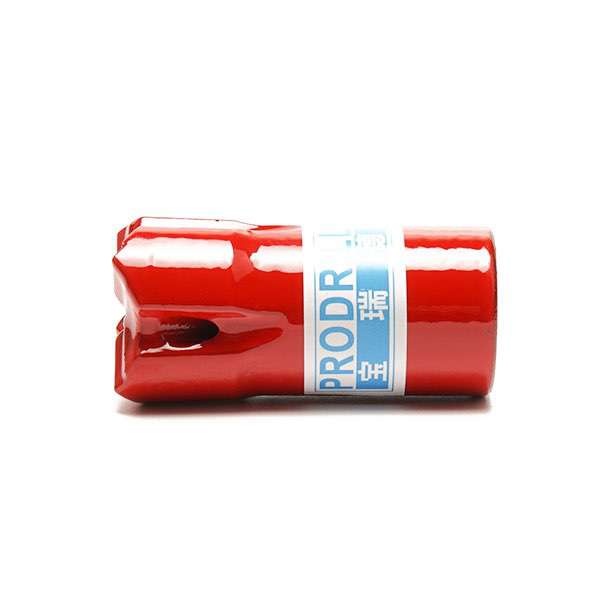

S1-32-722-67 Tapered Cross Bit

  • Code No.: S1-32-722-67
  • Diameter: 32mm
  • Length: 67mm
  • Tapered Degree:
  • Carbide Dimension: 12mm*8mm
  • Water Holes: 1 on front, 2 on side

S1-32-722-67 Tapered Cross Bit

Tapered Cross Bit
Tapered Cross Bit
Tapered Cross Bit
Tapered Cross Bit
Tapered Cross Bit

Product details

Tapered cross bits from rock drill bits factory ProDrill, suitable for mining of black metal mines(such as iron mine, manganese etc), nonferrous metal mine(such as gold, silver, copper etc), marble and granite etc. Its drilling depth usually is 15m-18m in case of hardness grade F8-14.

32mm Diameter Tapered Cross Bit

It is widely used in drilling holes with a depth size less than 5 meters and diameter scope in 20-45 mm by light-duty hand hold drills, like Y6, Y10, Y24, major use in natural dimensional stone quarry for small hole drilling, block's trimming and 2nd splitting for small blocks. To match Hexagonal 22 mm and Hexagonal 12 mm’s tapered drill steel with 4/6/7/11/12 degree.

32mm Diameter Tapered Cross Bit

All tapered cross bits are made with high quality of raw material through special heat treatment, The deliver capacity are very strong and can completely meet customer’s requirements on delivery design.

7 Degree Tapered Drill BitTapered Cross BitTapered Cross Bit

Tapered cross bit with 32mm diameter, 67mm length, 7 tapered degree for jack hammer.
