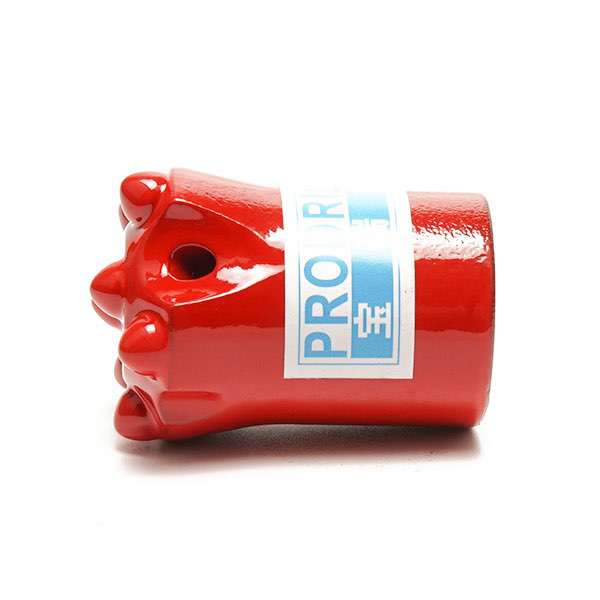

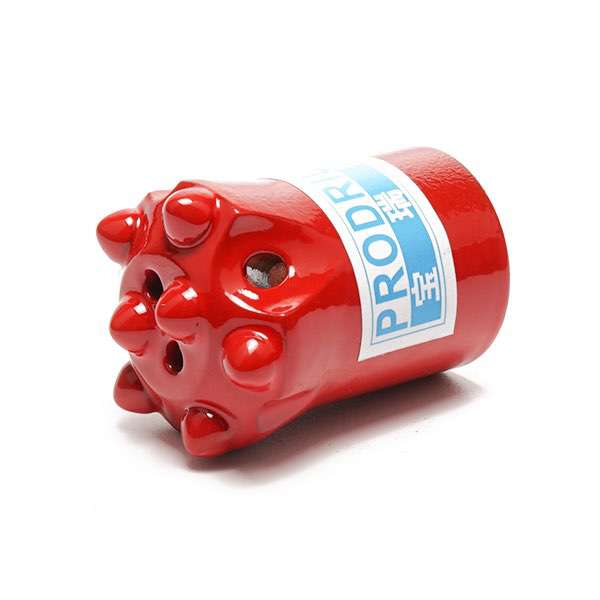

Q7-38-1122-50 Tapered Button Bit

  • Code No.: Q7-38-1122-50
  • Diameter: 38mm
  • Length: 50mm
  • Tapered Degree: 11°
  • Carbide Dimension: 8mm*7
  • Carbide Design: Semi-Ballistic
  • Water Holes: 2 on front, 1 one side

Q7-38-1122-50 Tapered Button Bit

Tapered Button Bit
Tapered Button Bit
Tapered Button Bit
Tapered Button Bit
Tapered Button Bit
Tapered Button Bit

Product details

Rock drill bits factory ProDrill offers small hole rock drill bits: Tapered Drill Bit is different with thread button bit as long hole bit to use taper match with bit rod to be used for air leg or hand held jack hammer driller in stone quarrying, and mining.

11 Degrees Tapered Button Bit

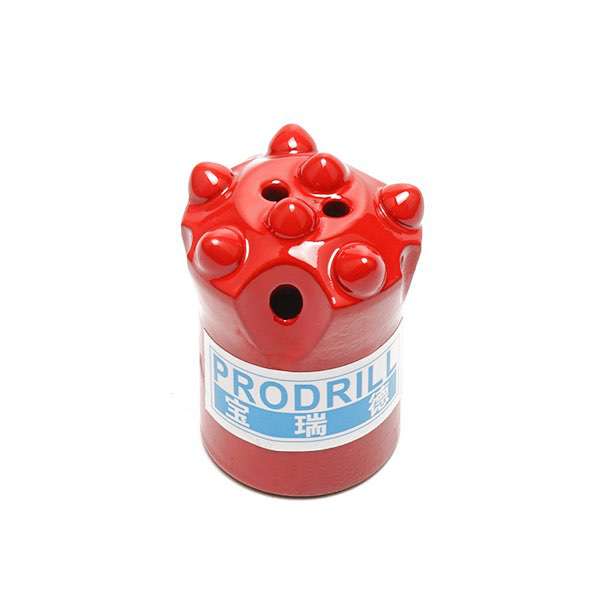

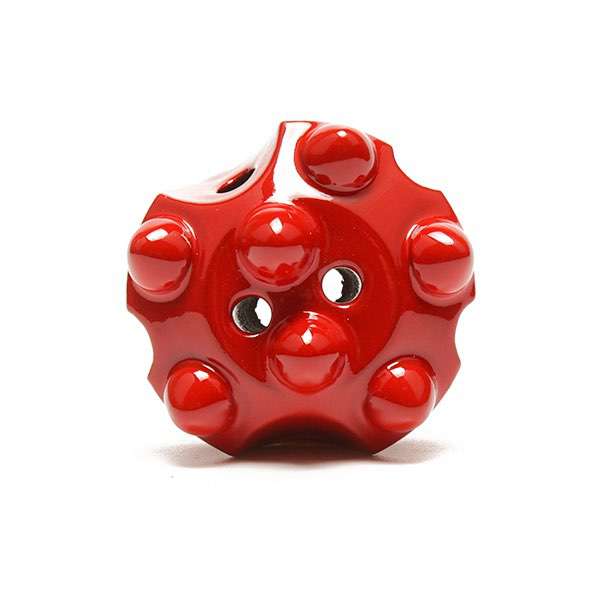

7 Semi-Ballistic Buttons, 2 water holes on front, 1 one on side:

Semi-Ballistic Button Tapered Bit

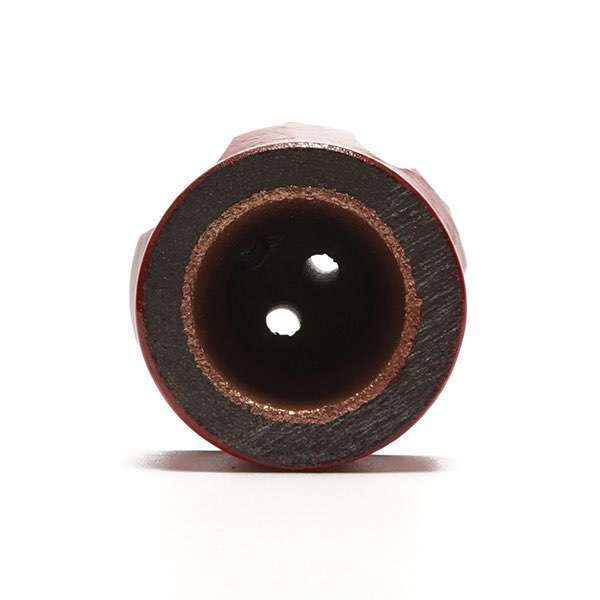

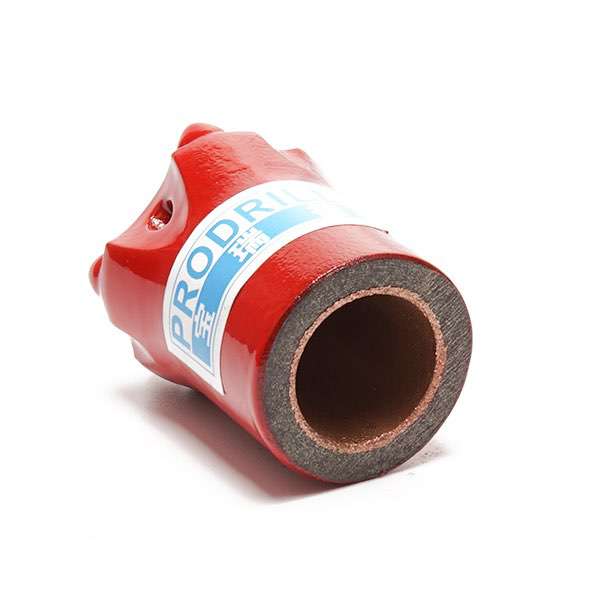

Tapered design with copper:

Tapered Drill Bit

Tapered Bits Description:
(1)Connect shank Size: Φ19, Φ22, Φ25 at most
(2)Bit Diameter: 32mm,34mm,36mm, 38mm,40mm
(3)Tapered connection: 6 degree, 7 degree, 11 degree, 12 degree etc.
(4)Material: Alloy Steel Bar 45CrNiMoV, Tungsten Carbide Tips YK05 or T6.

(5)Button Shape: Semi-Ballistic; Face Type: Flat Face; Bit Body: Standard

(6)Qty of button: 5,7, 8 pcs

(7)main market: India, Saudi Arabia, Chile, South Africa, stone countries consume very much.

38mm Tapered Button Bit12 Degree Tapered Button BitTapered Drill Bit

PDFFor more details please view PDF online: Tapered Buttons Bits for Small Hole Drilling Catalogue
