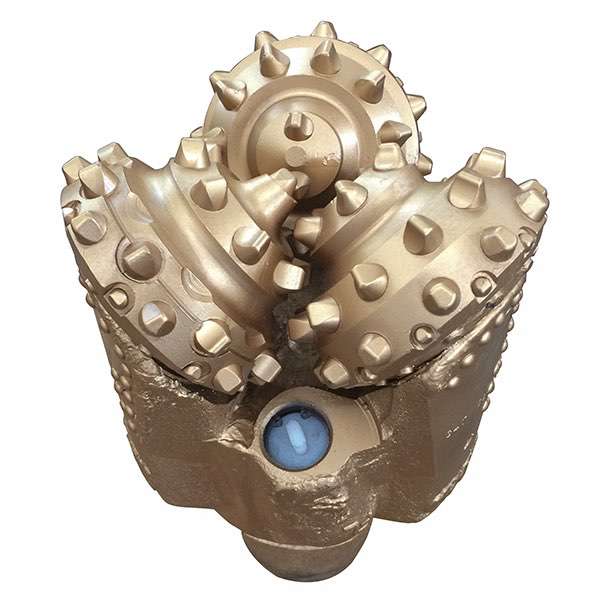

8-3/4'' IADC517 Tricone Bit with Tungsten Carbide Insert

  • Code No.: TCB-TCI-222
  • Diameter: 222mm
  • Diameter: 8 3/4''
  • Pin Type Dimensions: 4 1/2'' API
  • Teeth Type: TCI
  • IADC No.: 517

8-3/4'' IADC517 Tricone Bit with Tungsten Carbide Insert

8-3/4'' IADC517 Tricone Bit with Tungsten Carbide Insert

Product details

TCI Roller Cone Bits
ProDrill manufactures a complete line of tricone, bicone bits which are available in new and used (re-tip and re-run) steel tooth and tungsten carbide insert, size from 3 3/8''(85.7mm) to 26''(660.4mm) for all formations, with any bearing/seal type, and a wide range of additional custom features.

Tricone drill bit of rotary drilling tools included Steel Tooth (also called milled tooth) bits and Tungsten Carbide Insert (TCI) bits, TCI bits are much more durable than Steel Tooth ones, but carry a higher cost to manufacture. Both these two groups of Tricone Bits are available with
(1) Open Bearing or Sealed Bearing
(2) Roller Bearing or Friction Bearing (Journal Bearing)

(3) Gage Protected or Non-Gage Protected, etc

8-3/4''-TCB-TCI-222-Tricone Bit with Tungsten Carbide Insert

Rotary Drilling Tools: 8-3/4'' IADC Code 517 Tricone Bit with Tungsten Carbide Insert



ProDrill offers heavy duty tricone bits to meet your customized drilling needs. We have classified the bits based on their diameter (footprint), American Petroleum Industry number (API Number) and International Association of Drilling Contractor number (IADC number). The IADC number further classifies the tricone bits based on the tooth material of construction, suitability for drilling into soft, medium or hard rock and bearing type used. ProDrill can offer tricone bits for all possible combinations of IADC number.

Tricone bits are widely used in mining, oil well, water well, thermal drilling.


PDFFor more details please watch PDF online: Tricone Bits with Tungsten Carbide Inserts Catalogue
