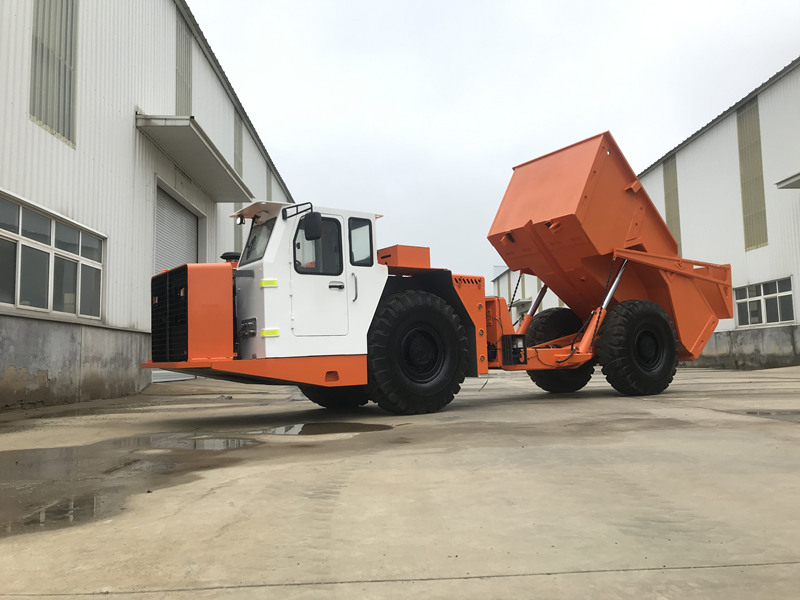

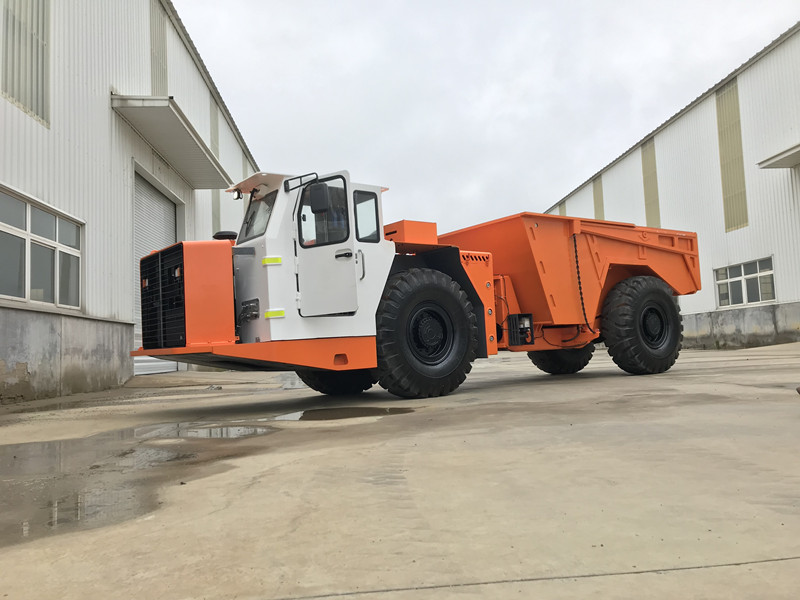

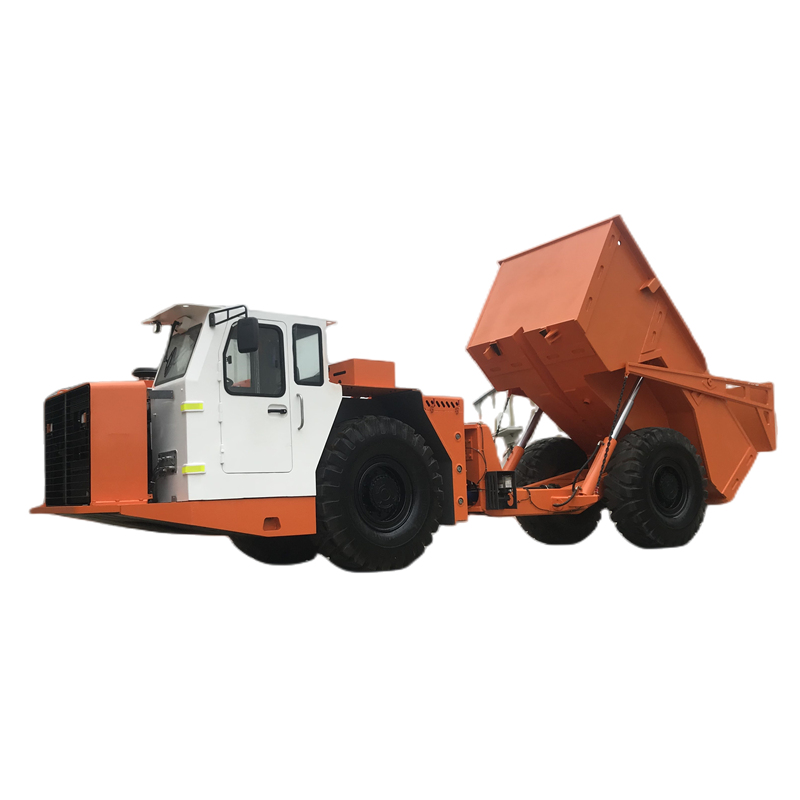

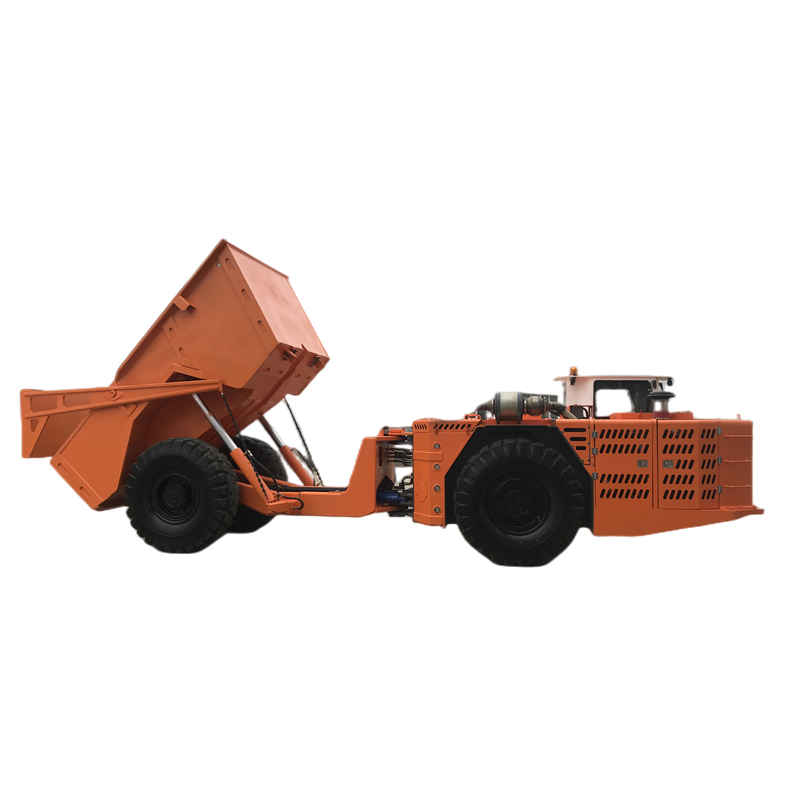

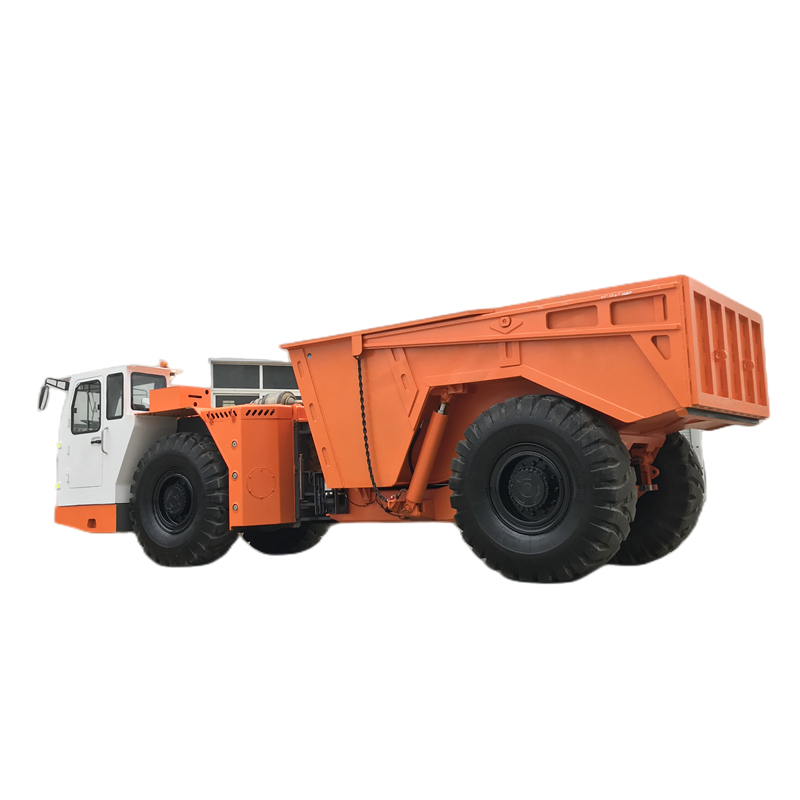

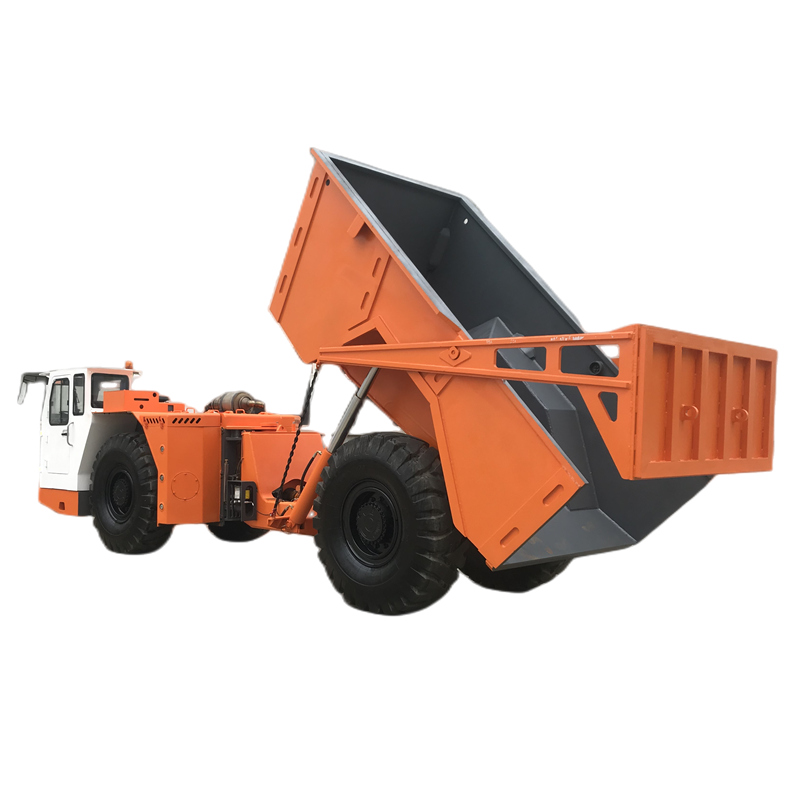

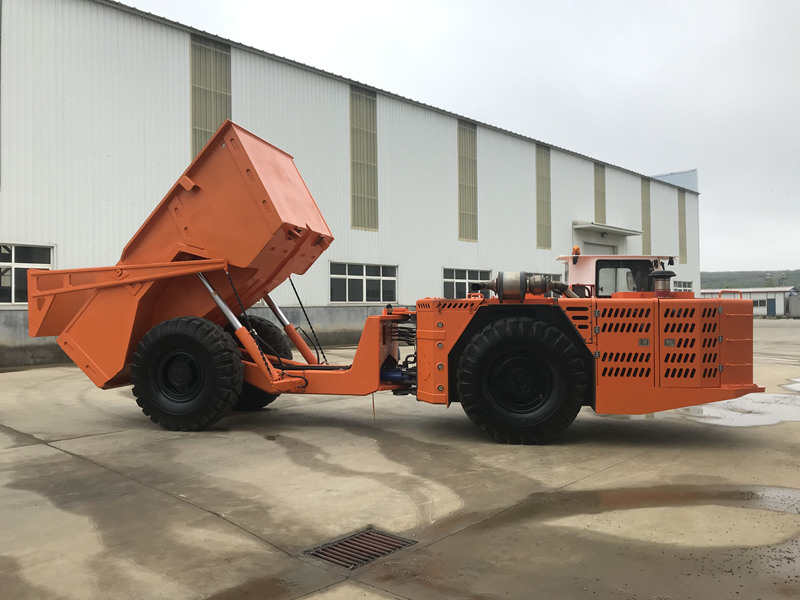

UK-30 Underground Mining Truck
- engine power: 315kw :
- Tramming capacity:30000kg :
- Dump box volume: 15 m3 :

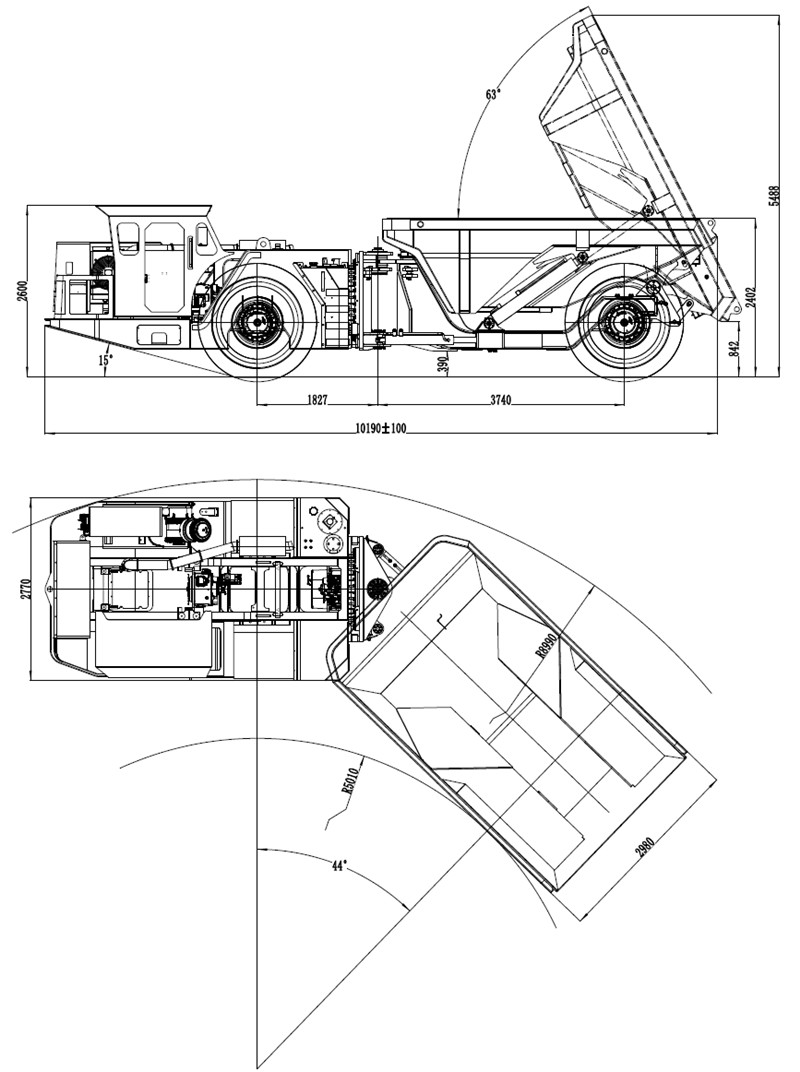

- Overall Size:10190X2980X2600mm:
UK-30 is a narrow 30 tons truck that fits in a 3.5 x 3.5 meter heading. Available with a standard forward facing, open operator’s compartment or an optional forward facing, fully enclosed and air conditioned cabin, it offers operator comfort without compromising visibility.
Main Features
1. Safety
1.1. ISO ROPS/FOPS operator’s compartment
1.2. Hydraulic-release (SAHR) brakes
1.3.Articulation safety lock
1.4. Dump box safety support
1.5. Rear-view camera
1.6. Reverse alarm.
1.7. Self-lock. Once the door is opened, the vehicle can be locked automatically and can not drive, which can protect the vehicle and personal from being injured.
1.8.Automatic alarm system for oil temperature, oil pressure and electrical system.
1.9. Engine auto fire suppression system
2.Maximum Efficiency and Productivity
2.1UK-30 is impressively fast to haul the materials up the ramp in no time. The truck’s systems and components have been tested and refined through years of real work experience to stand the test of time.
2.2. Auto lubrication system.
|
Industry standard |
|
|
GB∕T 35195-2017 Technical standards for construction machinery and equipment |
|
|
JB/T8436 Standard for tire-type ore trucks for underground mines |
|
|
GB21500 Safety requirements for trackless tire-type mine trucks for underground mines |
|
|
Application |
|
|
Environment Temperature |
-35℃~+50℃ |
|
Mining Altitude |
-2000m ~ +5000m |
|
When working at -1500 ~ +3000 meter, When temperature is no higher than 25℃, there is no engine power loss |
|
