Rock Drill Attachment for Excavator

Rock Drill Attachment for Excavator

Rock Drill Attachment for Excavator

Product details

Excavator Mounted Drill Attachment


If you are a contractor or end user in drilling & blasting, quarrying etc, you can see many Excavators with Hydraulic Breakers or other front attachments working in drilling, digging, demolition, which are everywhere not only in quarry and construction project site,  but you have very less budget to buy hydraulic top hammer drilling rig like Sandvik Tomrock DQ550 ( bench ), Q7 (quarrying). Atlas Copco Power OC (bench), Atlas Copco Boomer 282, L2D (Drifting and tunneling) Atlas copco ROC L8, ROC D7 (Bench)

Rock drilling tools manufacturer ProDrill can  offer you a perfect solution!

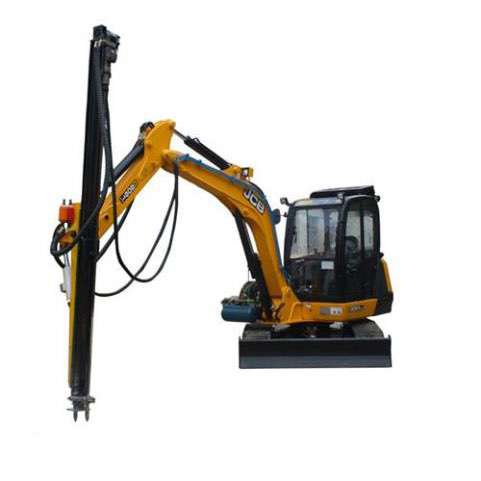

PD-28

ProDrill Excavator Mounted Drill Attachment can match to your excavator with any brand, minimum 3 tons excavator as easy requirement for using ProDrill excavator mounted rock drill, ProDrill Excavator Drilling Rig series includes six models PD-28,  PD-40, PD-45, PD-90, PD-115  covering the hole diameters from 30 to 115 mm. The use of the optional drill rod such as Integral drill rods or tapered rodsthreaded Rods allows drilling holes up from 3 to 20 meters deep. In practice, Excavator Rock Drills is a real drilling rig equipped with the 3.2 m3/min piston type or screw type of air compressor to flushing dust at time of drilling.


Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concrete demolition, construction works, etc.


Now Main market in quarry granite and marble market, our rock drilling attachment can replace hand-held rock drills

Drilling speed : 1 meter per minute, for jack hammer, less 3 meter per hours like granite drilling.

Drill depth : 3 meters , can suit for stone quarry use.  Hot mode No. : PD-28.  PD-40, using 22*108, 25*108 shank size for tapered drill rod, best choice for granite stone quarrying.


PD-45, PD-90, PD-115 use top hammer bit and rod, like R32-45mm, T38, T45, 76mm-89mm, working for mining blasting, benching drilling to replace real top hammer drill rig.

PD-40 Drill attachment mounted 12 tons Soosan excavator drilling granite

PD-40 Drill attachment mounted 12 tons Soosan excavator drilling granite

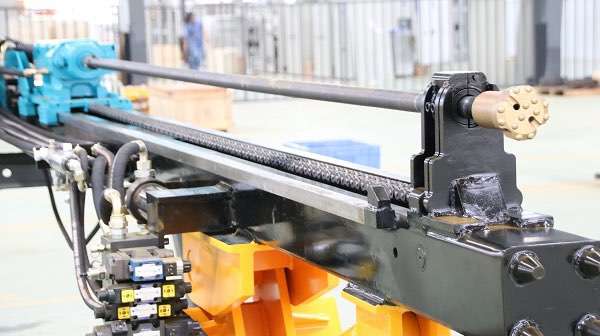

PD-45 Drill Attachment, use R32-45 mm button bit, and R32 Extension Rod 3660mm


PD-45 Drill Attachment, use R32-45 mm button bit, and R32 Extension Rod 3660mm.

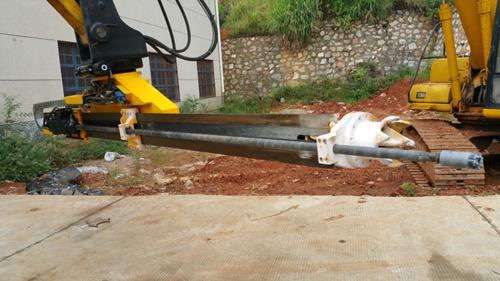

PD-90 Rock Drill Attachment with T45 89mm button bits and 3660mm Round Rod T45

PD-90 Rock Drill Attachment with T45 89mm button bits and 3660mm Round Rod T45

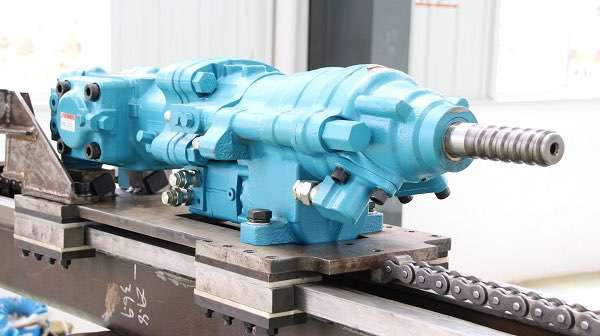

Hydraulic drifter hammer developed by ProDrill, with own copy right. to fit PD-90, PD-115 drill attachment

Hydraulic drifter hammer developed by ProDrill, with own copy right. To fit PD-90, PD-115 drill attachment.


PD-HC20 Excavator Mount Dril:

Rock drill type
PD-HC20
Impact Power 90J
Impact Frequency 50Hz
Impact Oil Pressure 14MPa
Impact Capacity 45L/min
Rotation Torque 200N.m
Rotation Speed 150-300rpm
Min. Propulsion Force 4KN
Max Propulsion Force 7KN
Oil Lube Air Consumption 0.02 M3/min
Oil Lube Oil Consumption 6 drops/min
Water Flow for waste elimination 30L/min
Water Pressure for waste elimination 1.5MPa
Drill Rods R25/R32
Drilling Diameter 32-51mm
Max Depth of Single Drill Rod 4500mm
Drilling Speed 0.6-1.2M/min
Weight 70KG
Excavator ≥15Tons
