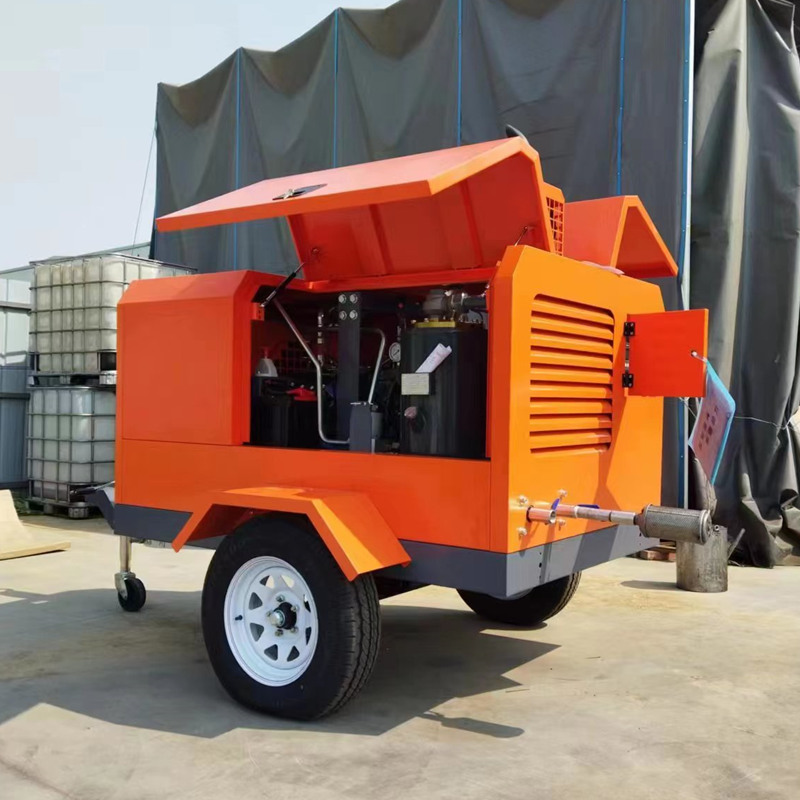

40SCY-7 Diesel Screw Compressor with 2 wheels

Engine: Xichai, model 4DW91-50GBG3U, 36.8kW ( 50hp)
Rated FAD: 4.5 M3/min
RPM: 2,350 rpm
Rated Pressure: 7 bar
Diesel tank volume: 65L
Dimension: 2.4M*1.33M*1.55M
Weight: 860 kg

Product details

Model No : 40SCY-7 Diesel Screw Compressors with 2 wheels can perfectly work with ProDrill's PD-Y28 Drill Mast / Drill Tower , and pneumatic hand held rock drill / jackhammer /air leg rock drill , paving breaker , air pick, pneumatic hammer , pneumatic splitter etc, ProDrill provides diesel Air Compressor Model is used to power pneumatic tool and machines such as pneumatic breaker, jack hammer, drilling machine, oil cleaning machine, sandblasting machine, drilling rig and so on.

SCY Diesel Mobile Screw Compressor Technical Specifications

1. Compressor Technical Parameters

1	Model number		40SCY-7
2	name		Diesel-driven screw air compressor
3	Rated exhaust volume	m³ /min	4.5
4	Rated exhaust pressure	bar	7
5	Exhaust oil content	PPM	≤5
6	Exhaust temperature	℃	85℃
7	Compressor oil capacity	L	25
8	Oil and gas tank volume	L	16
9	Compression levels	class	1
10	Transmission method		Coupling Drive
11	Cooling method:		air-cooled
1 2	noise	dB	80±5
Reference working conditions
13	Absolute intake pressure	bar	1
14	Relative air humidity	%	60
15	Inlet air temperature	℃	20
Extreme conditions
16	Minimum oil and gas tank pressure	bar	4.5
17	Maximum oil-gas tank pressure ( compressor unloading )	bar	7
18	Maximum ambient temperature	℃	40
19	Minimum start-up temperature	℃	-10

2. Engine parameters

Manufacturer		Xichai
model		4DW91-50GBG3U
Full load operating speed	RPM	2500
Output power at rated speed	Kw	36.8
Number of cylinders	Pcs	4
Coolant capacity	Kg	12
Lubricating oil capacity	L	7
Fuel tank capacity	L	65

3. Overall dimensions and weight

Overall length	mm	2400
Overall width	mm	1330
Overall height	mm	1550
Total weight	Kg	860
exhaust valve	inch	G1"

Configuration List

Serial Number	name	Specifications and Models	unit	quantity	Place of origin	Manufacturer	Remark
1	pressure sensor		Item	1	China	OEM
2	air filter		set	1	China	OEM
3	Intake valve		Item	1	China	OEM
4	machine head		Item	1	Zhejiang	self made
5	Oil separator core		set	1	China	OEM
6	oil filter		set	1	China	OEM
7	Thermostatic valve		Item	1	China	OEM
8	coupling		set	1	China	OEM
9	Temperature sensor		Item	1	China	OEM
0	PLC intelligent controller		Item	1	China	OEM
11	High-quality coolant		L	16	China	OEM
12	bearings		set	1	Sweden	SKF
13	cooler		set	1	China	OEM
14	Oil and gas drum		set	1	Zhejiang	self made
15	diesel engine		Item	1	China	OEM
16	safety valve		set	1	China	OEM
17	outer cover		set	1	Zhejiang	self made

Diesel Air Compressor Product features:

1.High Reliability

The main parts and components are produced by well-known domestic enterprises, with reliable quality, constant pressure and stable flow. The continuous automatic regulation of the displacement from 0 to 100% is achieved, which is efficient, energy-saving, stable and reliable; Economical, no pollution case, low noise.

2.Convenient

Small volume, light weight and low noise; It is light in shape and convenient for transportation. The actual area is small. It can enter and exit freely under narrow working conditions, reducing the transportation version. Fully open the door to ensure a wide operating space for maintenance and repair. Save time and improve efficiency. In the process, we no longer worry about unstable flow and insufficient pressure.

3.Overall monitoring

Equipment operation status can be fully monitored; The operation status of the control panel and equipment is clear at a glance to ensure the safety of people and machines.
