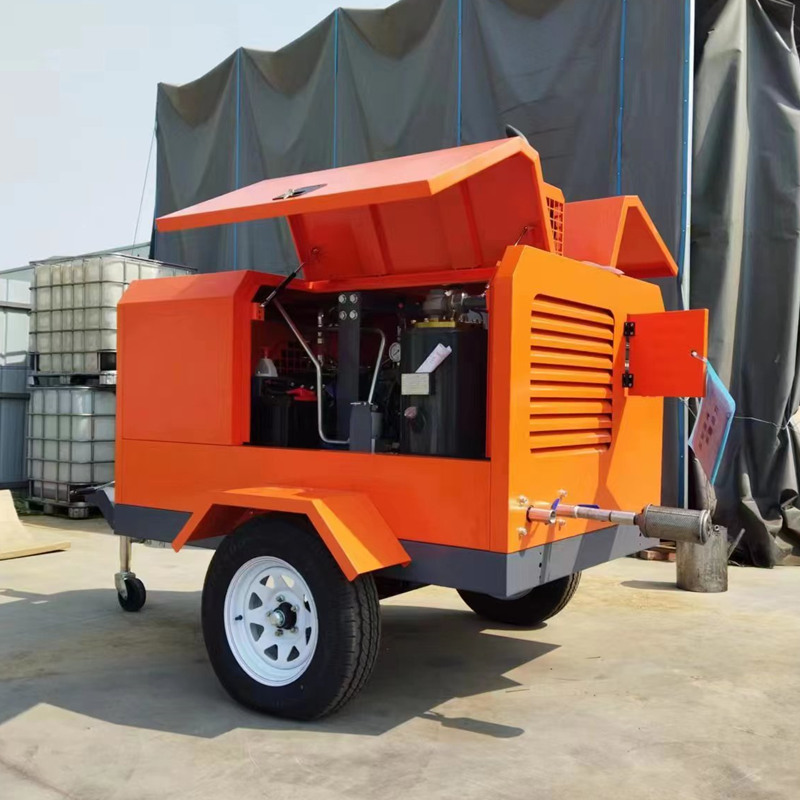

Diesel Air Compressor Model No.PD50-7
Diesel Air Compressor Model is used to power pneumatic tool and machines such as pneumatic breaker, jack hammer, drilling machine, oil cleaning machine, sandblasting machine, drilling rig and so on.
| Technical Parameters of Prodrill Diesel Air Compressor | ||
| MODEL | PD50-7 | |
| Model style | Two wheeled mobile diesel power | |
| Screw air compressor | Compression level | Single stage compression |
| Exhaust pressure (Mpa) | 0.7 | |
| Air flow (m³/min) | 4 | |
| Maximum towing speedkm/h | 20 | |
| Lubricating oil quantity of diesel engine (L) | 20 | |
| Air supply valve size X quantity | G1“*2 | |
| Recommended maximum working altitude (m) | 2000 | |
| Diesel engine |
rated power (kW) /speed (r/min) | 36.8/2650 |
| Brand name | FAWDE | |
| Model | 4DW91-50GBG3U | |
| Humber of cylinders | 4 | |
| Air intake wav | Naturally Aspirated | |
| Displacement (L) | 2.54 | |
| Lubricating oil quantity of diesel engine (L) | 7 | |
| Fuel tank yolume (L) | 80 | |
| Battery X quantity | 6-QWLZ-120*1 | |
| Machine | Length (mm) | 2500 |
| Width (mm) | 1600 | |
| Height (mm) | 1700 | |
| Weight (kg) | 950 | |
Diesel Air Compressor Product features:
1.High Reliability
The main parts and components are produced by well-known domestic enterprises, with reliable quality, constant pressure and stable flow. The continuous automatic regulation of the displacement from 0 to 100% is achieved, which is efficient, energy-saving, stable and reliable; Economical, no pollution case, low noise.
2.Convenient
Small volume, light weight and low noise; It is light in shape and convenient for transportation. The actual area is small. It can enter and exit freely under narrow working conditions, reducing the transportation version. Fully open the door to ensure a wide operating space for maintenance and repair. Save time and improve efficiency. In the process, we no longer worry about unstable flow and insufficient pressure.
3.Overall monitoring
Equipment operation status can be fully monitored; The operation status of the control panel and equipment is clear at a glance to ensure the safety of people and machines.
