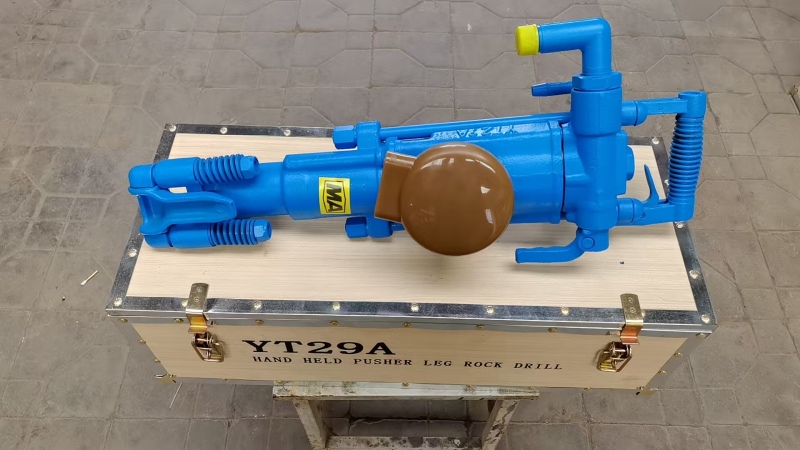

YT29A Pusher Leg rock drill
- YT29A air leg rock drill jack hammer/ bosch breaker hammer power tools :
- 1:Good quality with strict quality system control, ISO9001,MA,CE
- 2:Reasonable price with self manufacturing and self-management export
- 3:Work with FT160A/FT160C air leg
- 4:Safe for coal mining,tunnel and quarry use
YT29A rock drill as equipemnt rack is the most rugged, powerful and highly efficient rock drill in the range. It provides improved productivity and drill steel economy and can be used on all rock formations and in various applications.
Equipment
YT29A pusher legs and stoper rock drills cover all construction, tunnelling and mining applications in different rock formations. They are robust designed, with high impact energy and low air consumption. All of the rock drills have water flushing, rifle bar rotation and the pusher leg control is placed at the back head of the rock drill. An in-line lubricator is included in the delivery of each rock drill. Together with the appropriate pusher leg, the rock drill forms an attractive and cost effective drilling unit.
YT29A Pusher Leg Rock Drill Technical Spec
| Weight | 27kg |
| Overall dimensions (L*W*H) | 659x248x205mm |
| Cylinder diameter | 82mm |
| Piston structure stroke | 60mm |
| Working air pressure | 0.40-0.63MPa |
| Impact energy | ≥78(0.63MPa)J |
| ≥69(0.5MPa)J | |
| ≥50(0.4MPa)J | |
| Drilling gas consumption | ≤88(0.63MPa)L/s |
| ≤65(0.5MPa)L/s | |
| ≤52(0.4MPa)L/s | |
| Drilling impact frequency | ≥39 (0.63MPa)Hz |
| ≥37(0.5MPa)Hz | |
| ≥36(0.4MPa)Hz | |
| Torque | ≥20(0.63MPa)N·m |
| ≥17(0.5MPa)N·m | |
| ≥15(0.4MPa)N·m | |
| Water pressure | 0.3MPa |
| Inner diameter of trachea | 25mm |
| Water pipe inner diameter | 13mm |
| The suitable drilling hole diameter is | 34-45mm |
| Suitable maximum drilling depth | 5m |
| Working temperature | -30-45℃ |
| Drill tail specification | H22x108±1mm |
YT29A jack hammer repair kit
FT160A air leg Technical Spec
| Air leg length | 1668mm |
| Propulsion stroke | 1338mm |
| Cylinder inner diameter | 65mm |
| Weight | 17kg |
YT29A air leg rock drill spare parts list
| № | PARTS | Item | 51 | 3312310700 | Bolt | |
| 1 | 3312310170 | Pin | 52 | 3312311876 | Rotation sleeve | |
| 2 | 3312310020 | Air pipe nut | 53 | 3312310206 | Rod bushing d-25 | |
| 3 | 3312310175 | Wing nut | 54 | 3312310339 | Pad | |
| 4 | 3312310022 | Air pipe swivel | 55 | 3312310680 | O-ring | |
| 5 | 3312310169 | Spring | 56 | 3312310013 | Steel retainer springs | |
| 6 | 3312310633 | O-ring | 57 | 3312310056 | Rifle nut | |
| 7 | 3312300400 | Pneumatic support FT-160B | 58 | 3312310039 | Dowel pin | |
| 8 | 3312300314 | Pusher leg rock drill YT-29A | 59 | 3312310052 | Valve chest | |
| 9 | 3312300609 | Pneumatic support FT-160A | 60 | 3312310053 | Valve | |
| 10 | 3312310176 | Conical pipe connector | 61 | 3312311860 | Valve sleeve | |
| 11 | 3312310177 | Pipe connector | 62 | 3312311861 | Rifle bar | |
| 12 | 3312310143 | Water pipe connector | 63 | 3312310059 | Guide Coupling Kit | |
| 13 | 3312310627 | O-ring | 64 | 3312311862 | Cylinder | |
| 14 | 3312310144 | Water pipe nut | 65 | 3312310697 | Hex. Thin nut | |
| 15 | 3312310157 | Bushing rod | 66 | 3312311864 | Side bolt | |
| 16 | 3312310667 | O-ring | 67 | 3312311863 | Piston | |
| 17 | 3312310164 | Pad | 68 | 3312311866 | Water tube | |
| 18 | 3312310172 | Retaining ring | 69 | 3312311875 | Front head | |
| 19 | 3312310727 | Large seal sleeve | 70 | 3312311865 | Air tube | |
| 20 | 3312310152 | Right handle | 71 | 3312310713 | Nonmetal hex. Locking nut | |
| 21 | 3312310146 | Spring | 72 | 3312312367 | YT-29A perforator oiler | |
| 22 | 3312310167 | Fixing nut | 73 | 3312311820 | Steel retainer bolt | |
| 23 | 3312310099 | Expansion | 74 | 3312311821 | Locking mechanism of the working tool | |
| 24 | 3312310154 | Left handle | 75 | 3312310716 | Standard spring pad | |
| 25 | 3312310155 | Ratchet pawl | 76 | 3312310341 | Retaining sleeve | |
| 26 | 3312310726 | Seal sleeve | 77 | 3312311050 | Gas deflector | |
| 27 | 3312310149 | Retaining ring | 78 | 3312310338 | Lock nut | |
| 28 | 3312310145 | Water pipe connector retaining ring | 79 | 3312310340 | Rubber pad | |
| 29 | 3312311868 | Control valve | 80 | 3312310677 | O-ring | |
| 30 | 3312310141 | Control handle | 81 | 3312310681 | O-ring | |
| 31 | 3312310704 | Hex. Thin nut | 82 | 3312310353 | Air tube rubber pad | |
| 32 | 3312310161 | Water valve body | 83 | 3312310342 | Frame | |
| 33 | 3312310150 | Change valve | 84 | 3312310350 | Guide sleeve | |
| 34 | 3312310174 | Pad | 85 | 3312310343 | Pillow frame | |
| 35 | 3312310101 | Pressure regulating valve | 86 | 3312310675 | O-ring | |
| 36 | 3312310153 | Shockproof handle | 87 | 3312310356 | Retaining ring | |
| 37 | 3312310163 | Water valve | 88 | 3312310358 | Outer pipe | |
| 38 | 3312310160 | Spring | 89 | 3312310351 | Central bolt | |
| 39 | 3312310159 | Spring cover | 90 | 3312310352 | Step | |
| 40 | 3312310165 | Rubber pad | 91 | 3312311016 | Hex Nut | |
| 41 | 3312310050 | Back head | 92 | 3312310347 | Double Yx O-Ring | |
| 42 | 3312310642 | O-ring | 93 | 3312310386 | Air tube | |
| 43 | 3312310151 | Trigger | 94 | 3312310344 | Rubber ring | |
| 44 | 3312310708 | Elastic pin | 95 | 3312310346 | Yx - sealing ring | |
| 45 | 3312310173 | Steel retaining ring | 96 | 3312310348 | Outer pipe | |
| 46 | 3312310135 | Rotation nut | 97 | 3312310357 | Lower suction tube | |
| 47 | 3312310171 | Seal | 98 | 3312310355 | Handle | |
| 48 | 3312310035 | Water tube bush | 99 | 3312310718 | Spring | |
| 49 | 3312310166 | Air tube pad | 100 | 3312310345 | Supporting ring | |
| 50 | 3312310051 | Ratchet | 101 | 3312310387 | Dust cap |
