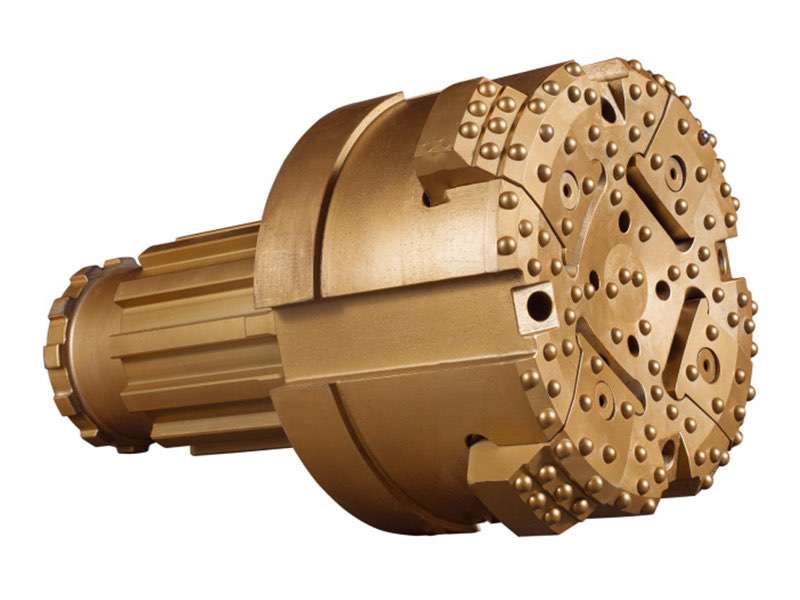

Model No.460 Concentric Casing System With Blocks
- Model No: 460
- O.D of casing tube: 508mm
- I.D of casing tube : 482.6mm
- Wall thickness of casing:12.7mm
- Guide device max.Dia:479mm
- Reamed Dia: 534mm
- Max.O.D. of Normal bit: 461mm
- Blocks:4
- Weight:630kg
Concentric Casing System With Blocks
Drilling through formations with loose,unconsolidated material always comes with problems such as the bore hole cave-in collapse;How to avoid these problems? With years of field practice and research,Prodrill has developed its Concentric Casing system with blocks applicable for foundation piling with backfill and pebble formations and casing depth within 40 meters.
Concentric overburden drilling System by DTH Hammer which designed to drill and case a hole simultaneously through unstable ground conditions.

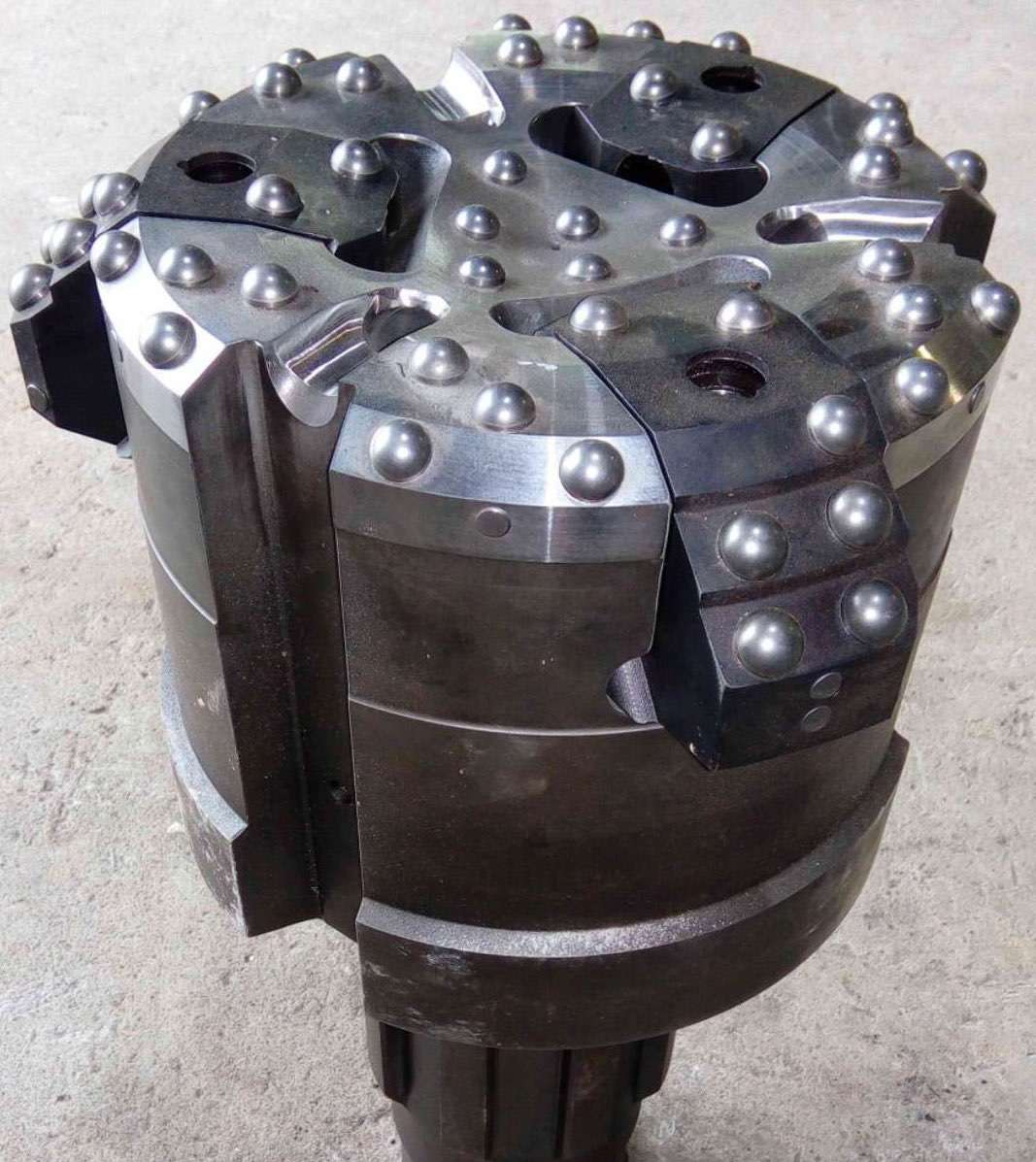

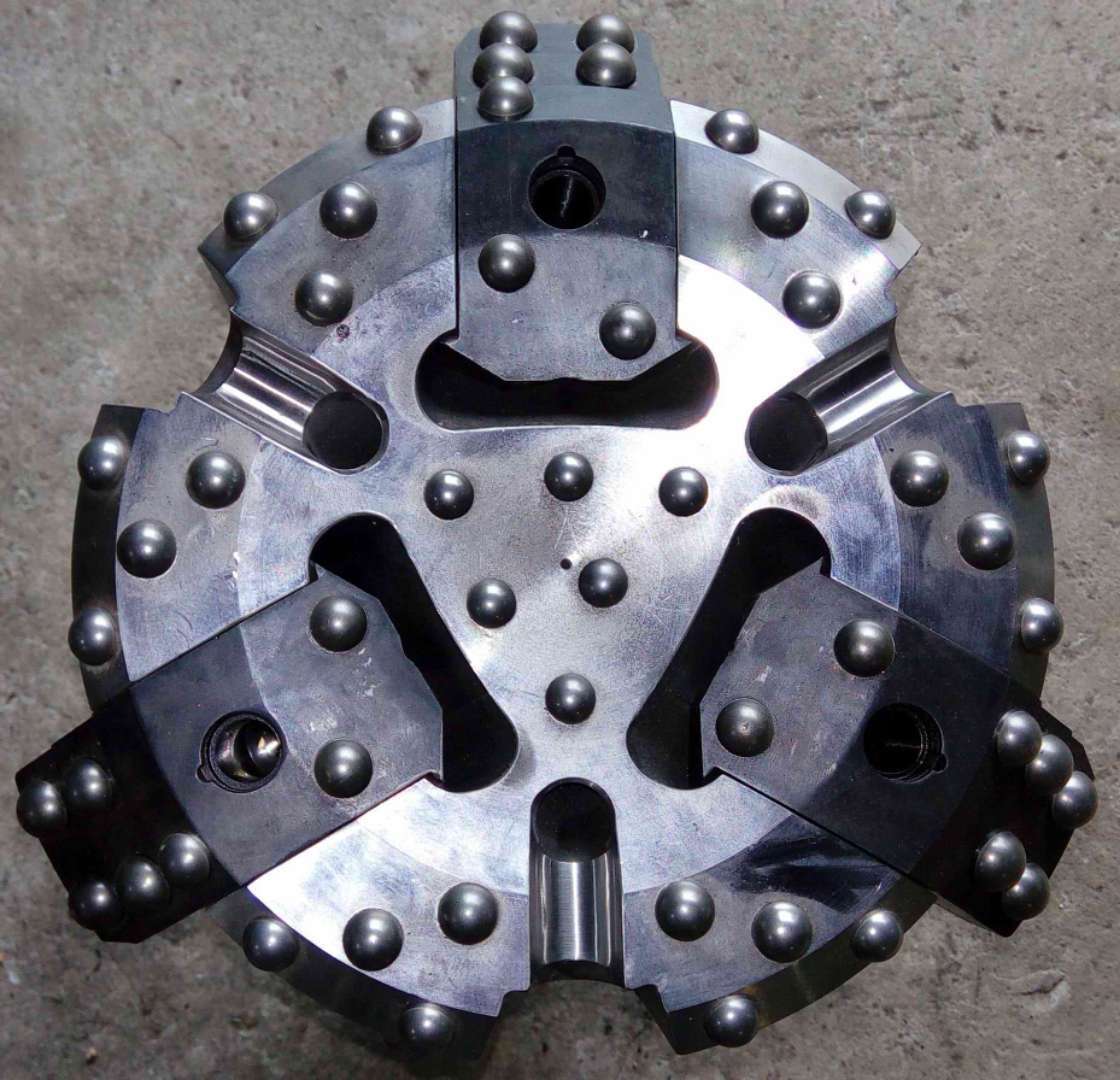

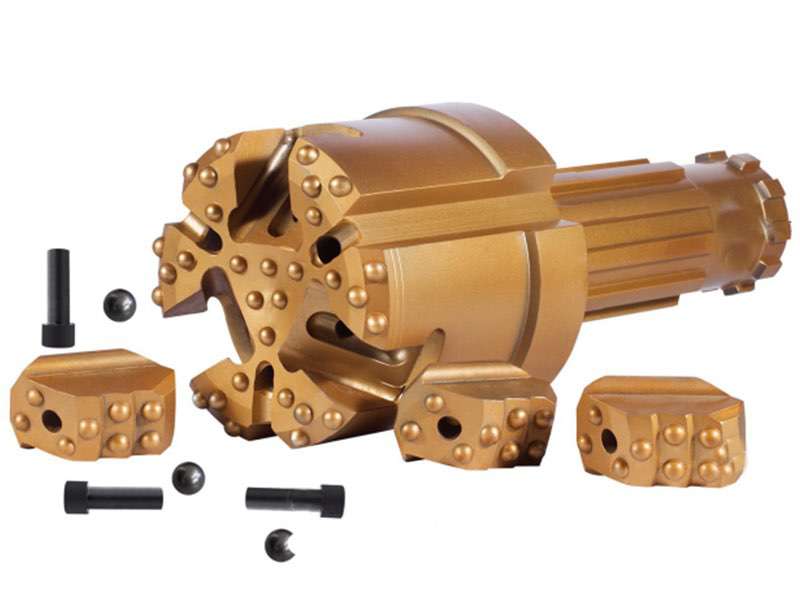

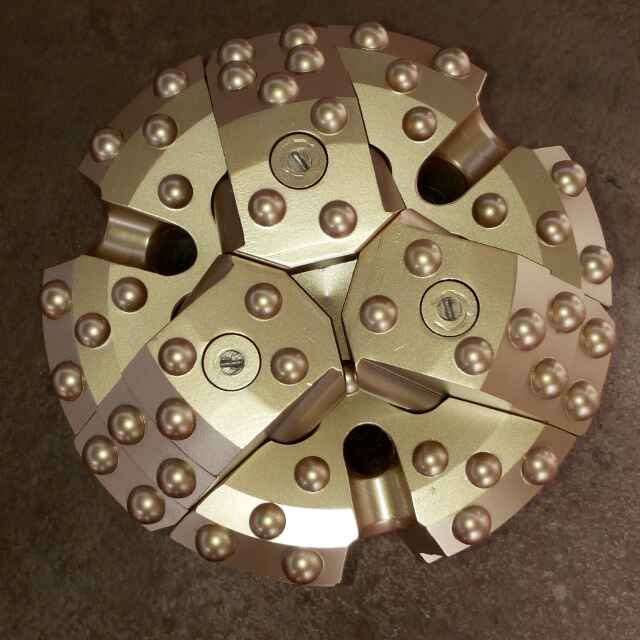

The driver bit（Pilot bit , Guide Device) incorporated with a one-time used ring or reusable ring makes a full face head design which significantly improves the penetration rate and hole straightness of drilling. The internal flushing grooves together with the built-in casing shoes gives a good seal to the button of the drilling hole, and thus mini missing the disruption of the surrounding of the drill hole.

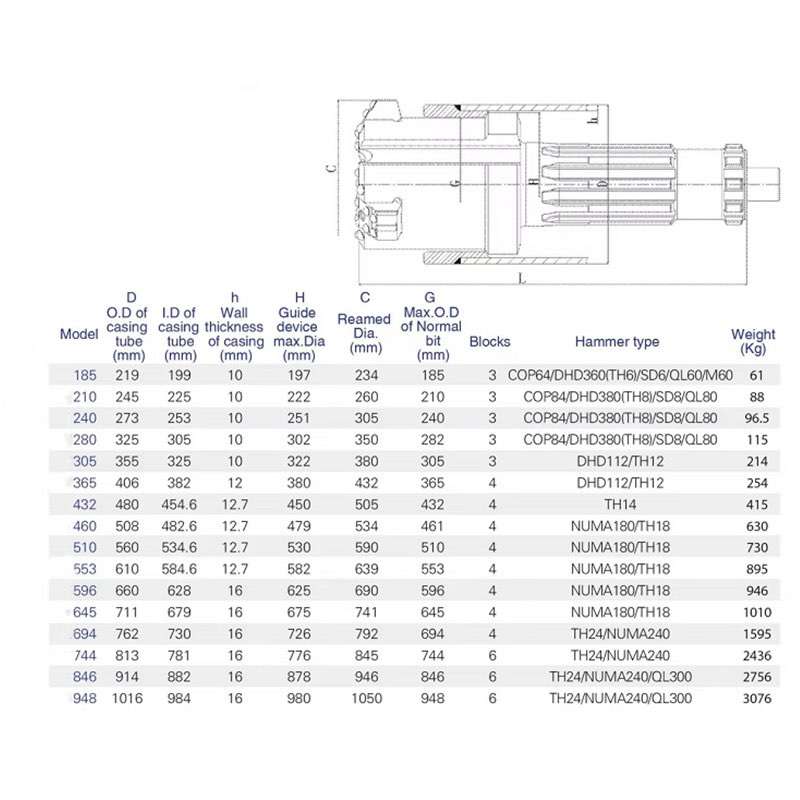

Model NO :185,210,240,280,305,365,432,460,510,553,596,645,694,744,846,948 Concentric Casing System Technical Data:

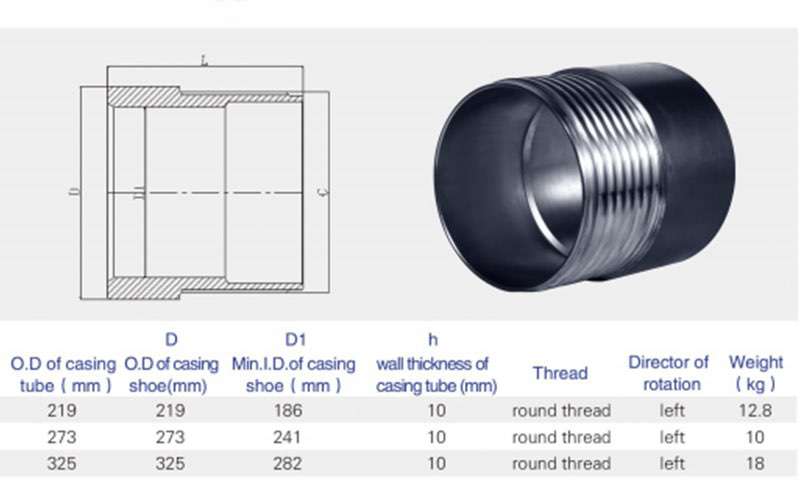

Thread of casing shoe for Concentric Casing System

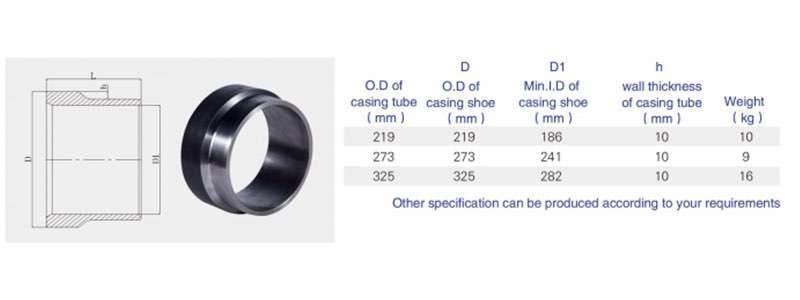

Welding of casing shoe

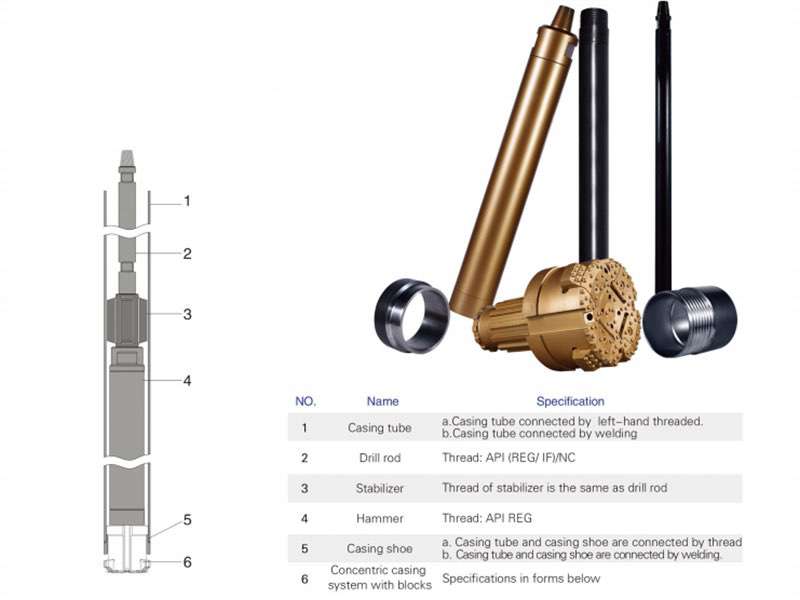

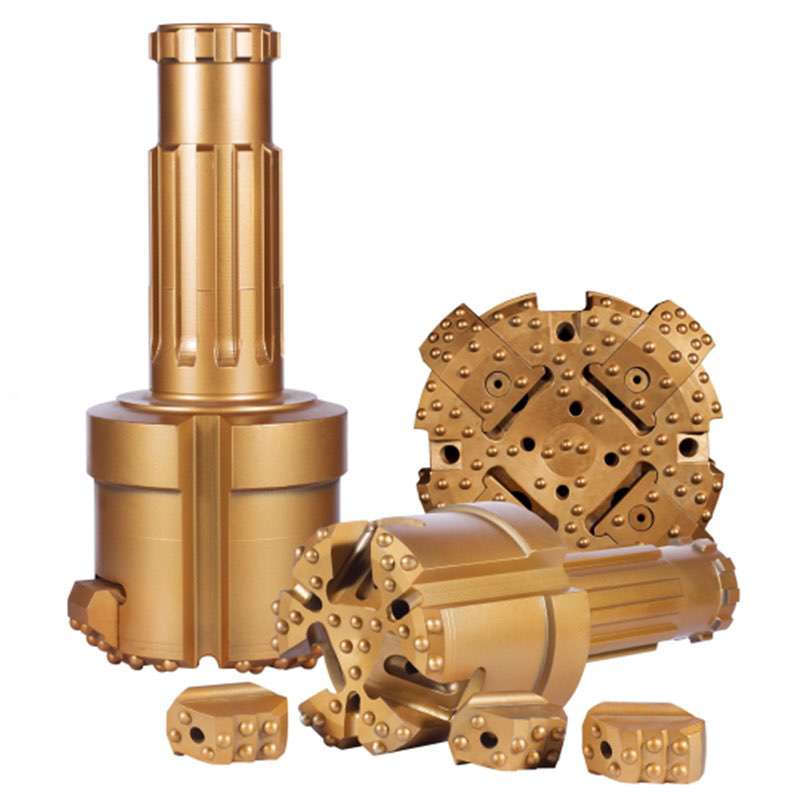

Related Parts List
How to work:
1. Ring bit and casing shoe assembly is welded to casing prior to drilling. Lock the assembly into pilot bit with DTH (Down the Hole) or Top hammer. The pilot bit\'s upper shoulder engages the shoulder of the casing shoe.
2. DTH or Top Hammer\'s percussive energy is transferred through the pilot and ring bits, crushing rock. Part of impact energy advances casing.
3. On completion of drilling and casing, the drill string with pilot bit is retrieved by a slight reverse rotation to unlock the bayonet coupling. The ring bit stays in the hole, and can be recovered only if the casing is retrieved
4. Drilling continues to the desired depth in the bedrock using a conventional drilling.
COD508-Concentric overburden drilling System by DTH Hammer
Rock Drill Bits Advantages：
Full face head design for faster penetration and straighter hole less torque is required
Can drill in vertical, horizontal or any direction
Minimize disruption to the drilled hole
Varied ring bit diameters to suit different casing requirement

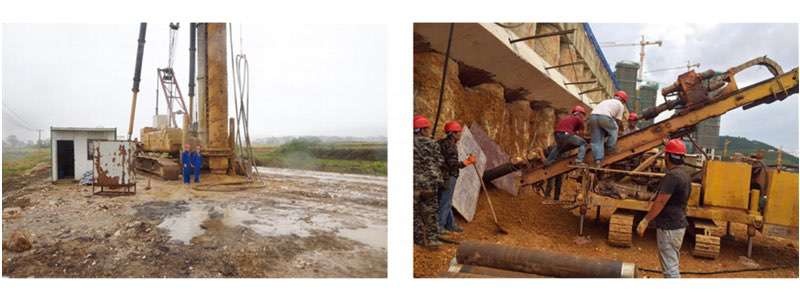

Application Range：
It is suitable for drilling water wells, geothermal wells, short micro piles ,medium mini-type grouting hole of building , dam and harbor project .
