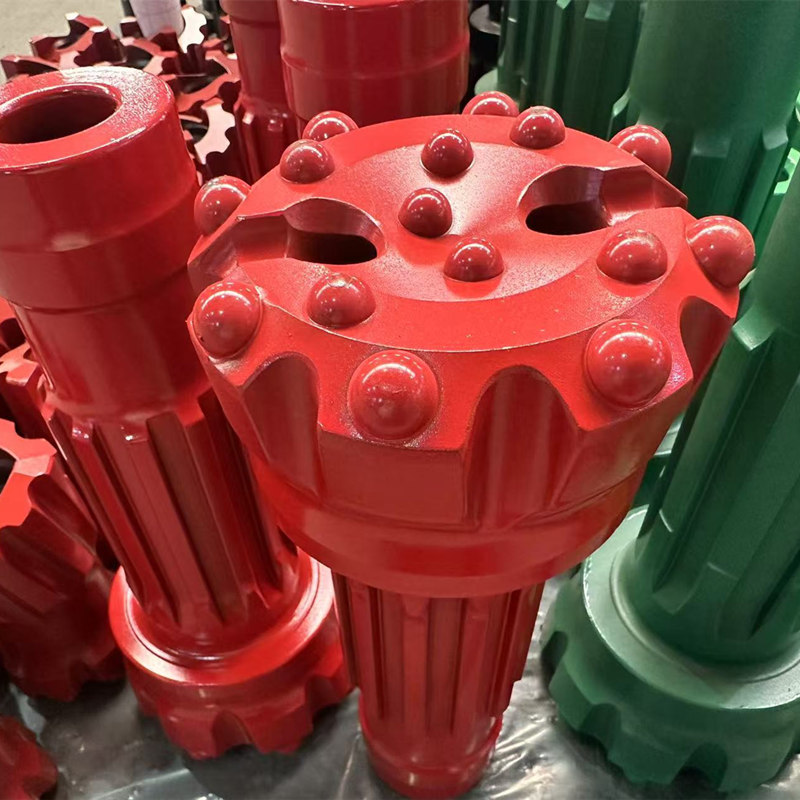

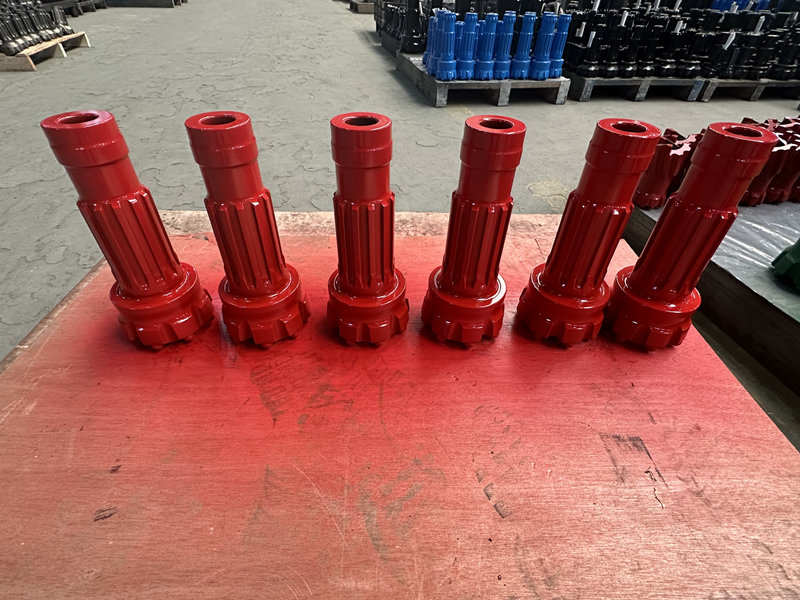

DTH Bit QL50-140
- Code No.: QL50-140
- Diameter: 140mm
- Air Holes No.: 2
- Gauge Buttons : 8*18mm
- Face Buttons : 7*14mm
- Carbide Design: Dome
- Bit Face Type : Concave face
Rock drilling tools factory ProDrill produces DTH Drill Bits with QL shank type are available in a various range of sizes and with a number of custom design features for optimum performance in a rock formation.
Rock drill bits Shank type: QL40, QL50, QL60, QL80 ; and DTH hammer bits hole diameter: 3", 4", 5", 6", 8"(85mm-350mm).
Concave Face of rock drill bits
The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
