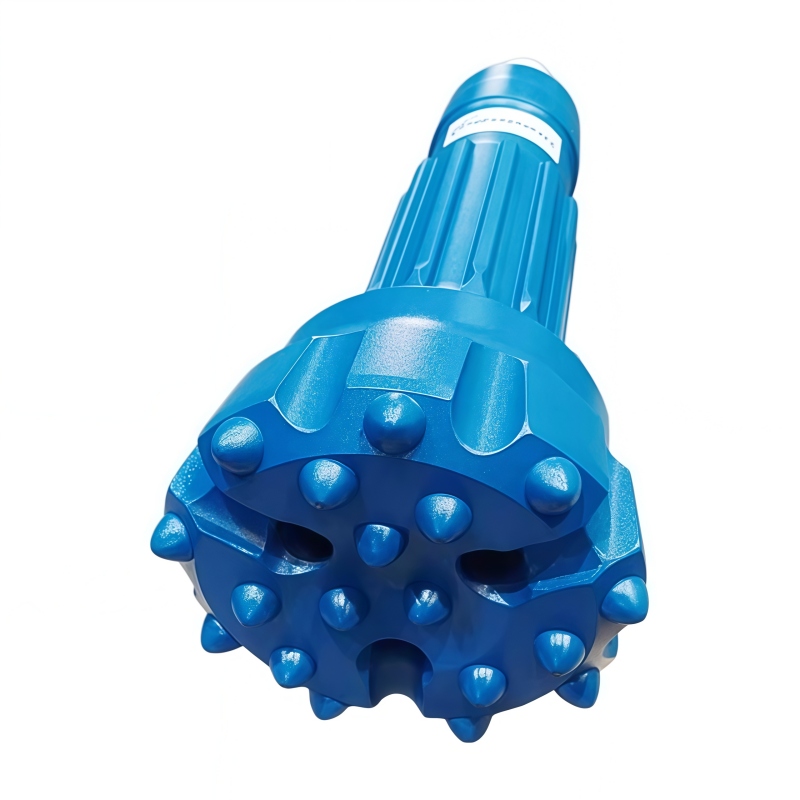

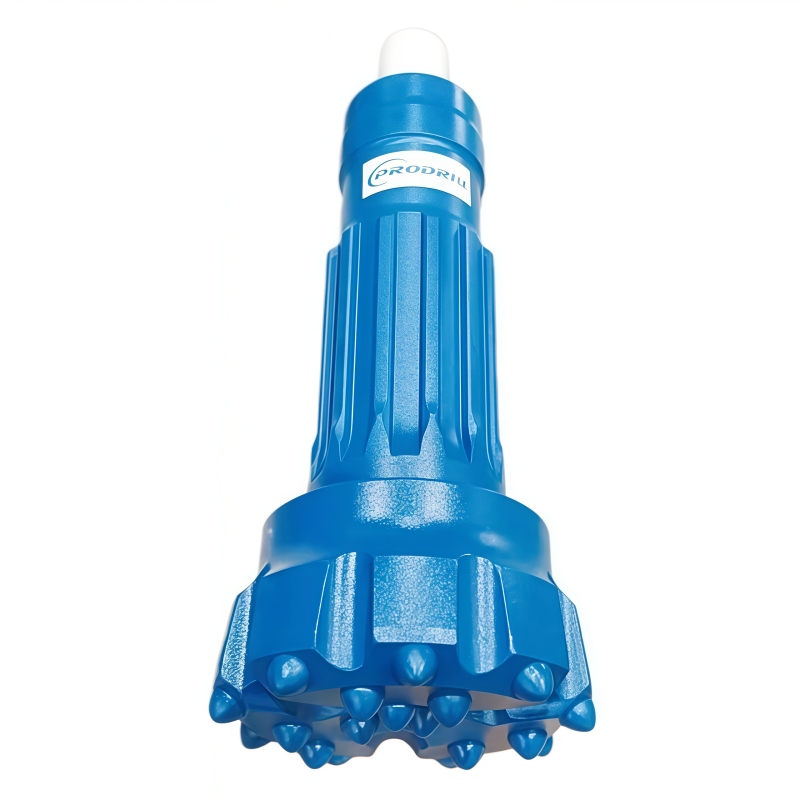

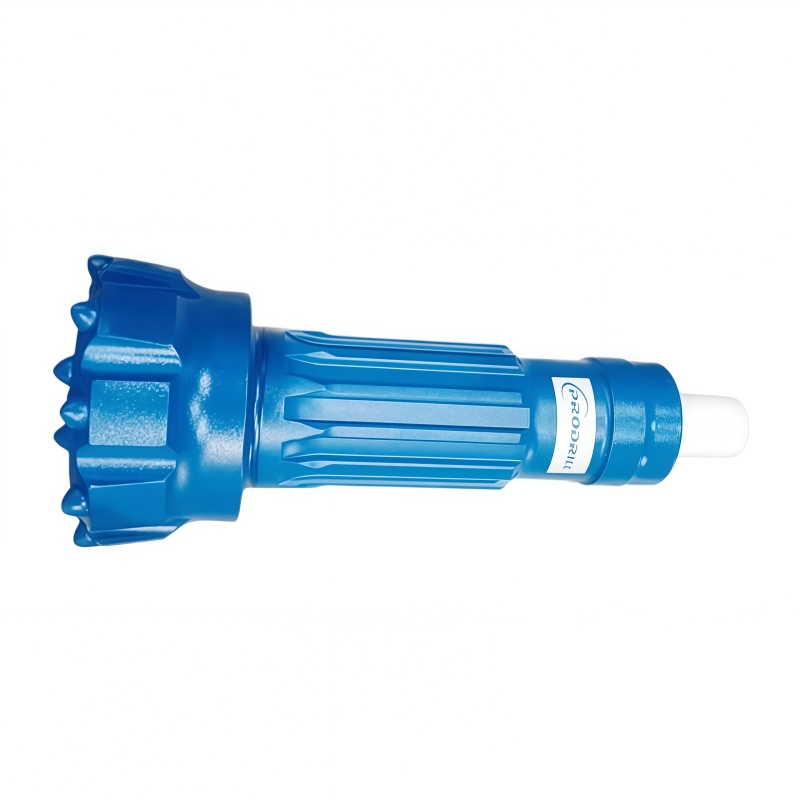

QL50-152MM DTH Bit
- Code No.: QL50
- Diameter: 152mm
- Air Holes No.: 3
- Gauge Buttons: 9*16mm
- Face Buttons: 6*16mm
- Concave Button : 3*16mm
- Bit Face Type : Concave Face
- Carbide Design: Seml-Ballistic
Rock drilling tools factory ProDrill produces DTH Drill Bits with QL shank type are available in a various range of sizes and with a number of custom design features for optimum performance in a rock formation.
Rock drill bits Shank type: QL40, QL50, QL60, QL80 ; and DTH hammer bits hole diameter: 3", 4", 5", 6", 8"(85mm-350mm).

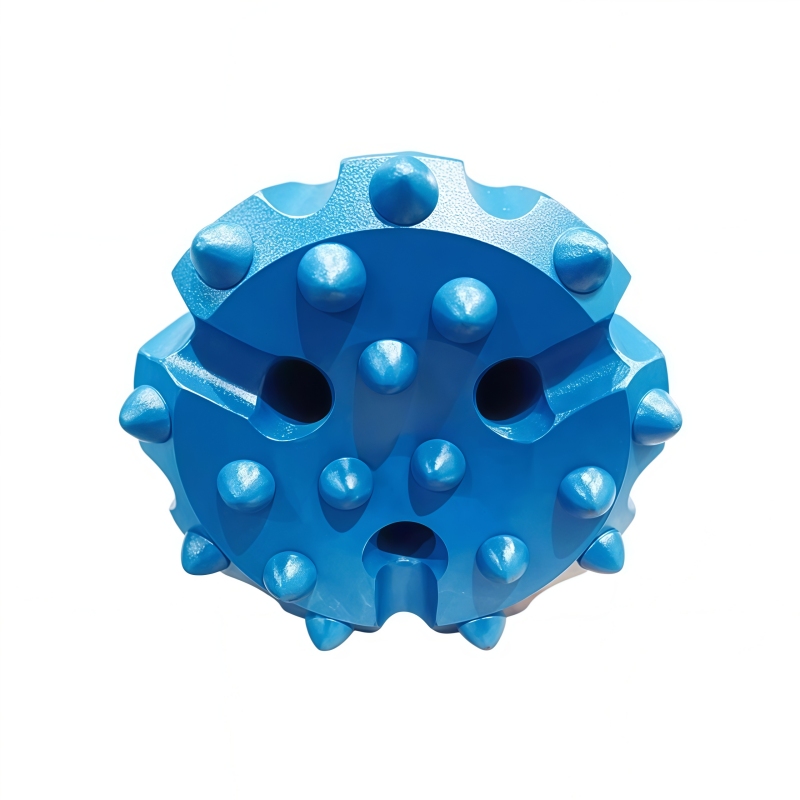

Concave Face of rock drill bits
The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
