Coupling Sleeves Semi-Bridge Type T38-190 mm

  • Code No.: SB-T38-T38-L190-D55
  • Model: T38 Series
  • Length: 190mm
  • Diameter: 55mm
  • Thread: T38-T38
  • Type: Semi-Bridge
  • Net weight : 2 kg

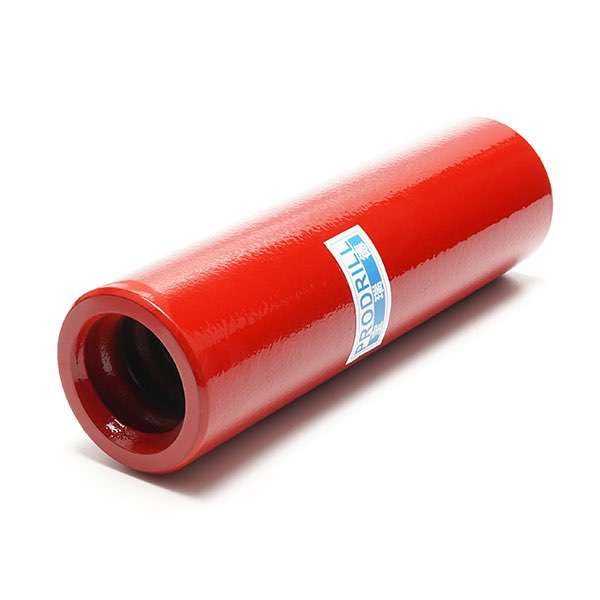

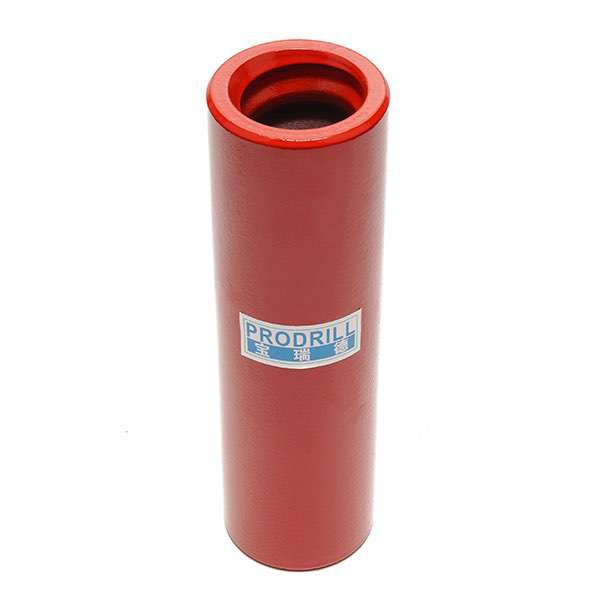

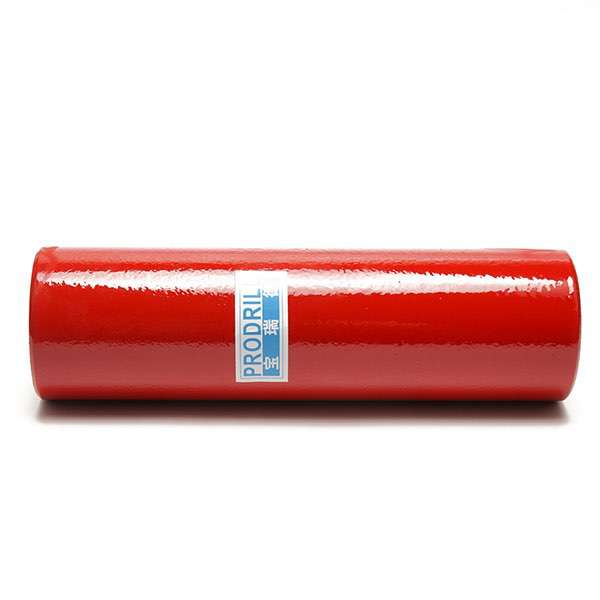

Coupling Sleeves Semi-Bridge Type T38-190 mm

Product details

T38 Series Semi-Bridge Type Coupling Sleeve

Semi-Bridge Coupling is a most use for coupling sleeves in market, product features as follow:

• Small non-threaded bridge in the center

• Steel cannot thread past bridge area

• Smaller diameter steel end portions fit together in the center bridge area of the coupling

• Semi-bridged couplings are most suited to high torque machines

• Most rope and HM threaded couplings are semi-bridged.

Semi-Bridge Coupling Sleeve190mm Length Semi Bridge Type Coupling Sleeve

T38-190 semi-bridge type coupling

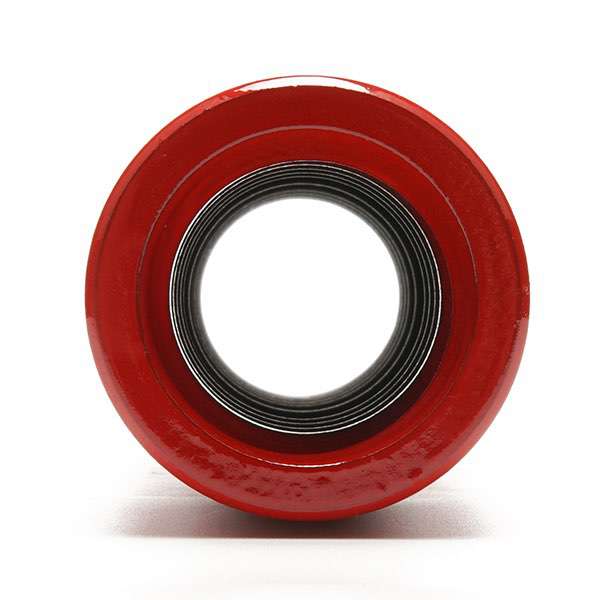

Thread of T38 Semi-Bridge Coupling Sleeve

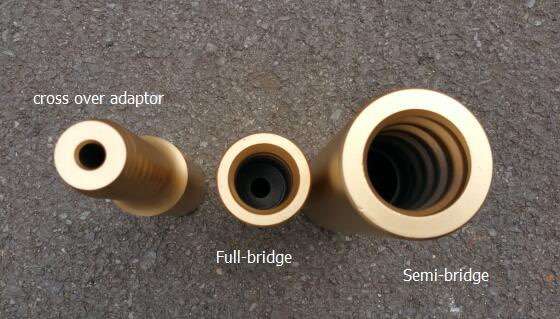

Cross over adapter, semi bridge/full bridge coupling

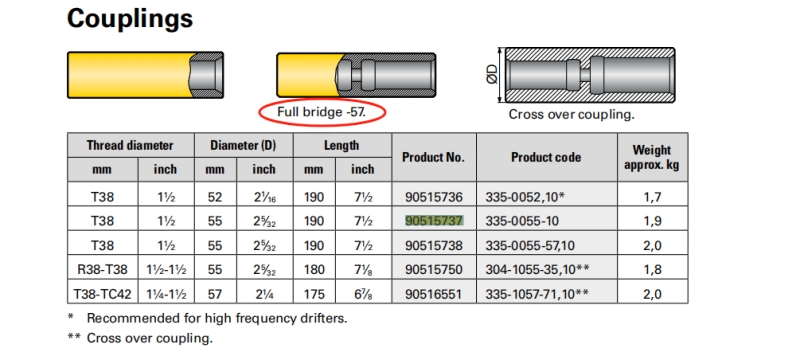

PDFFor more details please watch PDF online: Coupling Sleeves Catalogue
