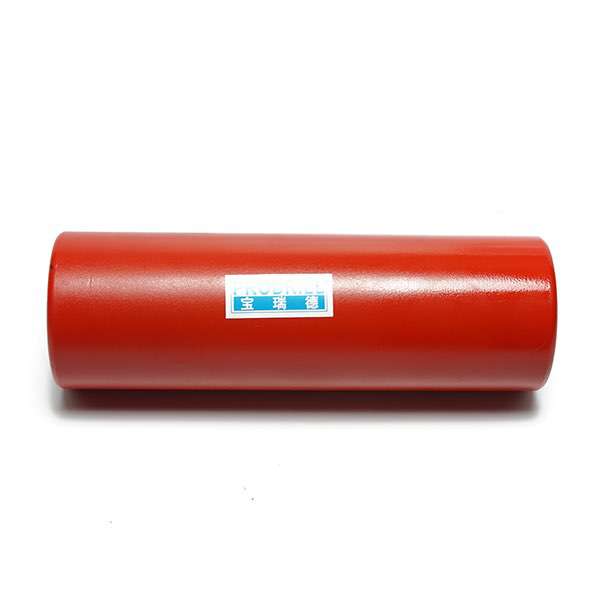

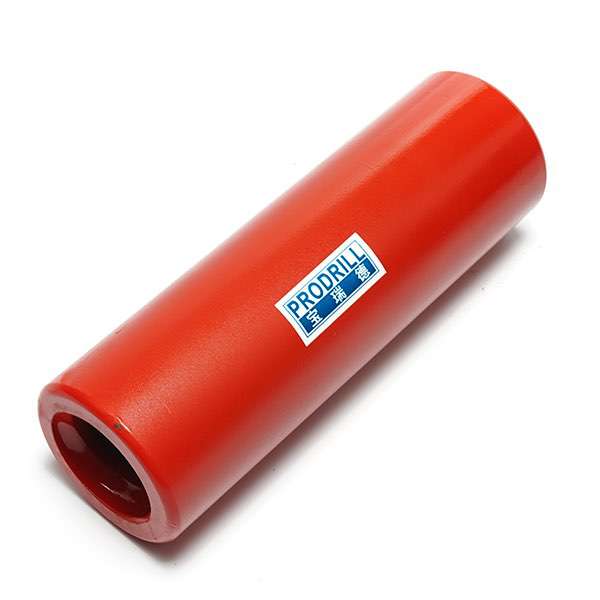

Crossover couplingT45-T38

  • Model: T38，T45Series
  • Thread: T45-T38
  • Type: Full bridge
  • Length:1.T38-190mm 2.T45-210mm 3.T45-T38-210mm
  • Weight:T38:2.1kg,T45:3.0kg,T45-T38:3.1kg
Product details

Coupling sleeve is one of important component for top hammer drill string. There are 3 types of coupling components: Full Bridge, Semi-Bridge, Cross over adapter,Crossover coupling.

Prodrill Crossover couplingT45-T38:

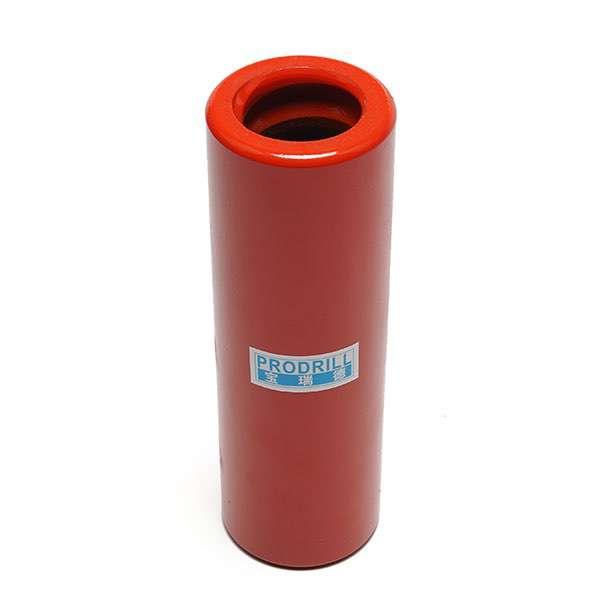

DSC06282

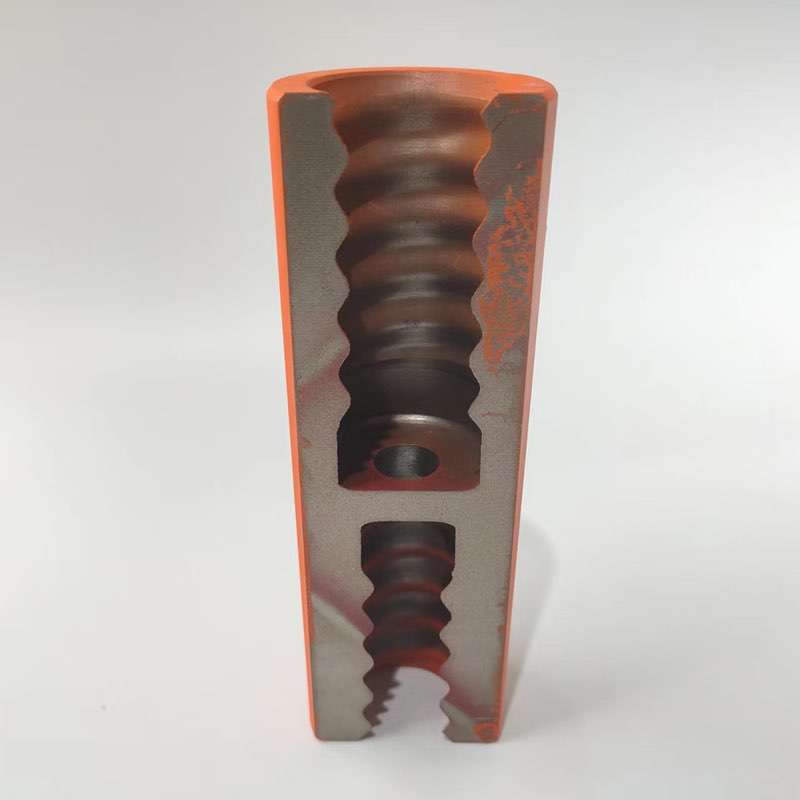

6df5bb72656b926a7a60469ee092ba8


Full-Bridge Coupling Sleeves

• Eliminates the potential for the coupling to creep along the threaded joints

• Typically used in surface applications

• Better uncoupling characteristics and tend to maintain tighter joints

• Less chance of jamming

• Best suited to machines equipped with independent rotation

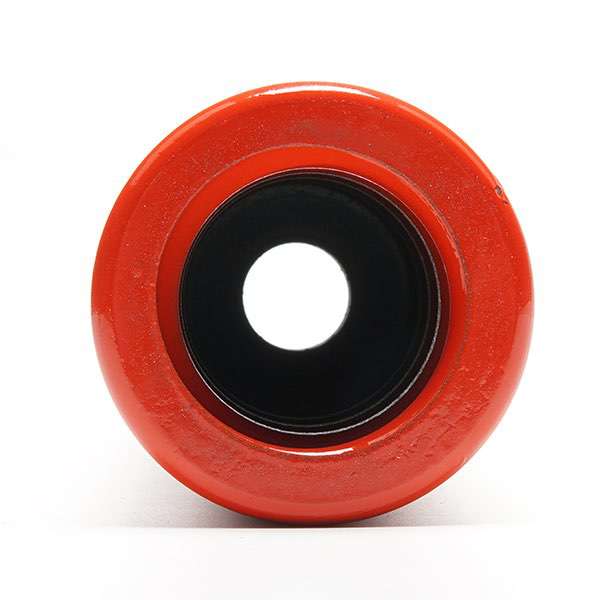

DSC06280

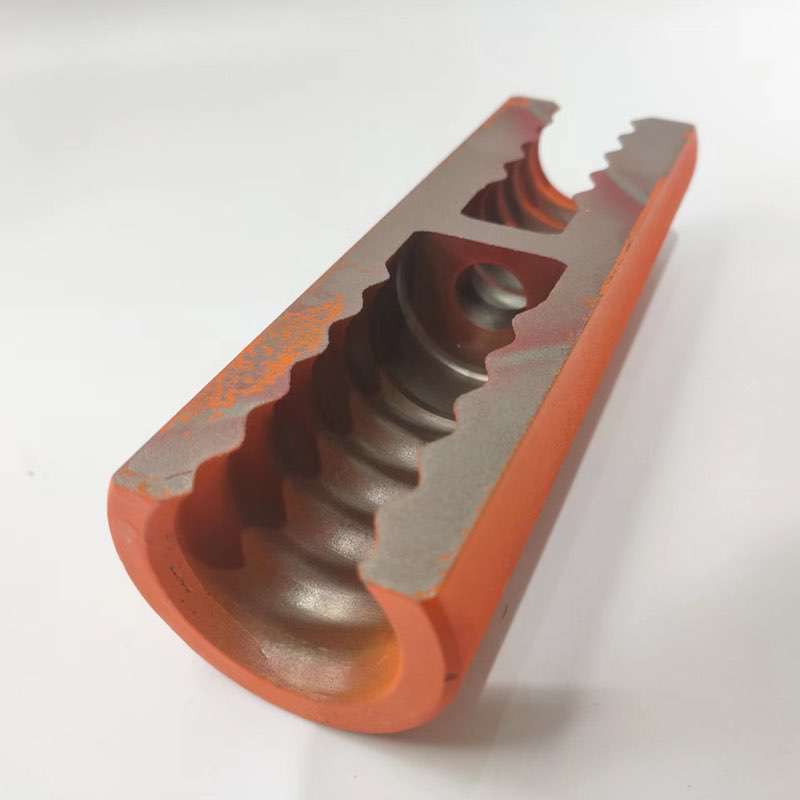

1276b9e6a4829b546a32822adce1273

PDFFor more details please watch PDF online: Coupling Sleeves Catalogue
