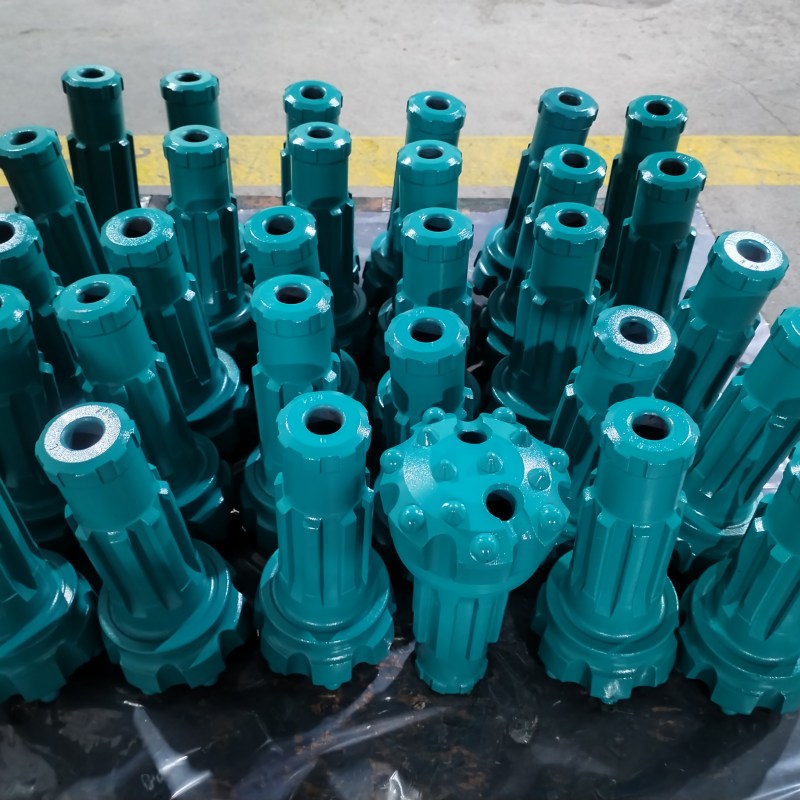

DHD340-115MM DTH Drill Bit
- Diameter: 115mm
- Air Holes No.: 2
- Gauge Buttons: 7*16mm
- Face Buttons: 6*14mm

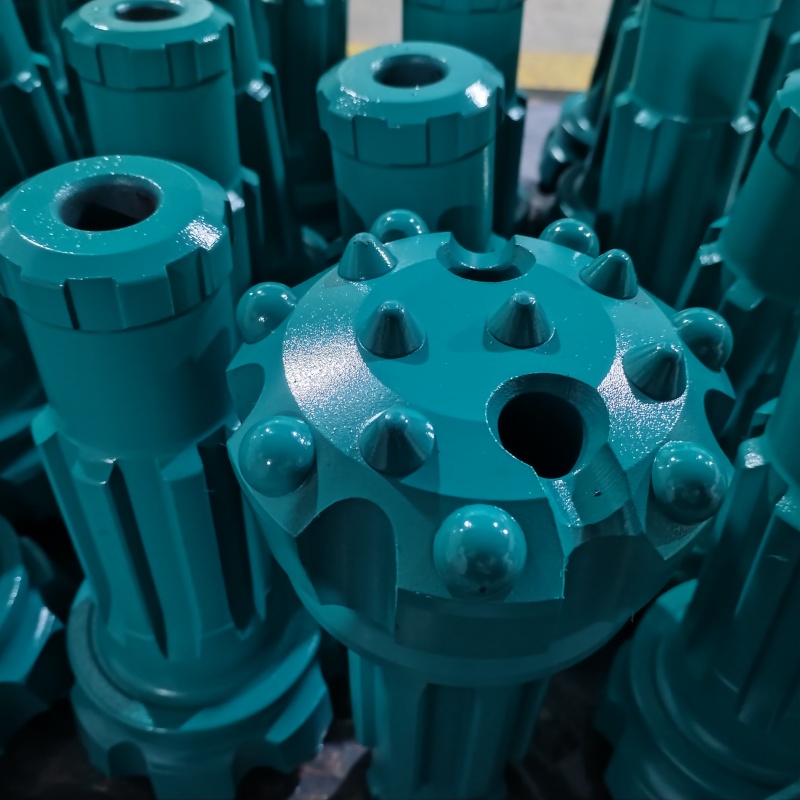

- Carbide Design: Dome
- Bit Face Type: Convex Face
- Materials: 23CrNi3MoA
- Tungsten Carbide Insert (TCI) : YK05
Rock drilling tools factory ProDrill manufactures a comprehensive range of DTH drill bits with DHD shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.
Shank types: DHD3.5, DHD340A, DHD350R, DHD360, DHD380.
DTH bits hole diameter: 3", 4", 5", 6", 8"(85mm-305mm)
Rock drilling tools factory ProDrill manufactures a comprehensive range of DTH drill bits with DHD shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.
Shank types: DHD3.5, DHD340A, DHD350R, DHD360, DHD380.
DTH bits hole diameter: 3", 4", 5", 6", 8"(85mm-305mm)
Convex Face
The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if the rock is too hard.
For high penetration rate in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
