Diamond Circular Blades for Multi Disc Block Cutter

Advantage:Speedy cutting, low current of the machine, mining blocks are square with good flat surface , longer cutting life , Reducing the times of blanks re-welding, maximizing the lifespan of steelblanks, achieving high cutting linear meters and eventually saving the mining cost for quary and facory owner

Product details

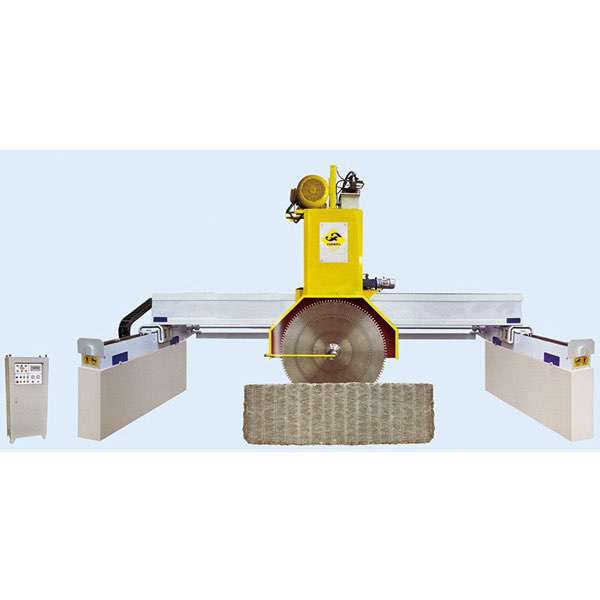

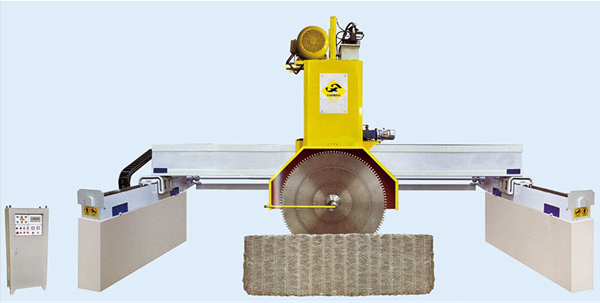

PD 2500 Bridge Type Multi-blade Large-scale Stone Cutting Machine

Machine structure: it contain one main Bridge ,cutter head up/down part, main motor, two sides rails beam, rails driving part, electric control cabinet.

Machine introduction: This machine is widely used in current chinese modern stone processing factory, Bridge Type and without trolley, so you can put your block on the floor directly, Crossbeam on the left and right rails, slicing by leadscrew, with lower maintance require ,Double Screw slicing system ensure high precision and long use age. Thick and processed well up/down column to make sure cutting precision and long using life, With PLC control, full automatically.

Usage: it will be used for cutting big granite blocks into slabs.

Technical data:

	PD-2500
1.Beam size	7500x450x550mm
2.Up/down 4pcs Column size	140mm,Double cylinder
3.Main motor	55KW
Feeding Motor	3kw
Hydraulic Up/down motor	4kw
Slicing Motor	1.5kw
4.Electric control system	PLC control, full automatic
5.Main axis diameter	D.120mmmm
6.Cutter head p/down stroke	1150mm
7.Max.Quantity of saw blade	Max.D.2500mm 8pcs(recommand)
8.Total weight	About 10tons

1c0af86ceda4ef50d3a1d2e42426d20

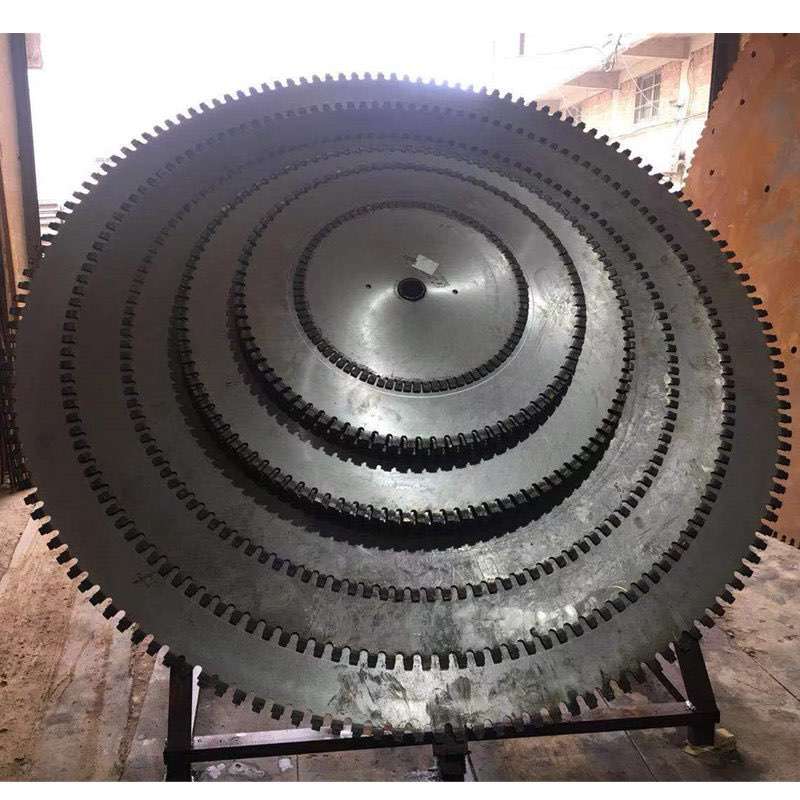

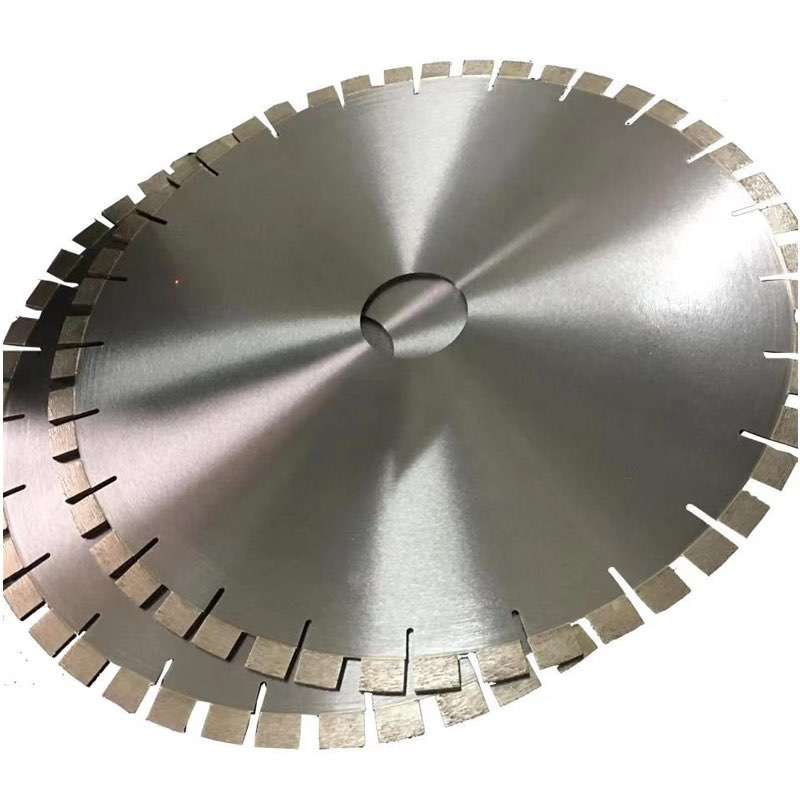

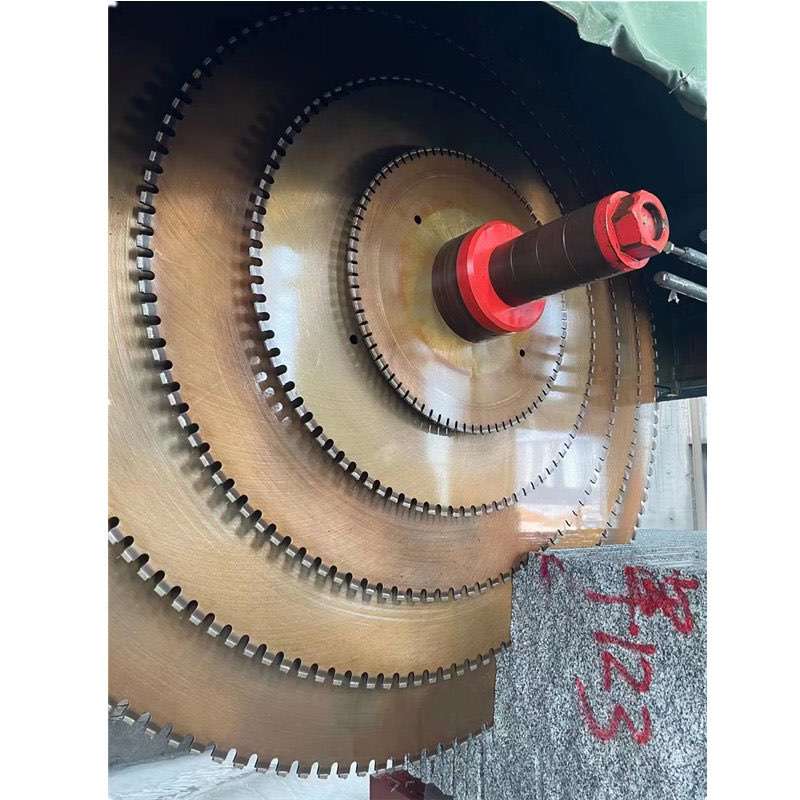

Diamond Circular Blade for Multi Disc Block Cutter
No.	Blade Size	Desc. Of Saw Blades
1	Circular blade 400mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
2	Circular blade 450mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
3	Circular blade 600mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
4	Circular blade 750mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
5	Circular blade 800mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
6	Circular blade 900mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
7	Circular blade 1000mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
8	Circular blade 1050mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
9	Circular blade 1200mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
10	Circular blade 1200mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
11	Circular blade 1350mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
12	Circular blade 1400mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
13	Circular blade 1500mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
14	Circular blade 1600mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
15	Circular blade 1650mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
16	Circular blade 1800mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
17	Circular blade 2000mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
18	Circular blade 2200mm	hole dia 100mm, steel thickness 6.5mm, segment 248.4/9.215mm
