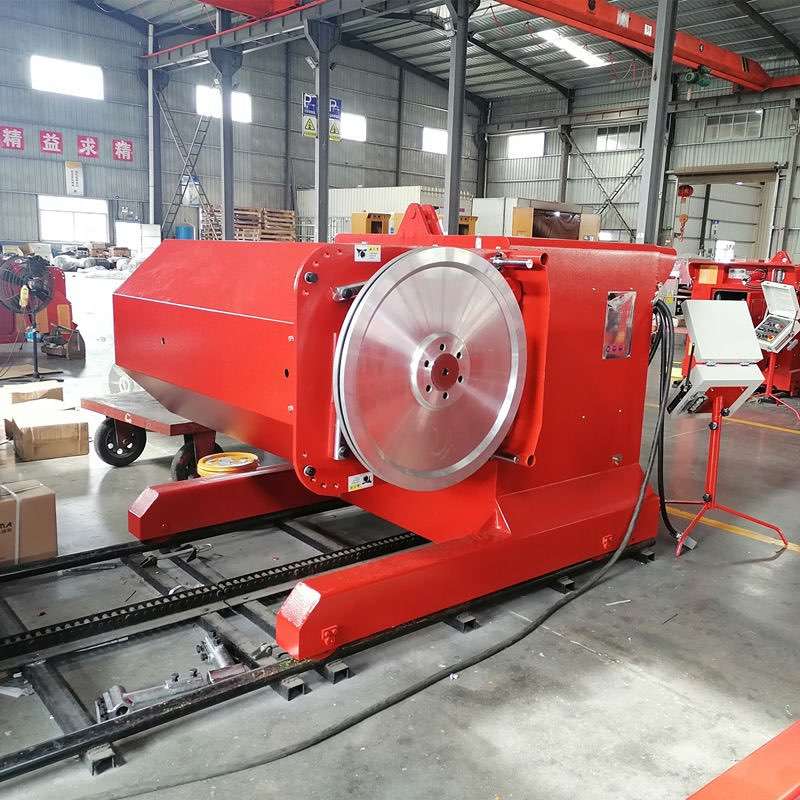

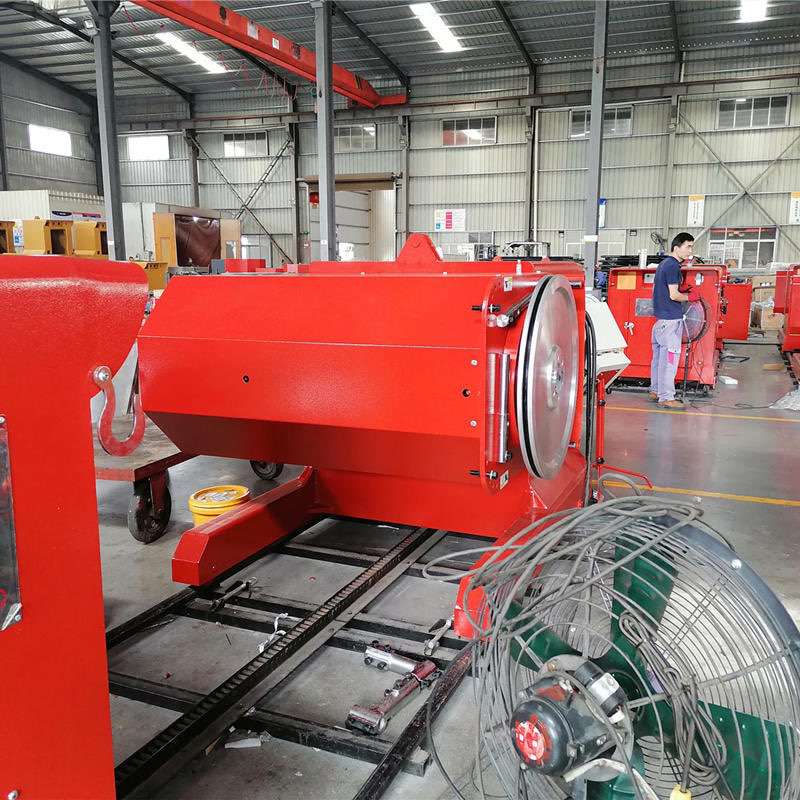

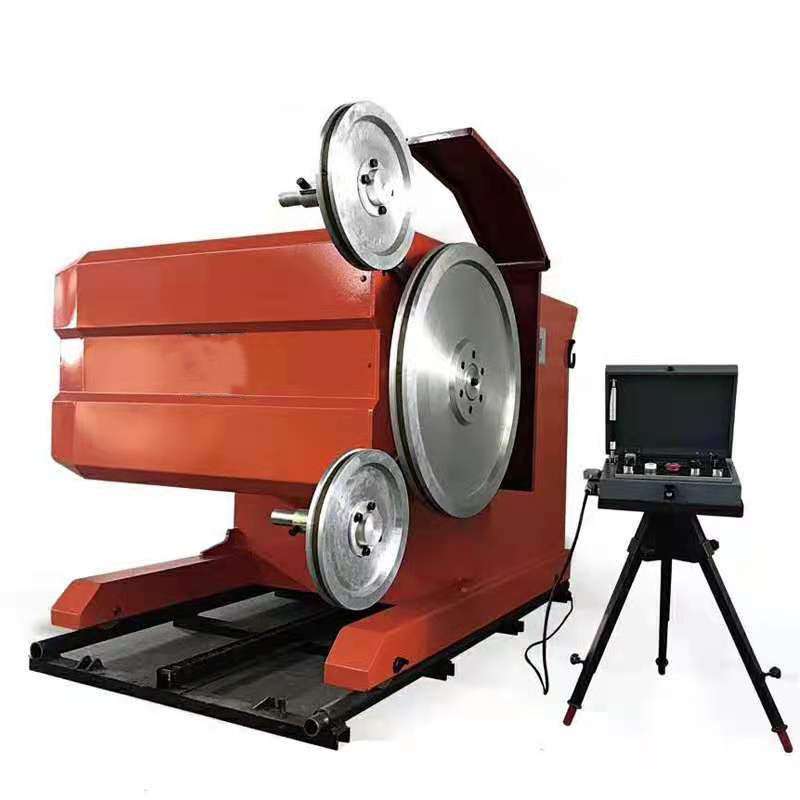

Diamond Wire Saw Machine for Marble Quarrying
Functions:
Diamond wire saw machine can be used for cutting various stone in quarry, such as marble, granite and sandstone etc. The wire speed controlled by inverter allows variation of the wire speed from 0 to 40m/sec. The traverse speed is controlled automatically by special electronic control system, which maintain the tension of diamond wire during cutting the blocks.
Other features:
1.360°rotation of the mail pulley
allows the wire saw to cut in any direction.
2. The distance of lateral movement of
the main pulley support is up to 350mm.

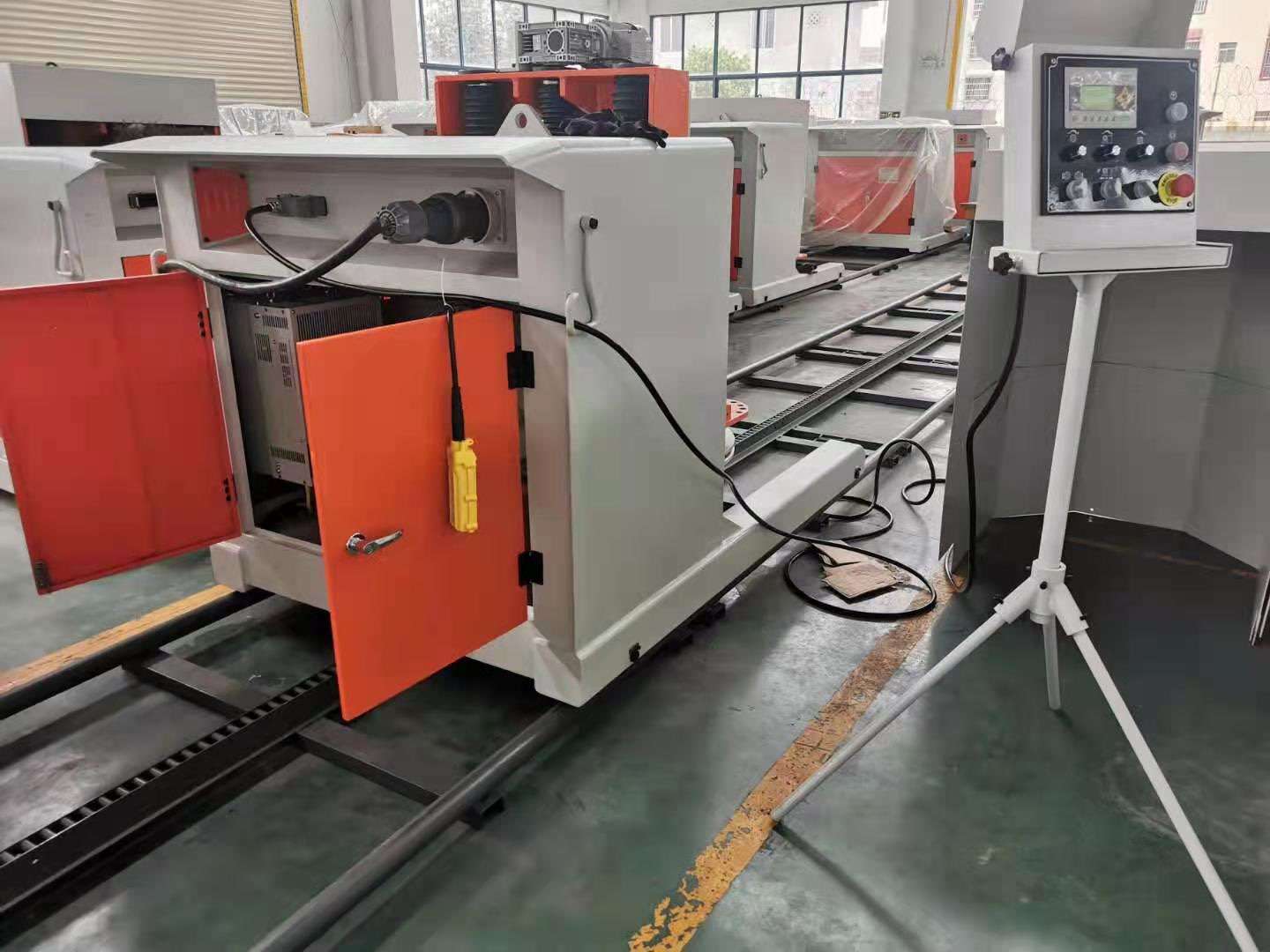

3. Control panel is intelligent, easy
to read and operate, can be positioned up to 15 meters from working area. Safe
for the operator.
4. Automatic control systems for the
machine\'s movement,start from zero velocity to high cutting speed step by step,
which is endurable for power motor.
5. Cooling fans can blow out the heat
in time.
6.Water flow inspecting (the machine
will alarm and reduce its speed and finally stop automatically when cooling
water running out or become deficient).
7.Wire-broken protection. This system
would break out warnings within 6 seconds and then reduce forward velocity till
cease in case of broken of diamond wire.
Model No.: PD-75G-8P
Match with diamond wire:
TECHNICAL DATA of Prodrill Wire Saw Machine ( 37kw,55kw & 75kw)
| Model | PD-G-37-8P | PD-G-55-8P | PD-G-75-8P |
| Main motor power | 37-8P | 55-8P | 75-8P |
| Flywheel diameter | 800mm | 800mm | 1000mm |
| Wire saw speed | 0-30m/s | 0-30m/s | 0-30m/s |
| Max.wire saw length | 10-70M | 10-120M | 10-150M |
| Walking motor power | 0.75KW | 0.75KW | 0.75KW |
| Walking speed of machine | 0-1200 | 0-1200 | 0-1200 |
| Rotation angle(electric) | 360 | 360 | 360 |
| Lateral moving distance | 60 | 60 | 60 |
| Max.lateral cutting distance | 1800 | 1800 | 1900 |
| Rail length | 2m*3 | 2m*4 | 2m*5 |
| Allowed working temperature | -15 | -15 | -15 |
| Dimension(L*W*H) | 2000*1400*1300 | 2000*1450*1300 | 2000*1500*1400 |
| Net weight | 2700 | 3000 | 3500 |
Video of Wire Saw Machine :
