Diamond Gang Saw Blades for marble, granite cutting

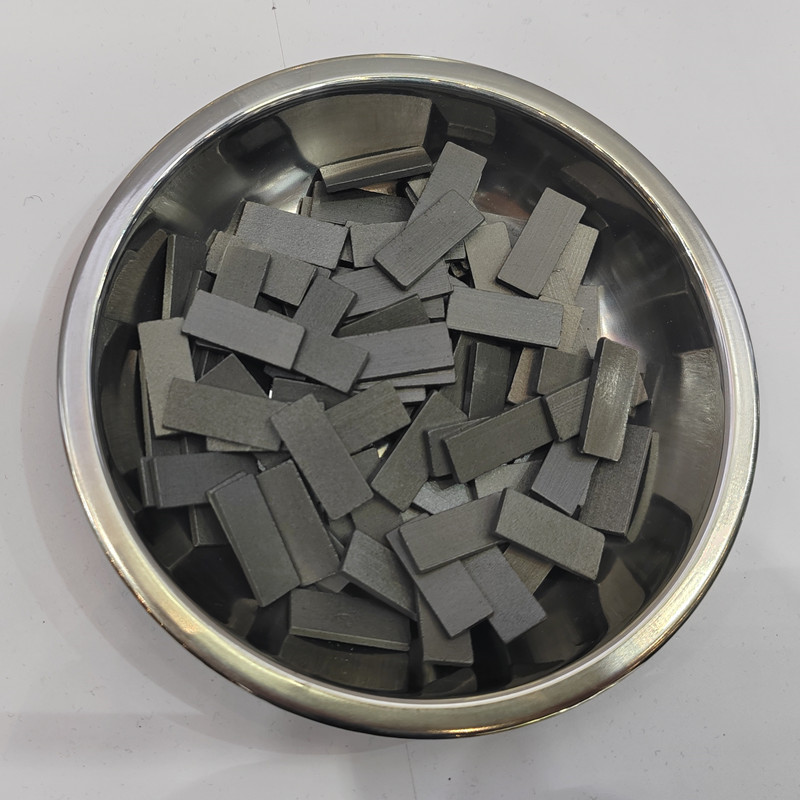

- Gang saw segments size for granite:Length*Height*Thicknes (brazing side/cutting side)
- 1 : 20*10*5.0/5.5mm
- 2 : 20*11*5.0/5.5mm
- 3 : 20*12*5.0/5.5mm
Application: Professionally used in cutting various granite , marble and artificial stone inwhite, gray (light color), etc. Such as inorganic stone, water millstones, and otherstones.
Applicable equipment: various imports and domestic marble gang saws, Especially Italy imported brand like Gaspari.
Product description: Top quality assurance, anti -fatiguematerial saving materials to improve the material and efficiency; surface is morefat and smooth; the zigzag is thinner, the sawtooth error ± 0.01mm meets varioussawn needs.

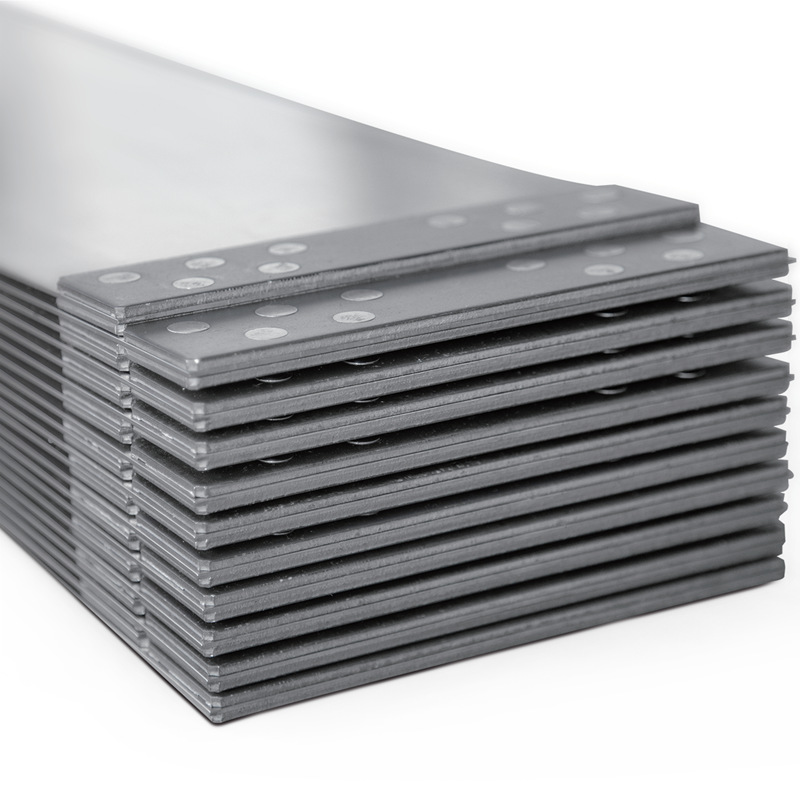

Gang saw blank for Factory Technical Spec
| Steel body Spec(mm) | Life(㎡/m) | ||
| Length ( mm ) | Width ( mm) | Thickness( mm) | |
| 3800-4600 | 180 | 0.8 | 1 |
| 1 | |||
| 1.2 | |||
| 1.5 | |||
| 1.7 | to | ||
| 2 | 3 | ||
| 2.5 | |||
| 3 | |||
| 3.5 | |||
Features:
1.Hot treatment: light quenching, hardness 42-44;
2. Surface grinding effect: brush planing, the maximum surface roughness is 10 μ;3. Edge: After special mechanical processing, both sides of 90+1 ° pass through
the backward corner;
4. Plane degree: the maximum value of the width per millimeter is 1um;
5.Flatness:1mm/1000mm;
6.Thickness tolerance:+0.035mm or -0/+0.07mm;
7.Width tolerance: ± 0.5mm or -0/+1.0mm.

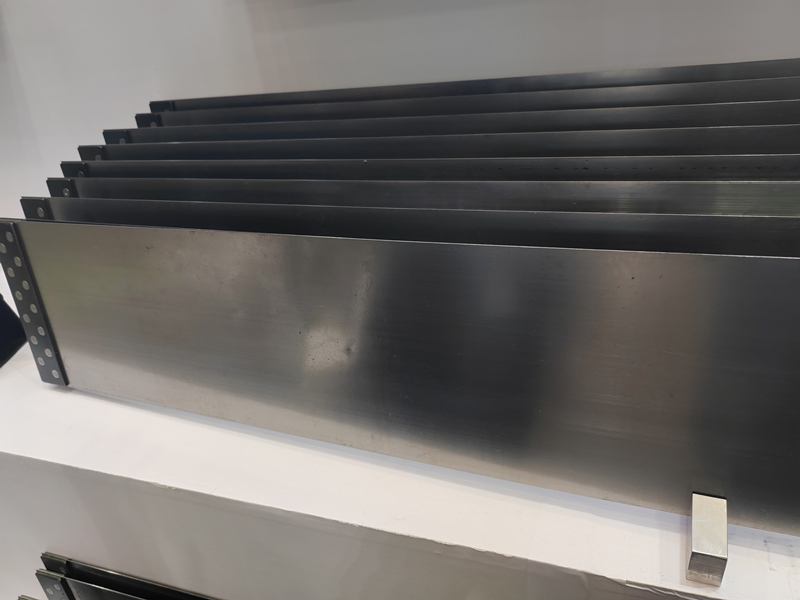

ProDrill Diamond Gang Saw Blade Blank:
1.Unigue formula, structure and technology.
2.Sharp wear resistance, highly out turn percentage.
3.Suitable for saw cutting of natural marble, granite, post stone, high imitation quartz stone, sandstone, etc.
Diamond Gang Saw Blades Technical Spec
| Steel body | Segment Spec(mm) | Teeth(pcs/Blade) | Number of strips per set of matrix |
Cutting Speed(cm/H) | Application | Shape | Bead Type | ||||
| L | W | T | L | H | W | T | |||||
| 3800-4600 | 180 | 0.8-1.5 | 20 | 8-10 | 1.8/2.2-2.4/2.8 | 22-28 | 90-180 | 16-32 | Soft marble | Rectangle | Hot sintered |
| 3800-4600 | 180 | 0.8-2.5 | 20 | 8-10 | 1.8/2.2-3.1/3.5 | 18-26 | 105-180 | 12-26 | Midium hard marble | ||
| 3800-4600 | 180 | 2.0-2.5 | 20 | 8-10 | 3.1/3.5-4.2/4.6 | 17-19 | 80-100 | 13-20 | Hard marble | ||
| 3800-4600 | 180 | 2.0-3.5 | 20 | 8-10 | 3.1/3.5-5.0/5.4 | 24-28 | 70-150 | 13-22 | Granite, hard marble | ||
Application: Professionally used in cuting various granite , marble in white, gray (light color), black, and engerineered stone, luxury stone etc.
Features: Smallknife gap, lower noise, lower power consumption, longer cuting life, higher output efficiency and high cuting flatness.
