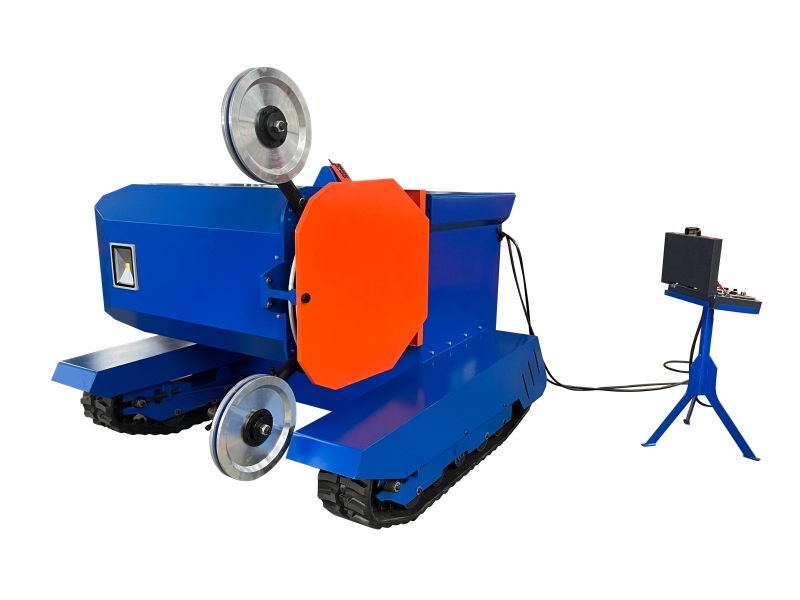

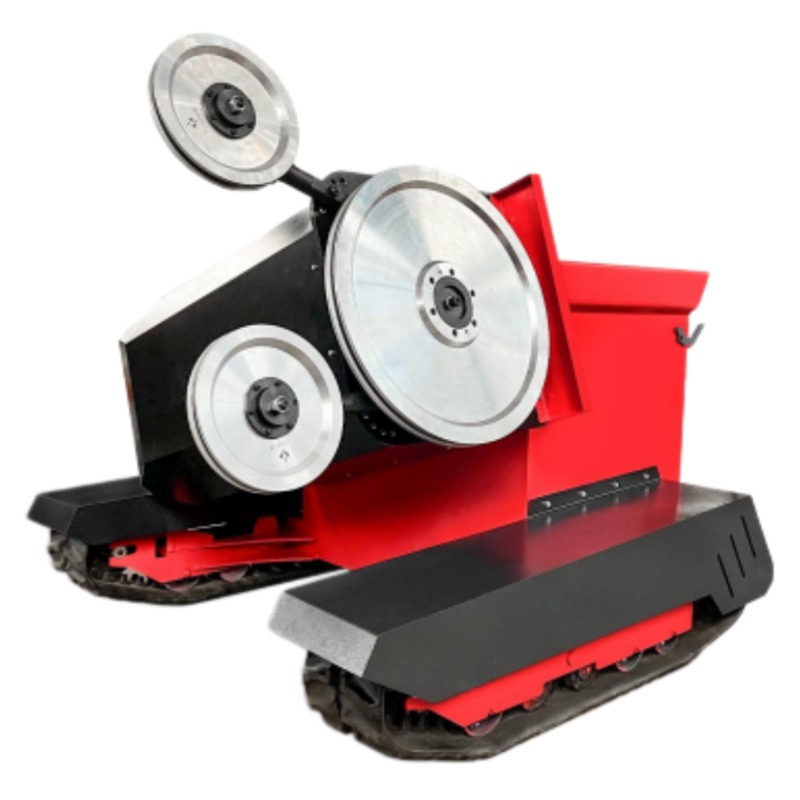

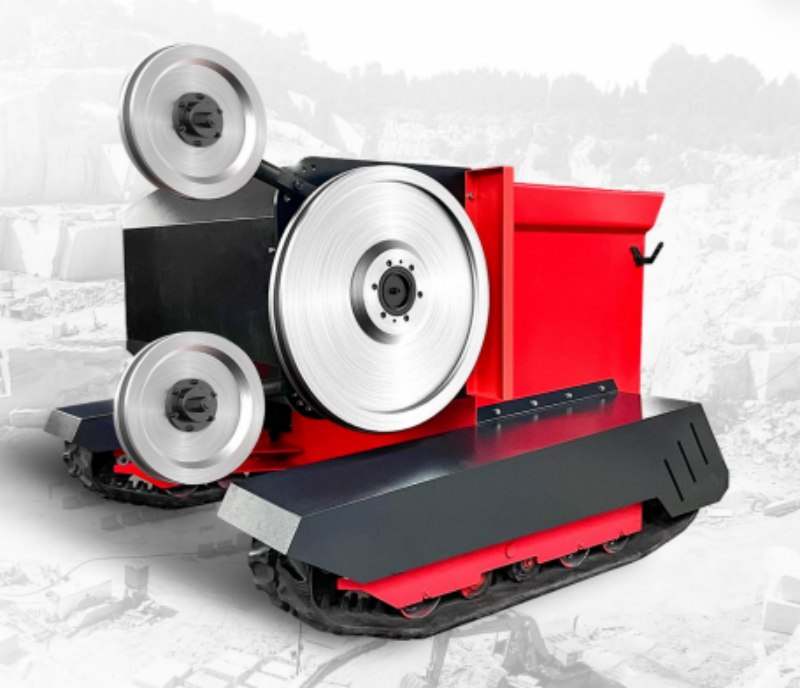

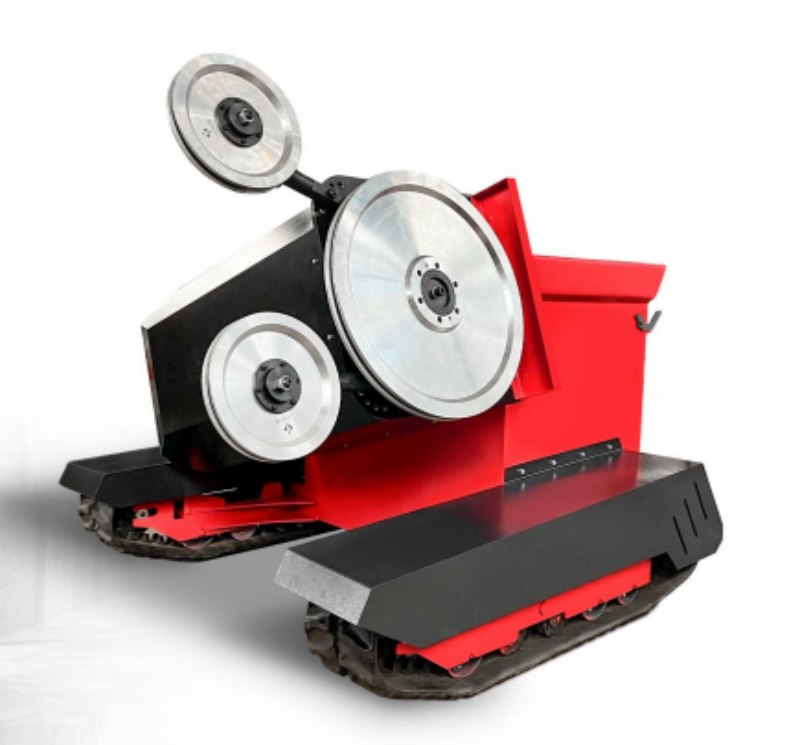

PD-55/75-12P Diamond Wire Saw Machine
Prodrill Wire Saw Machine :
Aapplied advanced design and fabrication technology, the machine is suitable for granite, marble and sandstone quarry opening.
The machine head can be adjusted and rotated automatically.
Imported vector frequency converters are equipped in to ensure the constant torque output. The feed speed can be adjusted automatically by the constant tension control systemm. The adjustment is stable, so the cutting condition is always remain the best.
The operation panel can be wire control and remote control, the monitor can show the instant current, feed speed and cutting time datas.
The main motor power include 37kw,55kw, 75kw,90kw,110kw.
Techical Data
| MODELO | PD-55-12P | PD-75-12P |
| Main motor power | 55-12p | 75-12p |
| Flywheel diameter | Φ800mm | Φ800mm |
| Wire saw linear speed | 0-40m/s | 0-40m/s |
| Rotation angle (electric) | 0°-355° | 0°-355° |
| Max. lateral cutting distance | 1800mm | 1900mm |
| Allowed working temperature | -58 | -58 |
| Net weight | 3200kg | 3500kg |
