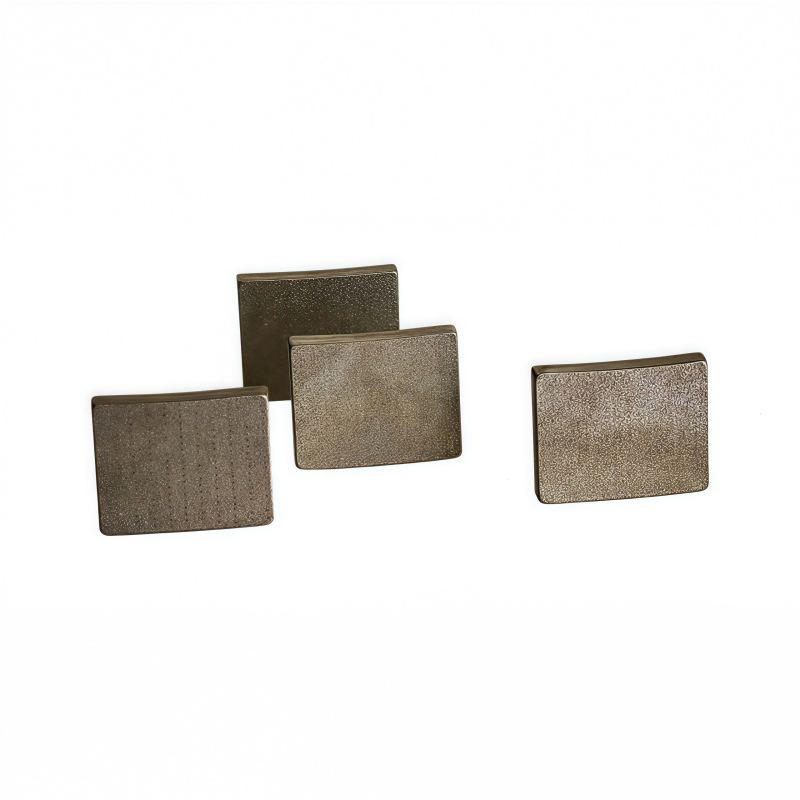

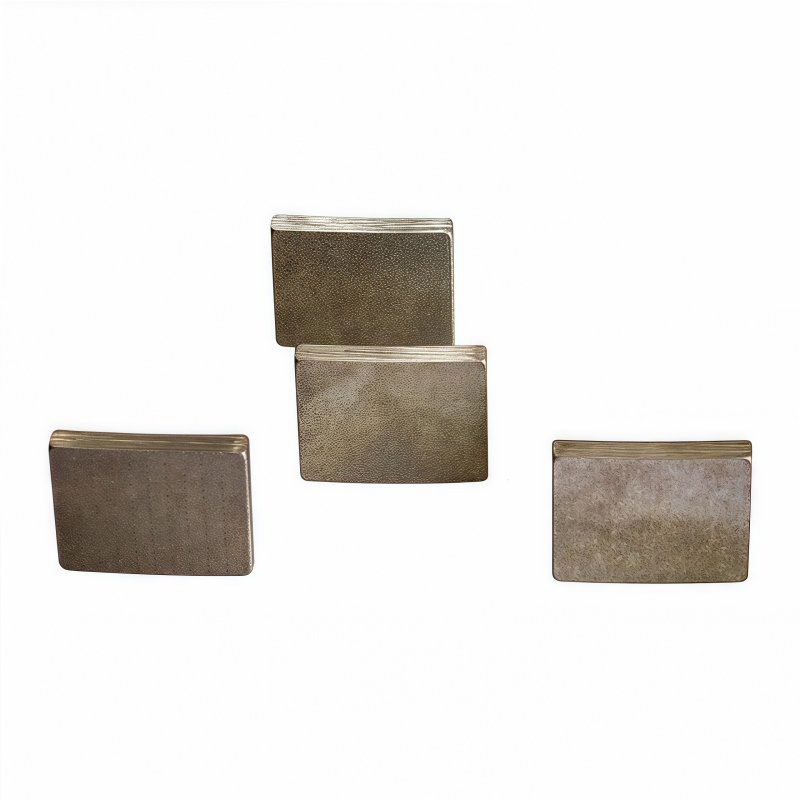

PDA Diamond Segment for Saw Blades
- Product Specification : 40*3.6*15 R200, 40*3.0*15 R250, 25*3.6*20 R200, 25*3.0*20 R250
- Advantage : High-performance ProDrill 's Diamond Segemtns are with these special shapes makes fast diamond exposed and high cutting efficiency.
- Features : Fast cutting speed with good life and stable performance.
PDA Segment stand for patterned diamond arraying technology , most advance in diamond tools for stone process indsutry, It is suitable for granite, marble basalt, slate, sandstone and concrete cutting.
Good Sharpness: speedy cutting, low current of the machine, mining blocks are square with good flat surface.
Long Life: Reducing the times of blanks re-welding, maximizing the lifespan of steelblanks, achieving high cutting linear meters and eventually saving the cutting cost for the owners.
Application: PDA guarantees the conslstent fast and durable cutting. Slant protection and tungsten carbide seqments avoid undercutting. The range of products is recommended for < 18KW or 25-50 KW electric, petrol or powered road saws.
Technical specification
| Product Code | Diameter (mm) | Diameter (mm) | Height (mm) | Thickness (mm) |
| LWPU350-12TC-PDA | 374 | 14'' | 12 | 4.0 |
| LWPU400-14TC-PDA | 424 | 16'' | 12 | 4.0 |
| LWPU450-16TC-PDA | 450 | 18'' | 12 | 4.0 |
| LWPU500-17TC-PDA | 500/524 | 20'' | 12 | 4.0 |
| LWPU600-21TC-PDA | 610/628 | 24'' | 12 | 4.0 |
| LWPU650-22TC-PDA | 650/678 | 26'' | 12 | 4.0 |
| LWPU750-27TC-PDA | 780 | 30'' | 12 | 4.0 |
| LWPU900-32TC-PDA | 932 | 36'' | 12 | 4.0 |
Application:

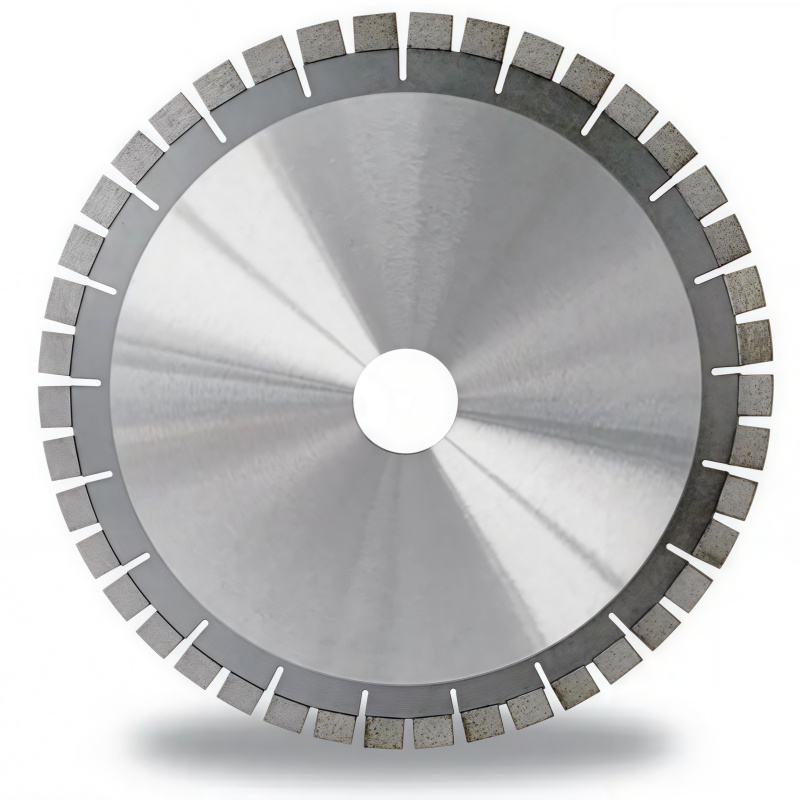

A saw blade with new designed PDA segments, ideal choice for fast cutting granite, hard stones and sandstones. Offer normal and short PDA segments blades with premium high quality , Sandwich style silent steel core is available.
