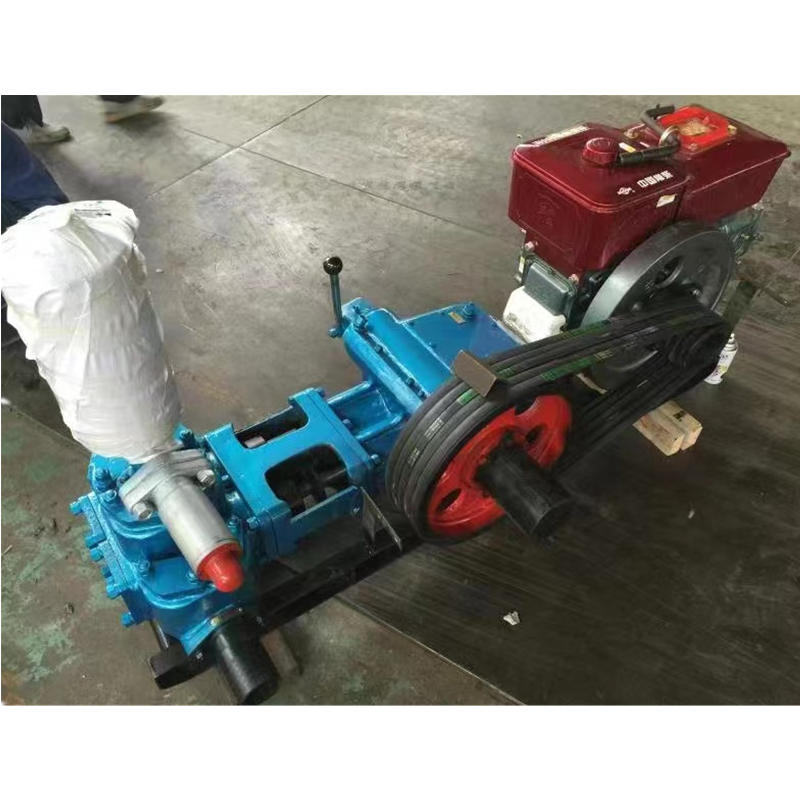

Mud Pump BW200
- Weight (kg) :300
- Rotating power (HP) :20
- Overall dimension (L * w * h): 1050*630*820
Bw-200 mud pump is a horizontal two cylinder reciprocating single acting piston pump, which can be used for connection with hydrological wells. Some standard parts are selected. It has the characteristics of compact structure, stable operation, wide flow variation range, high output pressure, long service life of vulnerable parts, stable performance, good strength and rigidity. It can realize remote control and is easy to operate.
BW-200 Technical specifications of model mud pump
| BW-200 Technical specifications of model mud pump | |
| Model | BW200 |
| Type of water pump | Horizontal |
| Type of action | Double action |
| Number of cylinders | 2 |
| Cylinder liner diameter (mm) | 80,65 |
| Stroke (mm) | 85 |
| Reciprocating times (times / min) | 145 |
| Displacement (L / min) | 200;125 |
| Working pressure (MPA) | 4, 6 MPa |
| Rotating shaft speed (RPM) | 530 |
| V-belt pulley pitch diameter (mm) | 385 |
| V-belt pulley type and groove number | Type b * 5 slots |
| Rotating power (HP) | 20 |
| Diameter of suction pipe (mm) | 76 |
| Diameter of drainage pipe (mm) | 51 |
| Overall dimension (L * w * h) | 1050*630*820 |
| Weight (kg) | 300 |
