PD-120 Wheel Type Diesel engine hydraulic Drilling Rig
- Drilling depth(m):120m :
- Hole diameter(mm):100-300 :
- Engine power:22 HP :
- Weight (kg):560:

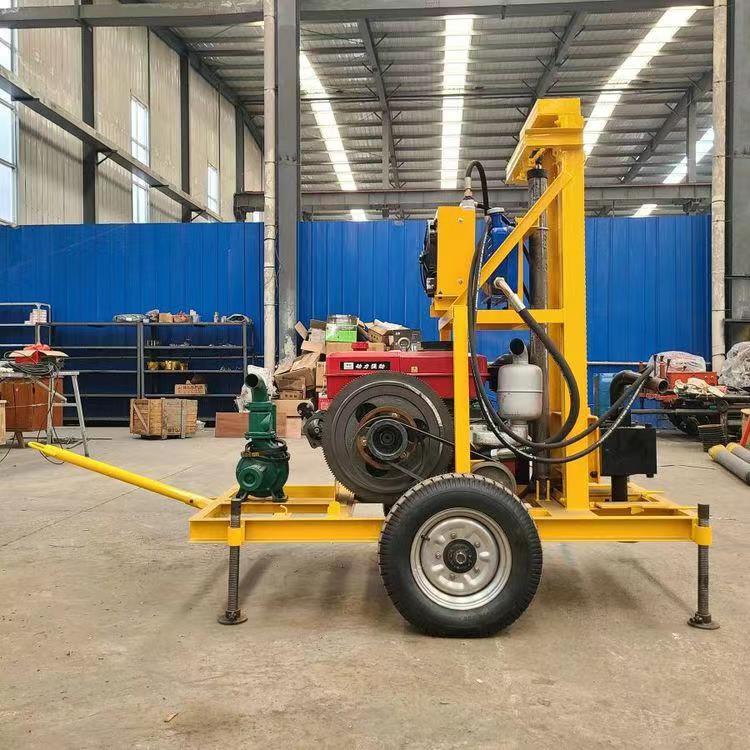

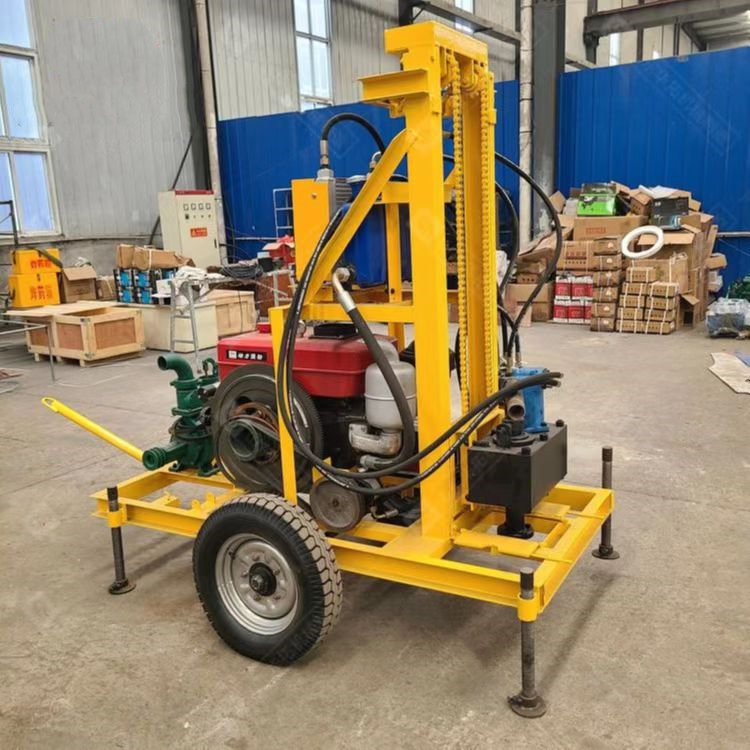

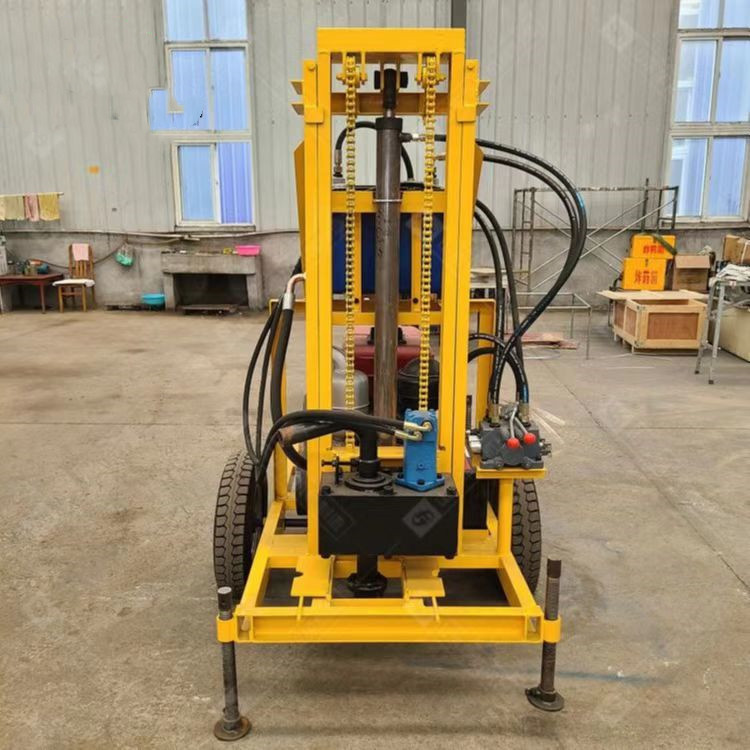

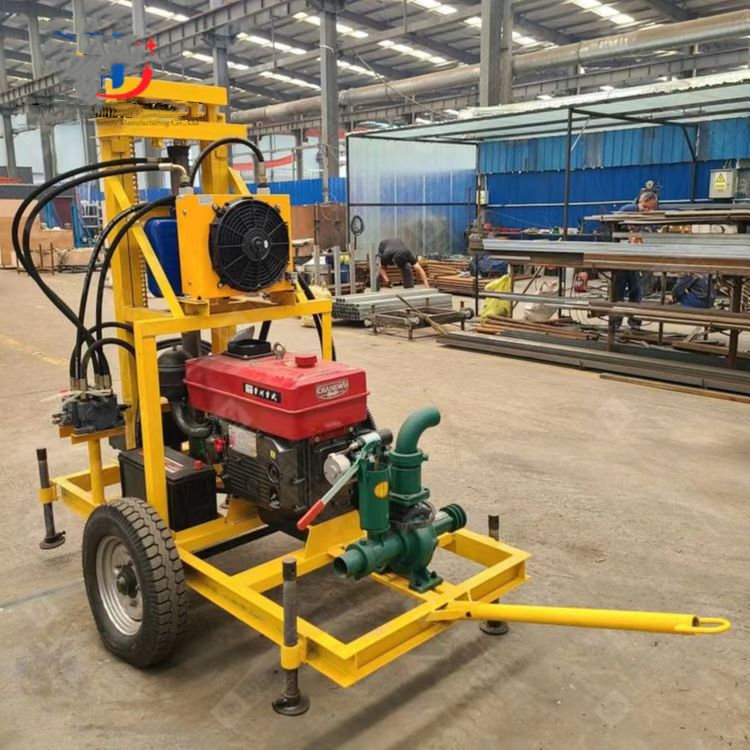

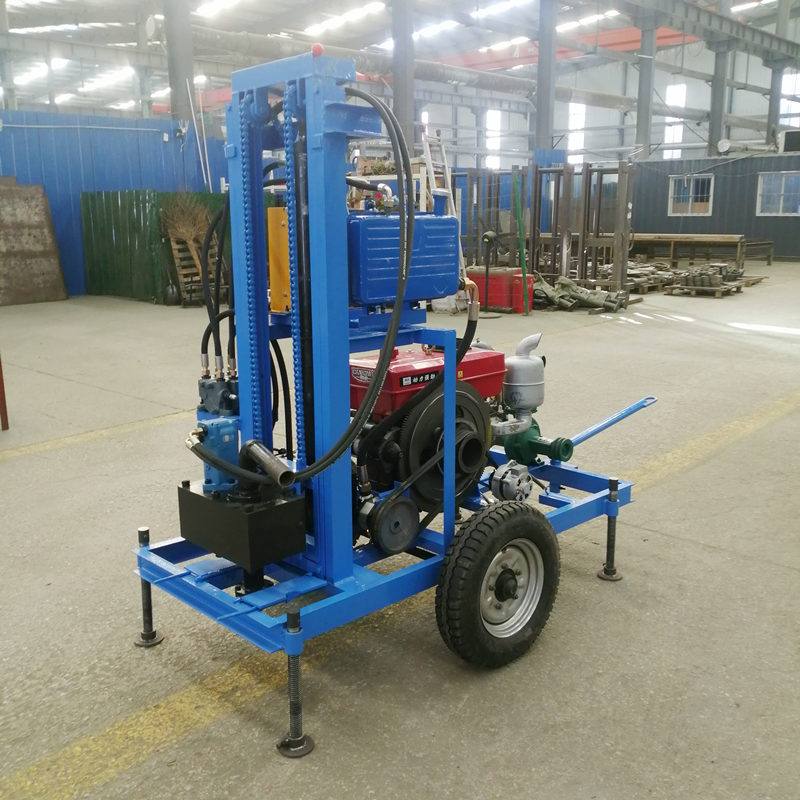

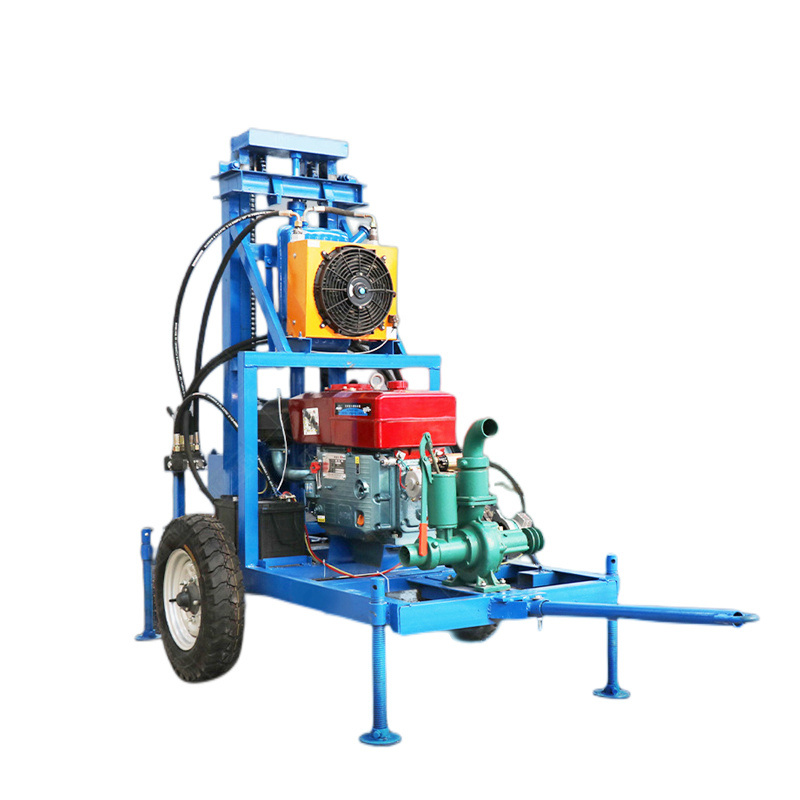

PD-120 Wheel Type Diesel engine hydraulic Drilling Rig
1. Introduction of PD-120 diesel engine hydraulic drilling rig
PD120 wheel type water welll drill rig is a hydraulic drilling machine powered by 22HP diesel engine.This drilling rig is suitable for drilling soil layers, quicksand layers and a small amount of rock and soil layers. Now it is mainly used for drilling civil draft wells, ground Source heat pump air-conditioning wells, engineering dewatering wells, drought-resistant wells, industrial wells, etc.
Specifications:
| PD120 Wheel type water well drilling rig | |
| Drilling depth | 0~120m |
| Opening hole dia. | 300mm |
| Final hole dia. | 100~300mm |
| Drill pipe size | Φ50*1000mm |
| Diesel Engineer power | 22 HP |
| Start-up voltage | 12 V |
| Pump flow | 65 m3/h |
| Transportation dimension | L2110*W960*H1700mm |
| Working dimension | L2800*W1200*H2900mm |
| Overall weight | 560kg |
2. Features of PD-120 diesel engine hydraulic drilling rig:
1. The diesel engine is equipped with electric start, which is convenient to start and reduces the labor intensity of the operator.
2. The drilling rig adopts the hydraulic working principle and is equipped with a radiator, so the drilling rig can work continuously and efficiently.
3. Equipped with high-power hydraulic motor, the power head can be reversed.
4. The drilling frame is equipped with a hydraulic cylinder, and the oil pressure can be lifted and lowered by operating the handle.
5. The drilling rig has its own water pump, with reasonable structure, compact layout and good slag discharge effect.
6. Equipped with traction bar and wheeled walking mechanism, the drilling rig is convenient to move.
7. Equipped with thread support legs for drilling rig leveling.

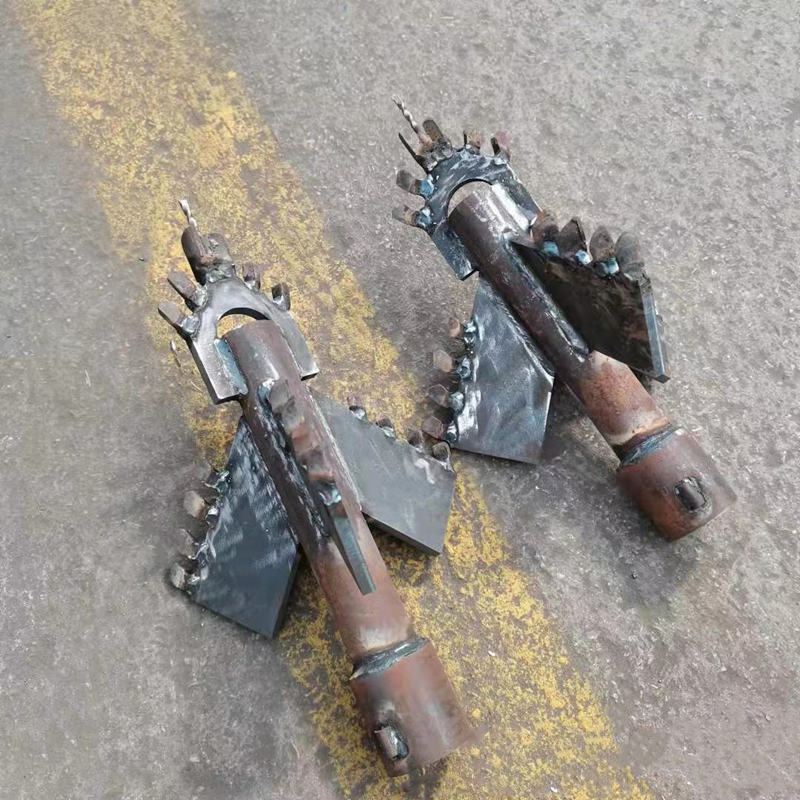

5 wings drag bit:

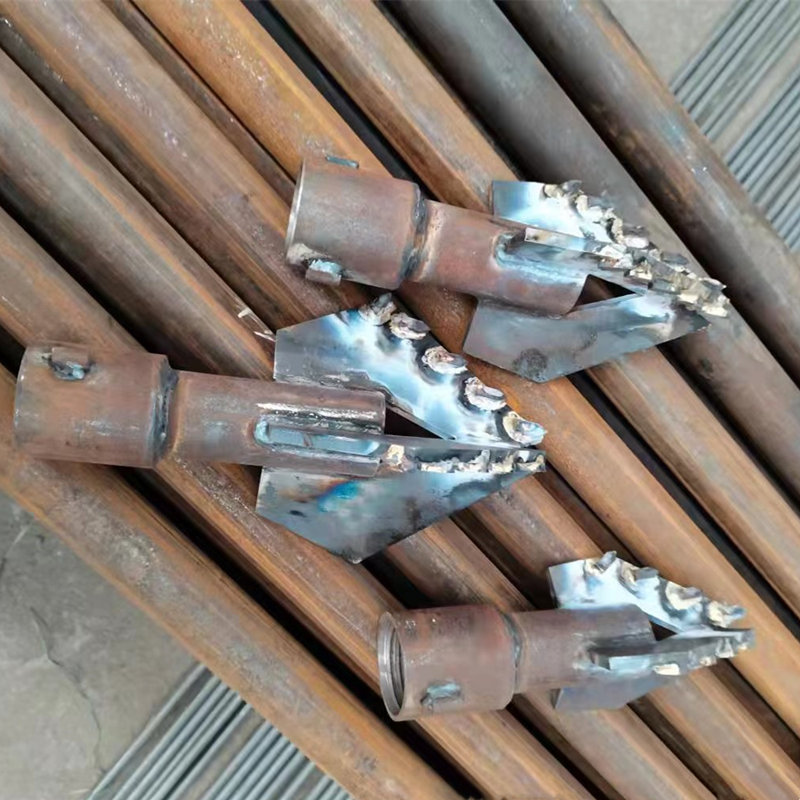

3 wings drag bit :

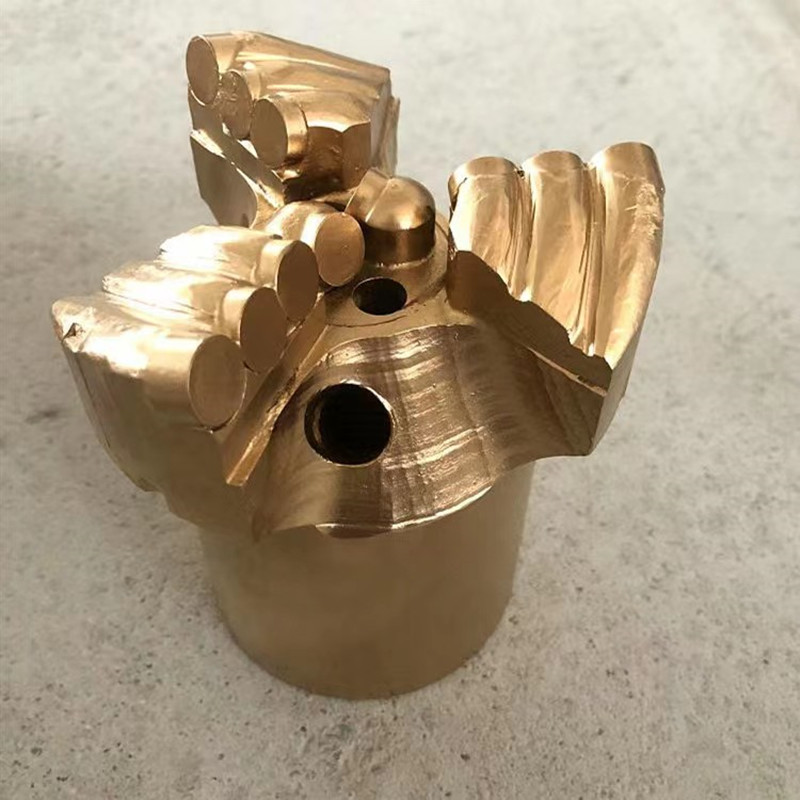

If PD100 water well drilling rig is used for drilling hard rock , you can choose PDC bit with Max diameter of 6" ( 152 mm ) to drill water well holes
