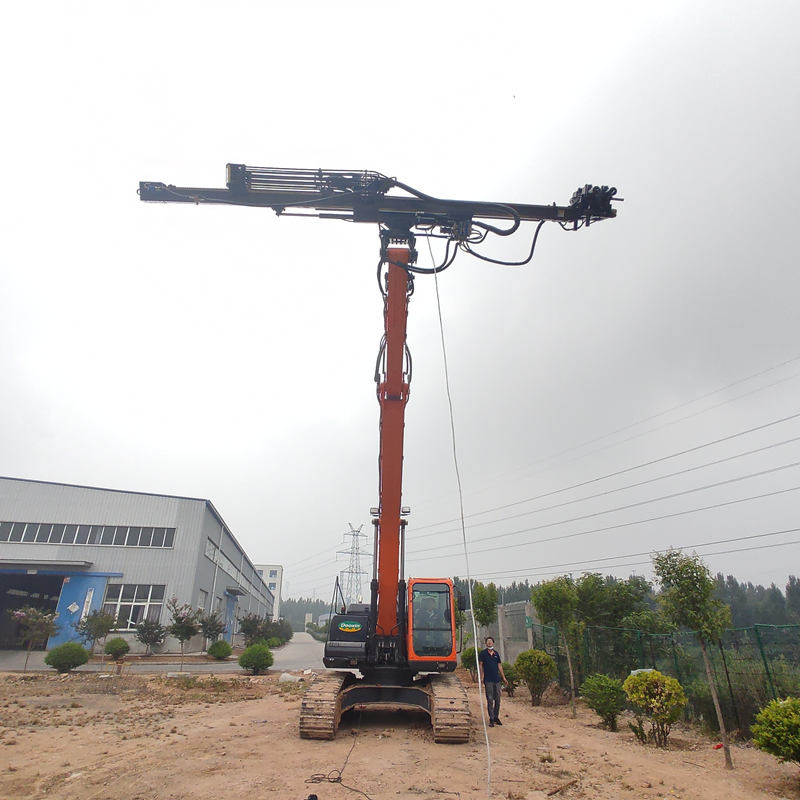

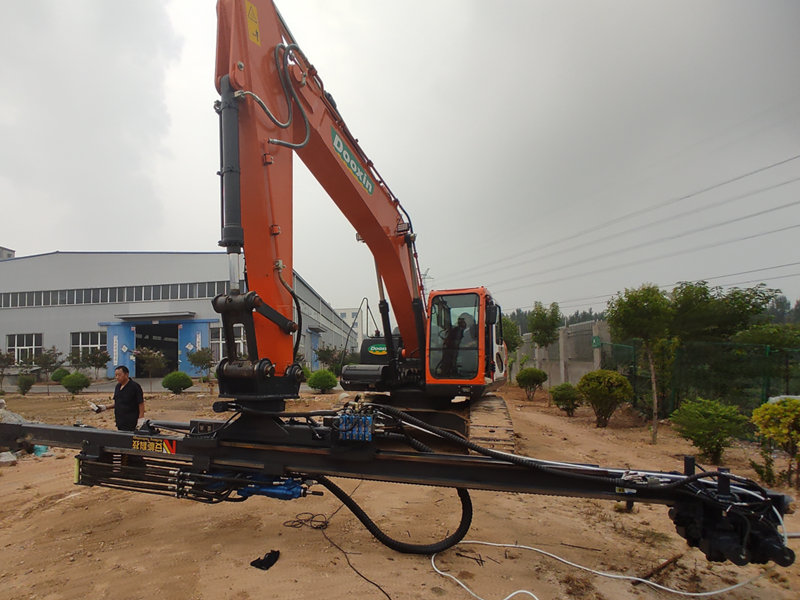

Hydraulic Anchor Drilling Attachment for Excavator
PD-90BM， Excavating and renovating anchor drilling rig, equipped with a first stage 360 ° rotary drive (rotating on the side of the guide rail), travel compensation device, and hydraulic gripper
PD-90BM Technical parameters
|
Product model |
PD-90BM |
|
Rock hardness |
f=6-18 |
|
Drilling depth |
3m |
|
Drilling diameter/mm |
≤90 |
|
Size/mm |
6000×1500×1500 |
|
Weight/kg |
2100 |
|
Hydraulic Drifter |
YHD210 |
|
Origin |
China |
|
Impact power/KW |
18 |
|
Impact Frequency/HZ |
30-50 |
|
Impact Oil Pressure/bar |
175 |
|
Impact Oil Flow/l/min |
80-100 |
|
Rotation Oil Pressure/bar |
150 |
|
Rotation Oil Flow/l/min |
45 |
|
Rotation Torque/N.m |
830 |
|
Drilling Diameter/mm |
43-115 |
|
Hydraulic Centralizer |
/ |
|
Control Voltage |
DC24V |
|
Excavator |
≥20T |

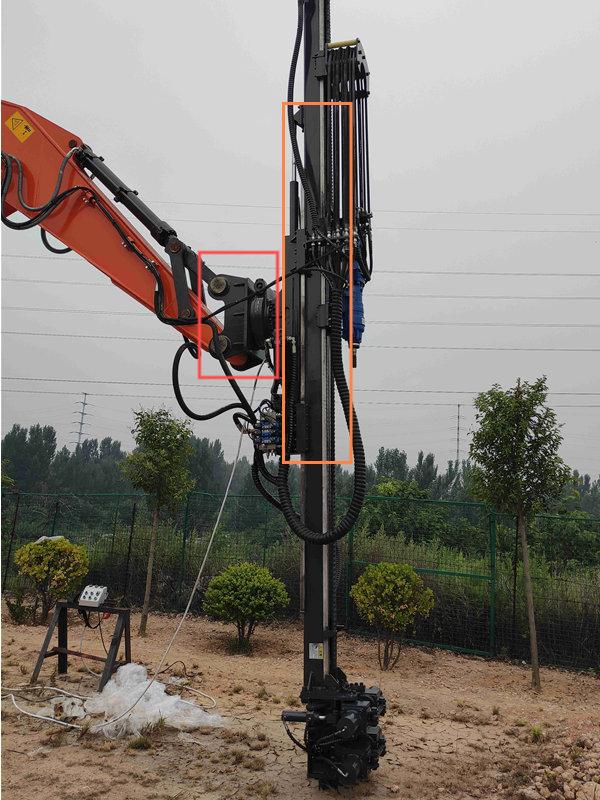

Red remark is rotary drive rotating one the side of the guide rail,Orange color is travel compensation device 1500mm.

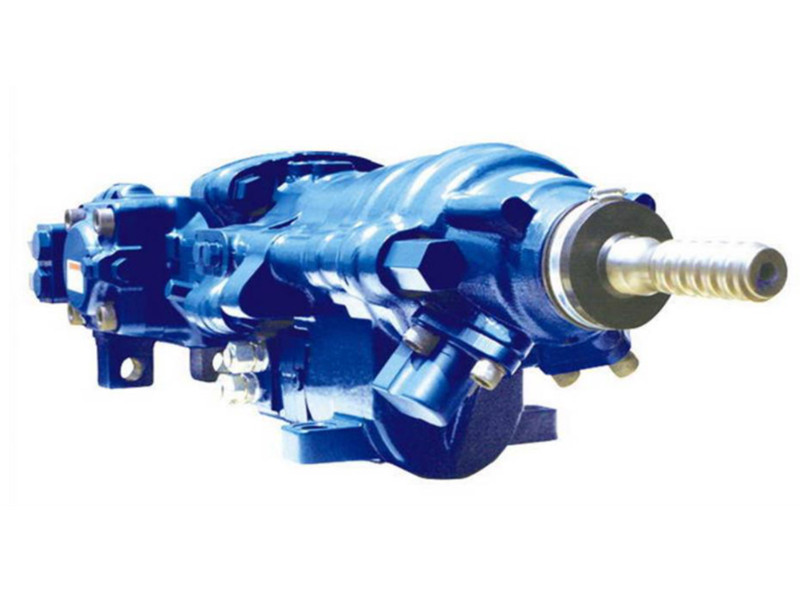

YHD210 Drifter
YHD210 drifter technical parameter
| Percussion Oil Pressure | bar | 175 |
| Percussion Oil Flow | 1/min | 80-100 |
| Rotation Oil Pressure | bar | 150 |
| Rotation Oil Flow | 1/min | 30-44 |
| Rotation torque(max) | Nm | 830 |
| Rotation speed(max) | rpm | 250 |
| Percussion frequency | min | 2900-3700 |
| Percussion energy | J | 300 |
| Output energy | kW | 18 |
| Output energy | mm | 43-115 |
| Weight | Kg | 180 |
