8/11/14/16 Filter Cartridge Dust Collector
- Hole diameter : ＜180mm
- Working method : Hydraulic motor + electromagnetic pulse valve
- Required voltage : DC24V
- Number of filter elements : 8/11/14/16pcs
- Filter area : 10.4/14.3/18.2/20.8㎡
- Motor displacement : 5/5/10/10ml/r
- Hydraulic flow : 25/25/35/35L/min
- Hydraulic pressure : ≤21MPa
- Filter cleaning method : Back blow ( Reversed air)
1.Introduction
The PRODRILL dry dust collector is designed to complement drilling equipment such as excavator-mounted hydraulic rock drills and excavator-mounted down-the-hole drills, enhancing production efficiency and improving the working environment. It primarily focuses on the collection of dust expelled by air pressure during rock drilling and the filtration of the air. This dust removal equipment features a two-stage dry dust collection system, including a dust capture hood, a primary sedimentation box, and a secondary electromagnetic pulse dust collector.
2.Main technical parameters
|
Main parameters/Model |
PRODRILL |
|
Hole diameter |
＜180mm |
|
Working method |
Hydraulic motor + electromagnetic pulse valve |
|
Required voltage |
DC24V |
|
Number of filter elements |
8/11/14/16pcs |
|
Filter area |
10.4/14.3/18.2/20.8㎡ |
|
Motor displacement |
5/5/10/10ml/r |
|
Hydraulic flow |
25/25/35/35MPa |
|
Hydraulic pressure |
≤21MPa |
|
Filter cleaning method |
Back blow ( Reversed air) |
|
Main components |
Vacuum cleaner hose、Primary sedimentation tank、Two-stage electromagnetic pulse dust collector、Dust collection cover、control valve |

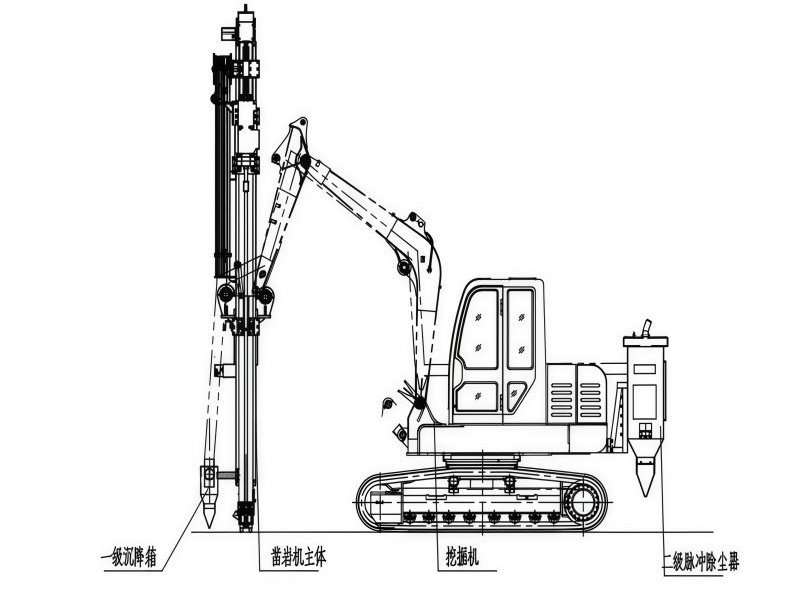

3. The overall configuration diagram is as follows:
Note: The first stage settling box is generally installed as a whole with the second stage pulse dust collector, and is installed at the excavator counterweight or front toolbox.
4.Site installation picture
