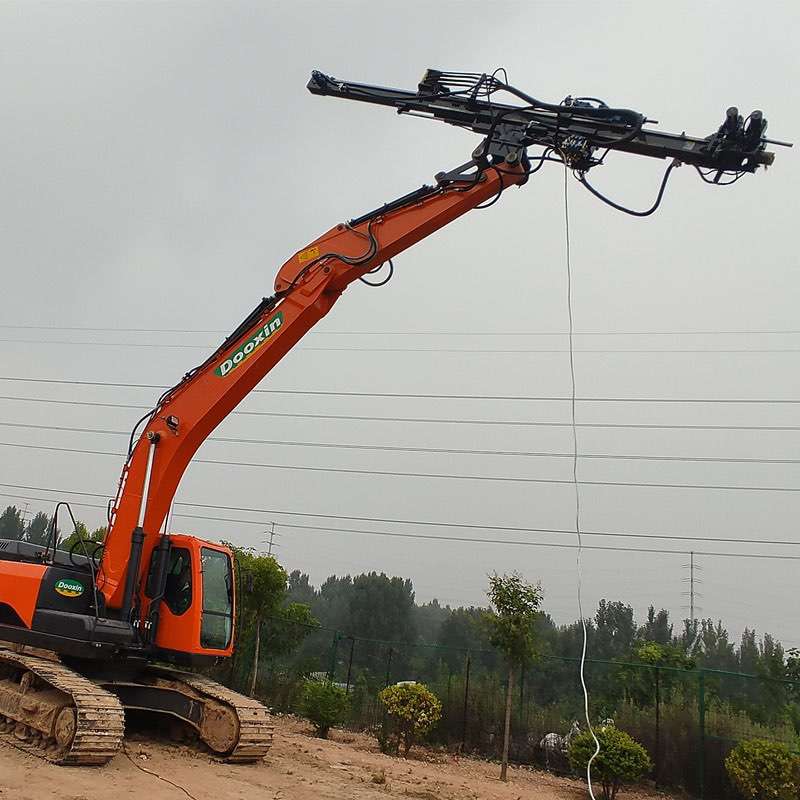

PD-45R Excavator Mounted Rock Drill With 360 Rotation Joint
Features：
1）PD-45R Excavator Mounted rock drill suit to the over 7 tons excavator mounted machines.
2）The rate of the Pump can reach 100 L/min, drilling diameter 32-64mm,2.5m depth per time drilling.
3）Drilling speed: 0.7-1.0m/min for hard rock, 1min can drill 1.5 m depth for soft rock.
4）Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker.

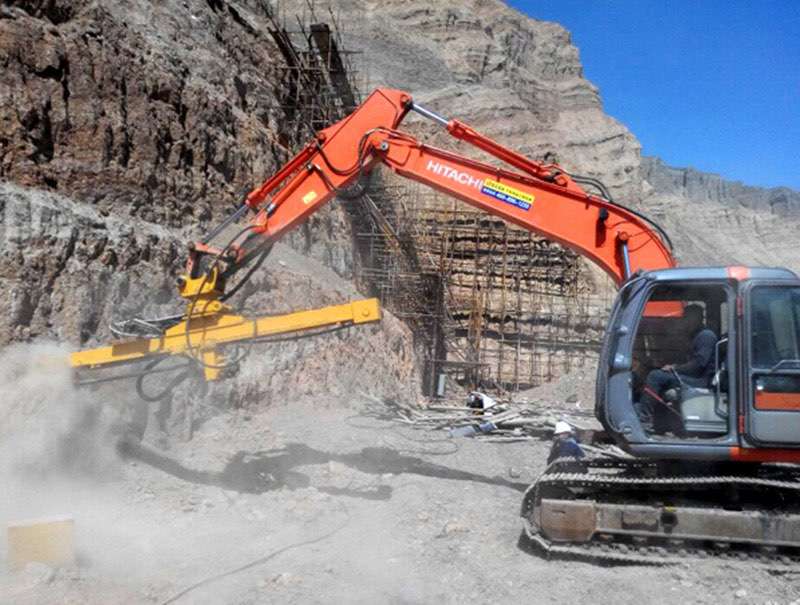

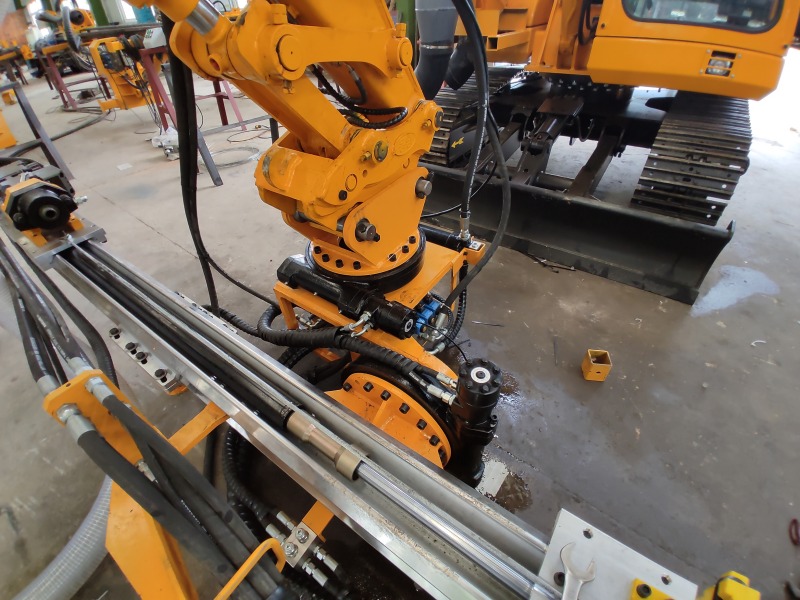

Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concrete demolition, construction works, etc. Compare with normal mounted rock drills,PD-45R provides 2 units 360 degree rotation joints which can operate vetical or horizontal in addition to various angle drilling job,it is widely used in tunnel or lamp drilling work. Pro Drill rock drills’ percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator’s boom.Besides demanding conditions, Pro Drill Excavator Drill can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.
PD-45R Excavator attached hydraulic Rock drill
|
Product model |
PD-45R |
|
|
Rock hardness |
f=6-18 |
|
|
Size/mm |
5000×1500×2000 |
|
|
Per Time Drilling depth |
2500m |
According the demand |
|
Weight |
1300kg |
|
|
Hydraulic Drifter |
HYD200 |
Optional |
|
Origin |
China |
|
|
Impact power/KW |
10 |
17/18 |
|
Impact Pressure /MPa |
15-18 |
|
|
Impact flow /L/min |
≤45 |
|
|
Impact Frequency/HZ |
30-50 |
|
|
Rotation Pressure /MPa |
15 |
|
|
Rotation flow /L/min |
55 |
|
|
Water flushing flow /L/min |
20-30 |
|
|
Water flushing Pressure /MPa |
1.0 |
|
|
Front guide lubrication Air flow/L/min |
200 |
|
|
Front guide lubrication pressure/bar |
7 |
|
|
Drilling Diameter /mm |
38-64 |
|
|
Suitable Excavator |
≥7ton |
|
|
Feed Guide |
Aluminium alloy light guide |
|
| Rotation Joint No. |
2 |
360 degree rotation |
|
Control mode |
Remote control |
optional |
|
Control voltage |
DC24V |
|
|
Hydraulic system |
Eaton |
|

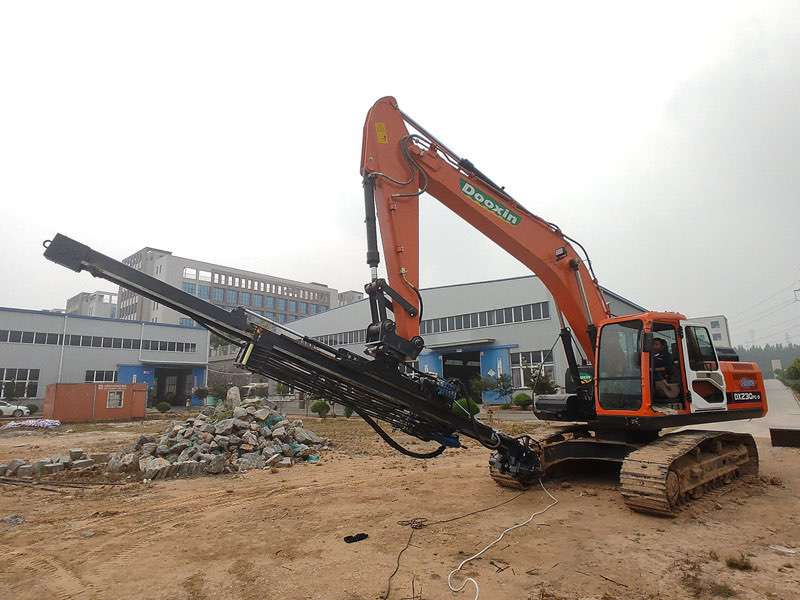

2.PD-45R Excavator Mounted Rock Drill Set
Diesel air compressor specifications（optional）：
| Model | ACH 3.5/7 | ACL 5.0/8 |
| Nose type | Piston | Screw |
| Air displacement m³/min | 3.5 | 5 |
| Air pressure/MPa | 0.7 | 0.8 |
| Diesel engine power/KW | 18 | 30 |
| Size/mm | 1960×900×1250 | 1520×820×1060 |
| Weight/kg | 638 | 700 |

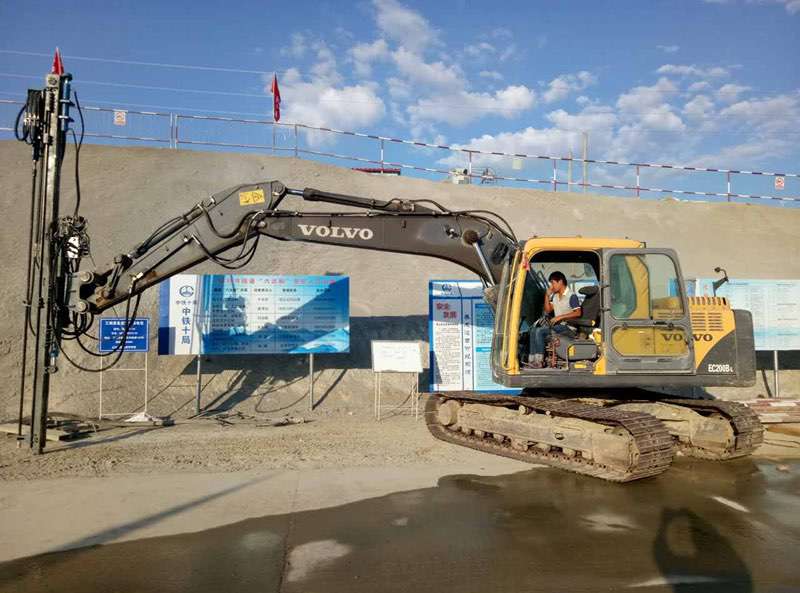

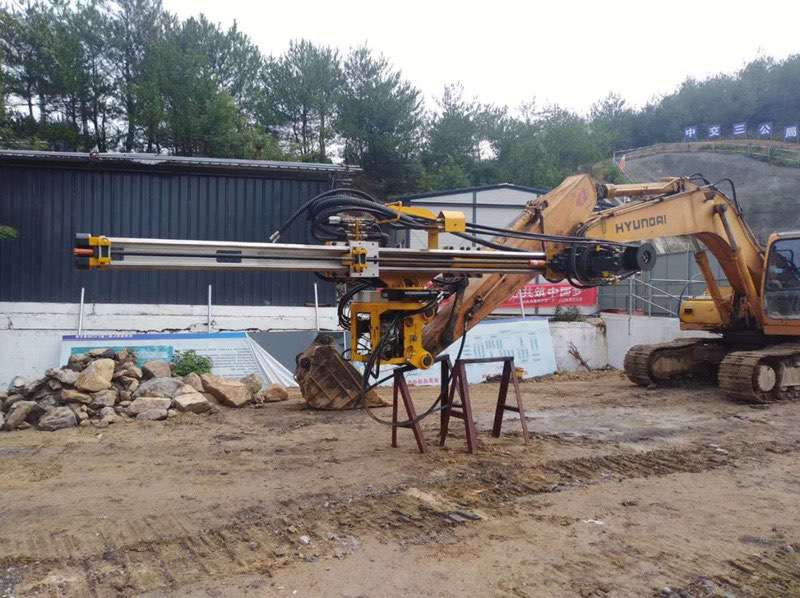

3.PD-45R Excavator Mounted Rock Drill

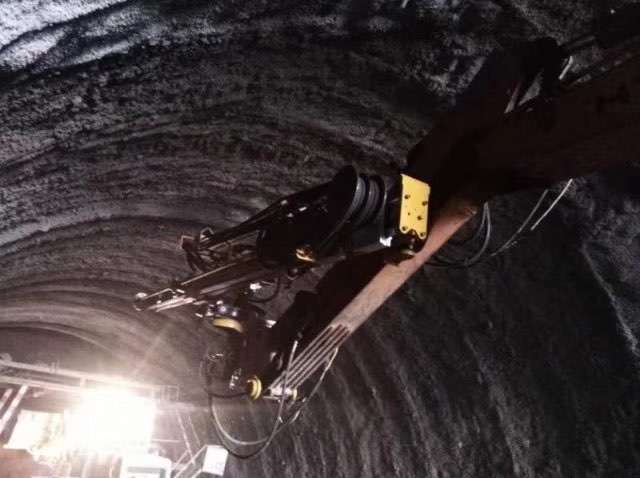

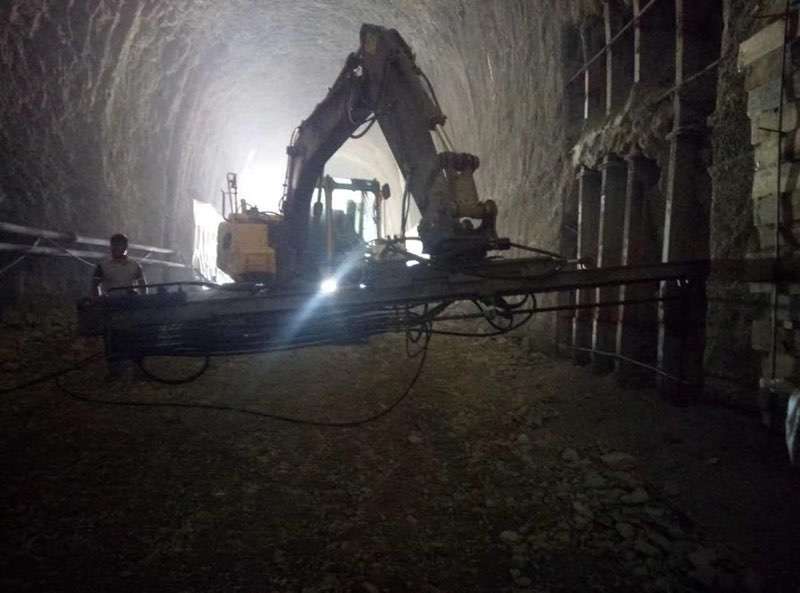

Drilling job was operating in tunnel:
