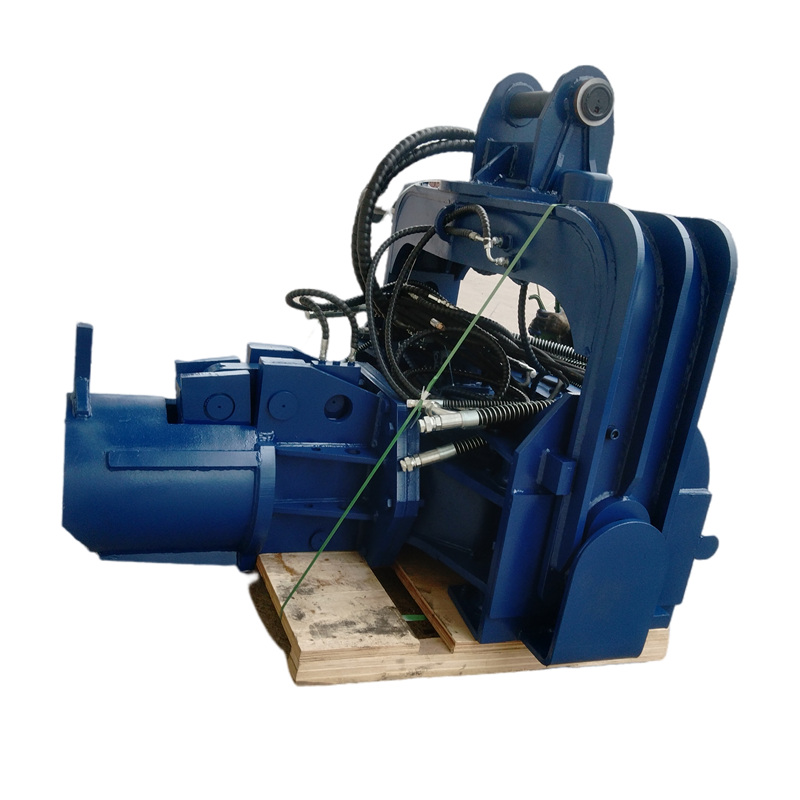

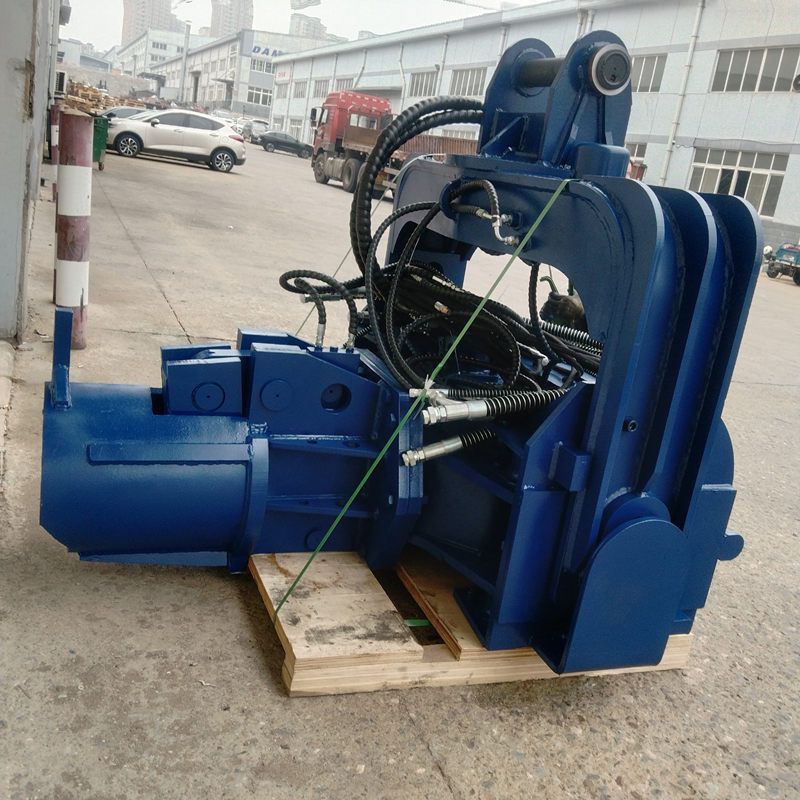

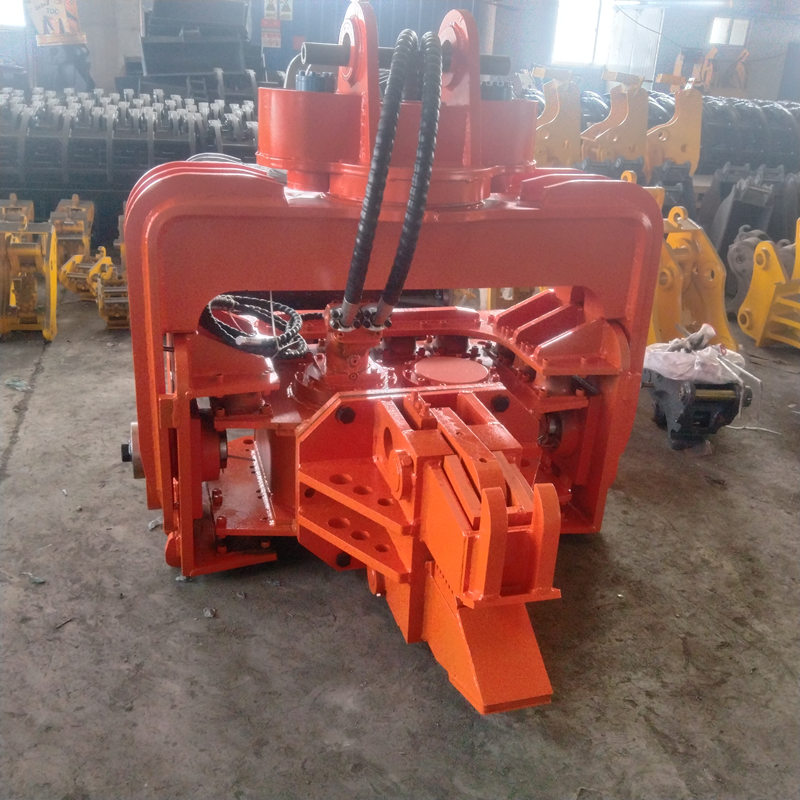

Excavator Sheet Piling Hammer Vibro Hammer for Crane
- Model : PD350, PD450
Pile driver, also called vibro pile hammer or high frequency hydraulic pile driver, can be used to drive piles into the earth or pull piles out of earth.
Wide range of functions
Suitable for driving piles of any shape and material, such as steel pipe piles and concret pipe piles; suitable for any soil layer and can be used for piling, pulling out piles and underwater piling, and can per-form pile racking and suspension operations.
| Technical Specifications | ||||||||
| Model | Unit | PD150 | PD250 | PD300 | PD330 | PD350 | PD350S | PD450 |
| Vibration Frequency | RPM | 2600 | 2800 | 3000 | 3200 | 3200 | 3300 | 3500 |
| Eccentricity Moment Torque | NM | 28 | 33 | 50 | 62 | 65 | 68 | 85 |
| Vibration Force | TON | 22 | 35 | 44 | 58 | 65 | 68 | 76 |
| Host weight | KG | 1500 | 2300 | 2600 | 2900 | 3200 | 3200 | 3500 |
| Auxiliary arm weight | KG | 400 | 500 | 500 | 600 | 600 | 650 | 650 |
| Hydraulic system operating pressure | BAR | 180-230 | 200-260 | 200-260 | 300-330 | 300-330 | 300-350 | 330-350 |
| Hydraulic system flow requirements | LPM | 130-180 | 150-200 | 240-280 | 250-380 | 250-380 | 250-390 | 310-390 |
| Maximum pile length | M | 6 | 9 | 12 | 15 | 15 | 15 | 18 |
| Suitable for excavator tonnage | TON | 15-18 | 20-28 | 28-32 | 30-35 | 35-40 | 35-40 | 40+ |
PD350
PD450
