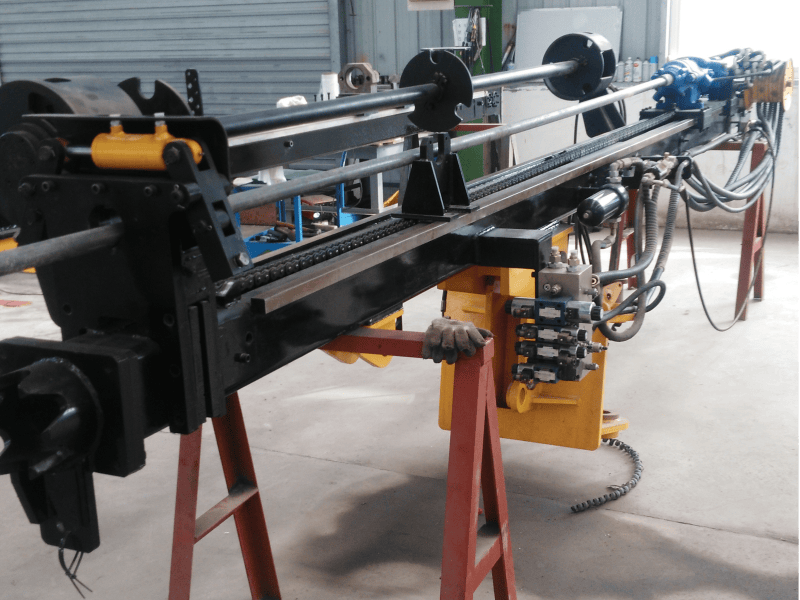

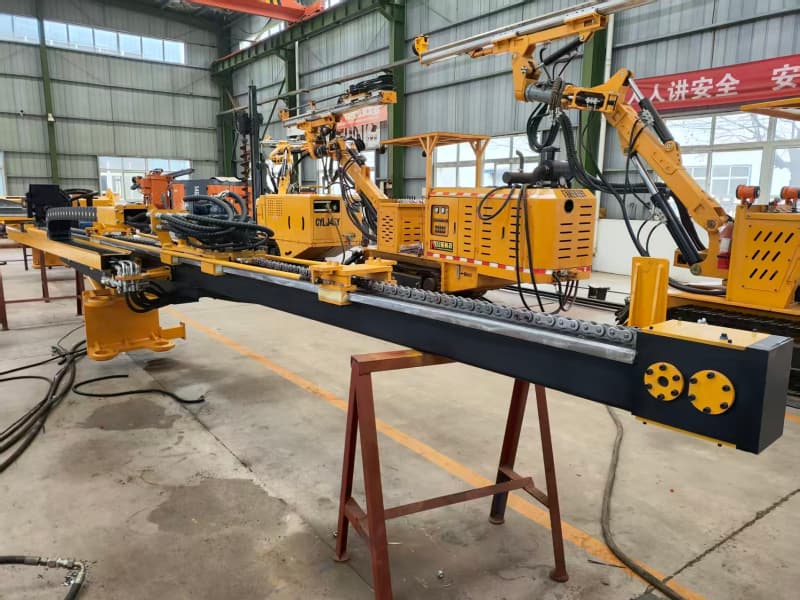

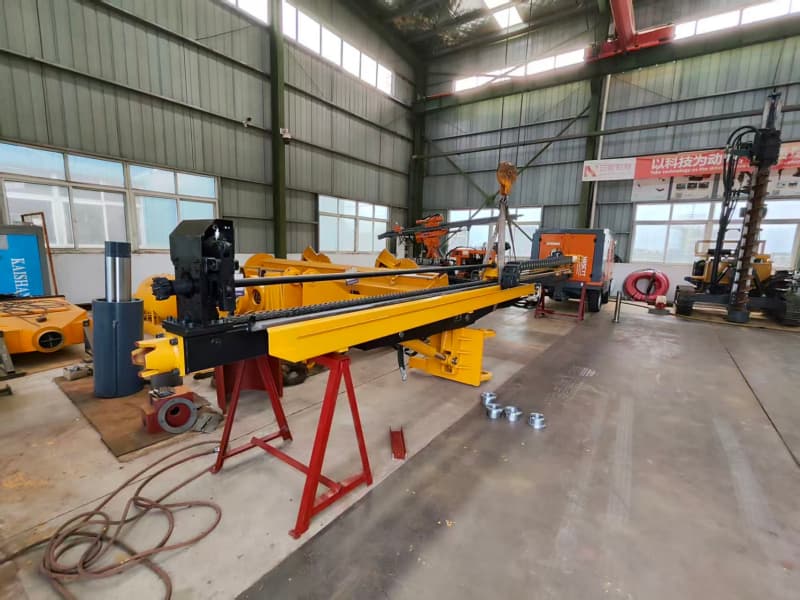

PD-115DZ Excavator Drill Attachment
- Drilling depth/Single rod : 5.8 m
- Max Drilling depth : 12 m
- Drilling diameter : 64-115 mm
- Rock hardness : f=6-16
- Size : 8800×1300×1700 mm
- Weight : 2100 kg
- Hydraulic Drifter : DZ722B
- Excavator : ≥26T
ProDrill™ Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concrete demolition, construction works, etc. ProDrill rock drills’ percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator’s boom.Besides demanding conditions, Pro Drill Excavator Drill can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.
PD-115DZ Excavator Attached Hydraulic
|
Product model |
PD-115DZ |
|
Rock hardness |
f=6-16 |
|
Drilling depth/Single rod/m |
5.8 |
|
Max Drilling depth/m |
12 |
|
Drilling diameter/mm |
64-115 |
|
Size/mm |
8800×1300×1700 |
|
Weight/kg |
2100 |
|
Hydraulic Drifter |
DZ722B |
|
Manufacturer |
DAZAO |
|
Origin |
China |
|
Impact power/KW |
20.5 |
|
Impact Frequency/HZ |
44 |
|
Impact Oil Pressure/bar |
≤200 |
|
Impact Oil Flow/l/min |
105 |
|
Rotation Oil Pressure/bar |
≤170 |
|
Rotation Oil Flow/l/min |
75 |
|
Air flushing/m³/min |
4.5 |
|
Air flushing pressure/bar |
5-7 |
|
Rod type |
T45-6400 |
|
Drilling Diameter/mm |
89 |
|
Hydraulic Centralizer |
/ |
|
Control Voltage |
DC24V |
|
Hydraulic gripper |
Single |
|
Excavator |
≥26T |

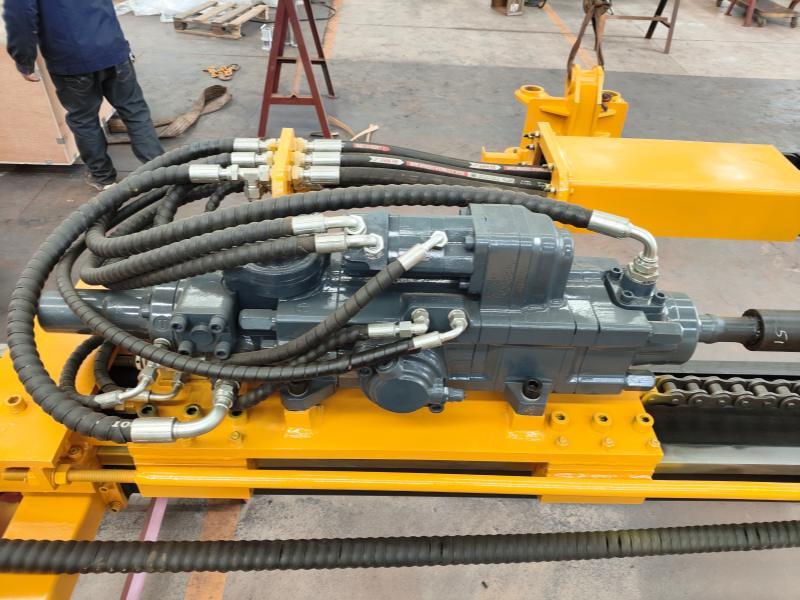

Hydraulic Drifter

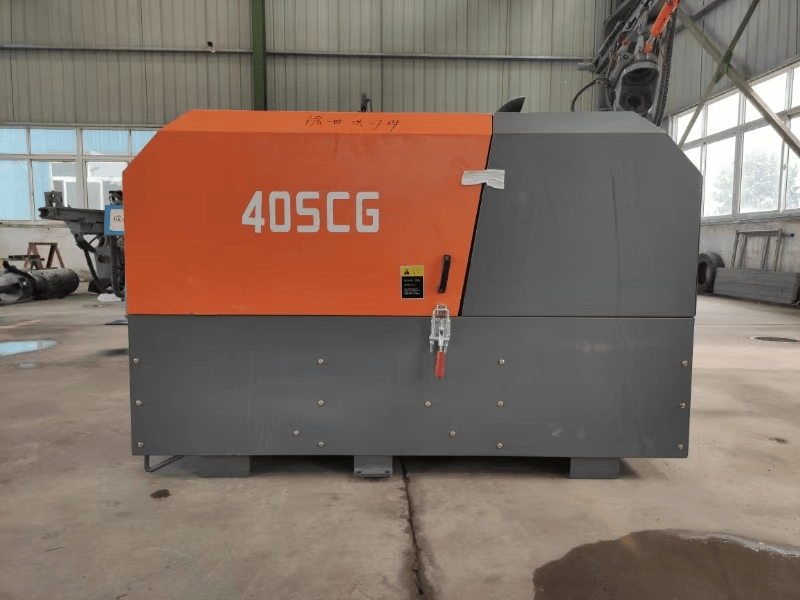

Air compressor
40SCG-7 Diesel-driven Screw Air Compressor

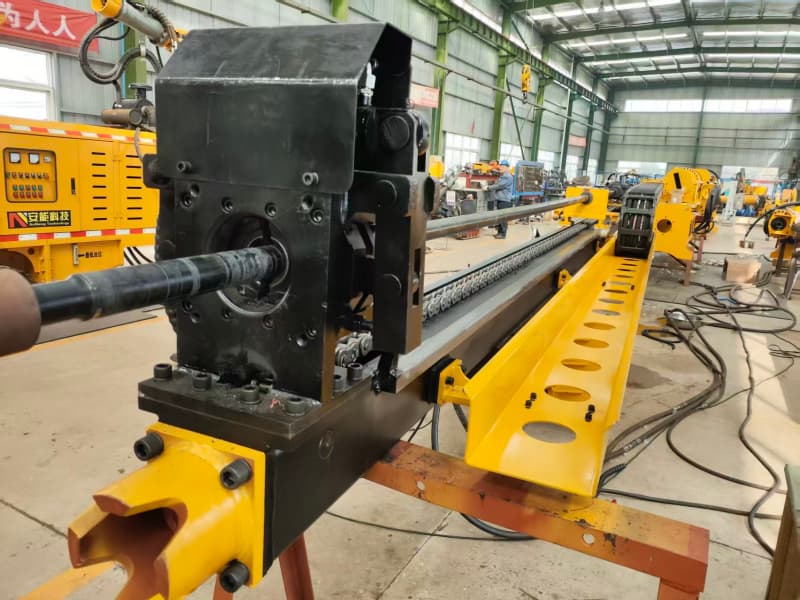

Hydraulic Centralizer
.
Drilling job was operating in tunnel:
