PD-45DZ Excavator Drill Attachment
- Drilling depth : 3.2m（T38-3660）
- Pressure of work : ≤18MPa
- Weight : 1400kg
- Rock hardness : f=6-18
- Hydraulic Drifter : DZ622(Option)
- Impact power : 19KW
- Rod type : T38
- Drilling Diameter : 38-64mm
- Excavator : 20T
- Advantage: Aluminum alloy guide rail, 19KW domestic hydraulic rock drill, wireless remote control, electro-hydraulic proportional valve, two-stage rotation, including lubrication air pump, single-stage hydraulic gripper

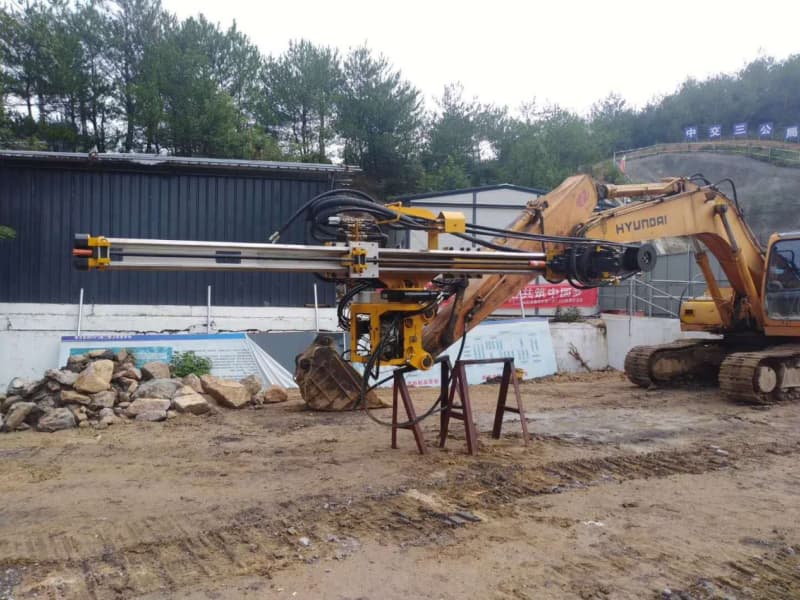

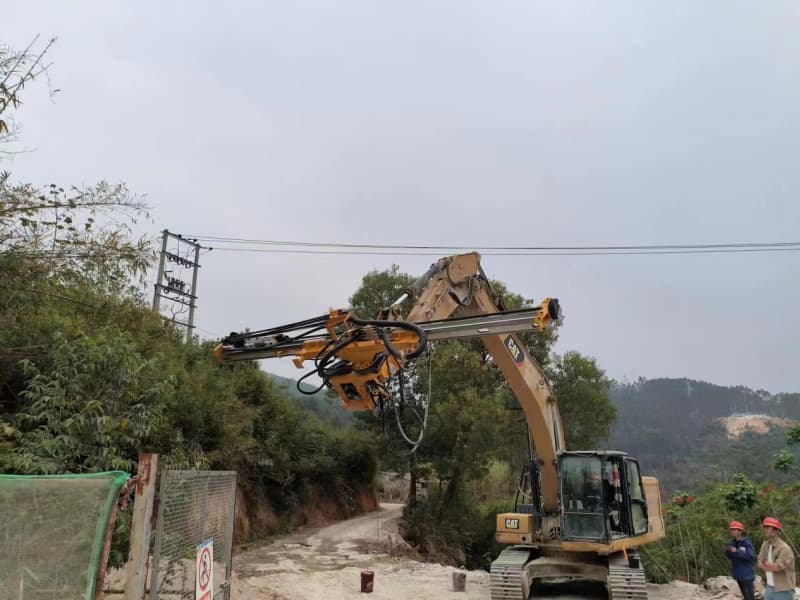

ProDrill™ Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concrete demolition, construction works, etc. ProDrill rock drills’ percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator’s boom.Besides demanding conditions, Pro Drill Excavator Drill can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.
PD-45DZ Excavator Attached Hydraulic
|
Product model |
PD-45DZ |
|
Rock hardness |
f=6-18 |
|
Drilling depth |
3.2m（T38-3660） |
|
Pressure of work |
≤18MPa |
|
Weight/kg |
1400 |
|
Hydraulic Drifter |
DZ622(Option) |
|
Origin |
China |
|
Impact power/KW |
19 |
|
Impact Frequency/HZ |
50 |
|
Water flow/L/min |
35 |
|
Water pressure/bar |
8-12 |
|
Rod type |
T38 |
|
Drilling Diameter/mm |
38-64 |
|
Excavator |
20T |

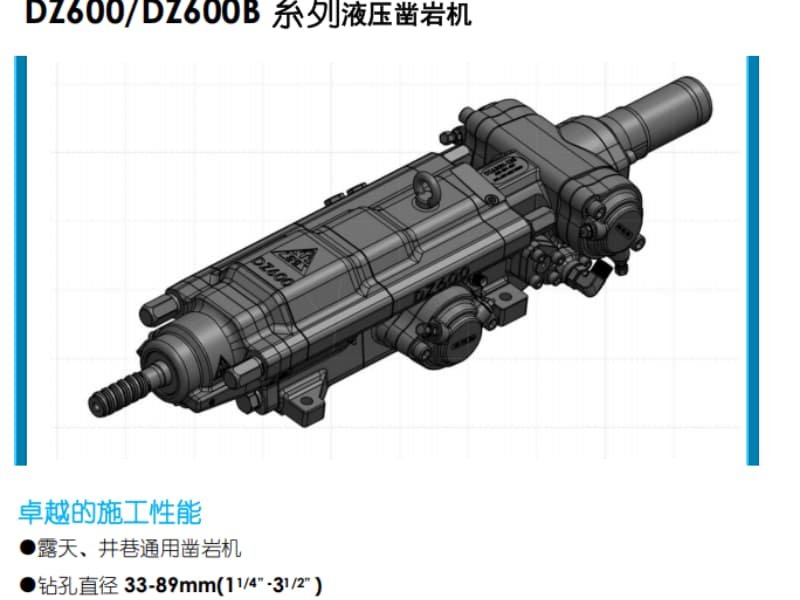

Hydraulic Drifter
|
Rock hardness |
f=6-18 |
|
Origin |
China |
|
Impact power/KW |
19 |
|
Impact Frequency/HZ |
50 |
|
Impact flow/L/min |
95 |
|
Impact pressure/bar |
150-200 |
|
Rotation flow/L/min |
50-75 |
|
Rotation pressure/bar |
150 |
|
Water flow/L/min |
35 |
|
Water pressure/bar |
8-12 |
|
Rod type |
T38 |

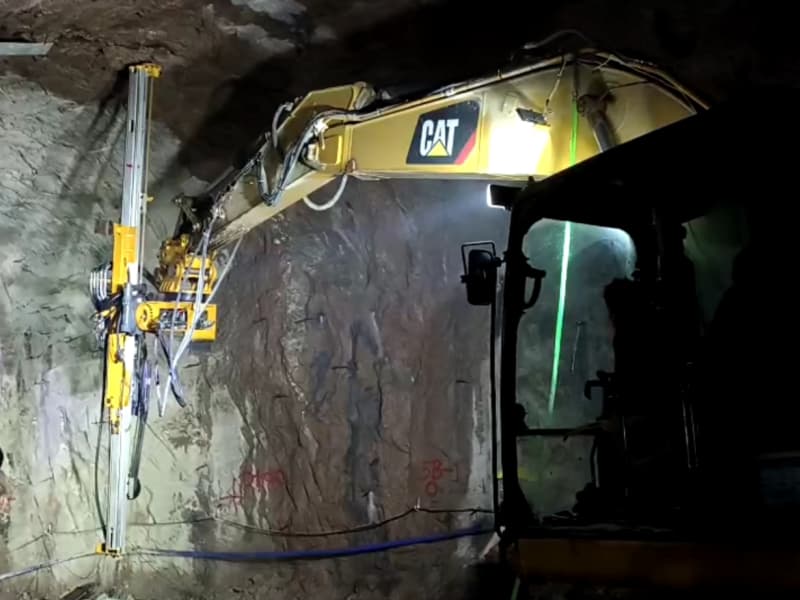

Drilling job was operating in tunnel:
