PD150 Excavator Mounted DTH Drill Attachment with Dust Collector
- Hole Range: 76-200mm
- Max. Drill depth: 30 meters
- Weights: 1500kg
- Size: 6.0*2.0*1.5m
- Maximum operating pressure: 18MPa
- Rod Length: 60mm/76mm/89mm-3m
- DTH hammer: 2", 3", 4", 5", 6"
- Drilling Depth: ≤30m
- Size: 3250*1610*2200mm
- Adapter Excavator: ≥8t
1.Main features
2.Main Model No Technical Parameters
| PD150 Specification and Technical Parameters | ||
| Drilling Rig | Weights/kg | 1500 |
| Size/m | 6.0*2.0*1.5 | |
| Maximum operating pressure/MPa | 18 | |
| Bit、Rod | Hole Range/mm | 76-200 |
| Rod Length/mm | 60mm/76mm/89mm-3m | |
| DTH hammer | 2", 3", 4", 5", 6" | |
| Drilling Depth/m | ≤30 | |
| ROTARY HEADS | Rotation Torque/N.m | 3800 |
| Rotation Speed/rpm | 0-100 | |
| Air Compressor （Optional） |
Model | 141SCY-15 |
| Air Flow/m³/min | 15 | |
| Working Pressure/bar | 15（1.5MPa） | |
| Diesel engine power/kW | 140 | |
| Size/mm | 3250*1610*2200 | |
| Weights/kg | 2520 | |
| Fixed method | statiohary ,wheel | |
| Adapter Excavator | ≥8t | |

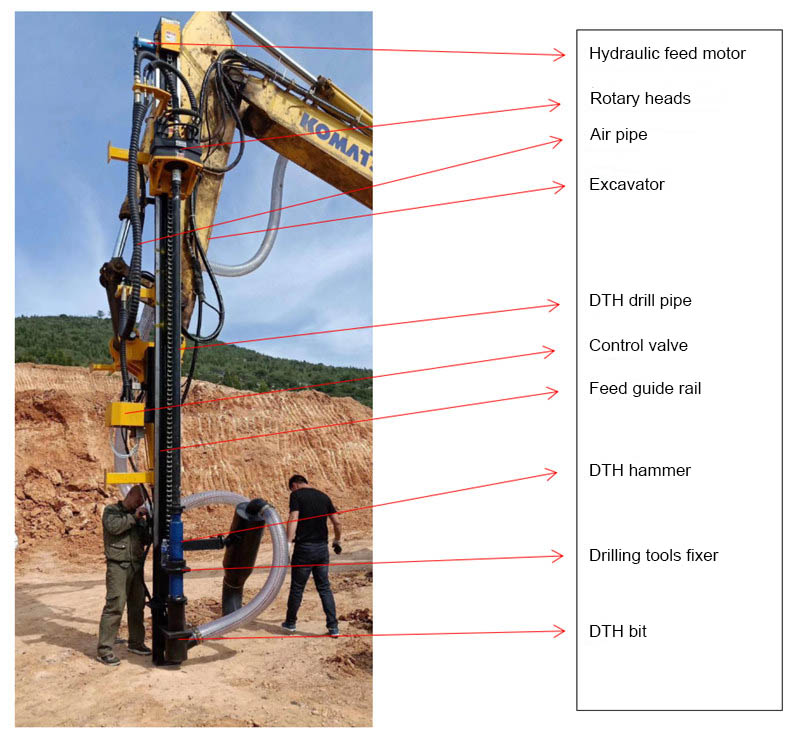

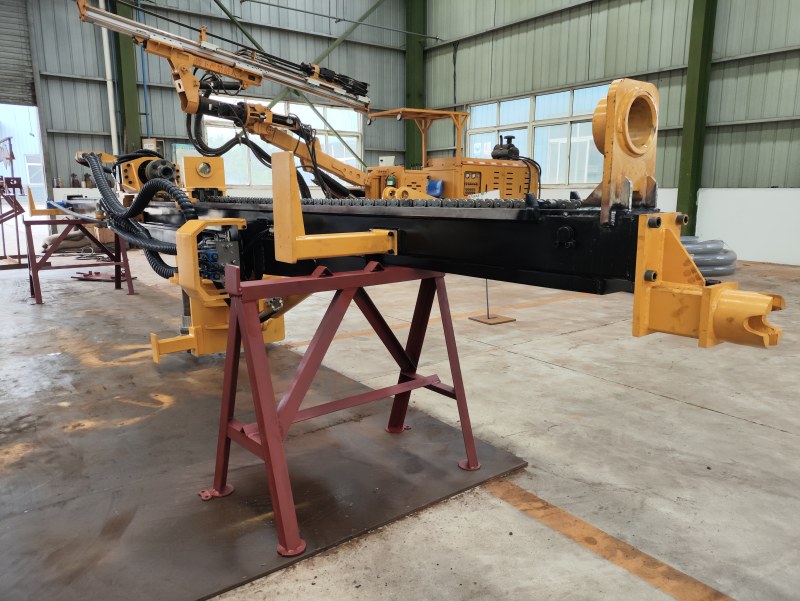

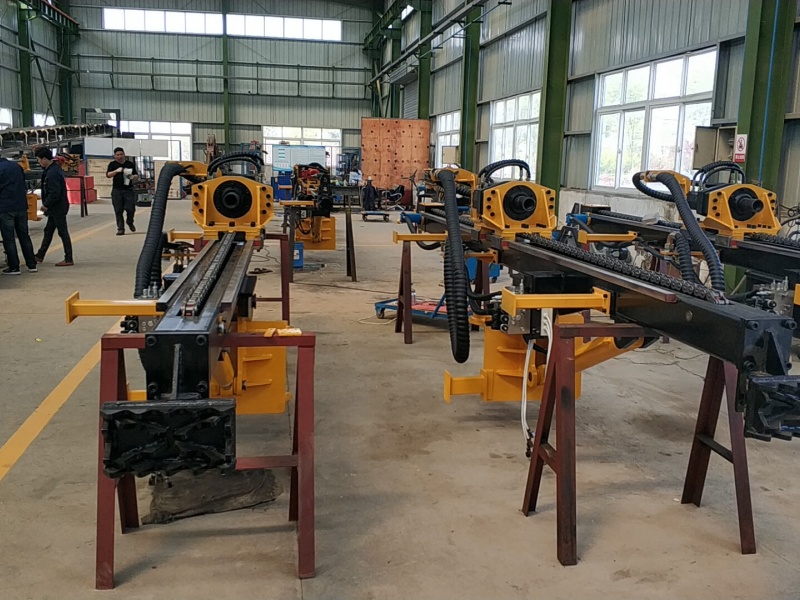

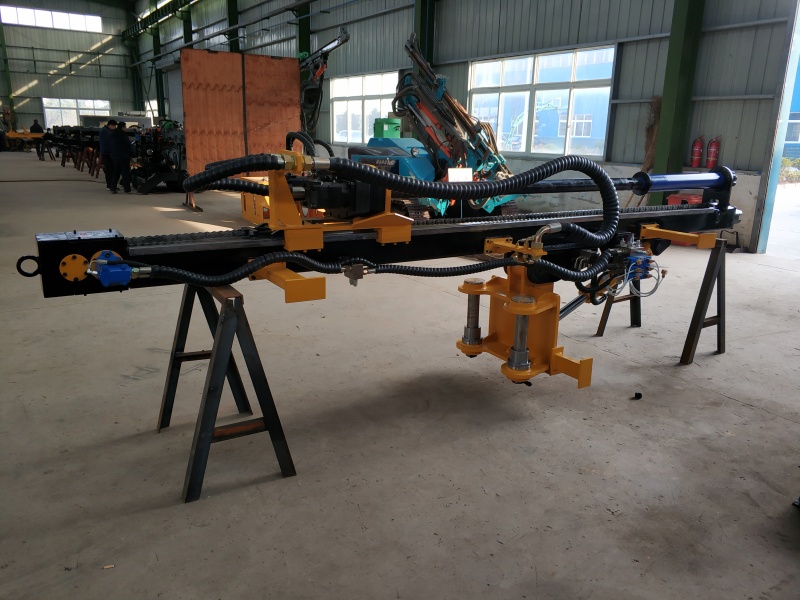

3.Excavator DTH drill attchment composition

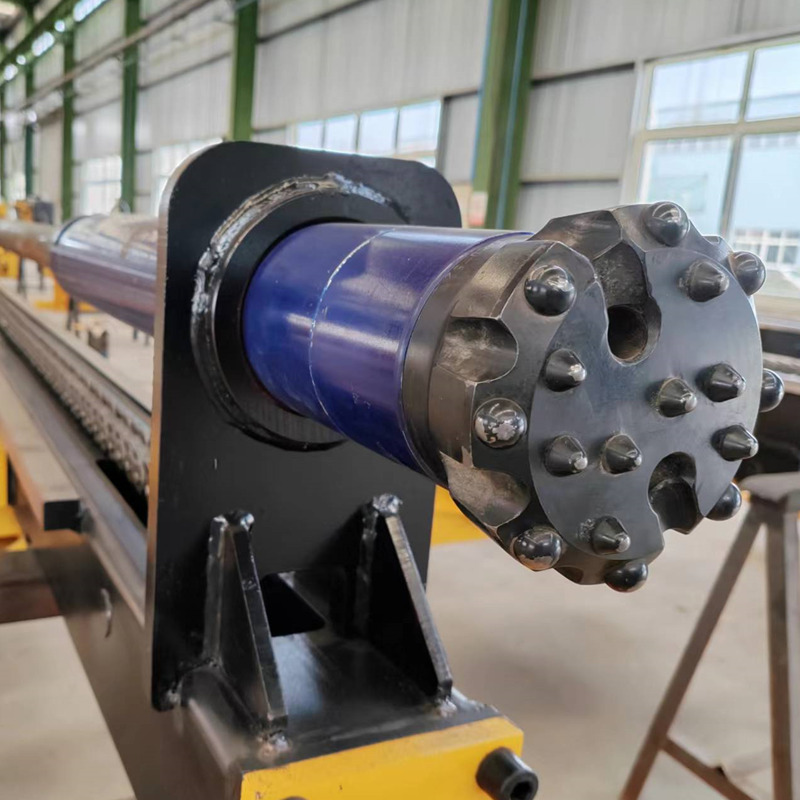

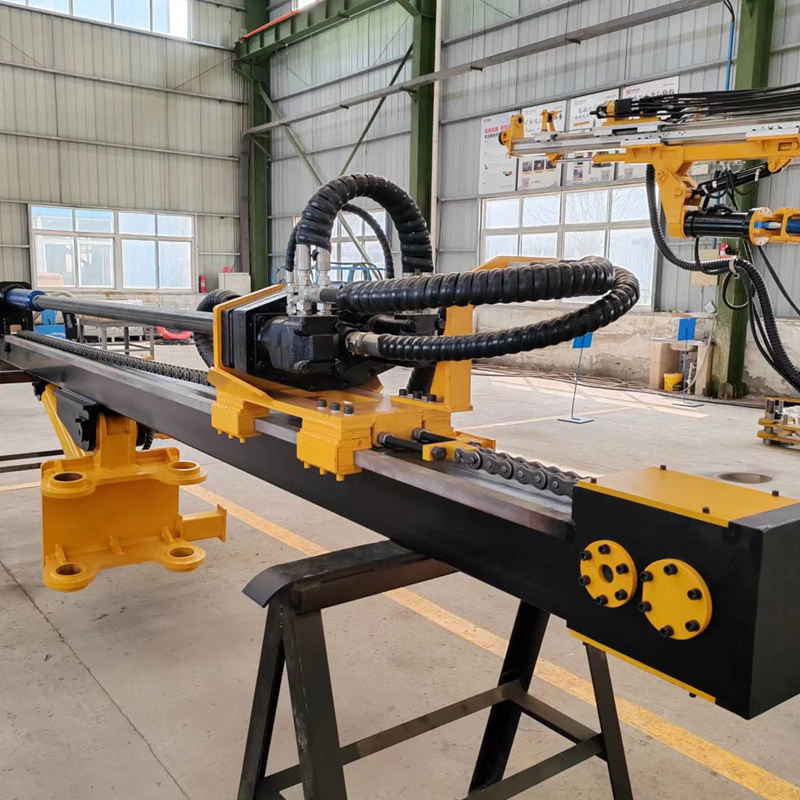

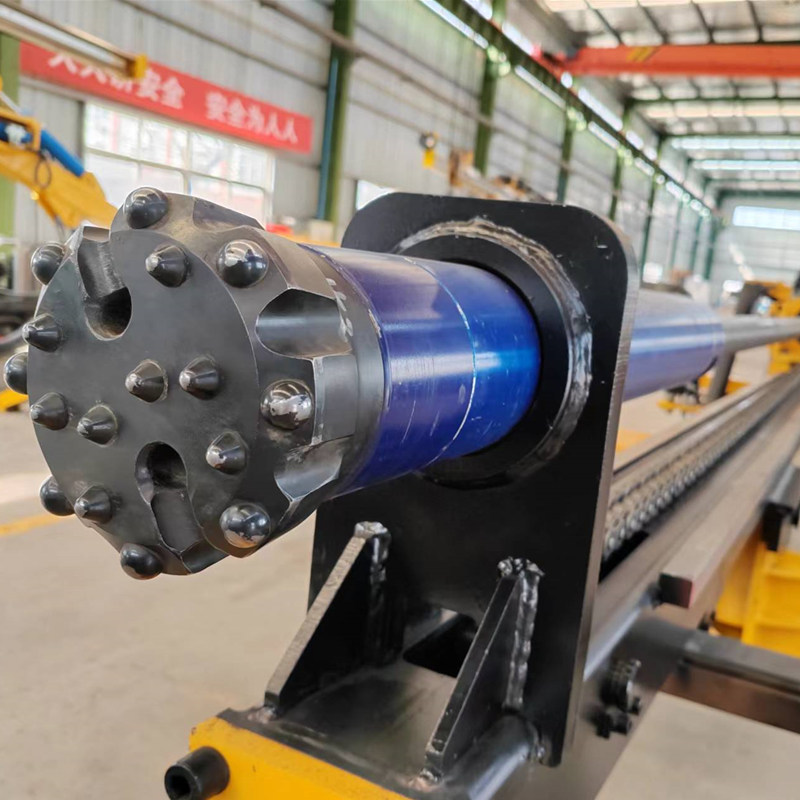

DTH Bit DHD350-152mm

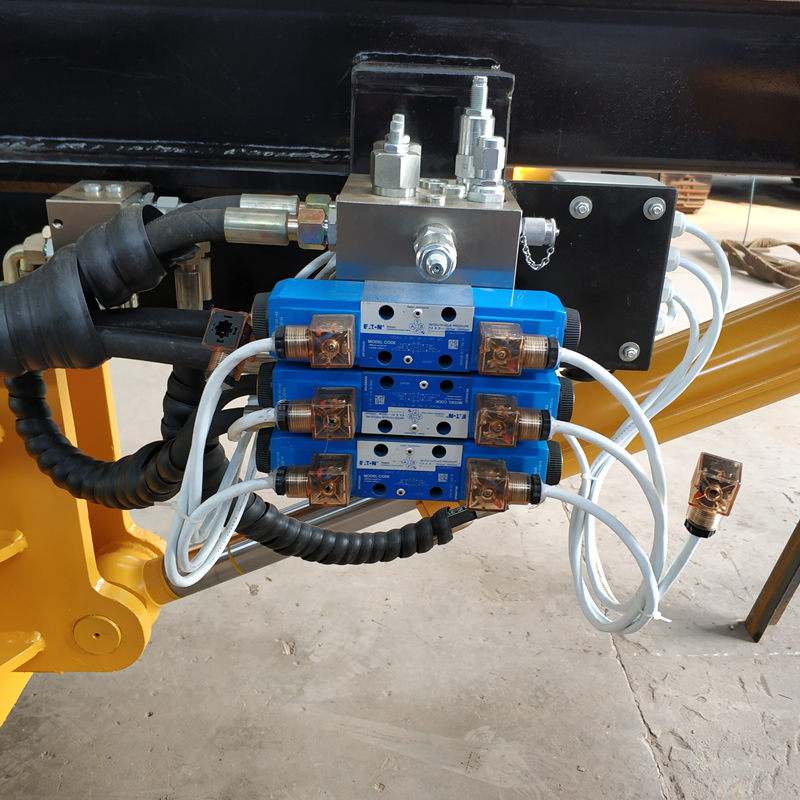

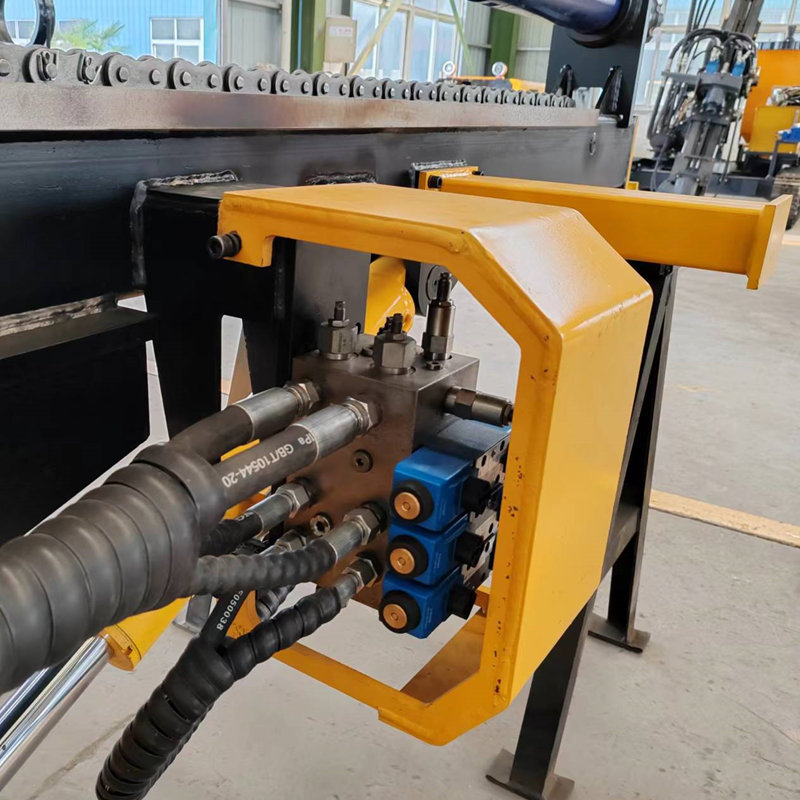

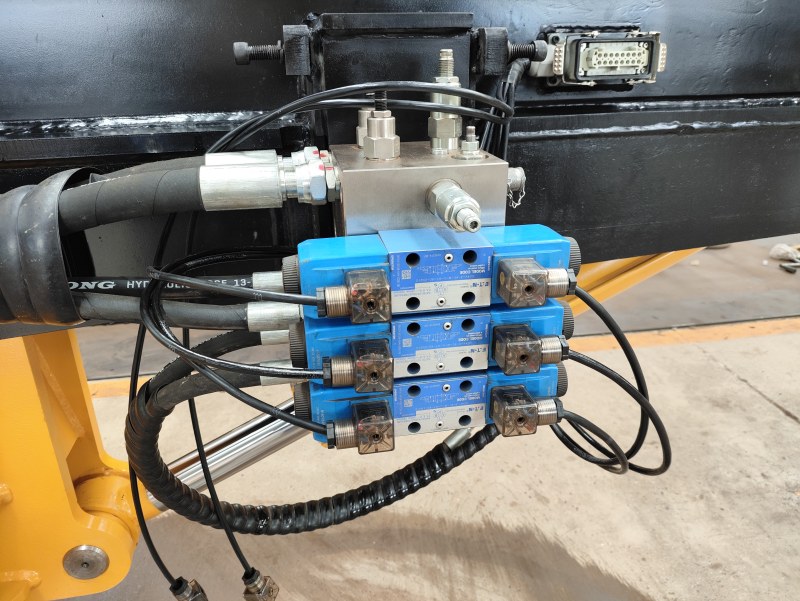

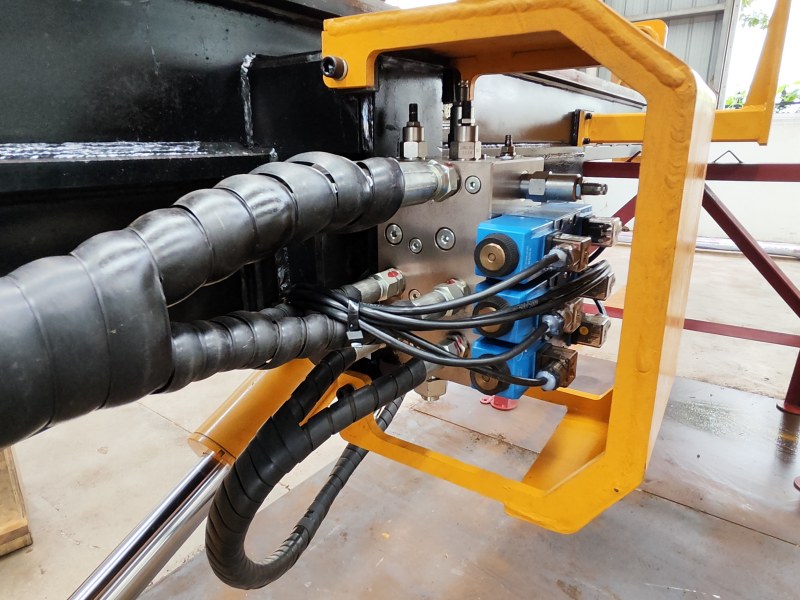

Control Valve , Brand : Eaton, USA

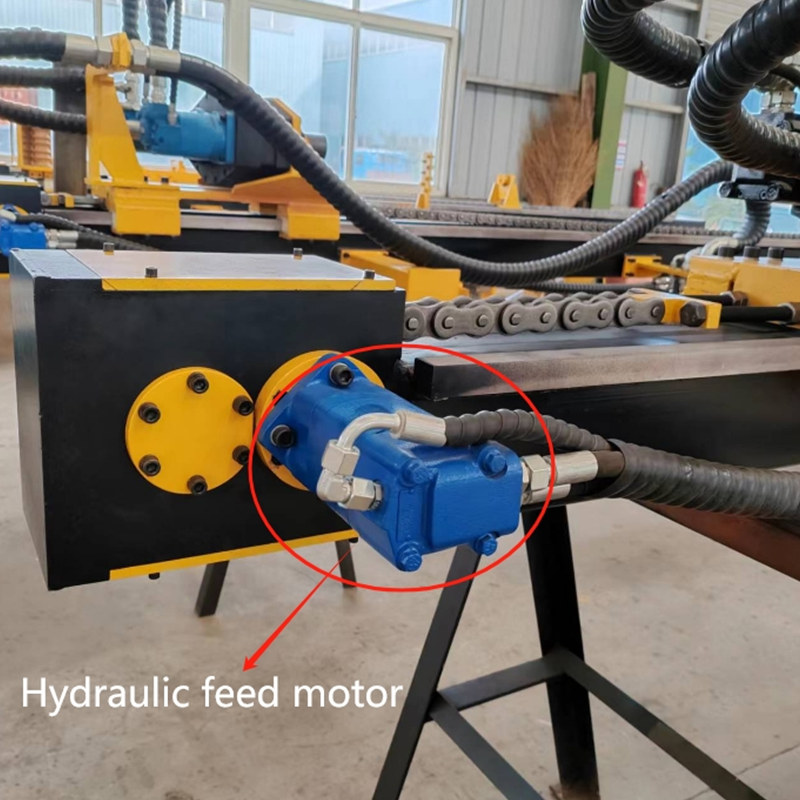

Hydraulic feed motor

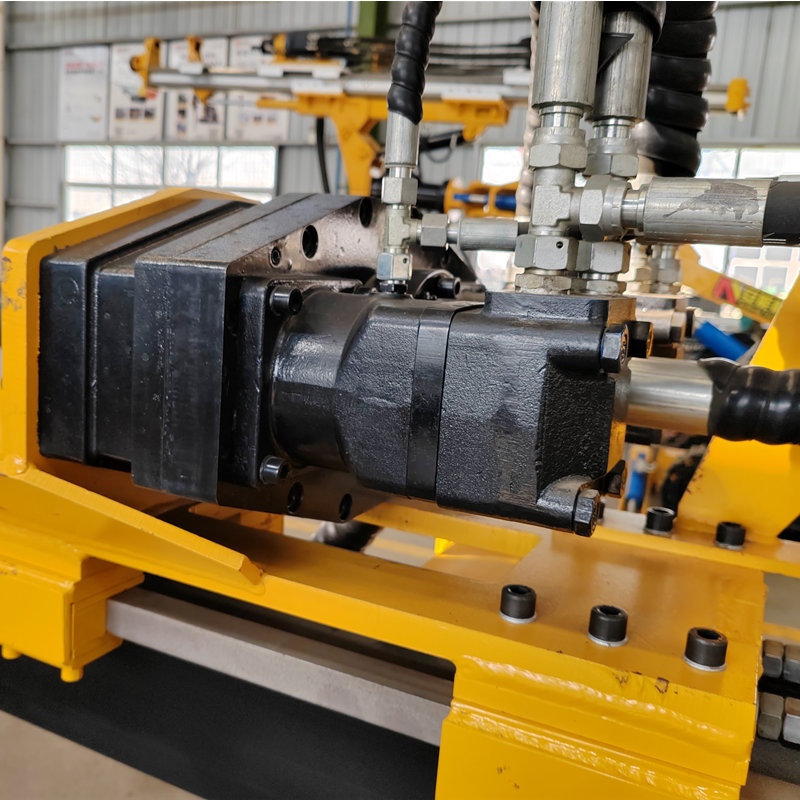

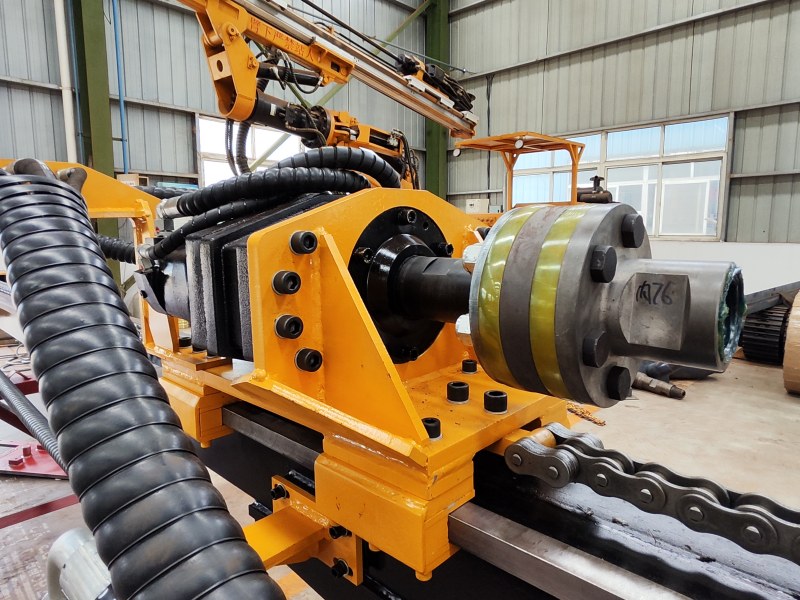

Rotary Heads

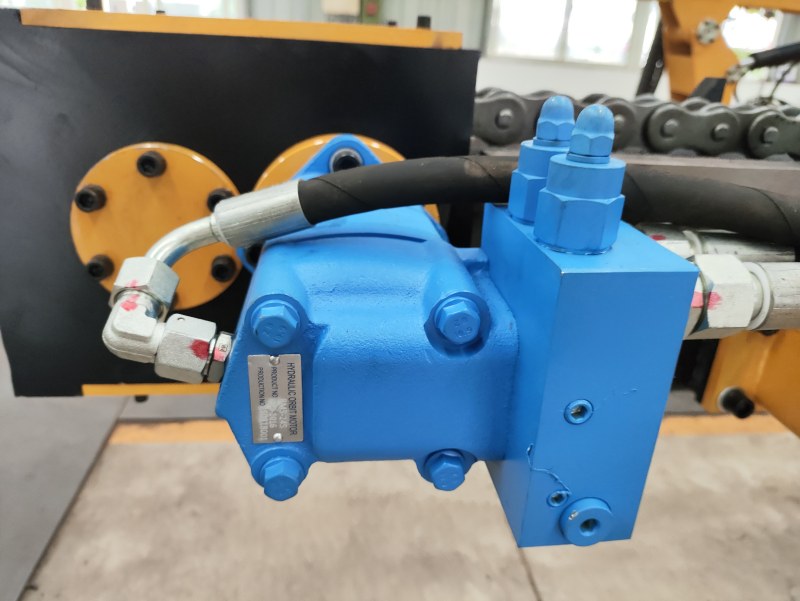

Hydraulic Motor
Rotary Heads + Shock Absorber

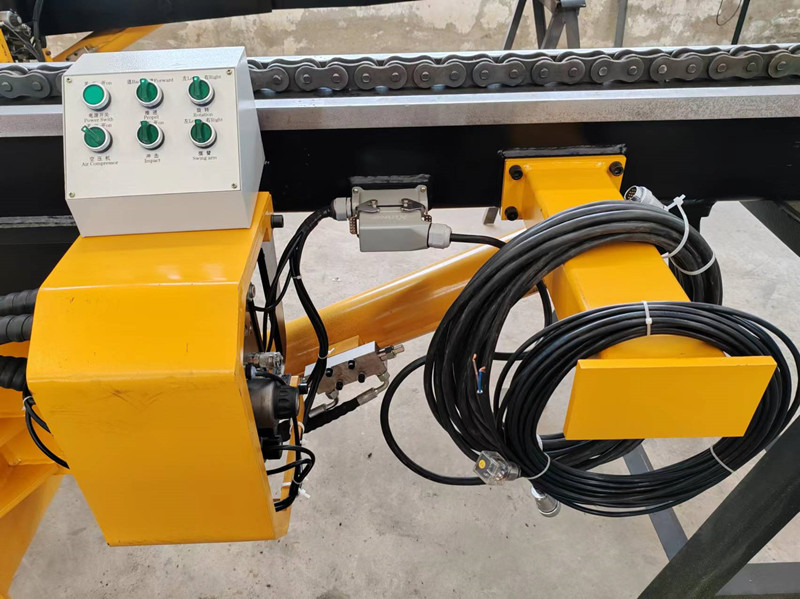

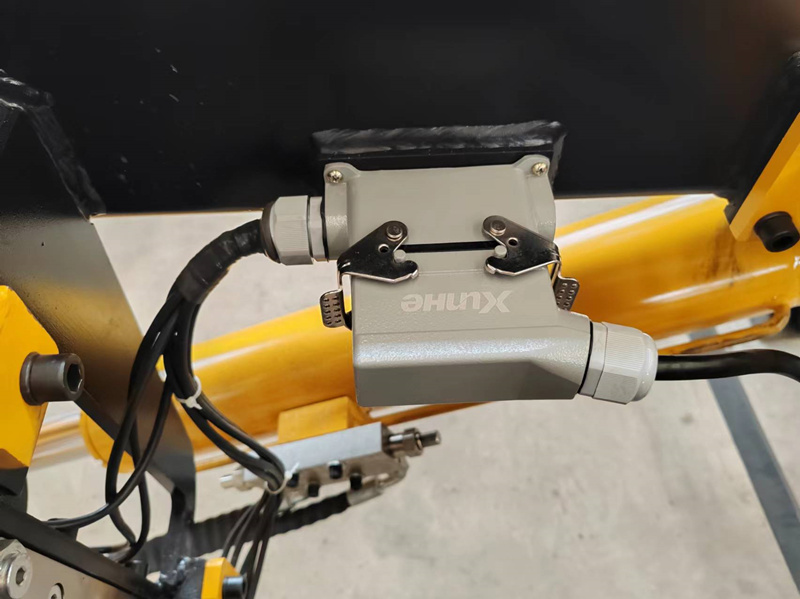

Operation panel+Electric wire
Connector

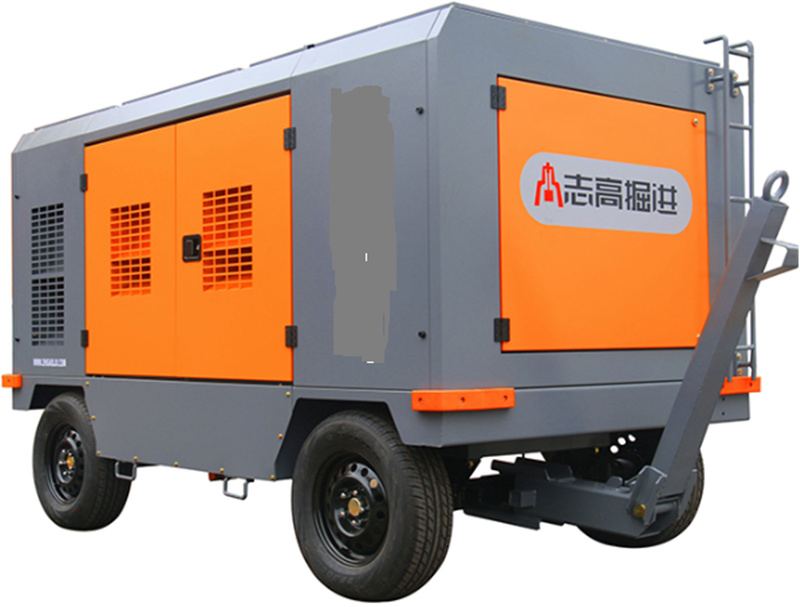

141SCY-15 Air Compressor (ConstructionScrew Air Compressor )

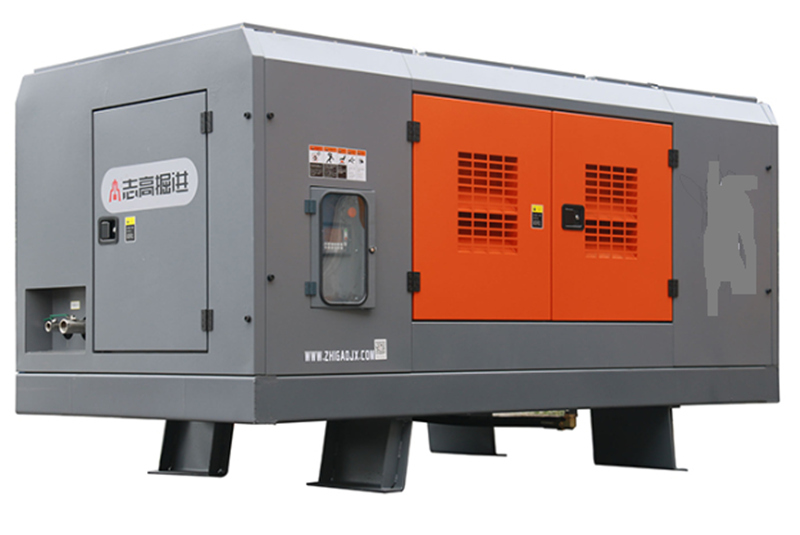

Industrial Screw Air Compressor

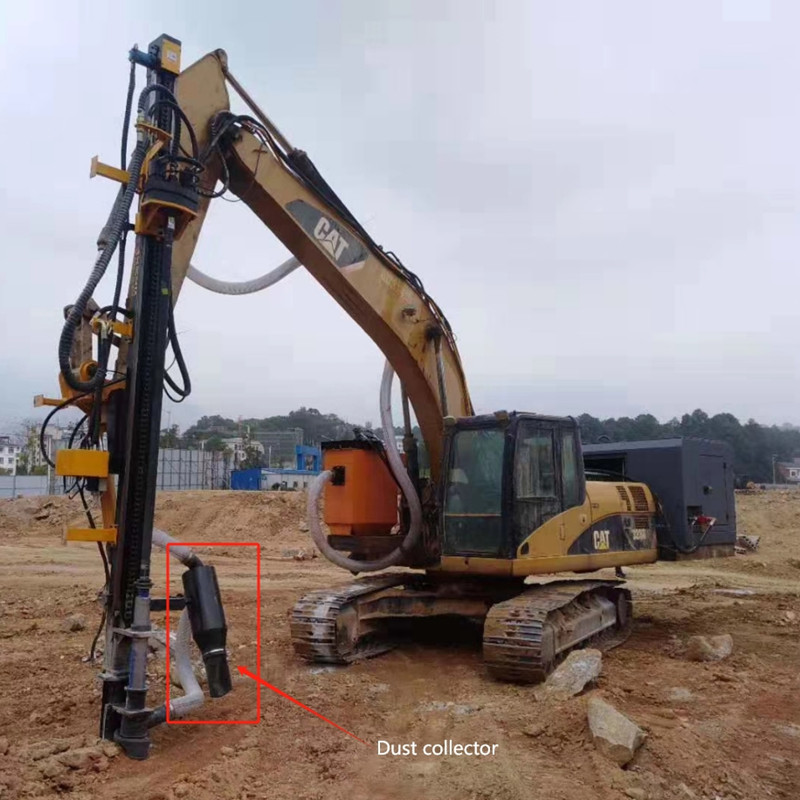

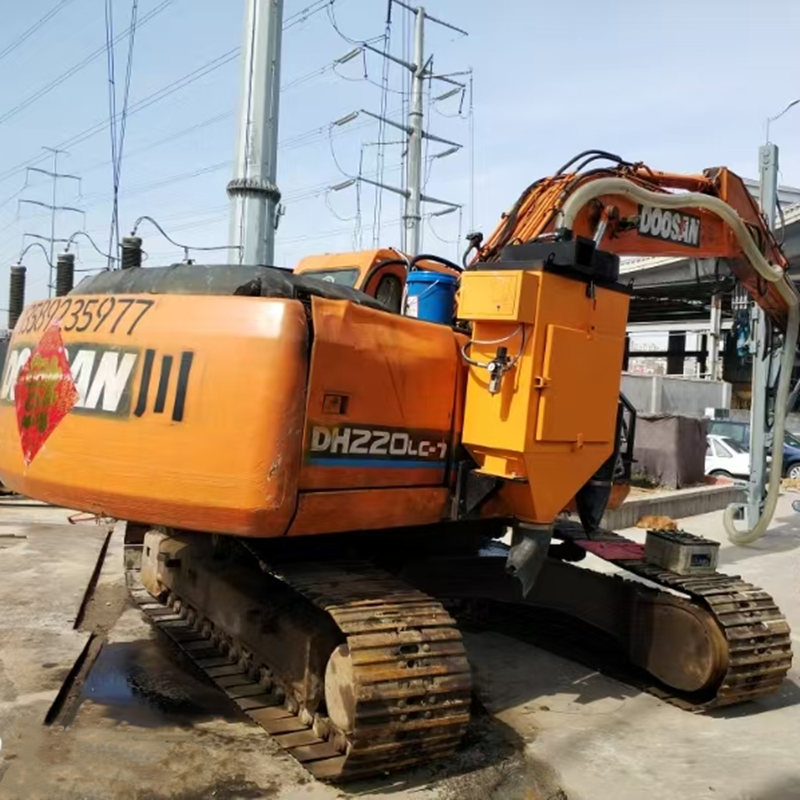

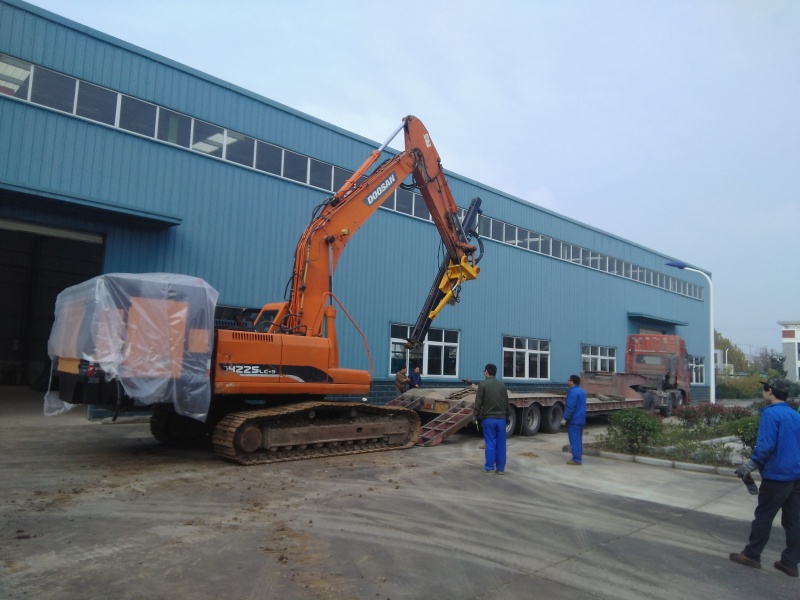

4.Finished excavator mounted DTH drill attachment with dust collector after Installation

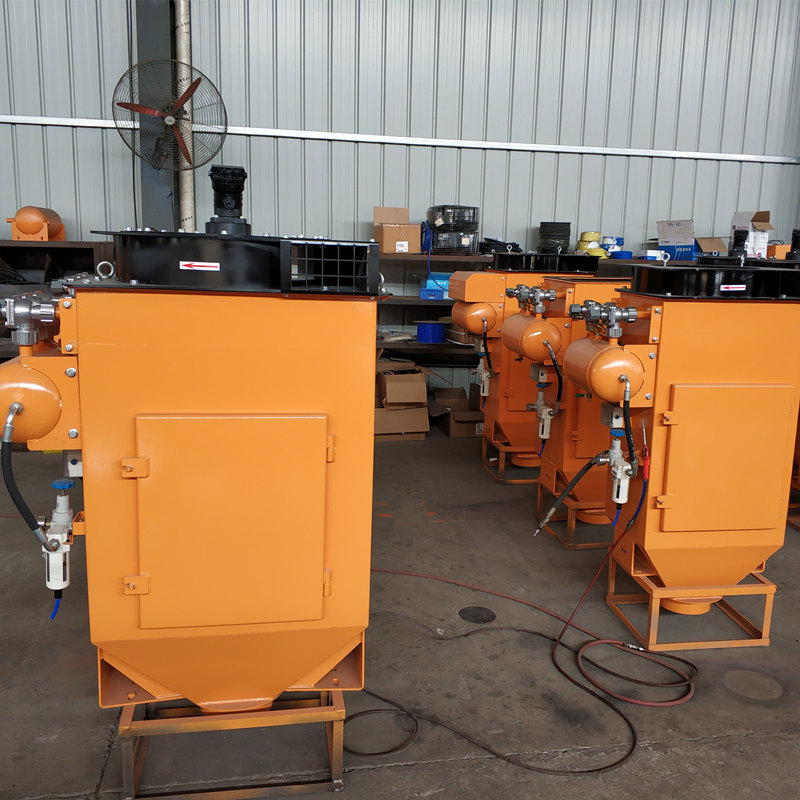

Dust collector host
Dust collector first-stage dust bucket
Full set of oil pipes
Operating valve
Dust removal positioning port
Dust removal pipe
Host bracket
Thread matching, various small accessories, etc.
For more details please watch PDF online:

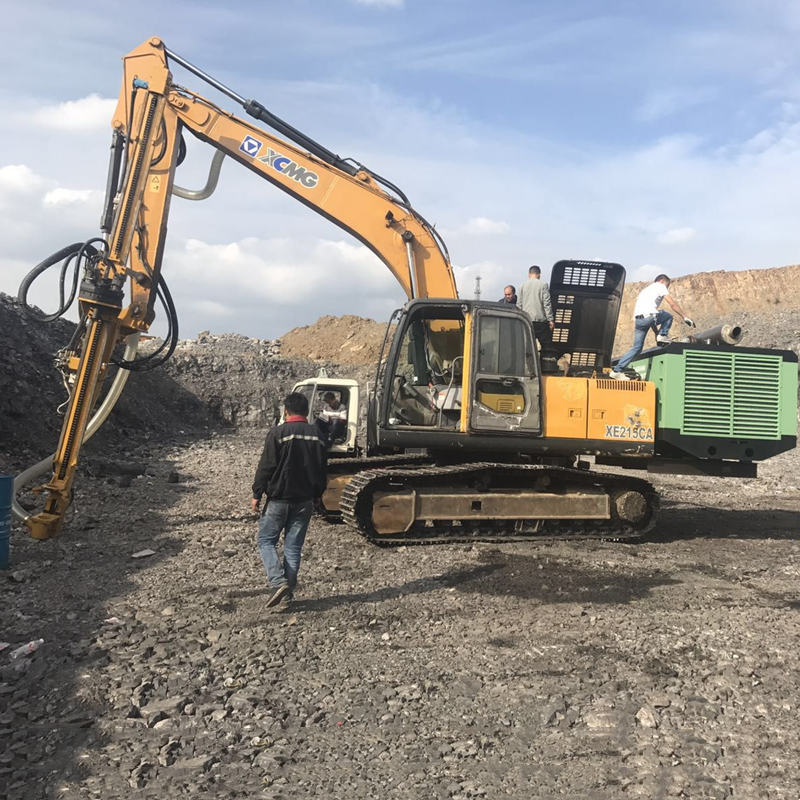

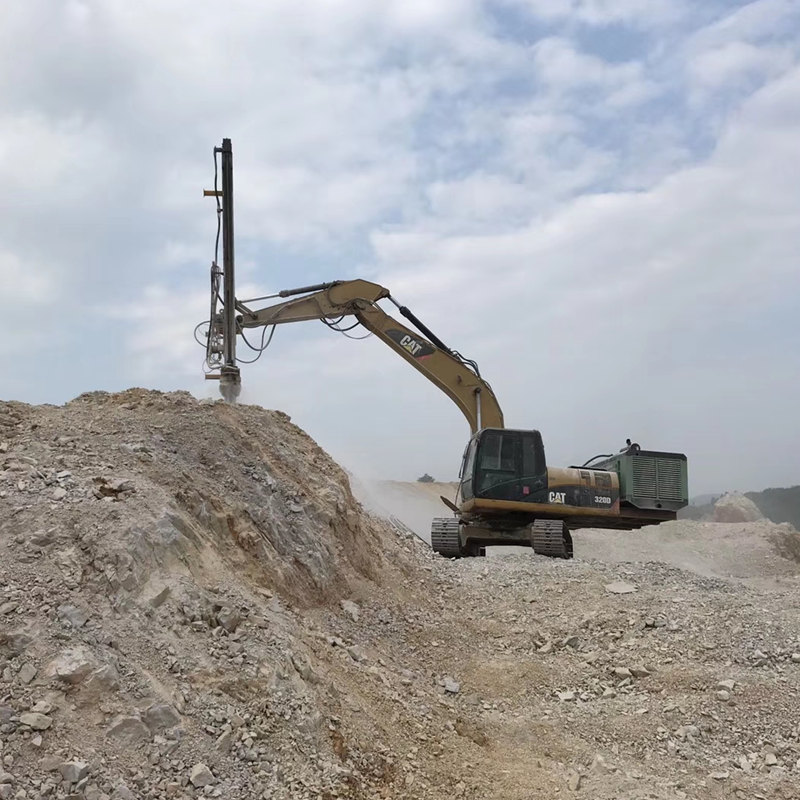

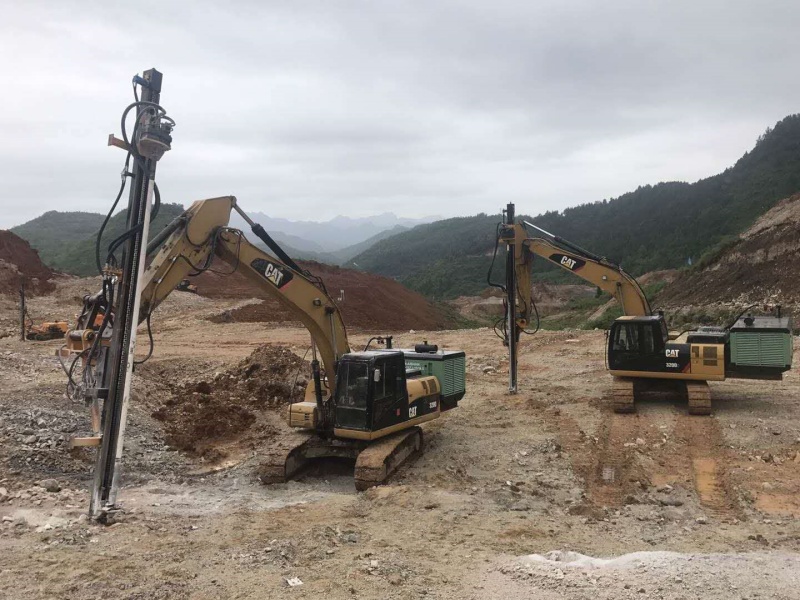

DTH Drill attachment working at construction site:
PD150 down-the-hole drilling rig air compressor installation diagram
