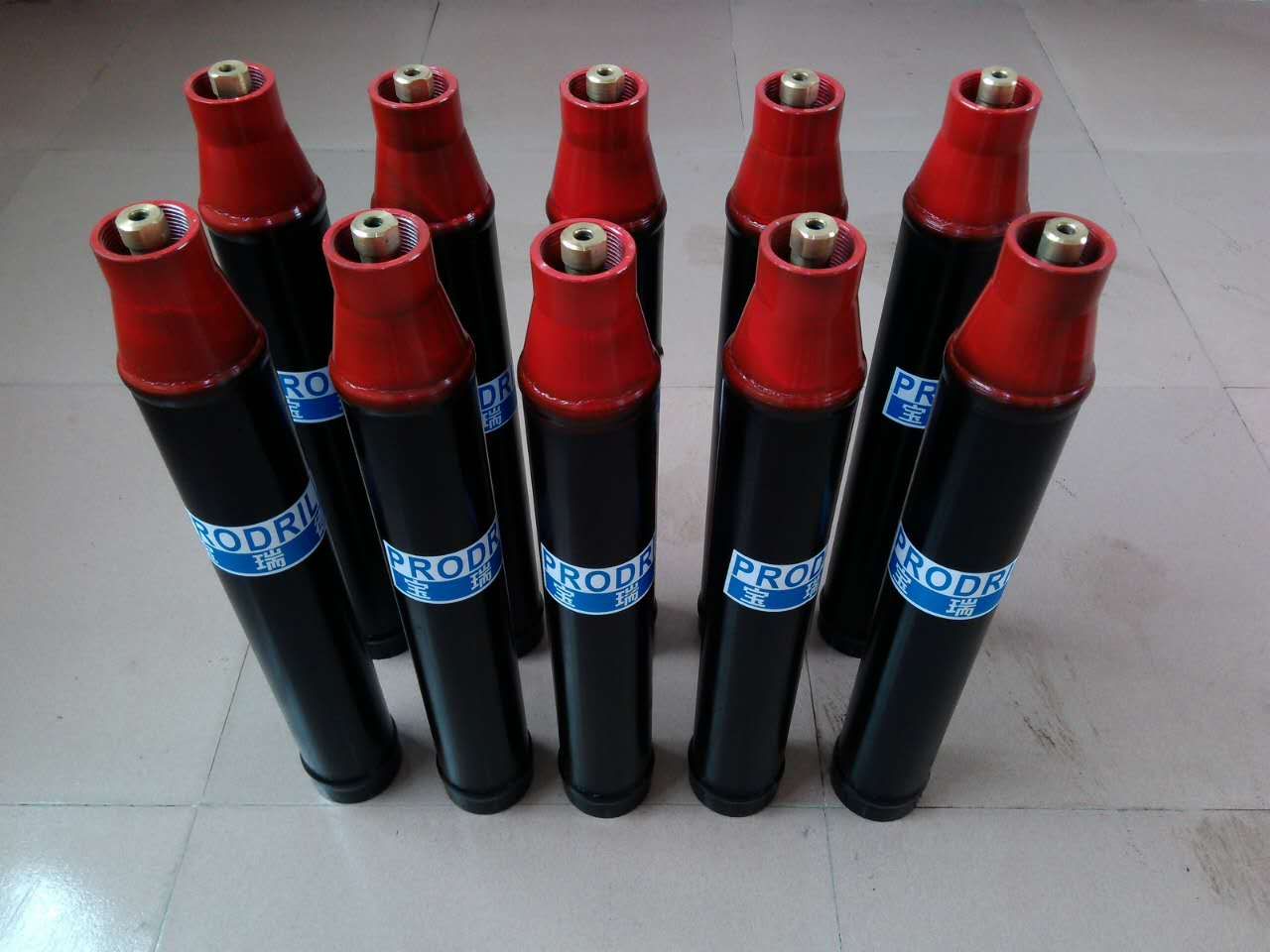

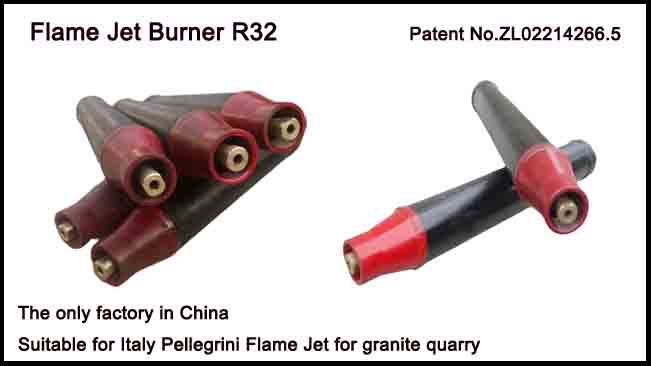

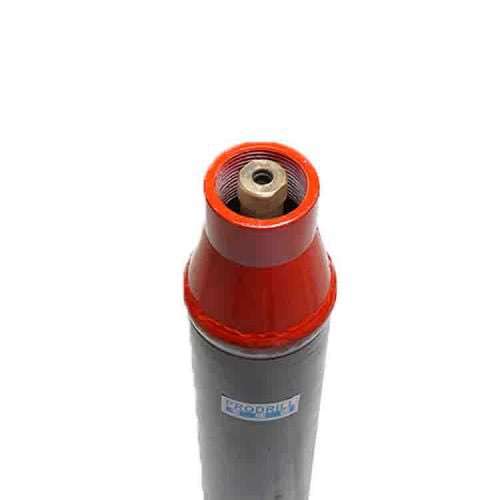

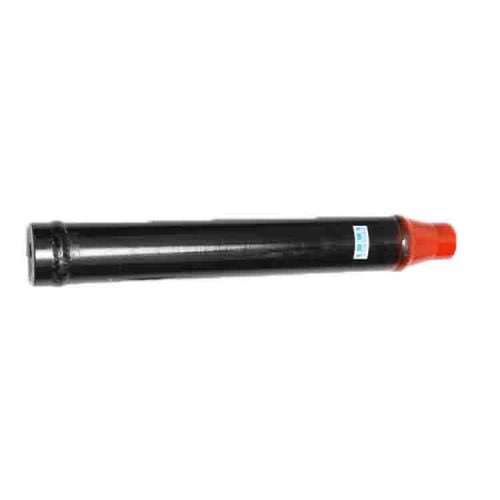

R32 flame jet burner

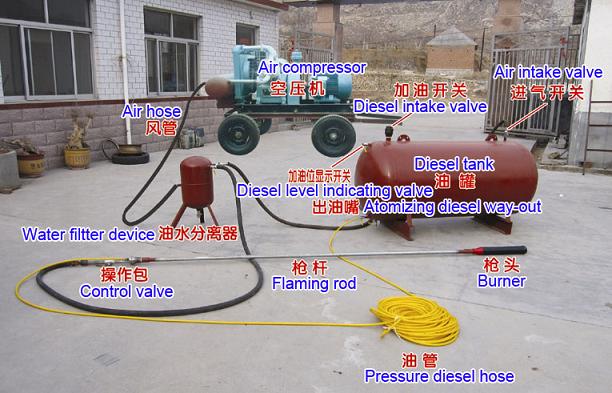

- Flame Cutting is a way to cutting rocks with high efficiency and the character of easily operating. It is driven by the diesel oil as the fuel, air compressor as the supporter of combustion. In virtue of spraying, heating up, and burning, then forming high temperature through the spear mouth:
It is a way to cutting rocks with high efficiency and the character of easily operation. It is fueled by the diesel oil, air compressor as the supporter of combustion. In virtue of spraying, heating up, and burning, then forming high temperature through the spear mouth, and it will eject large flame to rocks, which make the thermal energy spread on the surface of the rock and break it rapidly, then forming stone pieces which will be blown by little wind layer by ayer, demolishing gradually, and forming stone trench at last, it can enhance the mining speed several times comparing to the manual in the past, and features fast speed, high effectiveness, non-demolishing the former texture, it is widely used to mine the granite stone.
Our burner is suitable for the flame jet machine of world-famous brands, including Browning(US),NSK.Ltd(Japan),Pellegrini and Benetti (Italy). The specifications of these brands’ burner are as follow.
| Technical Data | |||||
| Model | FA-300A | FA-300 | FA-200A | FA-150A | GB-650 |
| Rod Length(mm) | 635 | 600 | – | – | – |
| External Dia (mm) | 73 | 67 | 73 | – | 64 |
| Length of the Rod(mm) | 2420 | 1850 | 2420 | – | – |
| Diesel oil pressure/0.1MPa | 9.15 | – | – | – | – |
| Consumption of air(m3/min) | 8.5 | 10-14 | – | 4.2 | 5 |
| Pressure of air/0.1MPa | 5.6-8.4 | 7 | 7 | 7 | 7 |
| Consumption of diesel oil | 55 | 20-30 | 33 | 30-35 | 30-35 |
| Normal cut Dia mm | 90-120 | 120 | 90-120 | 70 | 70 |
| Hourly output on Granite | 1-1.5 | 1.4-2.5 | 0.5-0.8 | 1.5-2.0 | 1.25 |
| Deepness of cut/m | 2.42-5 | 5-6 | 2.42-3.6 | 4.5 | 1.5-4.5 |
| Manufacturer | BROWING | NSK | BROWING | PELLEGRINI | BENETTI (ITALLY) |
| (US) | (JAPAN) | (US) | (ITALLY) | ||
Specification of our burner:
| Prodrill Flame Burner Technical Data | |
| Burner’s Length(mm) | 520 |
| Rod Length(mm) | 3600 |
| Consumption of air(m3/min) | 3-4 |
| Consumption of diesel oi | 30-40 |
| Hourly output on Granite | 1.5-2 |
| Burner’s width (mm) | 71 |
| Normal cut Dia mm | 80-110 |
| Deepness of cut m | 5-10 |
| Pressure of compressed air(0.1MPA) | 6-9 |
