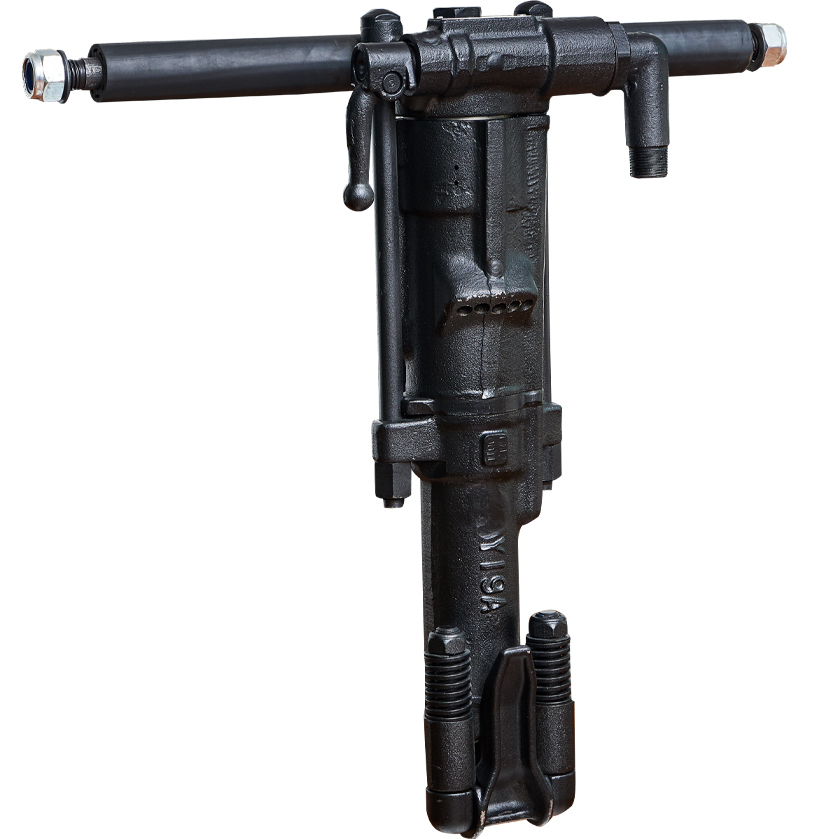

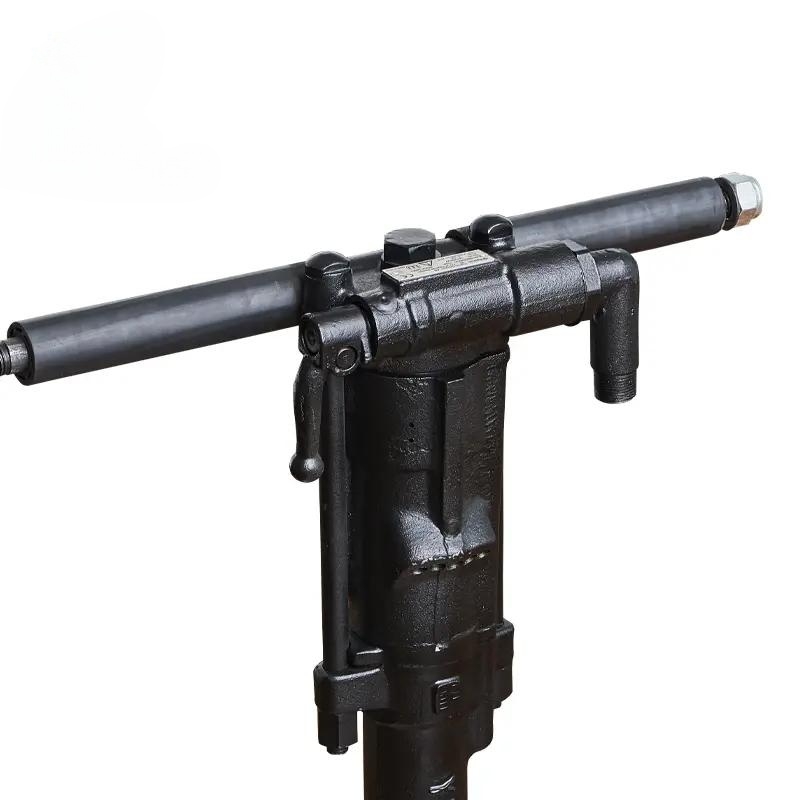

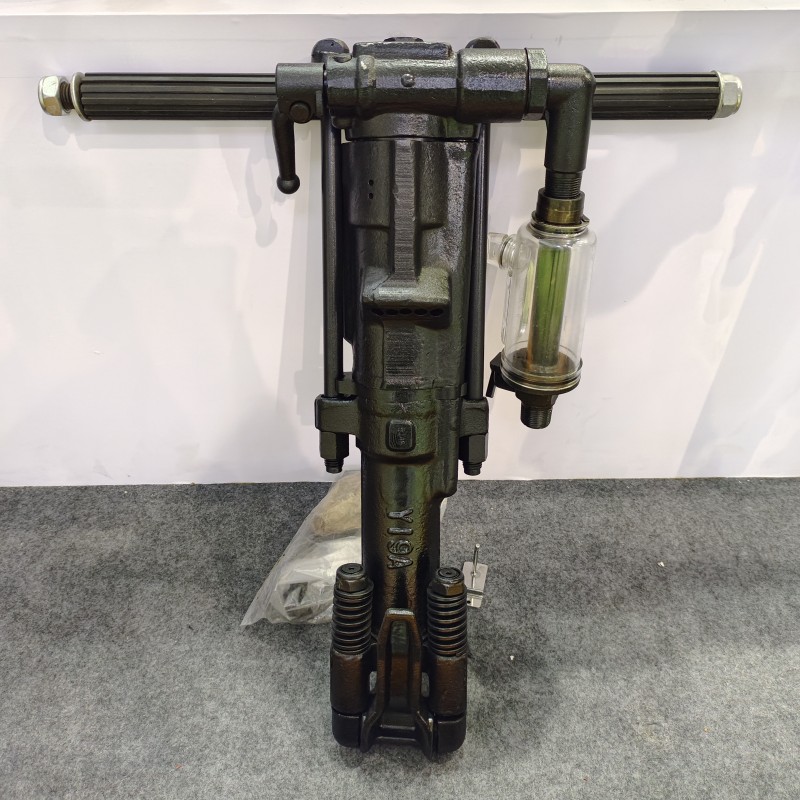

Y19A Jack hammer
- Weight: 19KGS :
- Cylinder Stroke: 65*54mm :
- Air Consumption: 37-43L/s :
- Air Hose Size: 19mm :
- Bore Diameter: 32-42mm :
- Drilling Depth: 5mm :
- Shank: 22x108mm:

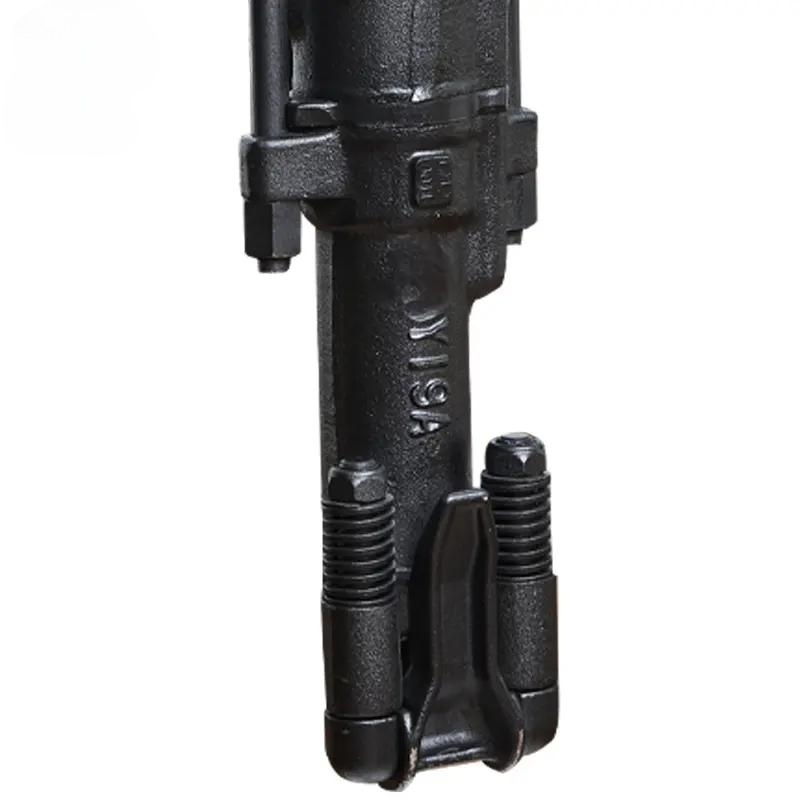

Y19A Hand Held Rock Drills/Jack Hammer Hand Drills

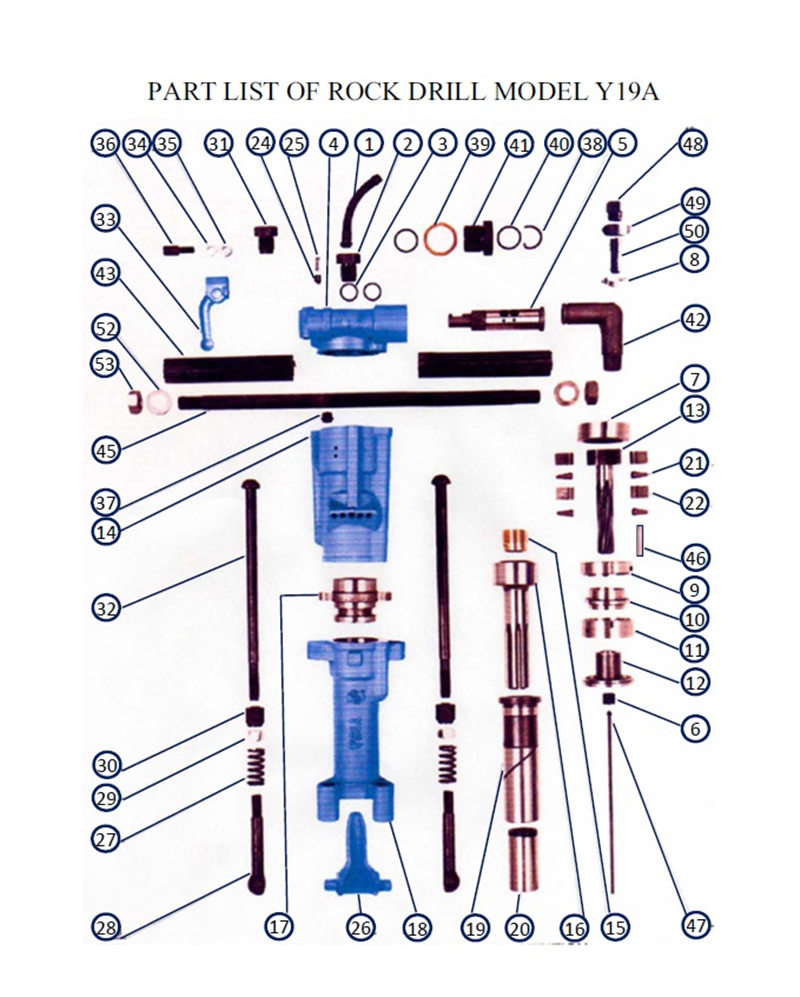

| Y19A Jack hammer spare parts list | ||||||
| Code | Part No | Name | 27 | 7655-205 | Bit clamp spring | |
| 1 | Y26-303 | Water injection pipe | 28 | 7655-203A | Bit clamp bolt | |
| 2 | Y26-302S | Water pipe nut | 29 | Nut GB889-86-M16 | I-nonmetal hexagonal locking nut | |
| 3 | 24x2.4GB1235-76 | O-rubber seal ring | 30 | Nut GB56-88-M16 | Thick hexagonal nut | |
| 4 | Y19A-04 | Back head | 31 | Y26-302F | Water pipe nut | |
| 5 | Y19A-05 | Operating valve | 32 | Y19A-14 | Long bolt | |
| 6 | 7655-304 | Water injection sleeve | 33 | YSP45-316 | Operating handle | |
| 7 | Y19A-06A | Ratchet wheel | 34 | Washer GB93-87-10 | Standard spring washer | |
| 8 | 8x3-23 | Plug | 35 | Nut GB6172-86-M10 | Thin hexagonal nut | |
| 9 | Y19A -07A | Valve cap | 36 | YT25-3.17A | Holding pin | |
| 10 | Y19A-08 | Valve | 37 | YT30-3.07 | Big seal sleeve | |
| 11 | Y19A-09 | Valve chest | 38 | YT25-3.33 | Snap ring | |
| 12 | Y19A-10A | Valve sleeve | 39 | YT25-3.12 | Pad | |
| 13 | Y19A-11 | Rifle rod | 40 | 30x3-25 | O-seal ring | |
| 14 | Y19A-03 | Cylinder body | 41 | 7655-307 | Air pipe nut | |
| 15 | Y19A-12 | Rifle nut | 42 | 7655-309A | Air pipe elbow | |
| 16 | Y19A-01 | Piston | 43 | Y26-305A | Rubber handle | |
| 17 | Y19A-13 | Guide sleeve | 44 | |||
| 18 | Y19A-02 | Machine head | 45 | Y26-306A | Handle bolt | |
| 19 | 7655-202A | Rotating sleeve | 46 | Y19A-15 | Locating stud | |
| 20 | YT25-2.03 | Bit shank sleeve | 47 | 7655-303 | Water injection | |
| 21 | YT25-1.15 | Tower-shaped spring | 48 | 19-16 | Pipe connector | |
| 22 | YT25-1.14 | Ratchet pawl | 49 | 19-01 | Butterfly nut | |
| 23 | 12x3-23 | Plug | 50 | 19-04 | Conical pipe connector | |
| 24 | YT25-3.21 | Locating stud | 51 | Hoop No.1 | ||
| 25 | YT25-3.20 | Spring | 52 | Washer GB848-85-20-A140 | Small washer | |
| 26 | 7655-207 | Bit clamp | 53 | Nut GB889-86-M20 | I-nonmetal hexagonal locking nut | |
Rock drilling tools manufacturer ProDrill offers high quality Y19A Hand held Rock Drills, powered by pneumatic drive from air compressor, and used for small-hole drilling such as granite, marble, limestone quarrying. And for small size construction, and demolition work, hole size scope 30mm-40mm, match Tapered Drill Rods, Tapered Drill Bits, or Integral Drill Rods together for a drilling use. Y19A hand jack hammer is a light-duty drilling tools with stronger and stable drilling performance, and easy to use, simple repair, price is very competitive, so still popular in stone quarry market for most of following countries such as India, Africa, even Saudi Arabia. Now European quarry owners use hydraulic rock drills to replace Air jack hammers for quarry drilling holes, or blasting bore holes.
