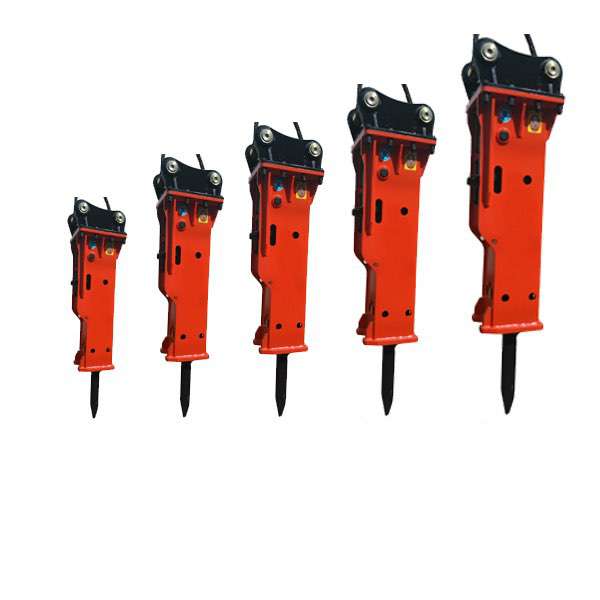

Hydraulic Breaker hammer

  • Certification:CE certification
  • Feature:Long durability and Stable performance

Hydraulic Breaker hammer

Product details


S_副本_副本


Product Describe:

The triangular Hydraulic Breaker Hammer is mainly installed in the front end of the excavator, which is a kind of physical crushing equipment which can turn hydraulic energy into mechanical energy.

It is mainly used in mining, metallurgy, railway, highway repair, cement pavement crushing, foundation excavation, etc., effectively crushing stones and rocks, and significantly improving working efficiency.

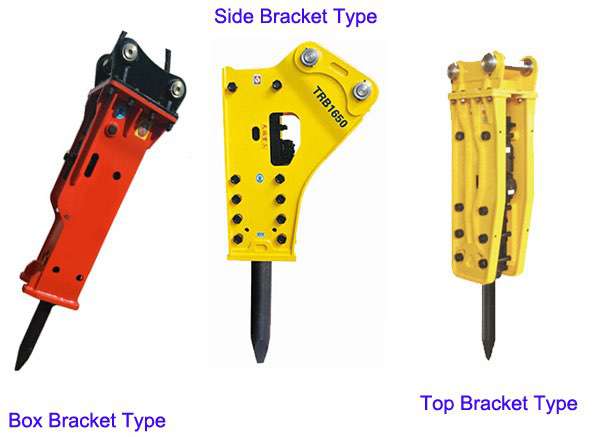

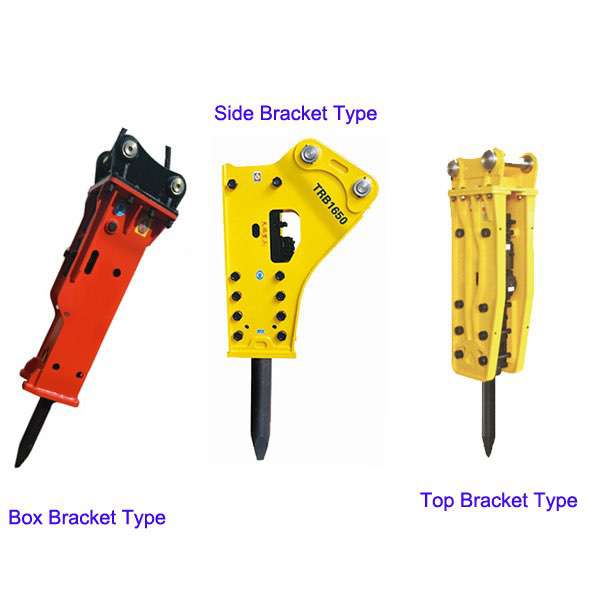

We have Three Types:

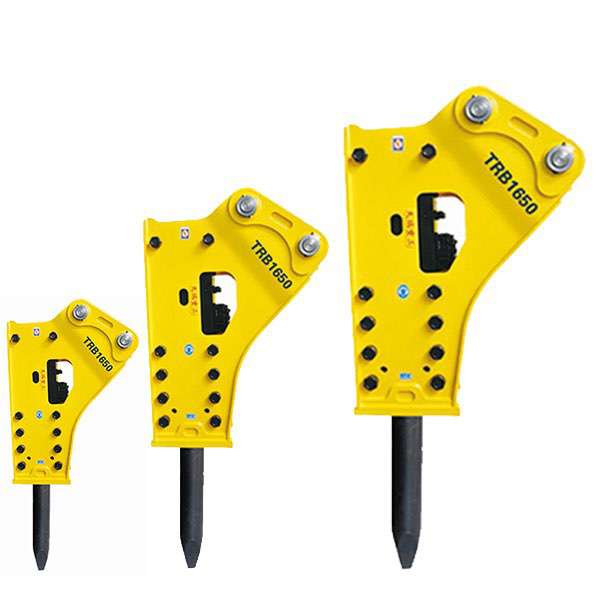

 Side Type:

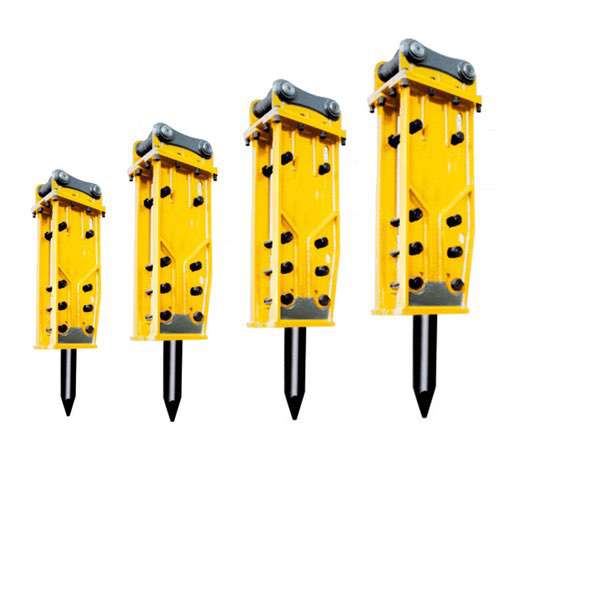

 Top Type

Check the video about Top type hydraulic breaker as below:


 Box-Silence Type

Products feature:

Triangle type Hydraulic Breaker Hammer are complete in specifications, advanced design, excellent performance, strong force and durable, long life, low failure rate, parts, in the user enjoys a high reputation, has become the user's preferred products, is customer satisfaction products of national mechanical industry.

Technical Specifications:

Model Weight(kg) Length (mm) Drive oil  (l/min) Driving Pressure (Kgf/cm²) b.p.m Drill rod Diameter (mm) Excavator tonnage (ton)
TRB680 258 1415 40-70 110-140 500-900 Φ68 4-7
TRB750 332 1480 50-90 120-150 400-800 Φ75 6-9
TRB850 557 1735 60-100 130-160 400-800 Φ85 7-14
TRB1000 753 1994 80-110 150-170 350-700 Φ100 10-15
TRB1350 1653 2367 130-150 160-180 400-800 Φ135 18-26
TRB1400 1774 2414 120-180 160-180 350-500 Φ140 18-26
TRB1500 2221 2519 150-190 160-180 350-700 Φ150 27-35
TRB1550 2569 2760 180-240 160-180 300-450 Φ155 28-35
TRB1650 2752 2816 200-260 160-180 250-400 Φ165 30-45
TRB1750 3912 3176 210-290 160-180 200-350 Φ175 40-55






silence type


Suitable excavators list:
