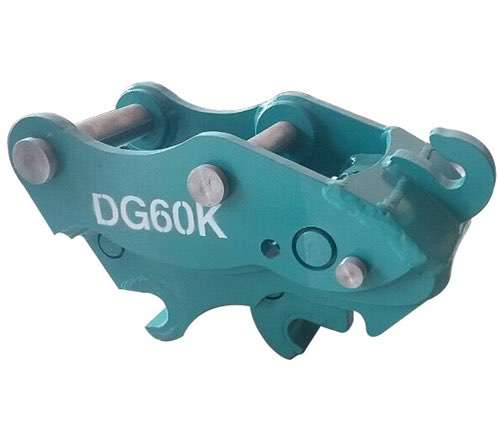

Quick Hitch

  • Advantages::
  • Prodrill quick hitch can be used on excavator to exchange accessories(such as breaker, ripper, compactor, grab bucket etc)easily and quickly, which has enlarged the use scope of an excavator.:
  • Attaching quick hitch to an excavator take only one minutes.:

Quick Hitch

Product details

Prodrill is a professional manufacture of excavator attachments. Hydraulic Quick Hitch Coupler is one of the most important attchments for excavators
DG series Quick hitch adopts new design with special steel material high intensity but light weight. No need to change the top bracket of the linked bucket and breaker.

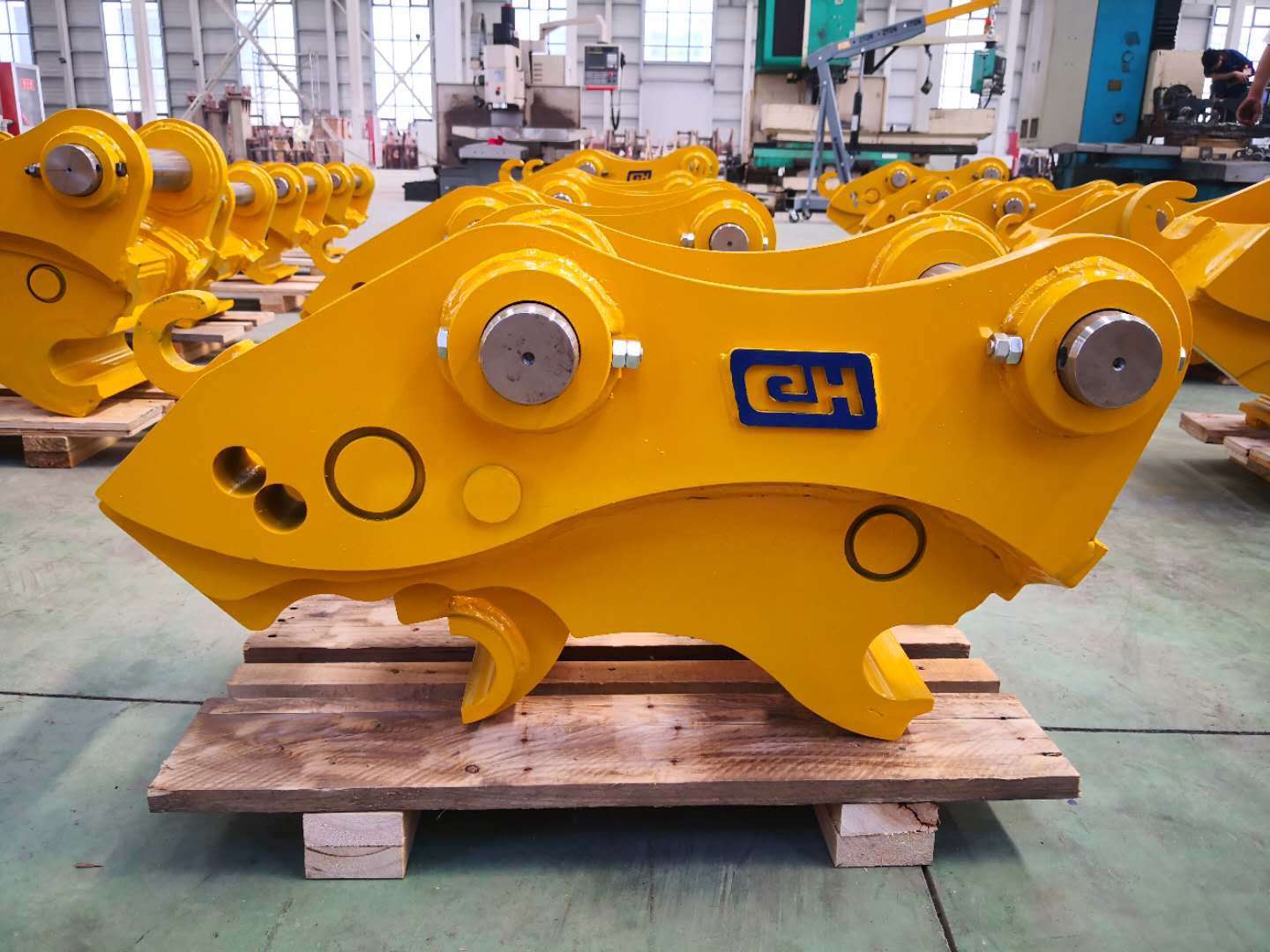

微信图片_20200824152929

 Less malfuntion and easy to maintenance,  Reasonable designed distance of pin make products fasten and reliable. Well-designed bases on Eurpen safe operation standard,  can be mounted to all common hydraulic excavators as well to fastly connect hydraulic breaker, ripper, shear, compactor, grabble within 60 seconds,   DG hydraulic quick hitch coupler are compatible with various brand of excavators including: DOOSAN, KOMATSU, CAT, SNAY, HYUNDAI R, CAT PALLET, VOLVO, KOBELCO, KATO, KUBOTA, JCB, CASE, GEHL etc

  Unit  DG MINIK DG45K DG55K DG60K DG110K DG180K DG200K DG240K DG300K DG350K  DG400K
Overall Length Mm 388 534-545 600 765 924-944 983-1050 1006-1173
Overall Height Mm 246 307 310 388 492 574 558-610
Overall Width Mm 175 258-263 270-280 353-436 449-483 543-568 606-663
Pin to Pin Center Distance Mm 80-150 230-270 290-360 380-420 460-480 473-540 550-620
Foream Open Width Mm 80-140 155-170 180-200 232-315 306-340 375-411 416-469
Oil Cylinder Retractable gap Mm 170-206 205-275 340-450 340-486 256-390 413-590 520-590
Top to Bottom Pin  gap Mm 159 195 195 220 275 300 360
Pin Diameter Mm 25-40 45-50 50-55 60-70 70-80 80-90 90-120
Weight Kg 25 50-60 80 120-130 280-290 420-430 450-580
Working Pressure Kg/c㎡ 40-380 40-380 40-380 40-380 40-380 40-380 40-380
Required Oil Flow L/min 10/20 10/20 10/20 10/20 10/20 10/20 10/20
Suitble Excavator Ton 1.5-4 4/7 5/8 9/19 17-23 23-30 33-45


Quick hitch-Attching Excavator Breaker Safely and Fastly,



Quick hith- Attching Excavator Compactor,、

Quickhitch - Attaching Excavator Buckets Safely and Fastly.

How to buy:

Please check the Pin size,pin center to center,arm width.

Pin size(C&D)=Pin Diameter(D)

pin center to center(E)=Offset Height(H1)

arm width(A&B)=Arm Width(W1)

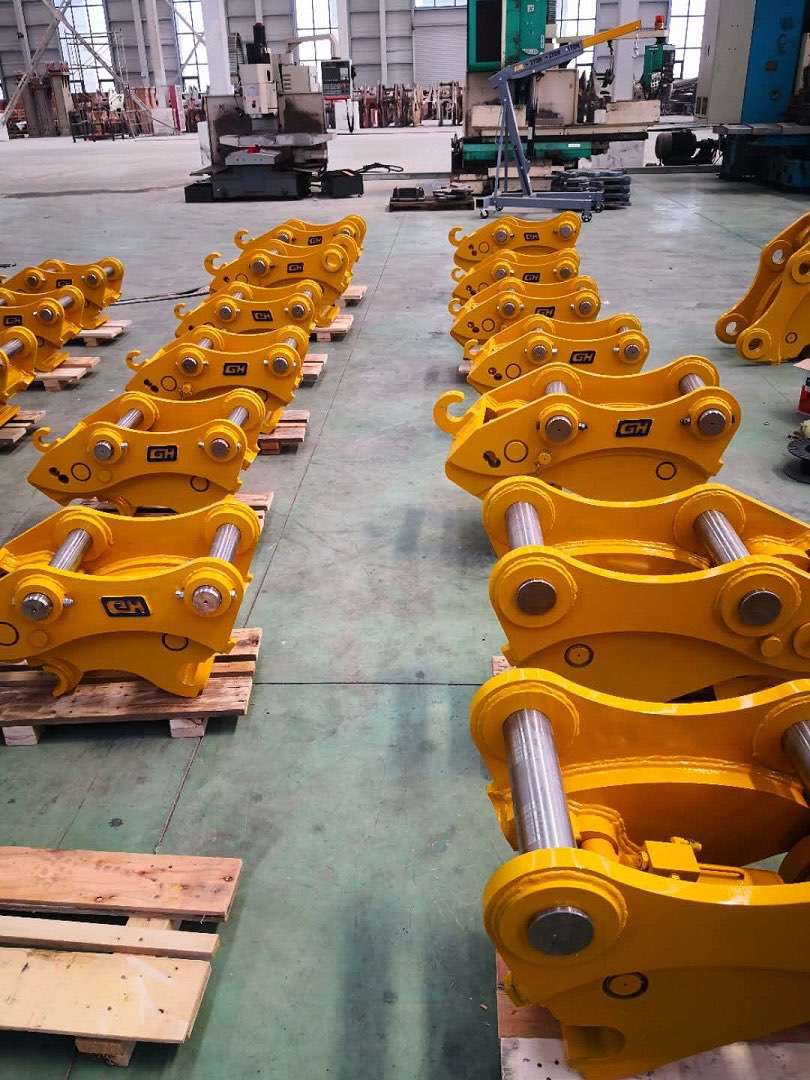

微信图片_20200824153002
