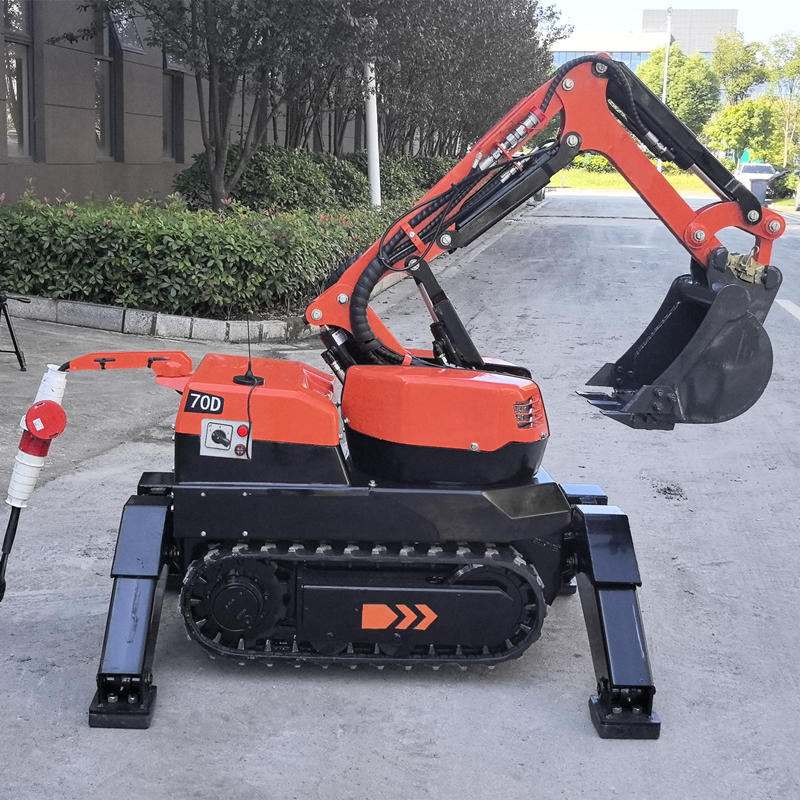

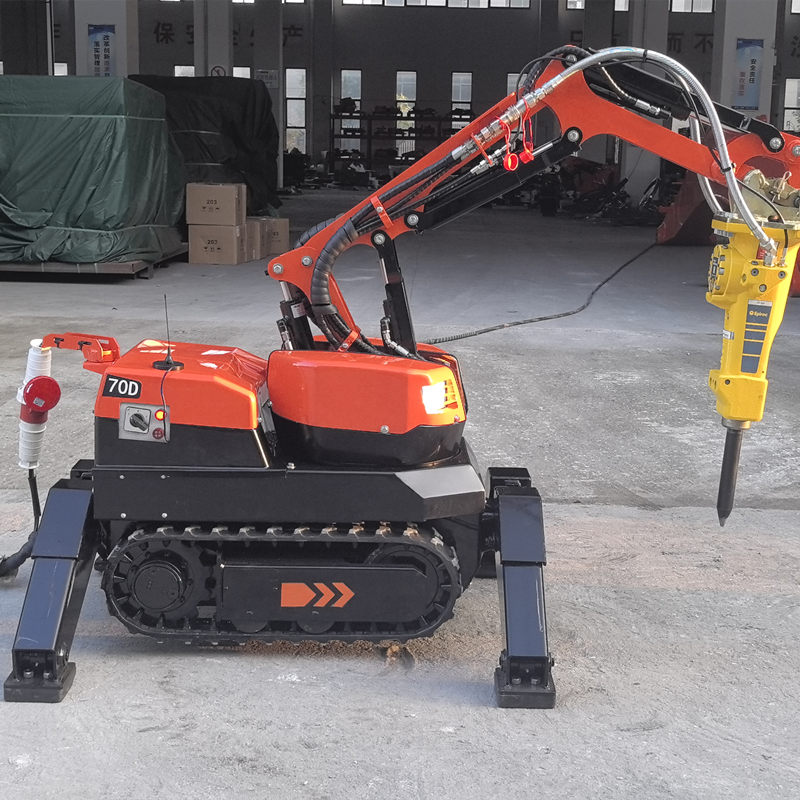

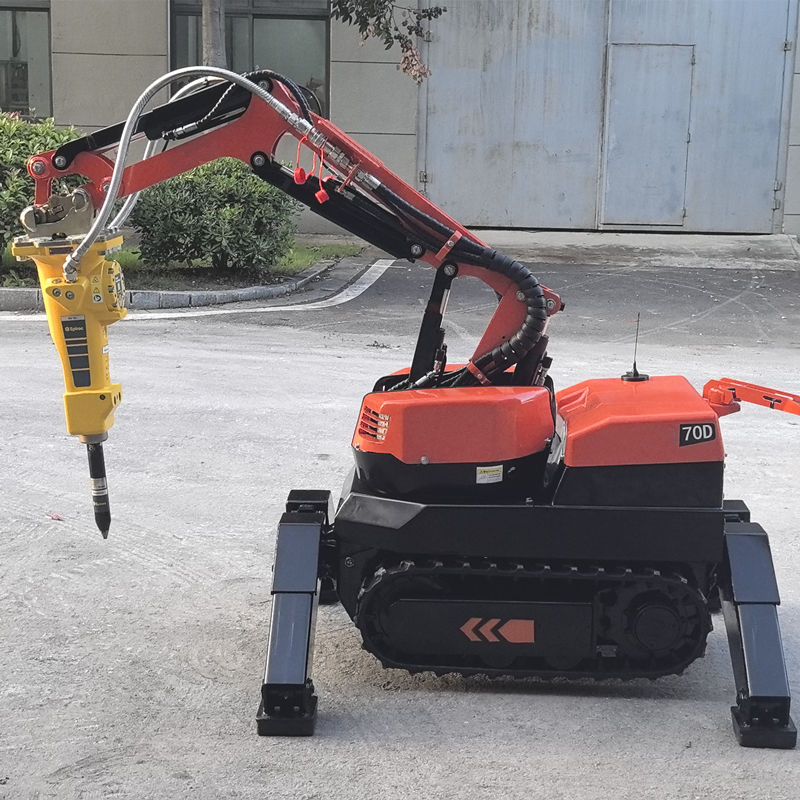

ProDemo™ PDR70D Professional Demolition Robots
- Range, radio : 100m
- Output : 7.5kw
- System pressure : 19MPa
- Hydraulic system capacity : 27L
- Transport speed, max. : 2.4km/h
- Incline angle, max. : 30°
ProDemo™ PDR70D is the smallest demolition robot that can pass through narrow doorways and be transported by a universal passenger elevator to enter narrow spaces for demolition work. Electric driven, flexible walking, low noise, and no emissions. It can replace human in hazardous and harsh environments such as toxic (pollution), flammable, explosive,prone to collapse, strong radiation, etc. for comprehensive and remote control of crushing, shearing, demolition and other operations.
PDR70D Techical Data of Demolition Robot
| Slewing speed | 7s/240° |
| Transport speed, max. | 2.4km/h |
| Incline angle, max. | 30° |
| Hydraulic system capacity | 27L |
| Pump type | Variable load-sensing |
| System pressure | 19MPa |
| Pump flow | 0-27L/min |
| Electric motor type | YE3-132ML-B5 |
| Output | 7.5kw |
| Fuse | / |
| Starting device | Direct start |
| Control type | Portable control box |
| Signal code | Digital |
| Transfer | Professional radio/Cable |
| Range, radio | 100m |
| Weightof machineexcluding attachment | 750kg |
| Recommended attachment weight | 105kg |
Widely used in:
1.Emergency rescue

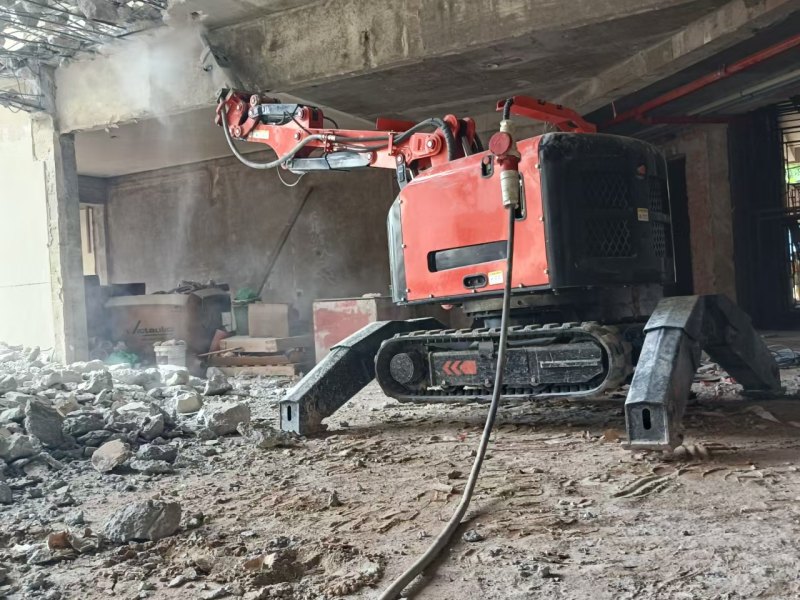

2.Buildings interior renovation and demolition
3.Metallurgical furnace maintenance and slag removal
4.Nuclear accident rescue and nuclear waste treatment
