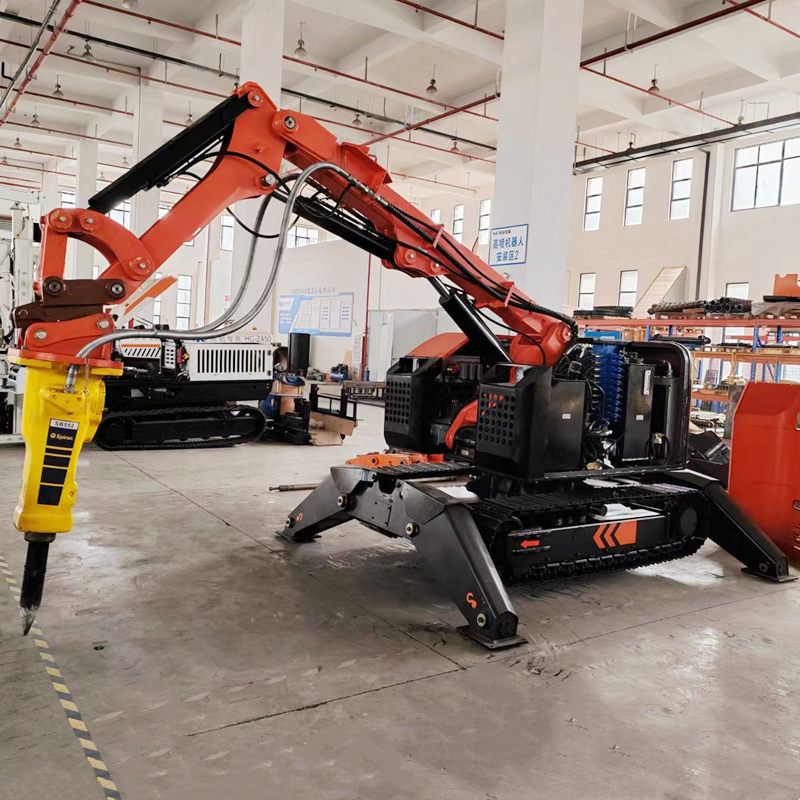

ProDemo™ Professional Demolition Robots
- Features of Demolition Robot :
- 1 : Safer operation with superior remote control
- 2 : Precise hydraulic manipulators with multiple degrees of freedom
- 3 : 360 degrees rotatable arm
- 4 : Compact design for works on confined space
- 5 : Environmental protection systems for dust control and noise reduction
- 6 : Modular design for easy maintenance and parts replacement
- 7 : Variety of attachments can be mounted
- 8 : It can work in high ambient temperatures
- 9 : High work efficiency with easy transportation
ProDemo™ Professional Demolition Robots is equipped with a superior remote control for safer operation and easy maneuverability, demolition robot is ideal for risk demolition and multifunctional operations in tough environments like emergency response/structural demolition/nuclear field as well as further niche domains or businesses. With its industry-leading compact size, Demolition robot is extraordinarily versatile in confined spaces. It can mount with hydraulic breaker, rock saw, concrete crusher, etc, help you to meet the extreme requirements of the toughest hard rock underground work.
Specification of Demolition Robot
| Model | PDR100D | PDR180C | PDR180D | PDR300D | PDR500D | PDR500C | PDR800C | |
| Basic parameters | Engine Weight(kg) | 1050 | 1950 | 1750 | 2850 | 6500 | 4300 | 11500 |
| Max.weight of attachment(kg) | 120 | 250 | 250 | 320 | 550 | 550 | 750 | |
| Track width(mm) | 180 | 230 | 230 | 300 | 400 | 400 | 500 | |
| Speed(km/h) | 2.6/3.5 | 2.3/4.2 | 2.3/4.2 | 2.7/4.2 | 3.4/4.5 | 3.4/4.5 | 3.0/4.0 | |
| Swing speed(r/min) | 8 | 6 | 6 | 4 | 3.5 | 3.5 | 3 | |
| Climbing angle | 30° | 30° | 30° | 30° | 30° | 30° | 30° | |
| Driven type(kw) | Electric motor(11) | Electric motor(18.5) | Diesel engine(14.2) | Electric motor(22) | Electric motor(37) | Diesel engine(61.4) | Diesel engine(86) | |
| Hydraulic system | System flow(L/min) | 0-40 | 0-66 | 0-60 | 0-100 | 0-130 | 0-140 | 0-300 |
| System Pressure(Mpa) | 21 | 21 | 21 | 21 | 25 | 25 | 30 | |
| Working pressure(Mpa) | 16 | 16 | 16 | 17 | 20 | 20 | 25 | |
| Control system | Control method and device | Portable remote control | ||||||
| Wireless remote control distance(m) | Standard 150 meters, can be customized according to customer needs, | |||||||
| the maximum control distance is 2000 meters | ||||||||
| Working range | Max. Working length(mm) | 3750 | 4215 | 4400 | 5250 | 6325 | 6325 | 7500 |
| Max.working height(mm) | 3950 | 4650 | 4800 | 5850 | 6850 | 6850 | 5800 | |
| Max. Working depth(mm) | 1650 | 2000 | 2000 | 2550 | 2450 | 2450 | 4000 | |
| Ground clearance of crawler | 80 | 110 | 110 | 100 | 160 | 160 | 0 | |
| Dimension (mm) | Height*Length*Width | 1285*2210*780 | 1550*3000*1000 | 1550*3000*1000 | 1830*3910*1200 | 1950*4180*1600 | 1950*4650*1600 | 2800*6600*2500 |

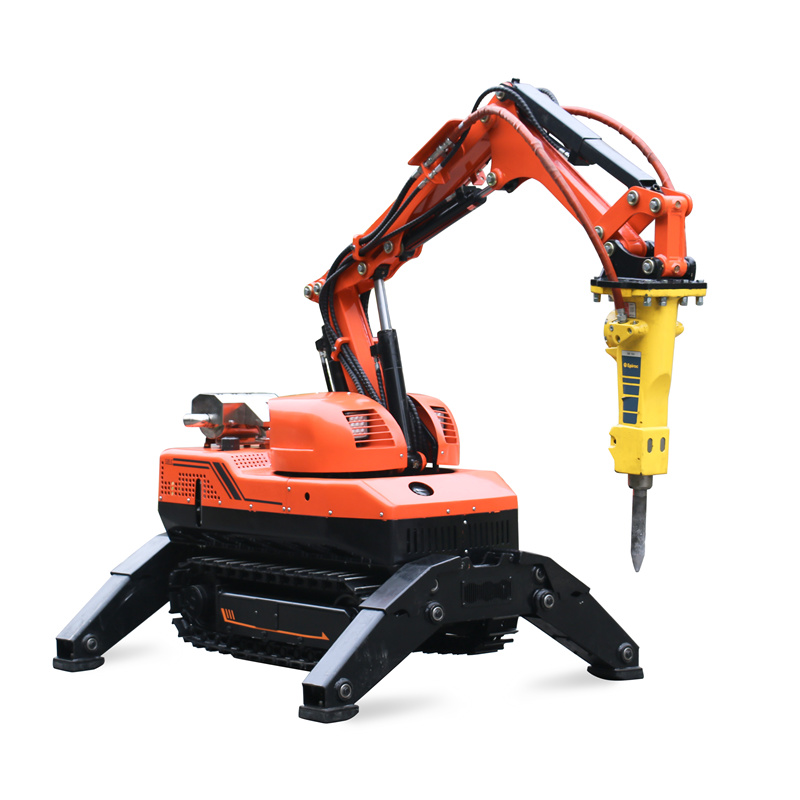

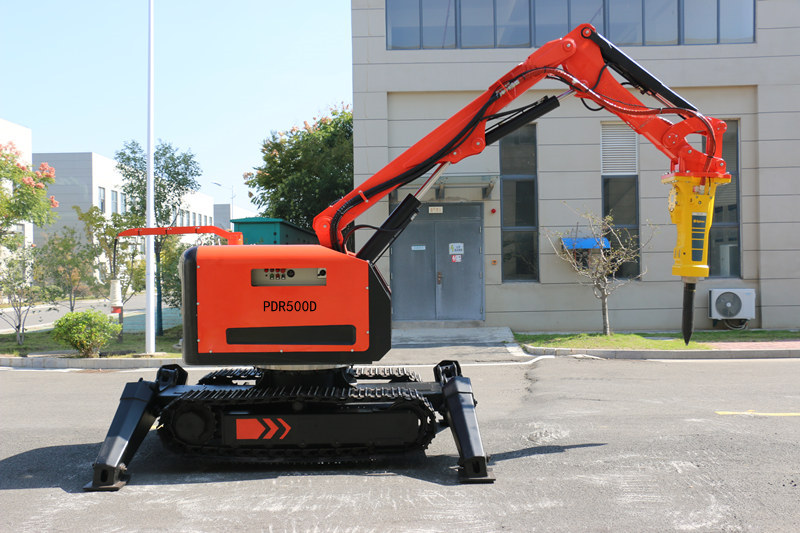

Demolition Robot Series Model No. : PDR500D

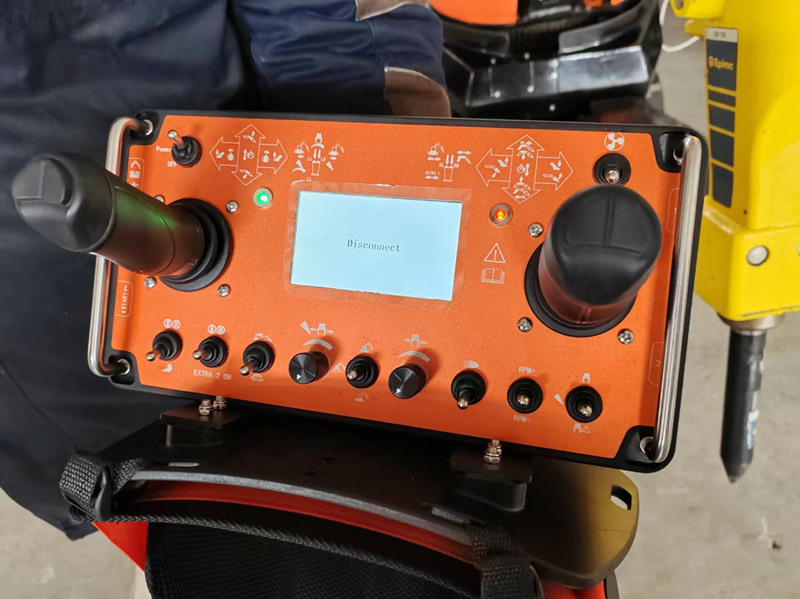

Wireless remote control

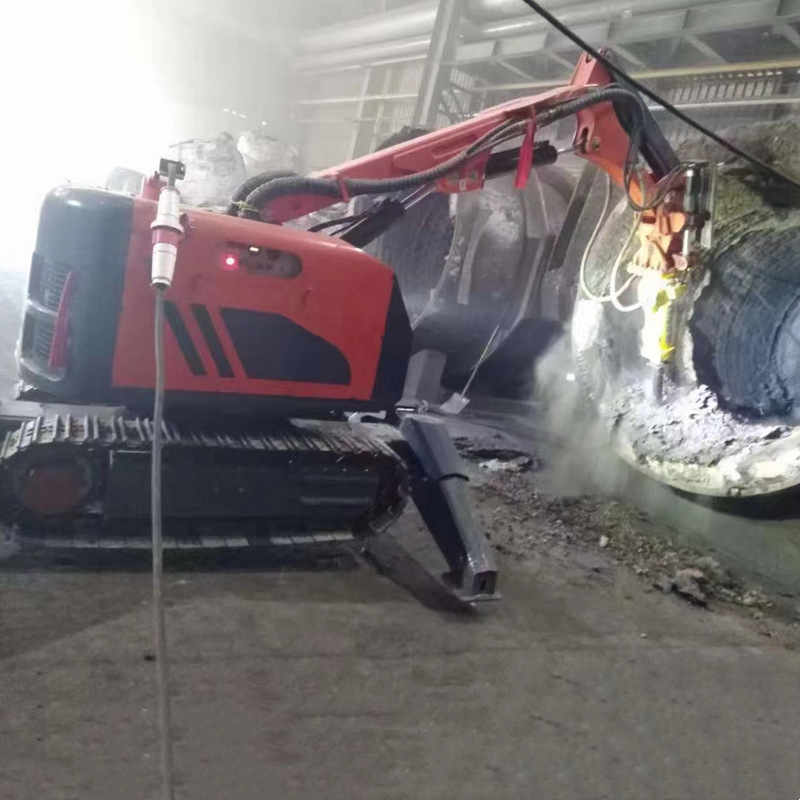

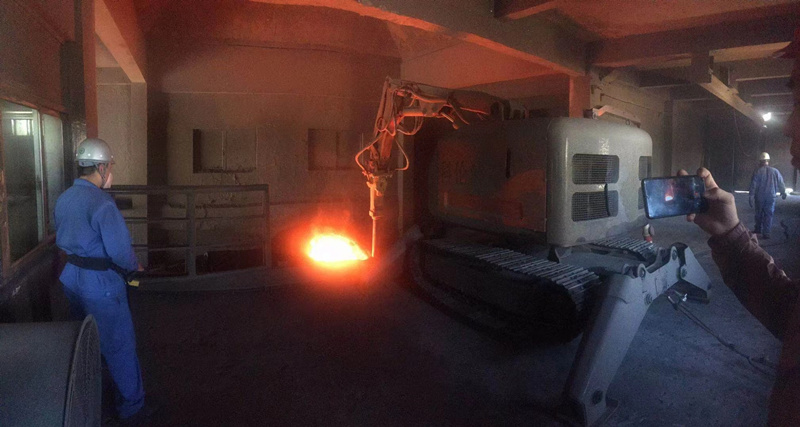

ProDemo™ appplication: removal of kiln head casting materials kiln in cement industry
ProDemo™ are widely used in steel-copper-lead-zinc smelting, metallurgical Industry Applications

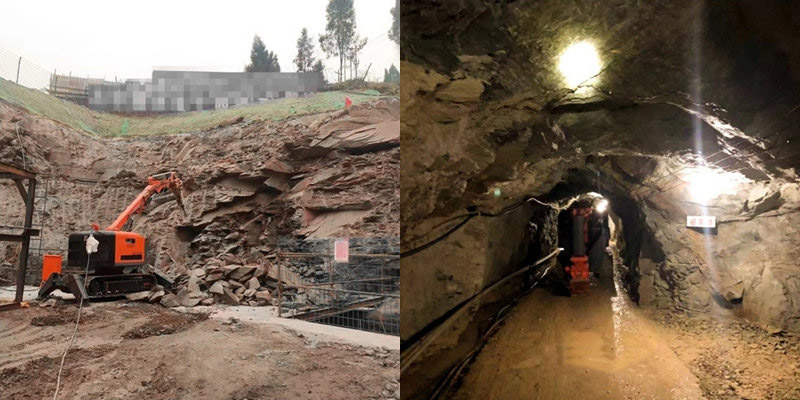

ProDemo™ are extensively used in tunnel excavation, rock demoltion, building, stair removals
