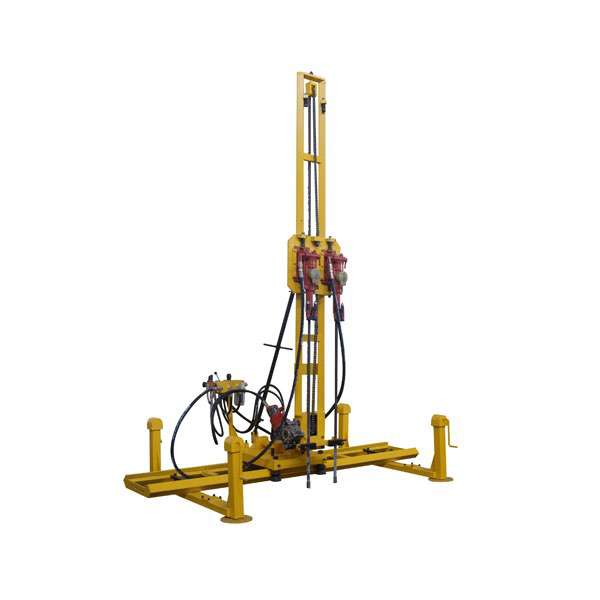

YT29A-2H Pneumatic Mobile Rock Drills with 2 Hammers
- Rock driller/Hammer: YT29A*2
- Rated Track Length: 2*3m
- Max. Drilling Depth: 6m
- Drilling Diameter: Φ34mm~Φ42mm
- Minimum Air Pressure: 0.5-0.7MPa
- Drilling Speed: 2*30m/h
- Total Compressed Air Consumption: 10m3/min
- Track Travel: 2.5mm
ProDrill Model YT29A-2H Pneumatic Mobile Rock Drills powered by air compressor with FAD of 12 M3/ Min for vertical and horizontal drilling32-42mm hole in natural dimensional stone quarries.

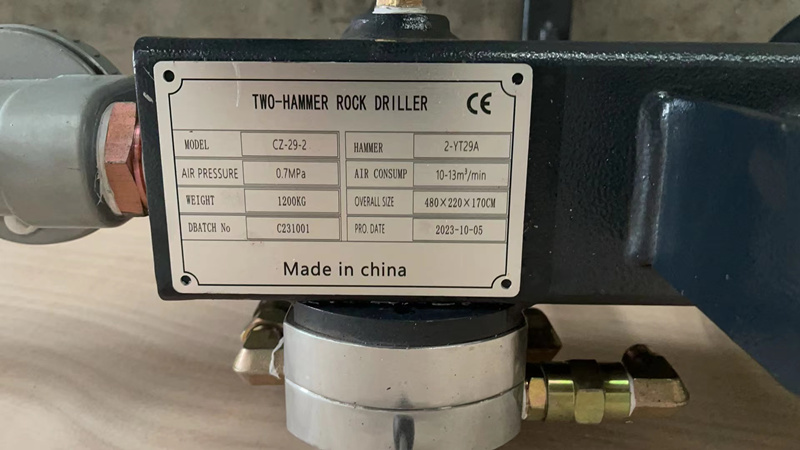

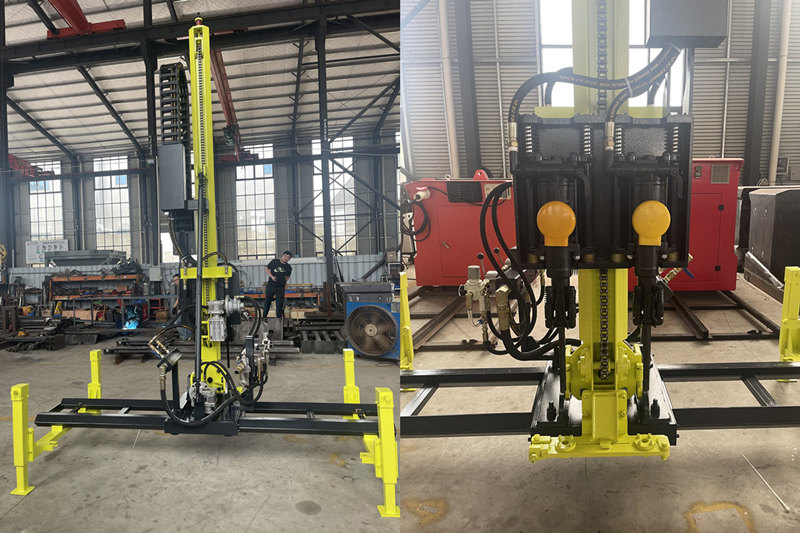

Two-Hammer Rock Driller
Multifunctional rock driller is mainly used in quarrying, available for horizontal, vertical, and slantwise drilling, and dividing large blocks into smaller pieces.

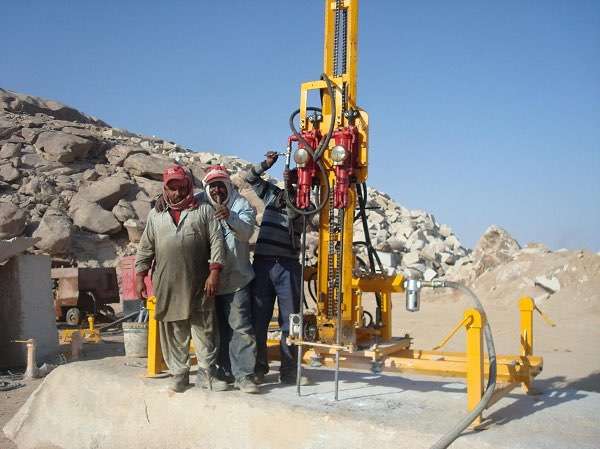

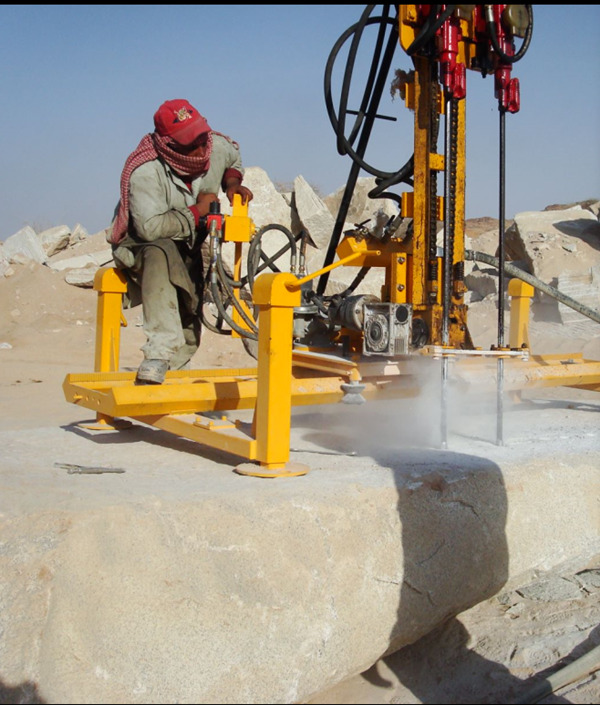

Pneumatic mobile rock drill for quarry
Rock drilling tools manufacturer ProDrill now offers 3 kinds of pneumatic mobile rock drills for quarries, also can design as customers\' requirements.
1. Light-weight mobile rock drill, equipped with 1 rock drill YT29A. For both vertical drilling and horizontal drilling.
2. Medium-weight mobile rock drill, equipped with 2 rock drills YT29A . For both vertical drilling and horizontal drilling.
3. Heavy-weight mobile rock drill, equipped with 4 hammers YT29A. For vertical drilling only.
The pneumatic mobile rock drill has following advantages:
1. Helps you to drill holes on a straight line, so you can save the blocks, increasing the daily output.
2. High drilling efficiency and low energy consumption, low maintenance cost.
3. Automatically operate, save labor force,
4. Can reduce your quarry drilling cost, and increase quarrying efficiency.
| Specifications | YT29A-2H | YT29A-1H | YT29A-4H |
| 2 Hammers | Single Hammer | 4 Hammers | |
| Drilling Diameter | Φ34mm-42mm | Φ34mm-42mm | Φ34mm-42mm |
| Drilling Depth | Max.6m | Max.6m | Max.6m |
| Drilling Speed | 2X30m/h | 20m/h | 4X20m/h |
| Single feed stroke | 2m | 2m | 3m |
| Lifting Force | 1600kg | 1100kg | 1600kg |
| Air Consumption | 10-13m3/min | 7-9m3/min | 18-20m3/min |
| Working Air Pressure | 0.5-0.7MPa | 0.5-0.7MPa | 0.5-0.7MPa |
| Equipped Rock Drill | YT29A | YT29A | YT29A |
| Impact Frequency | ≥35HZ | ≥35HZ | ≥37HZ |
| Rail Travel | 2-3m | 3m | 2-3m |
| Lifting Power Rate | 3kw | 1.5kw | 3kw |
| Compatible Drill Rod | H22X108 | H22X108 | H22X108 |
| L=1,1.6,2 | L=1,1.6,2 | L=1,1.6,2 | |
| Lifting adjustment | Lifting frame adjustment | Screw adjustment | Lifting frame adjustment |
| Drilling Direction | Vetical/incline(Max.15 degree) | Vetical/Horizontal | Vetical/incline(Max.15 degree) |
| Weight | 1000kg | 500kg | 1200kg |
| Drilling hole NO. | 2 | 1 | 4 |
| Dimension(L*W*H) | 3000*1835*3650mm | 3000*1835*3650mm | 3000*2150*4450mm |
For drawing please watch PDF online: drawing of CZH-29-2B
