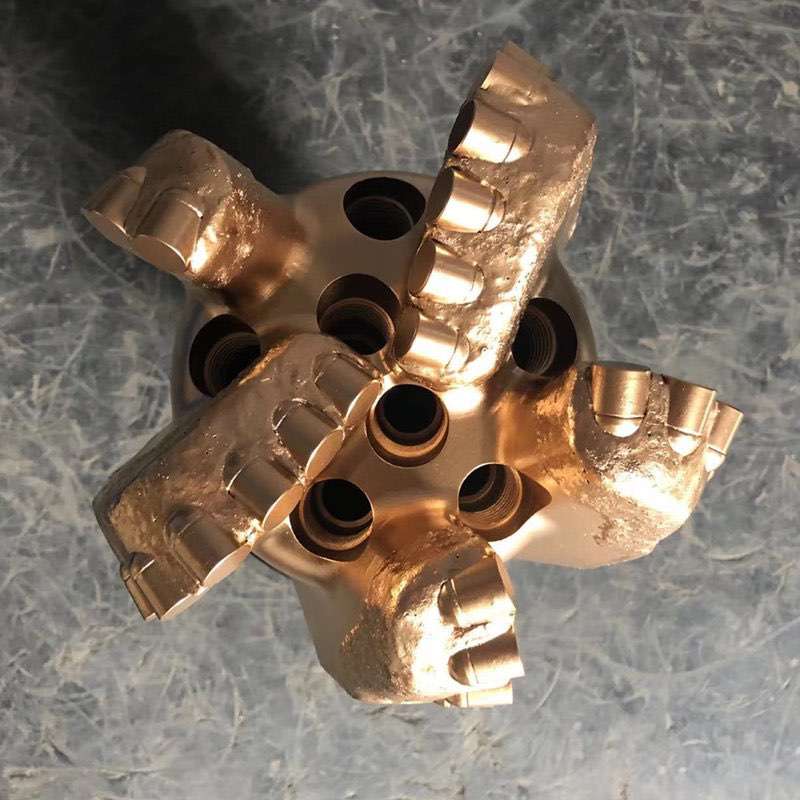

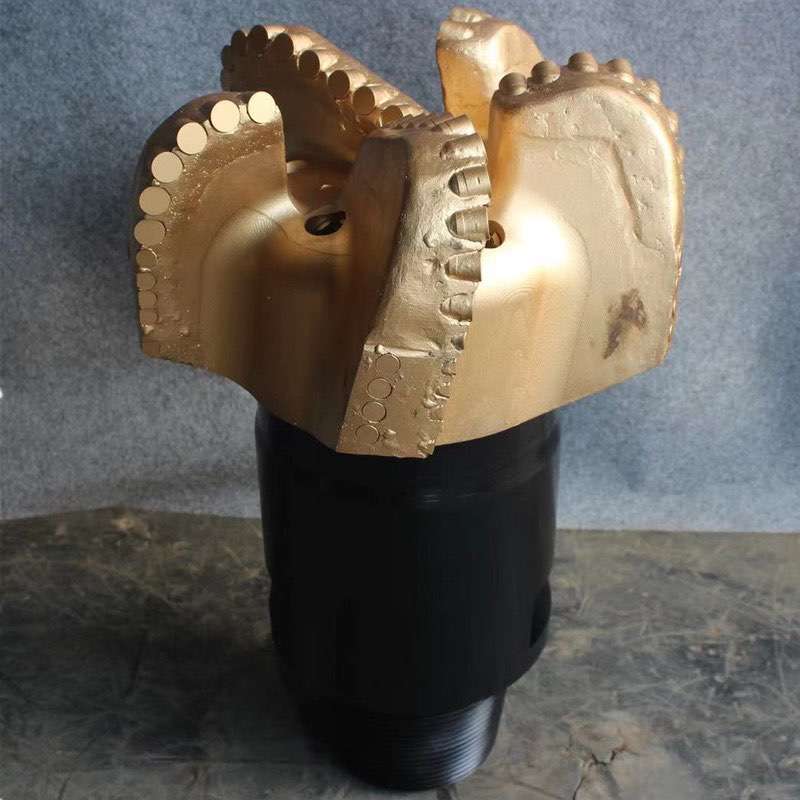

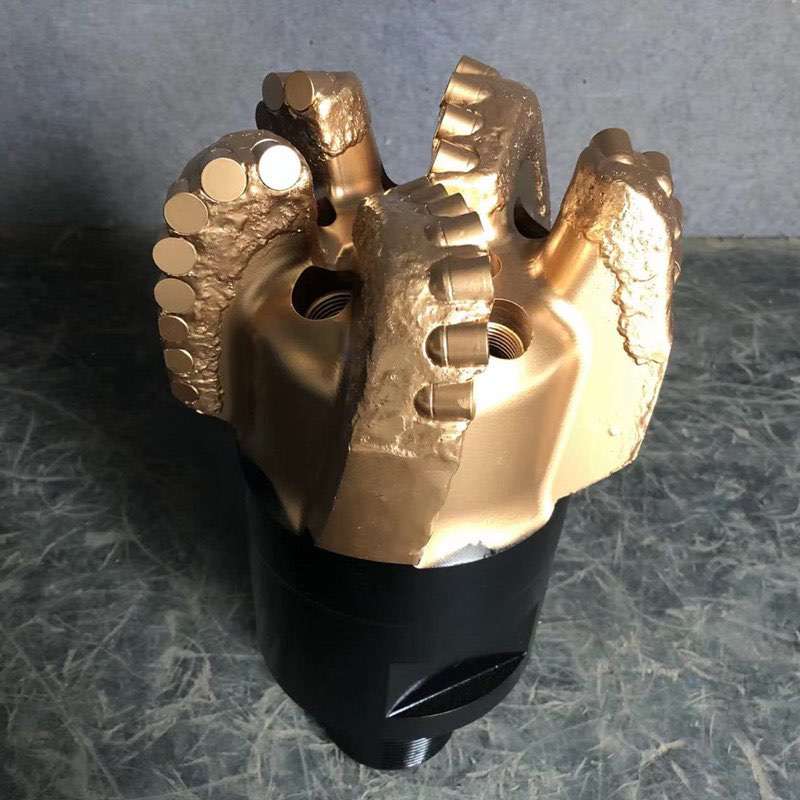

12 1/4 '' 5 Blades PDC Bit Matrix Body 6 5/8 '' API REG PIN
- Diameter:311 mm
- Blade Qty:5pcs
- Body type:matrix
- Thread type:6 5/8
12 1/4 " 5 Blades PDC Bit Matrix Body 6 5/8 " API REG PIN
Rock drilling tools manufacturer ProDrill: PDC (Poly-Crystalline Diamond Compact/Composite) drill bits are an effective tool for drilling into homogeneous sedimentary rock formations such as shale, sandstone, dolomite, limestone etc. These rotary drilling bits use the shearing scraping or shaving action when encountering the rock formation. PDC bits are the most rigid of all the diamond tool materials. They are made by combining layers of Poly-Crystalline Diamond (Synthetic Diamond) with substrate of carbide at high temperature and pressure.
Diameter:311 mm
Blade Qty:5pcs
Body type:matrix
Thread type:6 5/8
ProDrill manufactures high quality PDC bits which have been specially designed to withstand higher impact and abrasion. Our PDC bits are of premium quality being used extensively in water bore drilling, oil and gas exploration.
1. Dia.65mm 75mm 89mm 94mm, 110mm, 112mm 127mm,140mm,152mm,165mm,178mm,190mm.
2. super hard material combined with diamond and hard alloy under high temperature
3. Polycrystalline diamond compacts
PDC drill bit is super hard material combined with diamond and hard alloy under high temperature. It not only has the advantages of hard and durable from diamond, but also has the advantages of high impact resistance and big blade from hard alloy. I t greatly improve the drilling efficiency and is the ideal drill bit for the drill operation of medium &hard as well as super hard rock.
The carrier of PDC bits is forged and pressed by first -class steel. Its mechanical capacity is strengthen by fully automatic vacuum heat treatment equipment.
The ordinary type adopts Chinese PDC as its blade, while the super-strong type adopts American blade by GE. Choosing proper type makes high ratio of performance and price.
Our PDC drill bits are widely used in all industries, such as coal mining, oil exploration, geological exploration, water and hydroelectric, railway and road, tunneling construction and so on.
Two-wing PDC anchor bits(semi-round standard type) is applied to the hardness not bigger than f8.The working life is 10-30 times of the ordinary alloy bits, and the efficiency could be improved by 60%.Besides, the PDC bits do not require figuring, which lows the labor intensity and helps to save cost.
GE, American company, produces the main material of blade for two-wing PDC anchor bits (semi round strengthened type).The diamond content is 1.5 times of the ordinary bits, which has excellent abrasive resistance and applied to medium and hard rock(f<12).
Super strengthened PDC bits adopts newly designed ball type diamonds its blade. Features: fast drilling speed, high impact resistance.
When the drill bits work, the edge is used to cut ordinary and symmetrical formation, while the ledge acts as cushioning to avoid huge drilling footage, which helps to low the possibility of damage. Thanks to that, the drilling level of complicated is improved.
| Drilling parameter | ||||
| No. | Dia.mm | Drilling pressure (Kg) | Rotate speed (rpm) | Pump volume(1/min) |
| 1 | 28 | 300-700 | 300-500 | 150-200 |
| 2 | 30 | 300-700 | 300-500 | 150-200 |
| 3 | 32 | 300-700 | 300-500 | 150-200 |
| 4 | 48 | 300-700 | 300-500 | 120-160 |
| 5 | 56 | 320-800 | 250-350 | 130-180 |
| 6 | 75 | 480-1200 | 200-300 | 150-200 |
| 7 | 94 | 640-1600 | 150-250 | 200-250 |
| 8 | 110 | 880-2200 | 120-200 | 200-300 |
| 9 | 152 | 1500-3000 | 100-200 | 500-850 |
| 10 | 190 | 1800-4000 | 100-200 | 600-1200 |
| 11 | 230 | 2200-4500 | 100-200 | 750-1400 |
| 12 | 270 | 2400-5000 | 100-200 | 1000-1500 |
